Thingsboard -- gateway接入MQTT设备

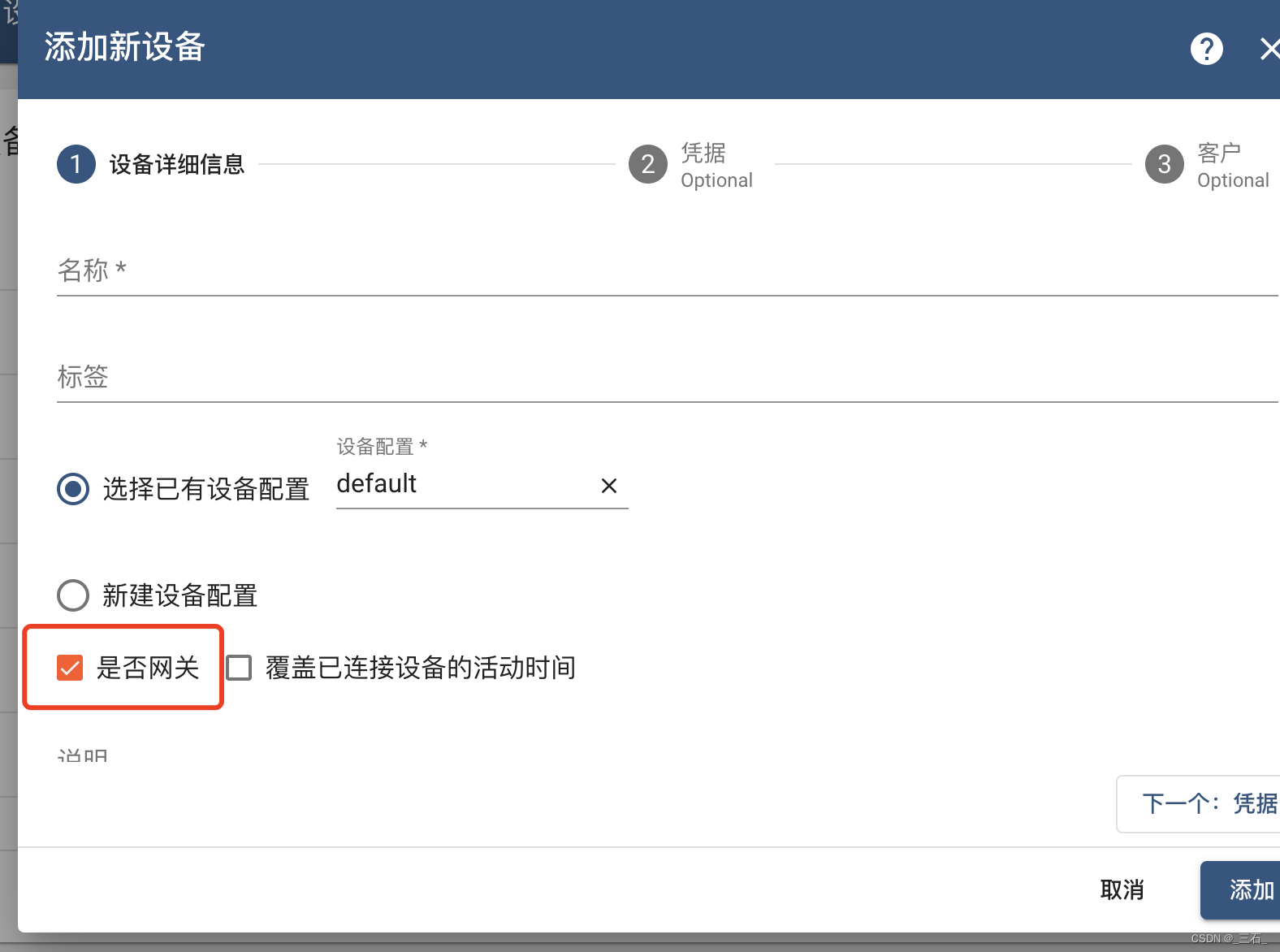

登录TB控制台，创建一个网关设备

docker安装thingsboard gateway

docker run -p 1883:1883 -it -v ~/.tb-gateway/logs:/thingsboard_gateway/logs -v ~/.tb-gateway/extensions:/thingsboard_gateway/extensions -v ~/.tb-gateway/config:/thingsboard_gateway/config --name tb-gateway --restart always thingsboard/tb-gateway

修改配置文件

• 复制网关设备令牌写入到网关下面的tb_gateway.yaml文件中的accessToken字段后面

thingsboard:
  host: 192.168.0.214
  port: 1884
  remoteShell: false
  remoteConfiguration: false
  statsSendPeriodInSeconds: 3600
  minPackSendDelayMS: 0
  checkConnectorsConfigurationInSeconds: 60
  security:
    accessToken: 4atkBmZUVDSnhaVX2FS3
  qos: 1

• 配置网关下面的mqtt.json文件

"broker": {
    "name": "Default Local Broker",
    "host": "192.168.0.16",
    "port": 1883,
    "clientId": "ThingsBoard_gateway",
    "maxMessageNumberPerWorker": 10,
    "maxNumberOfWorkers": 100,
    "security": {
      "type": "basic",
      "username": "admin",
      "password": "public"
    }
  },

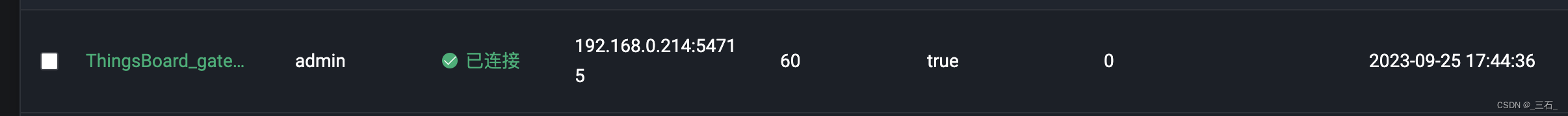

• 重启网关服务，观察网关服务是否连接到mqtt服务

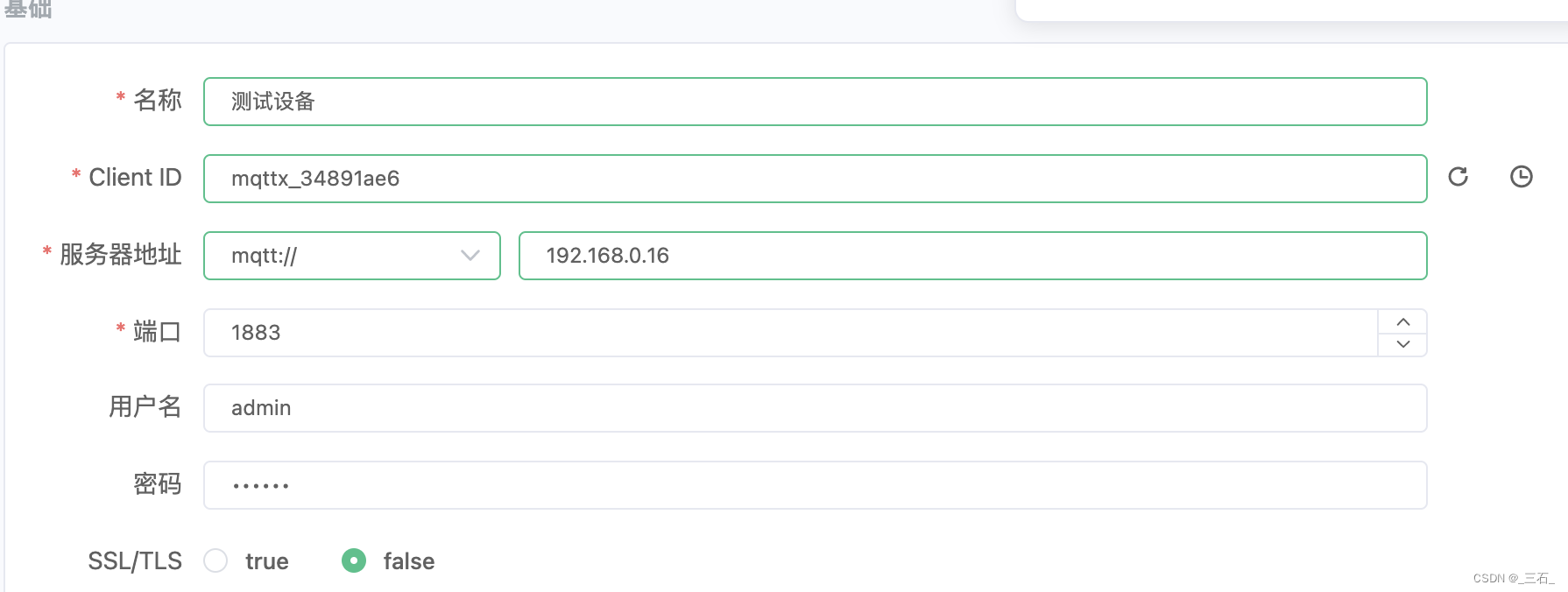

• 使用MQTT Box模拟设备

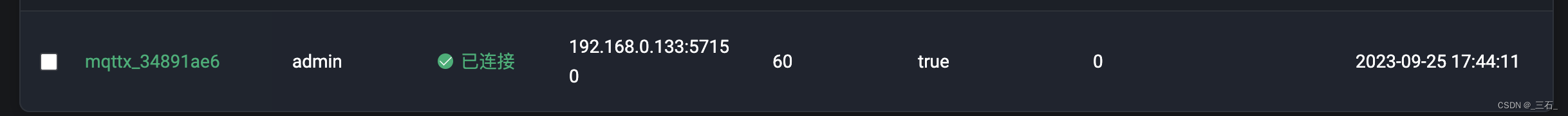

• 查看模拟设备是否连接上MQTT

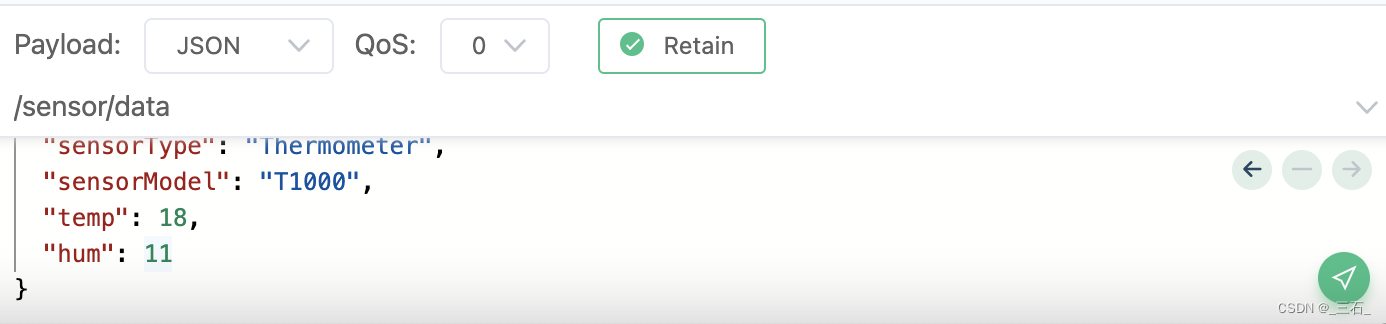

• 使用MQTT Box向“/sensor/data”Topic发送以下测试数据

{"serialNumber": "SN-001", "sensorType": "Thermometer", "sensorModel": "T1000", "temp": 18, "hum": 11}

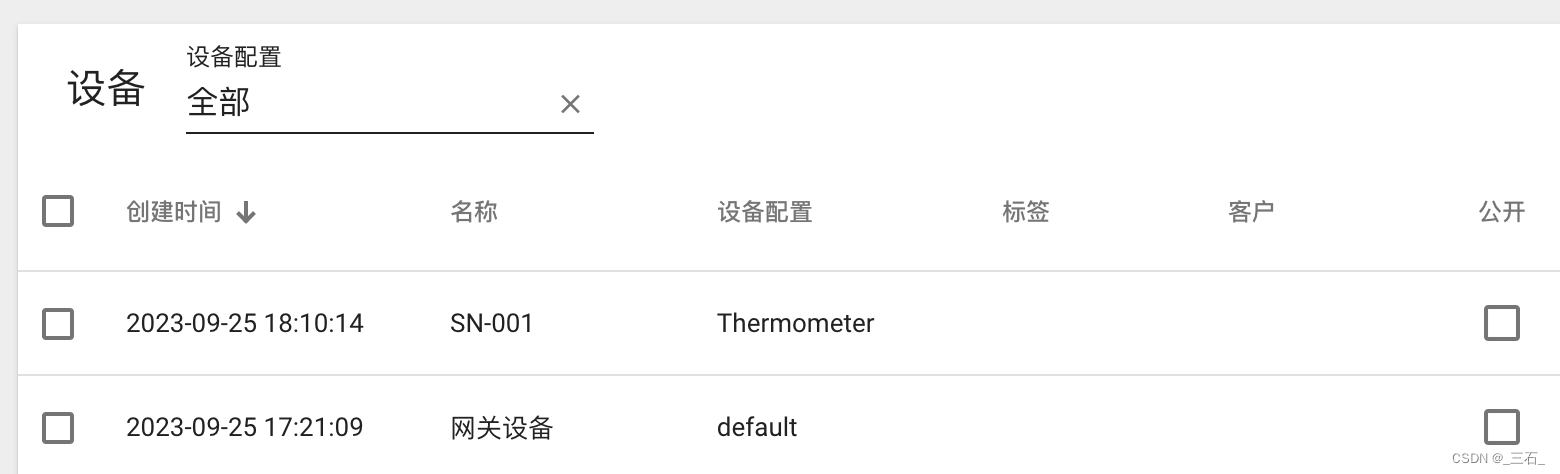

- 查看Thingsboard 设备页面新增了设备SN-001
