Android自定义相机布局

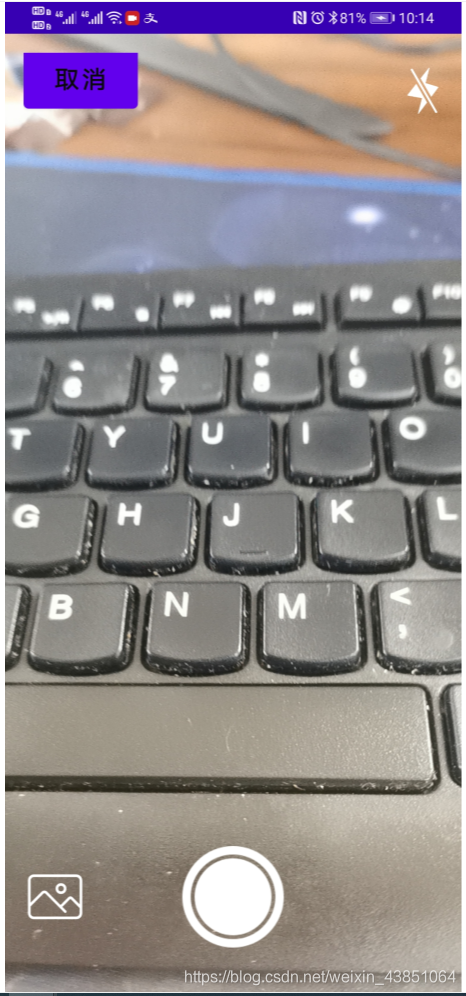

先看效果图：

GitHub Demo 地址 ：https://github.com/liudeangit/CustomCamera

1.添加依赖

gradle.properties文件下加入android.enableJetifier=true可以混合支持库

android.enableJetifier=true

build.gradle下添加下载库

plugins {
    id 'com.android.application'
}

android {
    compileSdkVersion 30
    buildToolsVersion "30.0.3"

    defaultConfig {
        applicationId "com.axs.camera"
        minSdkVersion 26
        targetSdkVersion 30
        versionCode 1
        versionName "1.0"

        testInstrumentationRunner "androidx.test.runner.AndroidJUnitRunner"
    }

    buildTypes {
        release {
            minifyEnabled false
            proguardFiles getDefaultProguardFile('proguard-android-optimize.txt'), 'proguard-rules.pro'
        }
    }
    compileOptions {
        sourceCompatibility JavaVersion.VERSION_1_8
        targetCompatibility JavaVersion.VERSION_1_8
    }
}

dependencies {

    implementation 'androidx.appcompat:appcompat:1.2.0'
    implementation 'com.google.android.material:material:1.2.1'
    implementation 'androidx.constraintlayout:constraintlayout:2.0.1'
    testImplementation 'junit:junit:4.+'
    androidTestImplementation 'androidx.test.ext:junit:1.1.2'
    androidTestImplementation 'androidx.test.espresso:espresso-core:3.3.0'


    //弹框视图
    api 'com.github.RmondJone:SpringDiaLog:1.0.6'
    api 'com.github.bumptech.glide:glide:3.7.0'
    //权限申请
    api 'com.yanzhenjie:permission:2.0.0-rc11'
}

AndroidManifest.xml下加入权限支持

<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools"
    package="com.axs.camera">
    <!-- 增加网络权限 -->
    <uses-permission android:name="android.permission.INTERNET" />
    <!-- 增加文件存储和访问摄像头的权限 -->
    <uses-permission android:name="android.permission.WRITE_EXTERNAL_STORAGE" />
    <uses-permission android:name="android.permission.READ_EXTERNAL_STORAGE" />
    <uses-permission android:name="android.permission.CAMERA" /> <!-- 闪光灯权限 -->
    <uses-permission android:name="android.permission.FLASHLIGHT" />

    <uses-permission
        android:name="android.permission.WRITE_SETTINGS"
        tools:ignore="ProtectedPermissions" />

    <uses-feature android:name="android.hardware.camera" />
    <uses-feature android:name="android.hardware.camera.autofocus" /> <!-- region 适配全面屏 -->
    <meta-data
        android:name="android.max_aspect"
        android:value="2.4" /> <!-- 刘海屏适配 -->
    <!--
由于目前市面上刘海屏各家一套，没有按照Android P官方进行适配，所以暂时不做刘海屏适配处理。
    大部分厂家都已经对没有适配刘海屏的应用有自己的一套处理逻辑，我们的应用基本可以在大部分刘海屏手机上正常显示！
    -->
    <!-- 华为刘海区域展示 -->
    <meta-data
        android:name="android.notch_support"
        android:value="true" /> <!-- 小米刘海区域展示 -->
    <meta-data
        android:name="notch.config"
        android:value="portrait" />

    <application
        android:allowBackup="true"
        android:requestLegacyExternalStorage="true"
        android:icon="@mipmap/ic_launcher"
        android:label="@string/app_name"
        android:roundIcon="@mipmap/ic_launcher_round"
        android:supportsRtl="true"
        android:theme="@style/Theme.Camera">
        <activity android:name=".MainActivity3"></activity>
        <activity android:name=".MainActivity2" />
        <activity android:name=".MainActivity">
            <intent-filter>
                <action android:name="android.intent.action.MAIN" />

                <category android:name="android.intent.category.LAUNCHER" />
            </intent-filter>
        </activity>

<!--        <provider-->
<!--            android:name="androidx.core.content.FileProvider"-->
<!--            android:authorities="${applicationId}"-->
<!--            android:exported="false"-->
<!--            android:grantUriPermissions="true">-->
<!--            <meta-data-->
<!--                android:name="android.support.FILE_PROVIDER_PATHS"-->
<!--                android:resource="@xml/file_provider_paths"-->
<!--                tools:replace="android:resource" />-->
<!--        </provider>-->
        <provider
            android:name="androidx.core.content.FileProvider"
            android:authorities="com.example.cameraalbumtests.fileprovider"
            android:exported="false"
            android:grantUriPermissions="true">
            <meta-data
                android:name="android.support.FILE_PROVIDER_PATHS"
                android:resource="@xml/file_provider_paths" />
        </provider>
    </application>

</manifest>

res下新建xml包，包下面创建file_provider_paths文件

<?xml version ="1.0" encoding ="utf-8"?>
<paths xmlns:android="http://schemas.android.com/apk/res/android">
    <external-path
        name="my_images"
        path=""><!--path为空时表示将整个SD卡进行共享，这里会报错，不影响结果-->
    </external-path>
</paths>

2.布局

activity_main.xml

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:orientation="vertical"
    tools:context=".MainActivity">

    <Button
        android:id="@+id/gotoCamare"
        android:layout_gravity="center"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_marginTop="20dp"
        android:layout_marginBottom="50dp"
        android:onClick="gotoCamare"
        android:text="点击拍照" />


</LinearLayout>

activity_main2.xml

<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    tools:context=".MainActivity2">

    <FrameLayout
        android:id="@+id/camera_preview_layout"
        android:layout_width="match_parent"
        android:layout_height="match_parent" />

    <!--顶部视图-->
    <LinearLayout
        android:id="@+id/up_layout"
        android:layout_width="match_parent"
        android:layout_height="80dp"
        android:gravity="bottom"
        android:orientation="horizontal"
        android:padding="15dp">

        <Button
            android:id="@+id/cancle_button"
            android:layout_width="90dp"
            android:layout_height="60dp"
            android:layout_centerVertical="true"
            android:background="@null"
            android:text="取消"
            android:textColor="#0A0909"
            android:textSize="20sp"/>

        <ImageView
            android:id="@+id/flash_button"
            android:layout_width="50dp"
            android:layout_marginLeft="200dp"
            android:layout_height="40dp"
            android:src="@mipmap/flash_close" />
    </LinearLayout>


    <!--底部拍照按钮-->
    <RelativeLayout
        android:id="@+id/ll_photo_layout"
        android:layout_width="match_parent"
        android:layout_height="150dp"
        android:layout_alignParentBottom="true"
        android:padding="15dp"
        android:visibility="visible">

        <ImageView
            android:id="@+id/gallerys"
            android:layout_width="50dp"
            android:layout_height="50dp"
            android:layout_centerVertical="true"
            android:src="@mipmap/photo" />
        <ImageView
            android:id="@+id/take_photo_button"
            android:layout_width="80dp"
            android:layout_height="80dp"
            android:layout_centerInParent="true"
            android:src="@mipmap/take_button" />
    </RelativeLayout>
</RelativeLayout>

3.代码

MainActivity

package com.axs.camera;

import androidx.annotation.Nullable;
import androidx.appcompat.app.AppCompatActivity;

import android.app.Activity;
import android.content.Context;
import android.content.Intent;
import android.graphics.Bitmap;
import android.net.Uri;
import android.os.Bundle;
import android.view.View;
import android.widget.ImageView;
import android.widget.Toast;

import com.axs.camera.crop.view.CropImageView;
import com.yanzhenjie.permission.AndPermission;
import com.yanzhenjie.permission.Permission;

import java.io.File;

public class MainActivity extends AppCompatActivity {


    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);

    }

    /**
     * 启动拍照界面
     *
     */
    public void gotoCamare(View view) {
        PermissionUtils.applicationPermissions(MainActivity.this, new PermissionUtils.PermissionListener() {
            @Override
            public void onSuccess(Context context) {
                Intent intent = new Intent(MainActivity.this, MainActivity2.class);
                MainActivity.this.startActivity(intent);
            }

            @Override
            public void onFailed(Context context) {
                if (AndPermission.hasAlwaysDeniedPermission(context, Permission.Group.CAMERA)
                        && AndPermission.hasAlwaysDeniedPermission(context, Permission.Group.STORAGE)) {
                    AndPermission.with(context).runtime().setting().start();
                }
                Toast.makeText(context, context.getString(R.string.permission_camra_storage), Toast.LENGTH_SHORT);
            }
        }, Permission.Group.STORAGE, Permission.Group.CAMERA);
    }
}

MainActivity2

package com.axs.camera;

import androidx.annotation.Nullable;
import androidx.appcompat.app.AppCompatActivity;
import androidx.core.app.ActivityCompat;
import androidx.core.content.ContextCompat;

import android.Manifest;
import android.annotation.TargetApi;
import android.app.Activity;
import android.content.ContentUris;
import android.content.Context;
import android.content.Intent;
import android.content.pm.PackageManager;
import android.database.Cursor;
import android.graphics.Bitmap;
import android.graphics.BitmapFactory;
import android.hardware.Camera;
import android.net.Uri;
import android.os.Build;
import android.os.Bundle;
import android.os.Environment;
import android.os.Handler;
import android.provider.DocumentsContract;
import android.provider.MediaStore;
import android.text.format.DateFormat;
import android.view.MotionEvent;
import android.view.View;
import android.widget.Button;
import android.widget.FrameLayout;
import android.widget.ImageView;
import android.widget.LinearLayout;
import android.widget.RelativeLayout;
import android.widget.Toast;

import com.axs.camera.crop.view.CropImageView;
import com.newland.springdialog.AnimSpring;
import com.yanzhenjie.permission.AndPermission;
import com.yanzhenjie.permission.Permission;

import java.io.ByteArrayOutputStream;
import java.io.File;
import java.io.FileOutputStream;
import java.io.IOException;
import java.text.SimpleDateFormat;
import java.util.Calendar;
import java.util.Date;
import java.util.Locale;

public class MainActivity2 extends AppCompatActivity implements View.OnClickListener{

    public static final int CHOOSE_PHOTO = 2;
    public static final String KEY_IMAGE_PATH = "imagePath";
    /**
     * 相机预览
     */
    private FrameLayout mPreviewLayout;
    /**
     * 拍摄按钮视图
     */
    private RelativeLayout mPhotoLayout;

    /**
     * 顶部视图
     */
    private LinearLayout upLayout;


    /**
     * 闪光灯
     */
    private ImageView mFlashButton;
    /**
     * 拍照按钮
     */
    private ImageView mPhotoButton;
    /**
     * 聚焦视图
     */
    private OverCameraView mOverCameraView;
    /**
     * 相机类
     */
    private Camera mCamera;
    /**
     * Handle
     */
    private Handler mHandler = new Handler();
    private Runnable mRunnable;
    /**
     * 取消按钮
     */
    private Button mCancleButton;
    /**
     * 是否开启闪光灯
     */
    private boolean isFlashing;
    /**
     * 图片流暂存
     */
    private byte[] imageData;
    /**
     * 拍照标记
     */
    private boolean isTakePhoto;
    /**
     * 是否正在聚焦
     */
    private boolean isFoucing;

    /**
     * 图库按钮
     */
    private ImageView gallery;



    @Override
    protected void onCreate(@Nullable Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main2);
        initView();
        setOnclickListener();
    }


    /**
     * 注释：初始化视图
     */
    private void initView() {
        mCancleButton = findViewById(R.id.cancle_button);
        mPreviewLayout = findViewById(R.id.camera_preview_layout);
        mPhotoLayout = findViewById(R.id.ll_photo_layout);
        mPhotoButton = findViewById(R.id.take_photo_button);
        mFlashButton = findViewById(R.id.flash_button);
        gallery = findViewById(R.id.gallerys);
        upLayout = findViewById(R.id.up_layout);
    }

    @Override
    protected void onResume() {
        super.onResume();
        mCamera = Camera.open(Camera.CameraInfo.CAMERA_FACING_BACK);
        CameraPreview preview = new CameraPreview(this, mCamera);
        mOverCameraView = new OverCameraView(this);
        mPreviewLayout.addView(preview);
        mPreviewLayout.addView(mOverCameraView);
    }




    /**
     * 注释：设置监听事件
     */
    private void setOnclickListener() {
        mCancleButton.setOnClickListener(this);
        mFlashButton.setOnClickListener(this);
        mPhotoButton.setOnClickListener(this);
        gallery.setOnClickListener(this);
    }

    @Override
    public boolean onTouchEvent(MotionEvent event) {
        if (event.getAction() == MotionEvent.ACTION_DOWN) {
            if (!isFoucing) {
                float x = event.getX();
                float y = event.getY();
                isFoucing = true;
                if (mCamera != null && !isTakePhoto) {
                    mOverCameraView.setTouchFoucusRect(mCamera, autoFocusCallback, x, y);
                }
                mRunnable = () -> {
                    Toast.makeText(MainActivity2.this, "自动聚焦超时,请调整合适的位置拍摄！", Toast.LENGTH_SHORT);
                    isFoucing = false;
                    mOverCameraView.setFoucuing(false);
                    mOverCameraView.disDrawTouchFocusRect();
                };
                //设置聚焦超时
                mHandler.postDelayed(mRunnable, 3000);
            }
        }
        return super.onTouchEvent(event);
    }

    /**
     * 注释：自动对焦回调
     */
    private Camera.AutoFocusCallback autoFocusCallback = new Camera.AutoFocusCallback() {
        @Override
        public void onAutoFocus(boolean success, Camera camera) {
            isFoucing = false;
            mOverCameraView.setFoucuing(false);
            mOverCameraView.disDrawTouchFocusRect();
            //停止聚焦超时回调
            mHandler.removeCallbacks(mRunnable);
        }
    };

    /**
     * 注释：拍照并保存图片到相册
     */
    private void takePhoto() {
        isTakePhoto = true;
        //调用相机拍照
        mCamera.takePicture(null, null, null, (data, camera1) -> {
            //视图动画
            upLayout.setVisibility(View.GONE);//关闭顶部视图
            mPhotoLayout.setVisibility(View.GONE);//底部拍照按钮
            imageData = data;
            //停止预览
            mCamera.stopPreview();
            //保存后进行裁剪
            savePhoto();
        });
    }

    /**
     * 注释：切换闪光灯
     */
    private void switchFlash() {
        isFlashing = !isFlashing;
        mFlashButton.setImageResource(isFlashing ? R.mipmap.flash_open : R.mipmap.flash_close);
        AnimSpring.getInstance(mFlashButton).startRotateAnim(120, 360);
        try {
            Camera.Parameters parameters = mCamera.getParameters();
            parameters.setFlashMode(isFlashing ? Camera.Parameters.FLASH_MODE_TORCH : Camera.Parameters.FLASH_MODE_OFF);
            mCamera.setParameters(parameters);
        } catch (Exception e) {
            Toast.makeText(this, "该设备不支持闪光灯", Toast.LENGTH_SHORT);
        }
    }

    /**
     * 注释：取消保存
     */
    private void cancleSavePhoto() {
        upLayout.setVisibility(View.VISIBLE);
        mPhotoLayout.setVisibility(View.VISIBLE);
        AnimSpring.getInstance(mPhotoLayout).startRotateAnim(120, 360);
        //开始预览
        mCamera.startPreview();
        imageData = null;
        isTakePhoto = false;
    }

    @Override
    public void onClick(View v) {
        int id = v.getId();
        System.out.println(id);
        if (id == R.id.cancle_button) {
            finish();
        } else if (id == R.id.take_photo_button) {
            if (!isTakePhoto) {
                takePhoto();
            }
        } else if (id == R.id.flash_button) {
            switchFlash();
        } else if (id == R.id.save_button) {
            savePhoto();
        } else if (id == R.id.cancle_save_button) {
            cancleSavePhoto();
        }else if(id == R.id.gallerys){
            aa();
        }
    }




    /**
     * 注释：保存图片
     */
    private void savePhoto() {
        FileOutputStream fos = null;
        //获取路径
        String name = DateFormat.format("yyyyMMdd_hhmmss", Calendar.getInstance(Locale.CHINA)) + ".jpg";
        FileOutputStream outputStream = null;
        String printTxtPath = getApplicationContext().getFilesDir().getAbsolutePath();//当前程序路径
        File file = new File(printTxtPath);
        if (!file.exists()) {
            file.mkdirs();// 创建文件夹
        }
        String imagePath = printTxtPath + name;
        File imageFile = new File(imagePath);
        try {
            fos = new FileOutputStream(imageFile);
            fos.write(imageData);
        } catch (Exception e) {
            e.printStackTrace();
        } finally {
            if (fos != null) {
                try {
                    fos.close();
                    Bitmap retBitmap = BitmapFactory.decodeFile(imagePath);
                    retBitmap = BitmapUtils.setTakePicktrueOrientation(Camera.CameraInfo.CAMERA_FACING_BACK, retBitmap);
                    BitmapUtils.saveBitmap(retBitmap, imagePath);
                    //跳转至裁剪
                    Intent intent = new Intent(getApplicationContext(),MainActivity3.class);
                    intent.putExtra(KEY_IMAGE_PATH, imagePath);
                    startActivity(intent);
                } catch (IOException e) {
                    setResult(RESULT_FIRST_USER);
                    e.printStackTrace();
                }
            }
            finish();

        }
    }


    /**
     * 图库
     * */
    public void aa(){
        //动态申请读取SD卡权限
        if (ContextCompat.checkSelfPermission(MainActivity2.this, Manifest.permission.WRITE_EXTERNAL_STORAGE) != PackageManager.PERMISSION_GRANTED) {
            ActivityCompat.requestPermissions(MainActivity2.this, new String[]{Manifest.permission.WRITE_EXTERNAL_STORAGE}, 1);
        } else {
            openAlbum();
        }
    }

    private void openAlbum() {
        Intent intent = new Intent("android.intent.action.GET_CONTENT");
        intent.setType("image/*");
        startActivityForResult(intent, CHOOSE_PHOTO); //打开相册
    }

    @Override
    public void onRequestPermissionsResult(int requestCode, String[] permissions, int[] grantResults){
        switch (requestCode){
            case 1:
                if (grantResults.length > 0 && grantResults[0] == PackageManager.PERMISSION_GRANTED){
                    openAlbum();
                }else{
                    Toast.makeText(this,"You denied the permission", Toast.LENGTH_SHORT).show();
                }
                break;
            default:
        }
    }

    //Overriding method should call super.onActivityResult
    @Override
    protected void onActivityResult(int requestCode, int resultCode, Intent data) {
        super.onActivityResult(requestCode, resultCode, data);
        System.out.println("99999999999999999999999999999999999966666666666666");
        if (resultCode == RESULT_OK) {
            //判断手机系统版本号
            if (Build.VERSION.SDK_INT >= 19) {
                //4.4及以上系统使用这个方法处理图片
                handleImageOnKitKat(data);
            } else {
                handleImageBeforeKitKat(data);
            }
        }
    }

    public byte[] UriToByte(Uri uri){
        Bitmap bitmap1 = null;
        try {
            bitmap1 = MediaStore.Images.Media.getBitmap(this.getContentResolver(), uri);
        } catch (IOException e) {
            e.printStackTrace();
        }

        int size = bitmap1.getWidth() * bitmap1.getHeight() * 4;
        ByteArrayOutputStream baos = new ByteArrayOutputStream(size);
        bitmap1.compress(Bitmap.CompressFormat.PNG, 100, baos);
        byte[] imagedata1 = baos.toByteArray();

        return  imagedata1;
    }
    @TargetApi(19)
    private void handleImageOnKitKat(Intent data){
        String imagePath = null;
        Uri uri = data.getData();
        if(DocumentsContract.isDocumentUri(this,uri)){
            /*如果是document类型的Uri，则通过document id处理*/
            String docId = DocumentsContract.getDocumentId(uri);
            if("com.android.providers.media.documents".equals(uri.getAuthority())){
                String id = docId.split(":")[1]; //解析出数字格式的id
                String selection = MediaStore.Images.Media._ID + "=" + id;
                imagePath = getImagePath(MediaStore.Images.Media.EXTERNAL_CONTENT_URI,selection);
            }else if("com.android.providers.downloads.documents".equals(uri.getAuthority())){
                Uri contentUri = ContentUris.withAppendedId(Uri.parse("content://downloads/public_downloads"),Long.valueOf(docId));
                imagePath = getImagePath(contentUri,null);
            }
        }else if("content".equalsIgnoreCase(uri.getScheme())){
            //如果是content类型的uri，则使用普通方式处理
            imagePath = getImagePath(uri,null);
        }else if("file".equalsIgnoreCase(uri.getScheme())){
            //如果是file类型的uri，直接获取图片路径即可
            imagePath = uri.getPath();
        }
        displayImage(imagePath); //根据图片路径显示图片
    }

    private void handleImageBeforeKitKat(Intent data){
        Uri uri = data.getData();
        String imagePath = getImagePath(uri,null);
        displayImage(imagePath);
    }

    private String getImagePath(Uri uri,String selection){
        String path = null;
        //通过Uri和selection来获取真实的图片路径
        Cursor cursor = getContentResolver().query(uri,null,selection,null,null);
        if(cursor != null){
            if (cursor.moveToFirst()){
                path = cursor.getString(cursor.getColumnIndex(MediaStore.Images.Media.DATA));
            }
            cursor.close();
        }
        return path;
    }

    private void displayImage(String imagePath) {
        if (imagePath != null) {
            //跳转裁剪
            Intent intent = new Intent(MainActivity2.this,MainActivity3.class);
            intent.putExtra(KEY_IMAGE_PATH, imagePath);
            startActivity(intent);
        } else {
            Toast.makeText(this, "failed to get image", Toast.LENGTH_SHORT).show();
        }
    }
}

工具类

package com.axs.camera;

import android.os.Parcel;
import android.os.Parcelable;

import androidx.collection.SparseArrayCompat;

/**
 * 注释:屏宽比
 */
public class AspectRatio implements Comparable<AspectRatio>, Parcelable {
    private final static SparseArrayCompat<SparseArrayCompat<AspectRatio>> sCache
            = new SparseArrayCompat<>(16);

    private final int mX;
    private final int mY;

    /**
     * Returns an instance of {@link AspectRatio} specified by {@code x} and {@code y} values.
     * The values {@code x} and {@code} will be reduced by their greatest common divider.
     *
     * @param x The width
     * @param y The height
     * @return An instance of {@link AspectRatio}
     */
    public static AspectRatio of(int x, int y) {
        int gcd = gcd(x, y);
        x /= gcd;
        y /= gcd;
        SparseArrayCompat<AspectRatio> arrayX = sCache.get(x);
        if (arrayX == null) {
            AspectRatio ratio = new AspectRatio(x, y);
            arrayX = new SparseArrayCompat<>();
            arrayX.put(y, ratio);
            sCache.put(x, arrayX);
            return ratio;
        } else {
            AspectRatio ratio = arrayX.get(y);
            if (ratio == null) {
                ratio = new AspectRatio(x, y);
                arrayX.put(y, ratio);
            }
            return ratio;
        }
    }

    /**
     * Parse an {@link AspectRatio} from a {@link String} formatted like "4:3".
     *
     * @param s The string representation of the aspect ratio
     * @return The aspect ratio
     * @throws IllegalArgumentException when the format is incorrect.
     */
    public static AspectRatio parse(String s) {
        int position = s.indexOf(':');
        if (position == -1) {
            throw new IllegalArgumentException("Malformed aspect ratio: " + s);
        }
        try {
            int x = Integer.parseInt(s.substring(0, position));
            int y = Integer.parseInt(s.substring(position + 1));
            return AspectRatio.of(x, y);
        } catch (NumberFormatException e) {
            throw new IllegalArgumentException("Malformed aspect ratio: " + s, e);
        }
    }

    private AspectRatio(int x, int y) {
        mX = x;
        mY = y;
    }

    public int getX() {
        return mX;
    }

    public int getY() {
        return mY;
    }

    public boolean matches(com.axs.camera.Size size) {
        int gcd = gcd(size.getWidth(), size.getHeight());
        int x = size.getWidth() / gcd;
        int y = size.getHeight() / gcd;
        return mX == x && mY == y;
    }

    @Override
    public boolean equals(Object o) {
        if (o == null) {
            return false;
        }
        if (this == o) {
            return true;
        }
        if (o instanceof AspectRatio) {
            AspectRatio ratio = (AspectRatio) o;
            return mX == ratio.mX && mY == ratio.mY;
        }
        return false;
    }

    @Override
    public String toString() {
        return mX + ":" + mY;
    }

    public float toFloat() {
        return (float) mX / mY;
    }

    @Override
    public int hashCode() {
        // assuming most sizes are <2^16, doing a rotate will give us perfect hashing
        return mY ^ ((mX << (Integer.SIZE / 2)) | (mX >>> (Integer.SIZE / 2)));
    }

    @Override
    public int compareTo(AspectRatio another) {
        if (equals(another)) {
            return 0;
        } else if (toFloat() - another.toFloat() > 0) {
            return 1;
        }
        return -1;
    }

    /**
     * @return The inverse of this {@link AspectRatio}.
     */
    public AspectRatio inverse() {
        //noinspection SuspiciousNameCombination
        return AspectRatio.of(mY, mX);
    }

    private static int gcd(int a, int b) {
        while (b != 0) {
            int c = b;
            b = a % b;
            a = c;
        }
        return a;
    }

    @Override
    public int describeContents() {
        return 0;
    }

    @Override
    public void writeToParcel(Parcel dest, int flags) {
        dest.writeInt(mX);
        dest.writeInt(mY);
    }

    public static final Creator<AspectRatio> CREATOR
            = new Creator<AspectRatio>() {

        @Override
        public AspectRatio createFromParcel(Parcel source) {
            int x = source.readInt();
            int y = source.readInt();
            return AspectRatio.of(x, y);
        }

        @Override
        public AspectRatio[] newArray(int size) {
            return new AspectRatio[size];
        }
    };

}

package com.axs.camera;

import android.graphics.Bitmap;
import android.graphics.Matrix;
import android.hardware.Camera;

import java.io.File;
import java.io.FileNotFoundException;
import java.io.FileOutputStream;
import java.io.IOException;

/**
 * 注释:
 */
public class BitmapUtils {

    /**
     * 注释：设置拍照图片正确方向
     *
     * @param id
     * @param bitmap
     * @return
     */
    public static Bitmap setTakePicktrueOrientation(int id, Bitmap bitmap) {
        //如果返回的图片宽度小于高度，说明FrameWork层已经做过处理直接返回即可
        if (bitmap.getWidth() < bitmap.getHeight()) {
            return bitmap;
        }
        Camera.CameraInfo info = new Camera.CameraInfo();
        Camera.getCameraInfo(id, info);
        bitmap = rotaingImageView(id, info.orientation, bitmap);
        return bitmap;
    }

    /**
     * 把相机拍照返回照片转正
     *
     * @param angle 旋转角度
     * @return bitmap 图片
     */
    private static Bitmap rotaingImageView(int id, int angle, Bitmap bitmap) {
        //矩阵
        Matrix matrix = new Matrix();
        matrix.postRotate(angle);
        //加入翻转 把相机拍照返回照片转正
        if (id == 1) {
            matrix.postScale(-1, 1);
        }
        // 创建新的图片
        Bitmap resizedBitmap = Bitmap.createBitmap(bitmap, 0, 0,
                bitmap.getWidth(), bitmap.getHeight(), matrix, true);
        return resizedBitmap;
    }

    /**
     * 注释：保存图片
     *
     * @param bitmap
     * @param path
     * @return
     */
    public static boolean saveBitmap(Bitmap bitmap, String path) {

        try {
            File file = new File(path);
            File parent = file.getParentFile();
            if (!parent.exists()) {
                parent.mkdirs();
            }
            FileOutputStream fos = new FileOutputStream(file);
            boolean b = bitmap.compress(Bitmap.CompressFormat.JPEG, 100, fos);
            fos.flush();
            fos.close();
            return b;
        } catch (FileNotFoundException e) {
            e.printStackTrace();
        } catch (IOException e) {
            e.printStackTrace();
        }
        return false;
    }
}

package com.axs.camera;

import android.app.Activity;
import android.content.Context;
import android.graphics.ImageFormat;
import android.hardware.Camera;
import android.util.Log;
import android.view.Surface;
import android.view.SurfaceHolder;
import android.view.SurfaceView;

import java.io.IOException;
import java.util.SortedSet;

/**
 * 注释:相机预览视图
 */
public class CameraPreview extends SurfaceView implements SurfaceHolder.Callback {
    private SurfaceHolder mHolder;
    private Camera mCamera;
    private boolean isPreview;
    private Context context;
    /**
     * 预览尺寸集合
     */
    private final com.axs.camera.SizeMap mPreviewSizes = new com.axs.camera.SizeMap();
    /**
     * 图片尺寸集合
     */
    private final com.axs.camera.SizeMap mPictureSizes = new com.axs.camera.SizeMap();
    /**
     * 屏幕旋转显示角度
     */
    private int mDisplayOrientation;
    /**
     * 设备屏宽比
     */
    private com.axs.camera.AspectRatio mAspectRatio;

    /**
     * 注释：构造函数
     *
     * @param context
     * @param mCamera
     */
    public CameraPreview(Context context, Camera mCamera) {
        super(context);
        this.context = context;
        this.mCamera = mCamera;
        this.mHolder = getHolder();
        this.mHolder.addCallback(this);
        mHolder.setType(SurfaceHolder.SURFACE_TYPE_PUSH_BUFFERS);
        mDisplayOrientation = ((Activity) context).getWindowManager().getDefaultDisplay().getRotation();
        mAspectRatio = com.axs.camera.AspectRatio.of(9, 16);
    }


    @Override
    public void surfaceCreated(SurfaceHolder holder) {
        try {
            //设置设备高宽比
            mAspectRatio = getDeviceAspectRatio((Activity) context);
            //设置预览方向
            mCamera.setDisplayOrientation(getDisplayOrientation());
            Camera.Parameters parameters = mCamera.getParameters();
            //获取所有支持的预览尺寸
            mPreviewSizes.clear();
            for (Camera.Size size : parameters.getSupportedPreviewSizes()) {
                int width = Math.min(size.width, size.height);
                int heigth = Math.max(size.width, size.height);
                mPreviewSizes.add(new com.axs.camera.Size(width, heigth));
            }
            //获取所有支持的图片尺寸
            mPictureSizes.clear();
            for (Camera.Size size : parameters.getSupportedPictureSizes()) {
                int width = Math.min(size.width, size.height);
                int heigth = Math.max(size.width, size.height);
                mPictureSizes.add(new com.axs.camera.Size(width, heigth));
            }
            com.axs.camera.Size previewSize = chooseOptimalSize(mPreviewSizes.sizes(mAspectRatio));
            com.axs.camera.Size pictureSize = mPictureSizes.sizes(mAspectRatio).last();
            //设置相机参数
            parameters.setPreviewSize(Math.max(previewSize.getWidth(), previewSize.getHeight()), Math.min(previewSize.getWidth(), previewSize.getHeight()));
            parameters.setPictureSize(Math.max(pictureSize.getWidth(), pictureSize.getHeight()), Math.min(pictureSize.getWidth(), pictureSize.getHeight()));
            parameters.setPictureFormat(ImageFormat.JPEG);
            parameters.setRotation(getDisplayOrientation());
            mCamera.setParameters(parameters);
            //把这个预览效果展示在SurfaceView上面
            mCamera.setPreviewDisplay(holder);
            //开启预览效果
            mCamera.startPreview();
            isPreview = true;
        } catch (Exception e) {
            Log.e("CameraPreview", "相机预览错误: " + e.getMessage());
        }
    }

    @Override
    public void surfaceChanged(SurfaceHolder holder, int format, int width, int height) {
        if (holder.getSurface() == null) {
            return;
        }
        //停止预览效果
        mCamera.stopPreview();
        //重新设置预览效果
        try {
            mCamera.setPreviewDisplay(mHolder);
        } catch (IOException e) {
            e.printStackTrace();
        }
        mCamera.startPreview();
    }

    @Override
    public void surfaceDestroyed(SurfaceHolder holder) {
        if (mCamera != null) {
            if (isPreview) {
                //正在预览
                mCamera.stopPreview();
                mCamera.release();
            }
        }
    }


    /**
     * 注释：获取设备屏宽比
     */
    private com.axs.camera.AspectRatio getDeviceAspectRatio(Activity activity) {
        int width = activity.getWindow().getDecorView().getWidth();
        int height = activity.getWindow().getDecorView().getHeight();
        return com.axs.camera.AspectRatio.of(Math.min(width, height), Math.max(width, height));
    }

    /**
     * 注释：选择合适的预览尺寸
     *
     * @param sizes
     * @return
     */
    @SuppressWarnings("SuspiciousNameCombination")
    private com.axs.camera.Size chooseOptimalSize(SortedSet<com.axs.camera.Size> sizes) {
        int desiredWidth;
        int desiredHeight;
        final int surfaceWidth = getWidth();
        final int surfaceHeight = getHeight();
        if (isLandscape(mDisplayOrientation)) {
            desiredWidth = surfaceHeight;
            desiredHeight = surfaceWidth;
        } else {
            desiredWidth = surfaceWidth;
            desiredHeight = surfaceHeight;
        }
        com.axs.camera.Size result = new com.axs.camera.Size(desiredWidth, desiredHeight);
        if (sizes != null && !sizes.isEmpty()) {
            for (com.axs.camera.Size size : sizes) {
                if (desiredWidth <= size.getWidth() && desiredHeight <= size.getHeight()) {
                    return size;
                }
                result = size;
            }
        }
        return result;
    }

    /**
     * Test if the supplied orientation is in landscape.
     *
     * @param orientationDegrees Orientation in degrees (0,90,180,270)
     * @return True if in landscape, false if portrait
     */
    private boolean isLandscape(int orientationDegrees) {
        return (orientationDegrees == Surface.ROTATION_90 ||
                orientationDegrees == Surface.ROTATION_270);
    }

    /**
     * 注释：获取摄像头应该显示的方向
     *
     * @return
     */
    private int getDisplayOrientation() {
        Camera.CameraInfo info = new Camera.CameraInfo();
        Camera.getCameraInfo(Camera.CameraInfo.CAMERA_FACING_BACK, info);
        int orientation;
        int degrees = 0;
        if (mDisplayOrientation == Surface.ROTATION_0) {
            degrees = 0;
        } else if (mDisplayOrientation == Surface.ROTATION_90) {
            degrees = 90;
        } else if (mDisplayOrientation == Surface.ROTATION_180) {
            degrees = 180;
        } else if (mDisplayOrientation == Surface.ROTATION_270) {
            degrees = 270;
        }
        orientation = (degrees + 45) / 90 * 90;
        int result;
        if (info.facing == Camera.CameraInfo.CAMERA_FACING_FRONT) {
            result = (info.orientation - orientation + 360) % 360;
        } else {
            // back-facing
            result = (info.orientation + orientation) % 360;
        }
        return result;
    }
}

package com.axs.camera;

import android.content.Context;
import android.graphics.Canvas;
import android.graphics.Color;
import android.graphics.Paint;
import android.graphics.Rect;
import android.hardware.Camera;
import android.util.AttributeSet;
import android.util.Log;
import android.view.WindowManager;

import androidx.appcompat.widget.AppCompatImageView;

import java.util.ArrayList;
import java.util.List;

/**
 * 注释:对焦框
 */
public class OverCameraView extends AppCompatImageView {
    private Context context;
    //焦点附近设置矩形区域作为对焦区域
    private Rect touchFocusRect;
    private Paint touchFocusPaint;
    //是否正在对焦
    private boolean isFoucuing;

    public OverCameraView(Context context) {
        this(context, null, 0);
    }

    public OverCameraView(Context context, AttributeSet attrs) {
        this(context, attrs, 0);
    }

    public OverCameraView(Context context, AttributeSet attrs, int defStyleAttr) {
        super(context, attrs, defStyleAttr);
        init(context);
    }

    private void init(Context context) {
        this.context = context;
        //画笔设置
        touchFocusPaint = new Paint();
        touchFocusPaint.setColor(Color.GREEN);
        touchFocusPaint.setStyle(Paint.Style.STROKE);
        touchFocusPaint.setStrokeWidth(3);
    }

    public boolean isFoucuing() {
        return isFoucuing;
    }

    public void setFoucuing(boolean foucuing) {
        isFoucuing = foucuing;
    }

    /**
     * 注释：对焦并绘制对焦矩形框
     *
     * @param camera
     * @param autoFocusCallback
     * @param x
     * @param y
     */
    public void setTouchFoucusRect(Camera camera, Camera.AutoFocusCallback autoFocusCallback, float x, float y) {
        //以焦点为中心，宽度为200的矩形框
        touchFocusRect = new Rect((int) (x - 100), (int) (y - 100), (int) (x + 100), (int) (y + 100));

        //对焦光感区域
        int left = touchFocusRect.left * 2000 / getWindowWidth(context) - 1000;
        int top = touchFocusRect.top * 2000 / getWindowHeight(context) - 1000;
        int right = touchFocusRect.right * 2000 / getWindowWidth(context) - 1000;
        int bottom = touchFocusRect.bottom * 2000 / getWindowHeight(context) - 1000;
        // 如果超出了(-1000,1000)到(1000, 1000)的范围，则会导致相机崩溃
        left = left < -1000 ? -1000 : left;
        top = top < -1000 ? -1000 : top;
        right = right > 1000 ? 1000 : right;
        bottom = bottom > 1000 ? 1000 : bottom;
        final Rect targetFocusRect = new Rect(left, top, right, bottom);

        //对焦
        doTouchFocus(camera, autoFocusCallback, targetFocusRect);
        //刷新界面，调用onDraw(Canvas canvas)函数绘制矩形框
        postInvalidate();
    }

    /**
     * 注释：设置camera参数，并完成对焦
     *
     * @param camera
     * @param autoFocusCallback
     * @param tfocusRect
     */
    public void doTouchFocus(Camera camera, Camera.AutoFocusCallback autoFocusCallback, final Rect tfocusRect) {
        if (camera == null || isFoucuing) {
            return;
        }
        try {
            final List<Camera.Area> focusList = new ArrayList<>();
            Camera.Area focusArea = new Camera.Area(tfocusRect, 1000);
            focusList.add(focusArea);

            Camera.Parameters para = camera.getParameters();
            para.setFocusAreas(focusList);
            para.setMeteringAreas(focusList);
            para.setFocusMode(Camera.Parameters.FOCUS_MODE_AUTO);
            camera.cancelAutoFocus();
            camera.setParameters(para);
            camera.autoFocus(autoFocusCallback);
            isFoucuing = true;
        } catch (Exception e) {
            Log.e("设置相机参数异常", e.getMessage());
        }
    }

    /**
     * 注释：对焦完成后，清除对焦矩形框
     */
    public void disDrawTouchFocusRect() {
        //将对焦区域设置为null，刷新界面后对焦框消失
        touchFocusRect = null;
        //刷新界面，调用onDraw(Canvas canvas)函数
        postInvalidate();
    }

    @Override
    protected void onDraw(Canvas canvas) {
        //在画布上绘图，postInvalidate()后自动调用
        drawTouchFocusRect(canvas);
        super.onDraw(canvas);
    }

    /**
     * 获取屏幕高度
     */
    @SuppressWarnings("deprecation")
    public static int getWindowHeight(Context cxt) {
        WindowManager wm = (WindowManager) cxt
                .getSystemService(Context.WINDOW_SERVICE);
        return wm.getDefaultDisplay().getHeight();

    }

    /**
     * 获取屏幕宽度
     */
    @SuppressWarnings("deprecation")
    public static int getWindowWidth(Context cxt) {
        WindowManager wm = (WindowManager) cxt
                .getSystemService(Context.WINDOW_SERVICE);
        return wm.getDefaultDisplay().getWidth();

    }

    private void drawTouchFocusRect(Canvas canvas) {
        if (null != touchFocusRect) {
            //根据对焦区域targetFocusRect，绘制自己想要的对焦框样式，本文在矩形四个角取L形状
            //左下角
            canvas.drawRect(touchFocusRect.left - 2, touchFocusRect.bottom, touchFocusRect.left + 20, touchFocusRect.bottom + 2, touchFocusPaint);
            canvas.drawRect(touchFocusRect.left - 2, touchFocusRect.bottom - 20, touchFocusRect.left, touchFocusRect.bottom, touchFocusPaint);
            //左上角
            canvas.drawRect(touchFocusRect.left - 2, touchFocusRect.top - 2, touchFocusRect.left + 20, touchFocusRect.top, touchFocusPaint);
            canvas.drawRect(touchFocusRect.left - 2, touchFocusRect.top, touchFocusRect.left, touchFocusRect.top + 20, touchFocusPaint);
            //右上角
            canvas.drawRect(touchFocusRect.right - 20, touchFocusRect.top - 2, touchFocusRect.right + 2, touchFocusRect.top, touchFocusPaint);
            canvas.drawRect(touchFocusRect.right, touchFocusRect.top, touchFocusRect.right + 2, touchFocusRect.top + 20, touchFocusPaint);
            //右下角
            canvas.drawRect(touchFocusRect.right - 20, touchFocusRect.bottom, touchFocusRect.right + 2, touchFocusRect.bottom + 2, touchFocusPaint);
            canvas.drawRect(touchFocusRect.right, touchFocusRect.bottom - 20, touchFocusRect.right + 2, touchFocusRect.bottom, touchFocusPaint);
        }
    }
}

package com.axs.camera;

import android.content.Context;
import android.os.Build;

import com.yanzhenjie.permission.AndPermission;

/**
 * 注释: Android权限申请工具类
 */
public class PermissionUtils {
    /**
     * 注释：权限申请回调
     */
    public interface PermissionListener {
        /**
         * 成功
         */
        void onSuccess(Context context);

        /**
         * 失败
         */
        void onFailed(Context context);
    }

    /**
     * 注释：应用相关组权限
     */
    public static void applicationPermissions(Context context, PermissionListener listener, String[]... permissions) {
        if (Build.VERSION.SDK_INT > Build.VERSION_CODES.M) {
            if (!AndPermission.hasPermissions(context, permissions)) {
                AndPermission.with(context)
                        .runtime()
                        .permission(permissions)
                        .rationale((mContext, data, executor) -> {
                            //选择显示提示弹窗
                            executor.execute();
                        })
                        .onGranted((permission) -> {
                            listener.onSuccess(context);
                        })
                        .onDenied((permission) -> {
                            listener.onFailed(context);
                        })
                        .start();
            } else {
                listener.onSuccess(context);
            }
        } else {
            listener.onSuccess(context);
        }
    }

    /**
     * 注释：应用相关单个权限
     */
    public static void applicationPermissions(Context context, PermissionListener listener, String... permissions) {
        if (Build.VERSION.SDK_INT > Build.VERSION_CODES.LOLLIPOP_MR1) {
            if (!AndPermission.hasPermissions(context, permissions)) {
                AndPermission.with(context)
                        .runtime()
                        .permission(permissions)
                        .rationale((mContext, data, executor) -> {
                            //选择显示提示弹窗
                            executor.execute();
                        })
                        .onGranted((permission) -> {
                            listener.onSuccess(context);
                        })
                        .onDenied((permission) -> {
                            listener.onFailed(context);
                        })
                        .start();
            } else {
                listener.onSuccess(context);
            }
        } else {
            listener.onSuccess(context);
        }
    }

}

/*
 * Copyright (C) 2016 The Android Open Source Project
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *      http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */

package com.axs.camera;

/**
 * 注释：尺寸对象
 */
public class Size implements Comparable<Size> {

    private final int mWidth;
    private final int mHeight;

    /**
     * Create a new immutable Size instance.
     *
     * @param width  The width of the size, in pixels
     * @param height The height of the size, in pixels
     */
    public Size(int width, int height) {
        mWidth = width;
        mHeight = height;
    }

    public int getWidth() {
        return mWidth;
    }

    public int getHeight() {
        return mHeight;
    }

    @Override
    public boolean equals(Object o) {
        if (o == null) {
            return false;
        }
        if (this == o) {
            return true;
        }
        if (o instanceof Size) {
            Size size = (Size) o;
            return mWidth == size.mWidth && mHeight == size.mHeight;
        }
        return false;
    }

    @Override
    public String toString() {
        return mWidth + "x" + mHeight;
    }

    @Override
    public int hashCode() {
        // assuming most sizes are <2^16, doing a rotate will give us perfect hashing
        return mHeight ^ ((mWidth << (Integer.SIZE / 2)) | (mWidth >>> (Integer.SIZE / 2)));
    }

    @Override
    public int compareTo(Size another) {
        return mWidth * mHeight - another.mWidth * another.mHeight;
    }

}

package com.axs.camera;


import androidx.collection.ArrayMap;

import java.util.Set;
import java.util.SortedSet;
import java.util.TreeSet;

/**
 * 注释:
 */
public class SizeMap {

    private final ArrayMap<AspectRatio, SortedSet<Size>> mRatios = new ArrayMap<>();

    /**
     * Add a new {@link Size} to this collection.
     *
     * @param size The size to add.
     * @return {@code true} if it is added, {@code false} if it already exists and is not added.
     */
    public boolean add(Size size) {
        for (AspectRatio ratio : mRatios.keySet()) {
            if (ratio.matches(size)) {
                final SortedSet<Size> sizes = mRatios.get(ratio);
                if (sizes.contains(size)) {
                    return false;
                } else {
                    sizes.add(size);
                    return true;
                }
            }
        }
        // None of the existing ratio matches the provided size; add a new key
        SortedSet<Size> sizes = new TreeSet<>();
        sizes.add(size);
        mRatios.put(AspectRatio.of(size.getWidth(), size.getHeight()), sizes);
        return true;
    }

    /**
     * Removes the specified aspect ratio and all sizes associated with it.
     *
     * @param ratio The aspect ratio to be removed.
     */
    public void remove(AspectRatio ratio) {
        mRatios.remove(ratio);
    }

    Set<AspectRatio> ratios() {
        return mRatios.keySet();
    }

    SortedSet<Size> sizes(AspectRatio ratio) {
        if (mRatios.get(ratio) != null) {
            return mRatios.get(ratio);
        }
        //如果找不到合适屏宽比，找最接近屏幕的
        AspectRatio retRatio = ratio;
        float diff = 1;
        for (AspectRatio size : ratios()) {
            if (Math.abs(ratio.toFloat() - size.toFloat()) < diff) {
                retRatio = size;
                diff = Math.abs(ratio.toFloat() - size.toFloat());
            }
        }
        return mRatios.get(retRatio);
    }

    void clear() {
        mRatios.clear();
    }

    boolean isEmpty() {
        return mRatios.isEmpty();
    }

}
