Netty快速入门(八)

Netty粘包,拆包问题以及自定义协议解决方案

问题概述

由于Tcp是面向连接的，面向流的，提供高可靠性的服务。收发两端都要有一一成对的socket。因此，发送端为了将多个发送给接收端的包更有效的发送给对方，使用了Nagle算法，将多次间隔较小且数据量较小的数据，合并成了一个大的数据块，然后进行封包发送给对方。这样虽然能提升效率，但是接收端很难分辨出完整的数据包了。

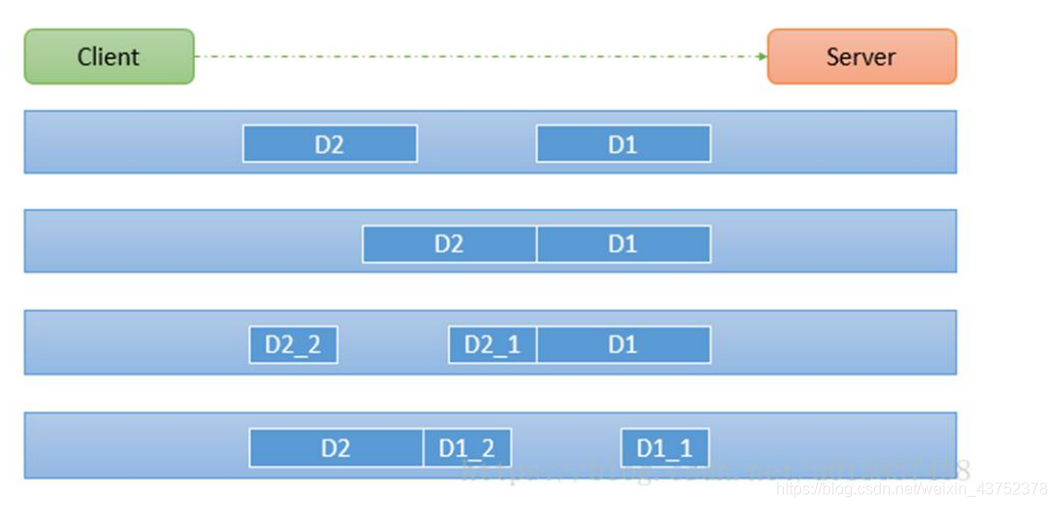

Tcp半包拆包演示

第一行数据没有发生粘包和拆包现象
第二行接收端一次性接收到了两个独立的数据包，称之为粘包
第三行第一次读取到了完整的D1包和D2部分内容，第二次读取到了D2剩余内容，称之为拆包
第四行第一次读取到了完整的D1的部分内容，第二次读取到了D1剩余内容和D2完整内容，称之为拆包

Tcp粘包半包问题解决

可以使用自定义协议以及编解码器来解决，关键就是在于接收端每次读取数据长度的问题，能够确认读取长度就不会产生粘包拆包现象了
小案例：模拟一个客户端循环发送五次数据包给服务器端
自定义协议类

public class MessagePoJo {
    //每次读取长度
    private int length;
    //内容
    private byte [] concat;

    public int getLength() {
        return length;
    }

    public void setLength(int length) {
        this.length = length;
    }

    public byte[] getConcat() {
        return concat;
    }

    public void setConcat(byte[] concat) {
        this.concat = concat;
    }
}

编解码器

import io.netty.buffer.ByteBuf;
import io.netty.channel.ChannelHandlerContext;
import io.netty.handler.codec.ReplayingDecoder;

import java.util.List;
//解码
public class MyMessageDecode extends ReplayingDecoder<Void> {
    @Override
    protected void decode(ChannelHandlerContext channelHandlerContext, ByteBuf byteBuf, List<Object> list) throws Exception {
        int length = byteBuf.readInt();
        byte[] b = new byte[length];
        byteBuf.readBytes(b);
        MessagePoJo messagePoJo = new MessagePoJo();
        messagePoJo.setLength(length);
        messagePoJo.setConcat(b);
        list.add(messagePoJo);
    }
}

import io.netty.buffer.ByteBuf;
import io.netty.channel.ChannelHandlerContext;
import io.netty.handler.codec.MessageToByteEncoder;

//编码
public class MyMessageEncode extends MessageToByteEncoder<MessagePoJo> {
    @Override
    protected void encode(ChannelHandlerContext channelHandlerContext, MessagePoJo messagePoJo, ByteBuf byteBuf) throws Exception {
        byteBuf.writeInt(messagePoJo.getLength());
        byteBuf.writeBytes(messagePoJo.getConcat());
    }
}

服务器端代码

import io.netty.bootstrap.ServerBootstrap;
import io.netty.channel.ChannelFuture;
import io.netty.channel.ChannelInitializer;
import io.netty.channel.ChannelPipeline;
import io.netty.channel.EventLoopGroup;
import io.netty.channel.nio.NioEventLoopGroup;
import io.netty.channel.socket.SocketChannel;
import io.netty.channel.socket.nio.NioServerSocketChannel;
/**
 * 自定义协议解决粘包半包问题
 * */
public class MyServer {
    public static void main(String[] args) {
        EventLoopGroup bossLoopGroup = new NioEventLoopGroup(1);
        EventLoopGroup workLoopGroup = new NioEventLoopGroup();
        try{
        ServerBootstrap serverBootstrap = new ServerBootstrap();
            serverBootstrap.group(bossLoopGroup,workLoopGroup)
                    .channel(NioServerSocketChannel.class)
                    .childHandler(new ChannelInitializer<SocketChannel>() {
                        @Override
                        protected void initChannel(SocketChannel socketChannel) throws Exception {
                            ChannelPipeline pipeline = socketChannel.pipeline();
                            pipeline.addLast(new MyMessageDecode());
                            pipeline.addLast(new MyMessageEncode());
                            pipeline.addLast(new MyServerHandler());
                        }
                    });
            ChannelFuture future = serverBootstrap.bind(8686).sync();
            future.channel().closeFuture().sync();
        }catch (Exception e){
            e.printStackTrace();
        }finally {
            bossLoopGroup.shutdownGracefully();
            workLoopGroup.shutdownGracefully();
        }
    }
}

import io.netty.channel.ChannelHandlerContext;
import io.netty.channel.SimpleChannelInboundHandler;
import io.netty.util.CharsetUtil;

public class MyServerHandler extends SimpleChannelInboundHandler<MessagePoJo> {
    @Override
    protected void channelRead0(ChannelHandlerContext channelHandlerContext, MessagePoJo messagePoJo) throws Exception {
        int length = messagePoJo.getLength();
        byte[] concat = messagePoJo.getConcat();
        String s = new String(concat, CharsetUtil.UTF_8);
        System.out.println("长度"+length+"内容"+s);
    }
}

客户端代码

	import io.netty.bootstrap.Bootstrap;
import io.netty.channel.ChannelFuture;
import io.netty.channel.ChannelInitializer;
import io.netty.channel.ChannelPipeline;
import io.netty.channel.EventLoopGroup;
import io.netty.channel.nio.NioEventLoopGroup;
import io.netty.channel.socket.SocketChannel;
import io.netty.channel.socket.nio.NioSocketChannel;

public class MyClient {
    public static void main(String[] args) {
        EventLoopGroup group = new NioEventLoopGroup();
        try{
            Bootstrap bootstrap = new Bootstrap();
            bootstrap.group(group).channel(NioSocketChannel.class)
                    .handler(new ChannelInitializer<SocketChannel>() {
                        @Override
                        protected void initChannel(SocketChannel socketChannel) throws Exception {
                            ChannelPipeline pipeline = socketChannel.pipeline();
                            pipeline.addLast(new MyMessageEncode());
                            pipeline.addLast(new MyMessageDecode());
                            pipeline.addLast(new MyClientHandler());
                        }
                    });
            ChannelFuture future = bootstrap.connect("127.0.0.1", 8686).sync();
            future.channel().closeFuture().sync();
        }catch (Exception e){
            e.printStackTrace();
        }finally {
            group.shutdownGracefully();
        }
    }
}

import io.netty.channel.ChannelHandlerContext;
import io.netty.channel.SimpleChannelInboundHandler;
import io.netty.util.CharsetUtil;

import java.nio.charset.Charset;

public class MyClientHandler extends SimpleChannelInboundHandler<MessagePoJo> {
    @Override
    protected void channelRead0(ChannelHandlerContext channelHandlerContext, MessagePoJo messagePoJo) throws Exception {

    }

    @Override
    public void channelActive(ChannelHandlerContext ctx) throws Exception {
        for (int i = 0; i < 5; i++) {
            MessagePoJo messagePoJo = new MessagePoJo();
            byte[] bytes = ("你好啊" + i + "次").getBytes(CharsetUtil.UTF_8);
            messagePoJo.setLength(bytes.length);
            messagePoJo.setConcat(bytes);
            ctx.writeAndFlush(messagePoJo);
        }

    }
}

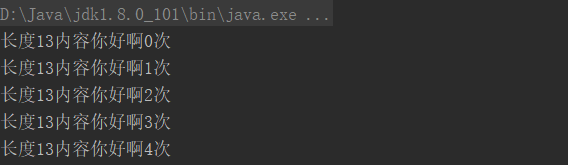

结果可以看出没有发生拆包粘包现象
