这次主要说说模型吧
我用的UC Merced Land Use Dataset这个数据集做的，说来话长1000张图，正确率75，也不知道是咋回事，resnet-101正确率不如resnet-18按理来说，模型复杂了，但正确率下降了
ResidualBlock
class ResidualBlock(nn.Module):
def __init__(self, in_channels, out_channels):
super().__init__()
self.in_channels, self.out_channels = in_channels, out_channels
self.blocks = nn.Identity()
self.shortcut = nn.Identity()
def forward(self, x):
residual = x
if self.should_apply_shortcut: residual = self.shortcut(x)
x = self.blocks(x)
x += residual
return x
def should_apply_shortcut(self):
return self.in_channels != self.out_channels

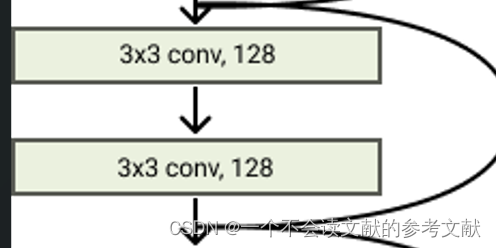

这个nn.Identity()的意义就和这个差不多
跳过这个弯的曲线直接走底下这两层
from collections import OrderedDict
## ResidualBlock
class ResNetResidualBlock(ResidualBlock):
def __init__(self, in_channels, out_channels, expansion=1, downsampling=1, conv=conv3x3, *args, **kwargs):
super().__init__(in_channels, out_channels)
self.expansion, self.downsampling, self.conv = expansion, downsampling, conv
self.shortcut = nn.Sequential(OrderedDict(
{
'conv' : nn.Conv2d(self.in_channels, self.expanded_channels, kernel_size=1,
stride=self.downsampling, bias=False),
'bn' : nn.BatchNorm2d(self.expanded_channels)
})) if self.should_apply_shortcut else None
def expanded_channels(self):
return self.out_channels * self.expansion
def should_apply_shortcut(self):
return self.in_channels != self.expanded_channels
其实这边就还好理解，做卷积和正则然后看输入和输出的是否一致。
class ResNetEncoder(nn.Module):#这段其实就是函数刚开始的时候哪个7*7的卷积了
def __init__(self, in_channels=3, blocks_sizes=[64, 128, 256, 512], deepths=[2,2,2,2],
activation=nn.ReLU, block=ResNetBasicBlock, *args,**kwargs):
super().__init__()
self.blocks_sizes = blocks_sizes
self.gate = nn.Sequential(
nn.Conv2d(in_channels, self.blocks_sizes[0], kernel_size=7, stride=2, padding=3, bias=False),
nn.BatchNorm2d(self.blocks_sizes[0]),
activation(),
nn.MaxPool2d(kernel_size=3, stride=2, padding=1)
)
self.in_out_block_sizes = list(zip(blocks_sizes, blocks_sizes[1:]))
self.blocks = nn.ModuleList([
ResNetLayer(blocks_sizes[0], blocks_sizes[0], n=deepths[0], activation=activation,
block=block, *args, **kwargs),
*[ResNetLayer(in_channels * block.expansion,
out_channels, n=n, activation=activation,
block=block, *args, **kwargs)
for (in_channels, out_channels), n in zip(self.in_out_block_sizes, deepths[1:])]
])
def forward(self, x):
x = self.gate(x)
for block in self.blocks:
x = block(x)
return x
class ResnetDecoder(nn.Module):
def __init__(self, in_features, n_classes):
super().__init__()
self.avg = nn.AdaptiveAvgPool2d((1, 1))#全局池化
self.decoder = nn.Linear(in_features, n_classes)#全连接运算
def forward(self, x):
x = self.avg(x)
x = x.view(x.size(0), -1)
x = self.decoder(x)
return x
class ResNet(nn.Module):
def __init__(self, in_channels, n_classes, *args, **kwargs):
super().__init__()
self.encoder = ResNetEncoder(in_channels, *args, **kwargs)
self.decoder = ResnetDecoder(self.encoder.blocks[-1].blocks[-1].expanded_channels, n_classes)
def forward(self, x):
x = self.encoder(x)
x = self.decoder(x)
return x
def params_count(model):# 计算参数的数量然后经典的比较模型的空间复杂度
Args:
model (model): model to count the number of parameters.
return np.sum([p.numel() for p in model.parameters()]).item()
基本已经结束了。
我看这个模型的源码给的deeps我不知道啥意思，为啥这么算
def resnet18(in_channels, n_classes):
return ResNet(in_channels, n_classes, block=ResNetBasicBlock, deepths=[2, 2, 2, 2])
def resnet34(in_channels, n_classes):
return ResNet(in_channels, n_classes, block=ResNetBasicBlock, deepths=[3, 4, 6, 3])
def resnet50(in_channels, n_classes):
return ResNet(in_channels, n_classes, block=ResNetBottleNeckBlock, deepths=[3, 4, 6, 3])
def resnet101(in_channels, n_classes):
return ResNet(in_channels, n_classes, block=ResNetBottleNeckBlock, deepths=[3, 4, 23, 3])
def resnet152(in_channels, n_classes):
return ResNet(in_channels, n_classes, block=ResNetBottleNeckBlock, deepths=[3, 8, 36, 3])
综上是模型的全部了，调用的时候要记得
model = resnet101(in_channels，n_classes).cuda()
print('params num:', params_count(model))#调用模型然后计算模型体系
不用再直接调用类了
原模型是在github上找的FrancescoSaverioZuppichini

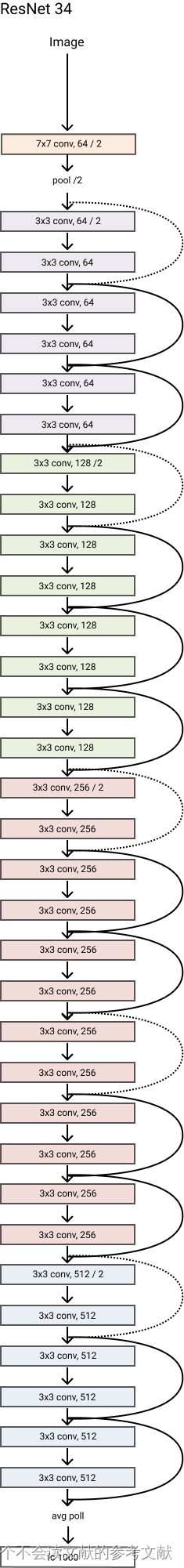

如果需要看看这个网络模型结构
model = resnet18(3, 1000)
summary(model.cuda(), (3, 1024,1024))
Layer (type) Output Shape Param #
================================================================
Conv2d-1 [-1, 64, 512, 512] 9,408
BatchNorm2d-2 [-1, 64, 512, 512] 128
ReLU-3 [-1, 64, 512, 512] 0
MaxPool2d-4 [-1, 64, 256, 256] 0
Conv2d-5 [-1, 256, 256, 256] 16,384
BatchNorm2d-6 [-1, 256, 256, 256] 512
Conv2dAuto-7 [-1, 64, 256, 256] 4,096
BatchNorm2d-8 [-1, 64, 256, 256] 128
ReLU-9 [-1, 64, 256, 256] 0
Conv2dAuto-10 [-1, 64, 256, 256] 36,864
BatchNorm2d-11 [-1, 64, 256, 256] 128
ReLU-12 [-1, 64, 256, 256] 0
Conv2dAuto-13 [-1, 256, 256, 256] 16,384
BatchNorm2d-14 [-1, 256, 256, 256] 512
ResNetBottleNeckBlock-15 [-1, 256, 256, 256] 0
Conv2dAuto-16 [-1, 64, 256, 256] 16,384
BatchNorm2d-17 [-1, 64, 256, 256] 128
ReLU-18 [-1, 64, 256, 256] 0
Conv2dAuto-19 [-1, 64, 256, 256] 36,864
BatchNorm2d-20 [-1, 64, 256, 256] 128
ReLU-21 [-1, 64, 256, 256] 0
Conv2dAuto-22 [-1, 256, 256, 256] 16,384
BatchNorm2d-23 [-1, 256, 256, 256] 512
ResNetBottleNeckBlock-24 [-1, 256, 256, 256] 0
Conv2dAuto-25 [-1, 64, 256, 256] 16,384
BatchNorm2d-26 [-1, 64, 256, 256] 128
ReLU-27 [-1, 64, 256, 256] 0
Conv2dAuto-28 [-1, 64, 256, 256] 36,864
BatchNorm2d-29 [-1, 64, 256, 256] 128
ReLU-30 [-1, 64, 256, 256] 0
Conv2dAuto-31 [-1, 256, 256, 256] 16,384
BatchNorm2d-32 [-1, 256, 256, 256] 512
ResNetBottleNeckBlock-33 [-1, 256, 256, 256] 0
ResNetLayer-34 [-1, 256, 256, 256] 0
Conv2d-35 [-1, 512, 128, 128] 131,072
BatchNorm2d-36 [-1, 512, 128, 128] 1,024
Conv2dAuto-37 [-1, 128, 256, 256] 32,768
BatchNorm2d-38 [-1, 128, 256, 256] 256
ReLU-39 [-1, 128, 256, 256] 0
Conv2dAuto-40 [-1, 128, 128, 128] 147,456
BatchNorm2d-41 [-1, 128, 128, 128] 256
ReLU-42 [-1, 128, 128, 128] 0
Conv2dAuto-43 [-1, 512, 128, 128] 65,536
BatchNorm2d-44 [-1, 512, 128, 128] 1,024
ResNetBottleNeckBlock-45 [-1, 512, 128, 128] 0
Conv2dAuto-46 [-1, 128, 128, 128] 65,536
BatchNorm2d-47 [-1, 128, 128, 128] 256
ReLU-48 [-1, 128, 128, 128] 0
Conv2dAuto-49 [-1, 128, 128, 128] 147,456
BatchNorm2d-50 [-1, 128, 128, 128] 256
ReLU-51 [-1, 128, 128, 128] 0
Conv2dAuto-52 [-1, 512, 128, 128] 65,536
BatchNorm2d-53 [-1, 512, 128, 128] 1,024
ResNetBottleNeckBlock-54 [-1, 512, 128, 128] 0
Conv2dAuto-55 [-1, 128, 128, 128] 65,536
BatchNorm2d-56 [-1, 128, 128, 128] 256
ReLU-57 [-1, 128, 128, 128] 0
Conv2dAuto-58 [-1, 128, 128, 128] 147,456
BatchNorm2d-59 [-1, 128, 128, 128] 256
ReLU-60 [-1, 128, 128, 128] 0
Conv2dAuto-61 [-1, 512, 128, 128] 65,536
BatchNorm2d-62 [-1, 512, 128, 128] 1,024
ResNetBottleNeckBlock-63 [-1, 512, 128, 128] 0
Conv2dAuto-64 [-1, 128, 128, 128] 65,536
BatchNorm2d-65 [-1, 128, 128, 128] 256
ReLU-66 [-1, 128, 128, 128] 0
Conv2dAuto-67 [-1, 128, 128, 128] 147,456
BatchNorm2d-68 [-1, 128, 128, 128] 256
ReLU-69 [-1, 128, 128, 128] 0
Conv2dAuto-70 [-1, 512, 128, 128] 65,536
BatchNorm2d-71 [-1, 512, 128, 128] 1,024
ResNetBottleNeckBlock-72 [-1, 512, 128, 128] 0
Conv2dAuto-73 [-1, 128, 128, 128] 65,536
BatchNorm2d-74 [-1, 128, 128, 128] 256
ReLU-75 [-1, 128, 128, 128] 0
Conv2dAuto-76 [-1, 128, 128, 128] 147,456
BatchNorm2d-77 [-1, 128, 128, 128] 256
ReLU-78 [-1, 128, 128, 128] 0
Conv2dAuto-79 [-1, 512, 128, 128] 65,536
BatchNorm2d-80 [-1, 512, 128, 128] 1,024
ResNetBottleNeckBlock-81 [-1, 512, 128, 128] 0
Conv2dAuto-82 [-1, 128, 128, 128] 65,536
BatchNorm2d-83 [-1, 128, 128, 128] 256
ReLU-84 [-1, 128, 128, 128] 0
Conv2dAuto-85 [-1, 128, 128, 128] 147,456
BatchNorm2d-86 [-1, 128, 128, 128] 256
ReLU-87 [-1, 128, 128, 128] 0
Conv2dAuto-88 [-1, 512, 128, 128] 65,536
BatchNorm2d-89 [-1, 512, 128, 128] 1,024
ResNetBottleNeckBlock-90 [-1, 512, 128, 128] 0
Conv2dAuto-91 [-1, 128, 128, 128] 65,536
BatchNorm2d-92 [-1, 128, 128, 128] 256
ReLU-93 [-1, 128, 128, 128] 0
Conv2dAuto-94 [-1, 128, 128, 128] 147,456
BatchNorm2d-95 [-1, 128, 128, 128] 256
ReLU-96 [-1, 128, 128, 128] 0
Conv2dAuto-97 [-1, 512, 128, 128] 65,536
BatchNorm2d-98 [-1, 512, 128, 128] 1,024
ResNetBottleNeckBlock-99 [-1, 512, 128, 128] 0
Conv2dAuto-100 [-1, 128, 128, 128] 65,536
BatchNorm2d-101 [-1, 128, 128, 128] 256
ReLU-102 [-1, 128, 128, 128] 0
Conv2dAuto-103 [-1, 128, 128, 128] 147,456
BatchNorm2d-104 [-1, 128, 128, 128] 256
ReLU-105 [-1, 128, 128, 128] 0
Conv2dAuto-106 [-1, 512, 128, 128] 65,536
BatchNorm2d-107 [-1, 512, 128, 128] 1,024
ResNetBottleNeckBlock-108 [-1, 512, 128, 128] 0
ResNetLayer-109 [-1, 512, 128, 128] 0
Conv2d-110 [-1, 1024, 64, 64] 524,288
BatchNorm2d-111 [-1, 1024, 64, 64] 2,048
Conv2dAuto-112 [-1, 256, 128, 128] 131,072
BatchNorm2d-113 [-1, 256, 128, 128] 512
ReLU-114 [-1, 256, 128, 128] 0
Conv2dAuto-115 [-1, 256, 64, 64] 589,824
BatchNorm2d-116 [-1, 256, 64, 64] 512
ReLU-117 [-1, 256, 64, 64] 0
Conv2dAuto-118 [-1, 1024, 64, 64] 262,144
BatchNorm2d-119 [-1, 1024, 64, 64] 2,048
ResNetBottleNeckBlock-120 [-1, 1024, 64, 64] 0
Conv2dAuto-121 [-1, 256, 64, 64] 262,144
BatchNorm2d-122 [-1, 256, 64, 64] 512
ReLU-123 [-1, 256, 64, 64] 0
Conv2dAuto-124 [-1, 256, 64, 64] 589,824
BatchNorm2d-125 [-1, 256, 64, 64] 512
ReLU-126 [-1, 256, 64, 64] 0
Conv2dAuto-127 [-1, 1024, 64, 64] 262,144
BatchNorm2d-128 [-1, 1024, 64, 64] 2,048
ResNetBottleNeckBlock-129 [-1, 1024, 64, 64] 0
Conv2dAuto-130 [-1, 256, 64, 64] 262,144
BatchNorm2d-131 [-1, 256, 64, 64] 512
ReLU-132 [-1, 256, 64, 64] 0
Conv2dAuto-133 [-1, 256, 64, 64] 589,824
BatchNorm2d-134 [-1, 256, 64, 64] 512
ReLU-135 [-1, 256, 64, 64] 0
Conv2dAuto-136 [-1, 1024, 64, 64] 262,144
BatchNorm2d-137 [-1, 1024, 64, 64] 2,048
ResNetBottleNeckBlock-138 [-1, 1024, 64, 64] 0
Conv2dAuto-139 [-1, 256, 64, 64] 262,144
BatchNorm2d-140 [-1, 256, 64, 64] 512
ReLU-141 [-1, 256, 64, 64] 0
Conv2dAuto-142 [-1, 256, 64, 64] 589,824
BatchNorm2d-143 [-1, 256, 64, 64] 512
ReLU-144 [-1, 256, 64, 64] 0
Conv2dAuto-145 [-1, 1024, 64, 64] 262,144
BatchNorm2d-146 [-1, 1024, 64, 64] 2,048
ResNetBottleNeckBlock-147 [-1, 1024, 64, 64] 0
Conv2dAuto-148 [-1, 256, 64, 64] 262,144
BatchNorm2d-149 [-1, 256, 64, 64] 512
ReLU-150 [-1, 256, 64, 64] 0
Conv2dAuto-151 [-1, 256, 64, 64] 589,824
BatchNorm2d-152 [-1, 256, 64, 64] 512
ReLU-153 [-1, 256, 64, 64] 0
Conv2dAuto-154 [-1, 1024, 64, 64] 262,144
BatchNorm2d-155 [-1, 1024, 64, 64] 2,048
ResNetBottleNeckBlock-156 [-1, 1024, 64, 64] 0
Conv2dAuto-157 [-1, 256, 64, 64] 262,144
BatchNorm2d-158 [-1, 256, 64, 64] 512
ReLU-159 [-1, 256, 64, 64] 0
Conv2dAuto-160 [-1, 256, 64, 64] 589,824
BatchNorm2d-161 [-1, 256, 64, 64] 512
ReLU-162 [-1, 256, 64, 64] 0
Conv2dAuto-163 [-1, 1024, 64, 64] 262,144
BatchNorm2d-164 [-1, 1024, 64, 64] 2,048
ResNetBottleNeckBlock-165 [-1, 1024, 64, 64] 0
Conv2dAuto-166 [-1, 256, 64, 64] 262,144
BatchNorm2d-167 [-1, 256, 64, 64] 512
ReLU-168 [-1, 256, 64, 64] 0
Conv2dAuto-169 [-1, 256, 64, 64] 589,824
BatchNorm2d-170 [-1, 256, 64, 64] 512
ReLU-171 [-1, 256, 64, 64] 0
Conv2dAuto-172 [-1, 1024, 64, 64] 262,144
BatchNorm2d-173 [-1, 1024, 64, 64] 2,048
ResNetBottleNeckBlock-174 [-1, 1024, 64, 64] 0
Conv2dAuto-175 [-1, 256, 64, 64] 262,144
BatchNorm2d-176 [-1, 256, 64, 64] 512
ReLU-177 [-1, 256, 64, 64] 0
Conv2dAuto-178 [-1, 256, 64, 64] 589,824
BatchNorm2d-179 [-1, 256, 64, 64] 512
ReLU-180 [-1, 256, 64, 64] 0
Conv2dAuto-181 [-1, 1024, 64, 64] 262,144
BatchNorm2d-182 [-1, 1024, 64, 64] 2,048
ResNetBottleNeckBlock-183 [-1, 1024, 64, 64] 0
Conv2dAuto-184 [-1, 256, 64, 64] 262,144
BatchNorm2d-185 [-1, 256, 64, 64] 512
ReLU-186 [-1, 256, 64, 64] 0
Conv2dAuto-187 [-1, 256, 64, 64] 589,824
BatchNorm2d-188 [-1, 256, 64, 64] 512
ReLU-189 [-1, 256, 64, 64] 0
Conv2dAuto-190 [-1, 1024, 64, 64] 262,144
BatchNorm2d-191 [-1, 1024, 64, 64] 2,048
ResNetBottleNeckBlock-192 [-1, 1024, 64, 64] 0
Conv2dAuto-193 [-1, 256, 64, 64] 262,144
BatchNorm2d-194 [-1, 256, 64, 64] 512
ReLU-195 [-1, 256, 64, 64] 0
Conv2dAuto-196 [-1, 256, 64, 64] 589,824
BatchNorm2d-197 [-1, 256, 64, 64] 512
ReLU-198 [-1, 256, 64, 64] 0
Conv2dAuto-199 [-1, 1024, 64, 64] 262,144
BatchNorm2d-200 [-1, 1024, 64, 64] 2,048
ResNetBottleNeckBlock-201 [-1, 1024, 64, 64] 0
Conv2dAuto-202 [-1, 256, 64, 64] 262,144
BatchNorm2d-203 [-1, 256, 64, 64] 512
ReLU-204 [-1, 256, 64, 64] 0
Conv2dAuto-205 [-1, 256, 64, 64] 589,824
BatchNorm2d-206 [-1, 256, 64, 64] 512
ReLU-207 [-1, 256, 64, 64] 0
Conv2dAuto-208 [-1, 1024, 64, 64] 262,144
BatchNorm2d-209 [-1, 1024, 64, 64] 2,048
ResNetBottleNeckBlock-210 [-1, 1024, 64, 64] 0
Conv2dAuto-211 [-1, 256, 64, 64] 262,144
BatchNorm2d-212 [-1, 256, 64, 64] 512
ReLU-213 [-1, 256, 64, 64] 0
Conv2dAuto-214 [-1, 256, 64, 64] 589,824
BatchNorm2d-215 [-1, 256, 64, 64] 512
ReLU-216 [-1, 256, 64, 64] 0
Conv2dAuto-217 [-1, 1024, 64, 64] 262,144
BatchNorm2d-218 [-1, 1024, 64, 64] 2,048
ResNetBottleNeckBlock-219 [-1, 1024, 64, 64] 0
Conv2dAuto-220 [-1, 256, 64, 64] 262,144
BatchNorm2d-221 [-1, 256, 64, 64] 512
ReLU-222 [-1, 256, 64, 64] 0
Conv2dAuto-223 [-1, 256, 64, 64] 589,824
BatchNorm2d-224 [-1, 256, 64, 64] 512
ReLU-225 [-1, 256, 64, 64] 0
Conv2dAuto-226 [-1, 1024, 64, 64] 262,144
BatchNorm2d-227 [-1, 1024, 64, 64] 2,048
ResNetBottleNeckBlock-228 [-1, 1024, 64, 64] 0
Conv2dAuto-229 [-1, 256, 64, 64] 262,144
BatchNorm2d-230 [-1, 256, 64, 64] 512
ReLU-231 [-1, 256, 64, 64] 0
Conv2dAuto-232 [-1, 256, 64, 64] 589,824
BatchNorm2d-233 [-1, 256, 64, 64] 512
ReLU-234 [-1, 256, 64, 64] 0
Conv2dAuto-235 [-1, 1024, 64, 64] 262,144
BatchNorm2d-236 [-1, 1024, 64, 64] 2,048
ResNetBottleNeckBlock-237 [-1, 1024, 64, 64] 0
Conv2dAuto-238 [-1, 256, 64, 64] 262,144
BatchNorm2d-239 [-1, 256, 64, 64] 512
ReLU-240 [-1, 256, 64, 64] 0
Conv2dAuto-241 [-1, 256, 64, 64] 589,824
BatchNorm2d-242 [-1, 256, 64, 64] 512
ReLU-243 [-1, 256, 64, 64] 0
Conv2dAuto-244 [-1, 1024, 64, 64] 262,144
BatchNorm2d-245 [-1, 1024, 64, 64] 2,048
ResNetBottleNeckBlock-246 [-1, 1024, 64, 64] 0
Conv2dAuto-247 [-1, 256, 64, 64] 262,144
BatchNorm2d-248 [-1, 256, 64, 64] 512
ReLU-249 [-1, 256, 64, 64] 0
Conv2dAuto-250 [-1, 256, 64, 64] 589,824
BatchNorm2d-251 [-1, 256, 64, 64] 512
ReLU-252 [-1, 256, 64, 64] 0
Conv2dAuto-253 [-1, 1024, 64, 64] 262,144
BatchNorm2d-254 [-1, 1024, 64, 64] 2,048
ResNetBottleNeckBlock-255 [-1, 1024, 64, 64] 0
Conv2dAuto-256 [-1, 256, 64, 64] 262,144
BatchNorm2d-257 [-1, 256, 64, 64] 512
ReLU-258 [-1, 256, 64, 64] 0
Conv2dAuto-259 [-1, 256, 64, 64] 589,824
BatchNorm2d-260 [-1, 256, 64, 64] 512
ReLU-261 [-1, 256, 64, 64] 0
Conv2dAuto-262 [-1, 1024, 64, 64] 262,144
BatchNorm2d-263 [-1, 1024, 64, 64] 2,048
ResNetBottleNeckBlock-264 [-1, 1024, 64, 64] 0
Conv2dAuto-265 [-1, 256, 64, 64] 262,144
BatchNorm2d-266 [-1, 256, 64, 64] 512
ReLU-267 [-1, 256, 64, 64] 0
Conv2dAuto-268 [-1, 256, 64, 64] 589,824
BatchNorm2d-269 [-1, 256, 64, 64] 512
ReLU-270 [-1, 256, 64, 64] 0
Conv2dAuto-271 [-1, 1024, 64, 64] 262,144
BatchNorm2d-272 [-1, 1024, 64, 64] 2,048
ResNetBottleNeckBlock-273 [-1, 1024, 64, 64] 0
Conv2dAuto-274 [-1, 256, 64, 64] 262,144
BatchNorm2d-275 [-1, 256, 64, 64] 512
ReLU-276 [-1, 256, 64, 64] 0
Conv2dAuto-277 [-1, 256, 64, 64] 589,824
BatchNorm2d-278 [-1, 256, 64, 64] 512
ReLU-279 [-1, 256, 64, 64] 0
Conv2dAuto-280 [-1, 1024, 64, 64] 262,144
BatchNorm2d-281 [-1, 1024, 64, 64] 2,048
ResNetBottleNeckBlock-282 [-1, 1024, 64, 64] 0
Conv2dAuto-283 [-1, 256, 64, 64] 262,144
BatchNorm2d-284 [-1, 256, 64, 64] 512
ReLU-285 [-1, 256, 64, 64] 0
Conv2dAuto-286 [-1, 256, 64, 64] 589,824
BatchNorm2d-287 [-1, 256, 64, 64] 512
ReLU-288 [-1, 256, 64, 64] 0
Conv2dAuto-289 [-1, 1024, 64, 64] 262,144
BatchNorm2d-290 [-1, 1024, 64, 64] 2,048
ResNetBottleNeckBlock-291 [-1, 1024, 64, 64] 0
Conv2dAuto-292 [-1, 256, 64, 64] 262,144
BatchNorm2d-293 [-1, 256, 64, 64] 512
ReLU-294 [-1, 256, 64, 64] 0
Conv2dAuto-295 [-1, 256, 64, 64] 589,824
BatchNorm2d-296 [-1, 256, 64, 64] 512
ReLU-297 [-1, 256, 64, 64] 0
Conv2dAuto-298 [-1, 1024, 64, 64] 262,144
BatchNorm2d-299 [-1, 1024, 64, 64] 2,048
ResNetBottleNeckBlock-300 [-1, 1024, 64, 64] 0
Conv2dAuto-301 [-1, 256, 64, 64] 262,144
BatchNorm2d-302 [-1, 256, 64, 64] 512
ReLU-303 [-1, 256, 64, 64] 0
Conv2dAuto-304 [-1, 256, 64, 64] 589,824
BatchNorm2d-305 [-1, 256, 64, 64] 512
ReLU-306 [-1, 256, 64, 64] 0
Conv2dAuto-307 [-1, 1024, 64, 64] 262,144
BatchNorm2d-308 [-1, 1024, 64, 64] 2,048
ResNetBottleNeckBlock-309 [-1, 1024, 64, 64] 0
Conv2dAuto-310 [-1, 256, 64, 64] 262,144
BatchNorm2d-311 [-1, 256, 64, 64] 512
ReLU-312 [-1, 256, 64, 64] 0
Conv2dAuto-313 [-1, 256, 64, 64] 589,824
BatchNorm2d-314 [-1, 256, 64, 64] 512
ReLU-315 [-1, 256, 64, 64] 0
Conv2dAuto-316 [-1, 1024, 64, 64] 262,144
BatchNorm2d-317 [-1, 1024, 64, 64] 2,048
ResNetBottleNeckBlock-318 [-1, 1024, 64, 64] 0
Conv2dAuto-319 [-1, 256, 64, 64] 262,144
BatchNorm2d-320 [-1, 256, 64, 64] 512
ReLU-321 [-1, 256, 64, 64] 0
Conv2dAuto-322 [-1, 256, 64, 64] 589,824
BatchNorm2d-323 [-1, 256, 64, 64] 512
ReLU-324 [-1, 256, 64, 64] 0
Conv2dAuto-325 [-1, 1024, 64, 64] 262,144
BatchNorm2d-326 [-1, 1024, 64, 64] 2,048
ResNetBottleNeckBlock-327 [-1, 1024, 64, 64] 0
Conv2dAuto-328 [-1, 256, 64, 64] 262,144
BatchNorm2d-329 [-1, 256, 64, 64] 512
ReLU-330 [-1, 256, 64, 64] 0
Conv2dAuto-331 [-1, 256, 64, 64] 589,824
BatchNorm2d-332 [-1, 256, 64, 64] 512
ReLU-333 [-1, 256, 64, 64] 0
Conv2dAuto-334 [-1, 1024, 64, 64] 262,144
BatchNorm2d-335 [-1, 1024, 64, 64] 2,048
ResNetBottleNeckBlock-336 [-1, 1024, 64, 64] 0
Conv2dAuto-337 [-1, 256, 64, 64] 262,144
BatchNorm2d-338 [-1, 256, 64, 64] 512
ReLU-339 [-1, 256, 64, 64] 0
Conv2dAuto-340 [-1, 256, 64, 64] 589,824
BatchNorm2d-341 [-1, 256, 64, 64] 512
ReLU-342 [-1, 256, 64, 64] 0
Conv2dAuto-343 [-1, 1024, 64, 64] 262,144
BatchNorm2d-344 [-1, 1024, 64, 64] 2,048
ResNetBottleNeckBlock-345 [-1, 1024, 64, 64] 0
Conv2dAuto-346 [-1, 256, 64, 64] 262,144
BatchNorm2d-347 [-1, 256, 64, 64] 512
ReLU-348 [-1, 256, 64, 64] 0
Conv2dAuto-349 [-1, 256, 64, 64] 589,824
BatchNorm2d-350 [-1, 256, 64, 64] 512
ReLU-351 [-1, 256, 64, 64] 0
Conv2dAuto-352 [-1, 1024, 64, 64] 262,144
BatchNorm2d-353 [-1, 1024, 64, 64] 2,048
ResNetBottleNeckBlock-354 [-1, 1024, 64, 64] 0
Conv2dAuto-355 [-1, 256, 64, 64] 262,144
BatchNorm2d-356 [-1, 256, 64, 64] 512
ReLU-357 [-1, 256, 64, 64] 0
Conv2dAuto-358 [-1, 256, 64, 64] 589,824
BatchNorm2d-359 [-1, 256, 64, 64] 512
ReLU-360 [-1, 256, 64, 64] 0
Conv2dAuto-361 [-1, 1024, 64, 64] 262,144
BatchNorm2d-362 [-1, 1024, 64, 64] 2,048
ResNetBottleNeckBlock-363 [-1, 1024, 64, 64] 0
Conv2dAuto-364 [-1, 256, 64, 64] 262,144
BatchNorm2d-365 [-1, 256, 64, 64] 512
ReLU-366 [-1, 256, 64, 64] 0
Conv2dAuto-367 [-1, 256, 64, 64] 589,824
BatchNorm2d-368 [-1, 256, 64, 64] 512
ReLU-369 [-1, 256, 64, 64] 0
Conv2dAuto-370 [-1, 1024, 64, 64] 262,144
BatchNorm2d-371 [-1, 1024, 64, 64] 2,048
ResNetBottleNeckBlock-372 [-1, 1024, 64, 64] 0
Conv2dAuto-373 [-1, 256, 64, 64] 262,144
BatchNorm2d-374 [-1, 256, 64, 64] 512
ReLU-375 [-1, 256, 64, 64] 0
Conv2dAuto-376 [-1, 256, 64, 64] 589,824
BatchNorm2d-377 [-1, 256, 64, 64] 512
ReLU-378 [-1, 256, 64, 64] 0
Conv2dAuto-379 [-1, 1024, 64, 64] 262,144
BatchNorm2d-380 [-1, 1024, 64, 64] 2,048
ResNetBottleNeckBlock-381 [-1, 1024, 64, 64] 0
Conv2dAuto-382 [-1, 256, 64, 64] 262,144
BatchNorm2d-383 [-1, 256, 64, 64] 512
ReLU-384 [-1, 256, 64, 64] 0
Conv2dAuto-385 [-1, 256, 64, 64] 589,824
BatchNorm2d-386 [-1, 256, 64, 64] 512
ReLU-387 [-1, 256, 64, 64] 0
Conv2dAuto-388 [-1, 1024, 64, 64] 262,144
BatchNorm2d-389 [-1, 1024, 64, 64] 2,048
ResNetBottleNeckBlock-390 [-1, 1024, 64, 64] 0
Conv2dAuto-391 [-1, 256, 64, 64] 262,144
BatchNorm2d-392 [-1, 256, 64, 64] 512
ReLU-393 [-1, 256, 64, 64] 0
Conv2dAuto-394 [-1, 256, 64, 64] 589,824
BatchNorm2d-395 [-1, 256, 64, 64] 512
ReLU-396 [-1, 256, 64, 64] 0
Conv2dAuto-397 [-1, 1024, 64, 64] 262,144
BatchNorm2d-398 [-1, 1024, 64, 64] 2,048
ResNetBottleNeckBlock-399 [-1, 1024, 64, 64] 0
Conv2dAuto-400 [-1, 256, 64, 64] 262,144
BatchNorm2d-401 [-1, 256, 64, 64] 512
ReLU-402 [-1, 256, 64, 64] 0
Conv2dAuto-403 [-1, 256, 64, 64] 589,824
BatchNorm2d-404 [-1, 256, 64, 64] 512
ReLU-405 [-1, 256, 64, 64] 0
Conv2dAuto-406 [-1, 1024, 64, 64] 262,144
BatchNorm2d-407 [-1, 1024, 64, 64] 2,048
ResNetBottleNeckBlock-408 [-1, 1024, 64, 64] 0
Conv2dAuto-409 [-1, 256, 64, 64] 262,144
BatchNorm2d-410 [-1, 256, 64, 64] 512
ReLU-411 [-1, 256, 64, 64] 0
Conv2dAuto-412 [-1, 256, 64, 64] 589,824
BatchNorm2d-413 [-1, 256, 64, 64] 512
ReLU-414 [-1, 256, 64, 64] 0
Conv2dAuto-415 [-1, 1024, 64, 64] 262,144
BatchNorm2d-416 [-1, 1024, 64, 64] 2,048
ResNetBottleNeckBlock-417 [-1, 1024, 64, 64] 0
Conv2dAuto-418 [-1, 256, 64, 64] 262,144
BatchNorm2d-419 [-1, 256, 64, 64] 512
ReLU-420 [-1, 256, 64, 64] 0
Conv2dAuto-421 [-1, 256, 64, 64] 589,824
BatchNorm2d-422 [-1, 256, 64, 64] 512
ReLU-423 [-1, 256, 64, 64] 0
Conv2dAuto-424 [-1, 1024, 64, 64] 262,144
BatchNorm2d-425 [-1, 1024, 64, 64] 2,048
ResNetBottleNeckBlock-426 [-1, 1024, 64, 64] 0
Conv2dAuto-427 [-1, 256, 64, 64] 262,144
BatchNorm2d-428 [-1, 256, 64, 64] 512
ReLU-429 [-1, 256, 64, 64] 0
Conv2dAuto-430 [-1, 256, 64, 64] 589,824
BatchNorm2d-431 [-1, 256, 64, 64] 512
ReLU-432 [-1, 256, 64, 64] 0
Conv2dAuto-433 [-1, 1024, 64, 64] 262,144
BatchNorm2d-434 [-1, 1024, 64, 64] 2,048
ResNetBottleNeckBlock-435 [-1, 1024, 64, 64] 0
ResNetLayer-436 [-1, 1024, 64, 64] 0
Conv2d-437 [-1, 2048, 32, 32] 2,097,152
BatchNorm2d-438 [-1, 2048, 32, 32] 4,096
Conv2dAuto-439 [-1, 512, 64, 64] 524,288
BatchNorm2d-440 [-1, 512, 64, 64] 1,024
ReLU-441 [-1, 512, 64, 64] 0
Conv2dAuto-442 [-1, 512, 32, 32] 2,359,296
BatchNorm2d-443 [-1, 512, 32, 32] 1,024
ReLU-444 [-1, 512, 32, 32] 0
Conv2dAuto-445 [-1, 2048, 32, 32] 1,048,576
BatchNorm2d-446 [-1, 2048, 32, 32] 4,096
ResNetBottleNeckBlock-447 [-1, 2048, 32, 32] 0
Conv2dAuto-448 [-1, 512, 32, 32] 1,048,576
BatchNorm2d-449 [-1, 512, 32, 32] 1,024
ReLU-450 [-1, 512, 32, 32] 0
Conv2dAuto-451 [-1, 512, 32, 32] 2,359,296
BatchNorm2d-452 [-1, 512, 32, 32] 1,024
ReLU-453 [-1, 512, 32, 32] 0
Conv2dAuto-454 [-1, 2048, 32, 32] 1,048,576
BatchNorm2d-455 [-1, 2048, 32, 32] 4,096
ResNetBottleNeckBlock-456 [-1, 2048, 32, 32] 0
Conv2dAuto-457 [-1, 512, 32, 32] 1,048,576
BatchNorm2d-458 [-1, 512, 32, 32] 1,024
ReLU-459 [-1, 512, 32, 32] 0
Conv2dAuto-460 [-1, 512, 32, 32] 2,359,296
BatchNorm2d-461 [-1, 512, 32, 32] 1,024
ReLU-462 [-1, 512, 32, 32] 0
Conv2dAuto-463 [-1, 2048, 32, 32] 1,048,576
BatchNorm2d-464 [-1, 2048, 32, 32] 4,096
ResNetBottleNeckBlock-465 [-1, 2048, 32, 32] 0
ResNetLayer-466 [-1, 2048, 32, 32] 0
ResNetEncoder-467 [-1, 2048, 32, 32] 0
AdaptiveAvgPool2d-468 [-1, 2048, 1, 1] 0
Linear-469 [-1, 1000] 2,049,000
ResnetDecoder-470 [-1, 1000] 0
================================================================
Total params: 60,192,808
Trainable params: 60,192,808
Non-trainable params: 0
----------------------------------------------------------------
Input size (MB): 12.00
Forward/backward pass size (MB): 10836.03
Params size (MB): 229.62
Estimated Total Size (MB): 11077.65
----------------------------------------------------------------
挺好的155层卷积层，挺厚的，而且如果某一层过拟合了能直接不要了，何凯明大佬还是非常厉害的
[001/050] 18.78 sec(s) Train Acc: 0.222500 Loss: 0.793812 | Val Acc: 0.215000 loss: 0.900603
[002/050] 16.20 sec(s) Train Acc: 0.301250 Loss: 0.470209 | Val Acc: 0.400000 loss: 0.380915
[003/050] 16.43 sec(s) Train Acc: 0.373750 Loss: 0.419760 | Val Acc: 0.430000 loss: 0.421366
[004/050] 16.21 sec(s) Train Acc: 0.457500 Loss: 0.372583 | Val Acc: 0.395000 loss: 0.577332
[005/050] 15.70 sec(s) Train Acc: 0.460000 Loss: 0.363756 | Val Acc: 0.310000 loss: 0.617506
[006/050] 16.15 sec(s) Train Acc: 0.506250 Loss: 0.335631 | Val Acc: 0.420000 loss: 0.434179
[007/050] 16.27 sec(s) Train Acc: 0.506250 Loss: 0.346168 | Val Acc: 0.395000 loss: 0.457854
[008/050] 16.17 sec(s) Train Acc: 0.523750 Loss: 0.328431 | Val Acc: 0.380000 loss: 0.587639
[009/050] 15.68 sec(s) Train Acc: 0.532500 Loss: 0.317814 | Val Acc: 0.435000 loss: 0.417199
[010/050] 15.68 sec(s) Train Acc: 0.571250 Loss: 0.301545 | Val Acc: 0.610000 loss: 0.265376
[011/050] 15.49 sec(s) Train Acc: 0.571250 Loss: 0.288428 | Val Acc: 0.525000 loss: 0.328064
[012/050] 16.02 sec(s) Train Acc: 0.588750 Loss: 0.280327 | Val Acc: 0.580000 loss: 0.373323
[013/050] 16.14 sec(s) Train Acc: 0.588750 Loss: 0.276690 | Val Acc: 0.455000 loss: 0.530960
[014/050] 15.68 sec(s) Train Acc: 0.595000 Loss: 0.278174 | Val Acc: 0.355000 loss: 0.819857
[015/050] 16.49 sec(s) Train Acc: 0.637500 Loss: 0.251591 | Val Acc: 0.535000 loss: 0.429338
[016/050] 15.93 sec(s) Train Acc: 0.617500 Loss: 0.268316 | Val Acc: 0.385000 loss: 0.915231
[017/050] 15.66 sec(s) Train Acc: 0.620000 Loss: 0.264712 | Val Acc: 0.425000 loss: 0.901076
[018/050] 15.80 sec(s) Train Acc: 0.640000 Loss: 0.250248 | Val Acc: 0.420000 loss: 0.609772
[019/050] 15.40 sec(s) Train Acc: 0.662500 Loss: 0.238282 | Val Acc: 0.450000 loss: 0.595310
[020/050] 15.48 sec(s) Train Acc: 0.653750 Loss: 0.244724 | Val Acc: 0.415000 loss: 0.842149
[021/050] 15.94 sec(s) Train Acc: 0.658750 Loss: 0.230015 | Val Acc: 0.530000 loss: 0.535357
[022/050] 16.50 sec(s) Train Acc: 0.716250 Loss: 0.203477 | Val Acc: 0.625000 loss: 0.354239
[023/050] 16.11 sec(s) Train Acc: 0.647500 Loss: 0.236142 | Val Acc: 0.545000 loss: 0.561437
[024/050] 16.05 sec(s) Train Acc: 0.683750 Loss: 0.224490 | Val Acc: 0.370000 loss: 1.728145
[025/050] 15.88 sec(s) Train Acc: 0.701250 Loss: 0.198898 | Val Acc: 0.435000 loss: 0.770039
[026/050] 15.96 sec(s) Train Acc: 0.703750 Loss: 0.206086 | Val Acc: 0.530000 loss: 0.774096
[027/050] 16.21 sec(s) Train Acc: 0.705000 Loss: 0.217260 | Val Acc: 0.410000 loss: 0.609468
[028/050] 16.18 sec(s) Train Acc: 0.727500 Loss: 0.196382 | Val Acc: 0.345000 loss: 1.229072
[029/050] 15.82 sec(s) Train Acc: 0.702500 Loss: 0.215304 | Val Acc: 0.535000 loss: 0.476039
[030/050] 15.70 sec(s) Train Acc: 0.720000 Loss: 0.187142 | Val Acc: 0.390000 loss: 2.383541
[031/050] 15.84 sec(s) Train Acc: 0.736250 Loss: 0.187775 | Val Acc: 0.555000 loss: 0.547186
[032/050] 15.60 sec(s) Train Acc: 0.743750 Loss: 0.191418 | Val Acc: 0.585000 loss: 0.760037
[033/050] 15.77 sec(s) Train Acc: 0.756250 Loss: 0.171473 | Val Acc: 0.575000 loss: 0.383314
[034/050] 15.78 sec(s) Train Acc: 0.750000 Loss: 0.174410 | Val Acc: 0.615000 loss: 0.532383
[035/050] 15.59 sec(s) Train Acc: 0.766250 Loss: 0.174796 | Val Acc: 0.575000 loss: 0.591066
[036/050] 15.81 sec(s) Train Acc: 0.753750 Loss: 0.182459 | Val Acc: 0.560000 loss: 0.855034
[037/050] 16.07 sec(s) Train Acc: 0.780000 Loss: 0.156893 | Val Acc: 0.510000 loss: 0.504993
[038/050] 15.83 sec(s) Train Acc: 0.778750 Loss: 0.166430 | Val Acc: 0.580000 loss: 0.983311
[039/050] 15.73 sec(s) Train Acc: 0.807500 Loss: 0.147398 | Val Acc: 0.665000 loss: 0.591307
[040/050] 15.59 sec(s) Train Acc: 0.793750 Loss: 0.156374 | Val Acc: 0.560000 loss: 0.794995
[041/050] 15.39 sec(s) Train Acc: 0.793750 Loss: 0.155911 | Val Acc: 0.610000 loss: 0.498716
[042/050] 15.55 sec(s) Train Acc: 0.833750 Loss: 0.133526 | Val Acc: 0.630000 loss: 0.802893
[043/050] 16.05 sec(s) Train Acc: 0.777500 Loss: 0.167620 | Val Acc: 0.490000 loss: 1.040836
[044/050] 15.66 sec(s) Train Acc: 0.817500 Loss: 0.135479 | Val Acc: 0.670000 loss: 0.363291
[045/050] 16.09 sec(s) Train Acc: 0.812500 Loss: 0.131704 | Val Acc: 0.640000 loss: 0.703357
[046/050] 16.48 sec(s) Train Acc: 0.808750 Loss: 0.146896 | Val Acc: 0.765000 loss: 0.251931
[047/050] 15.50 sec(s) Train Acc: 0.797500 Loss: 0.145349 | Val Acc: 0.665000 loss: 0.450391
[048/050] 15.88 sec(s) Train Acc: 0.810000 Loss: 0.137287 | Val Acc: 0.620000 loss: 0.803165
[049/050] 16.09 sec(s) Train Acc: 0.815000 Loss: 0.136437 | Val Acc: 0.550000 loss: 0.561041
[050/050] 15.64 sec(s) Train Acc: 0.791250 Loss: 0.152648 | Val Acc: 0.645000 loss: 0.564178
可惜可能是训练集太小了，随着迭代的次数竟然没有达到很高。
生成的csv对照了一下80个错了23个还行还行，但可惜训练集的量我没用太好，如果能换一下，就很好，可惜换不得。
如果有需要全部代码和生成混淆矩阵啥之类的源码啊之类的问题直接私信我就行，我最近也都在
扫一扫
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
