本文主要参考了

HEVC之路0：HM16.18的运行+码流分析 - 只因有你pi - 博客园 (cnblogs.com)

在此表示感谢。

HM下载

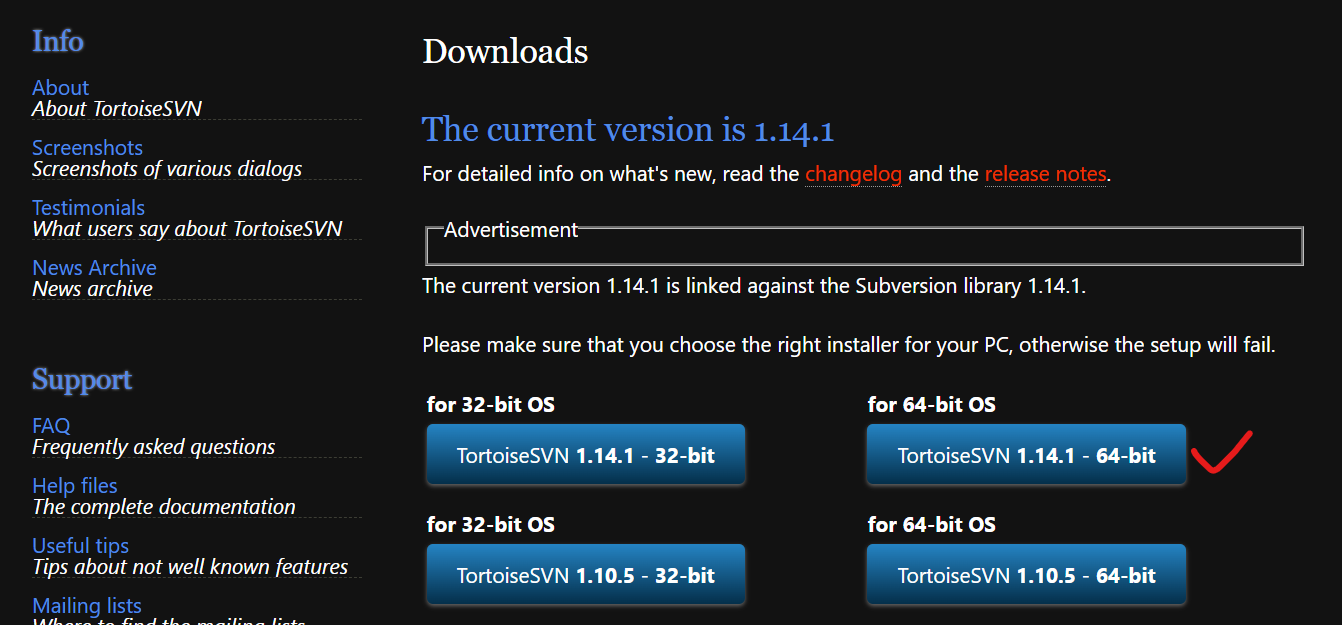

HM不能直接从网页下载，而是采用SVN管理代码的——首先，下载合适版本的TortoiseSVN，这里我们下载的是最新版本1.14.1-64bit：

在这里插入图片描述

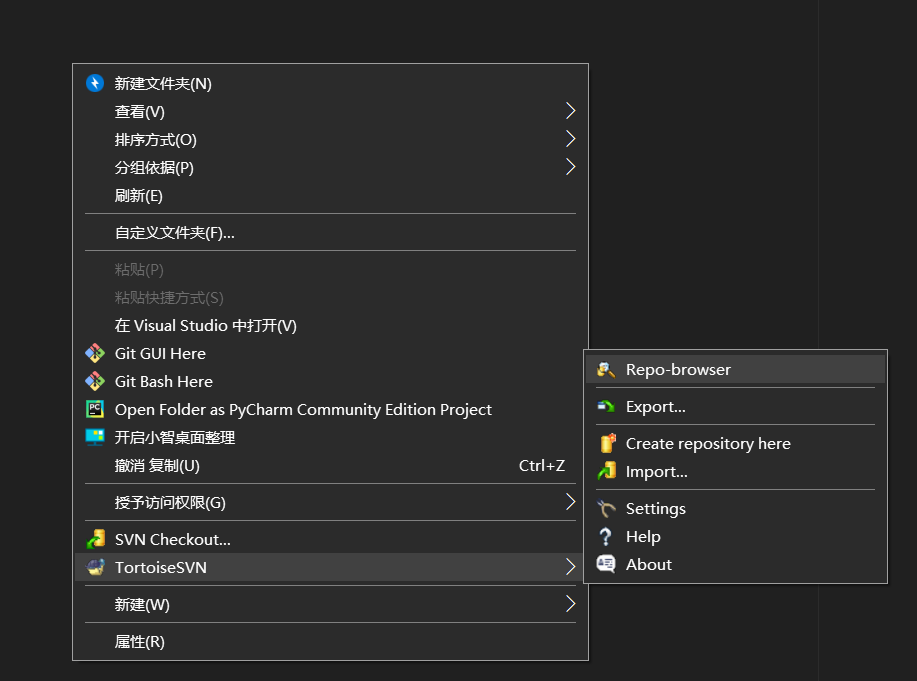

下载后双击安装，一直点确定就行。安装完成后在要下载HM的文件夹（此处为D:\HM）右键，选择Repo-browser:

在这里插入图片描述

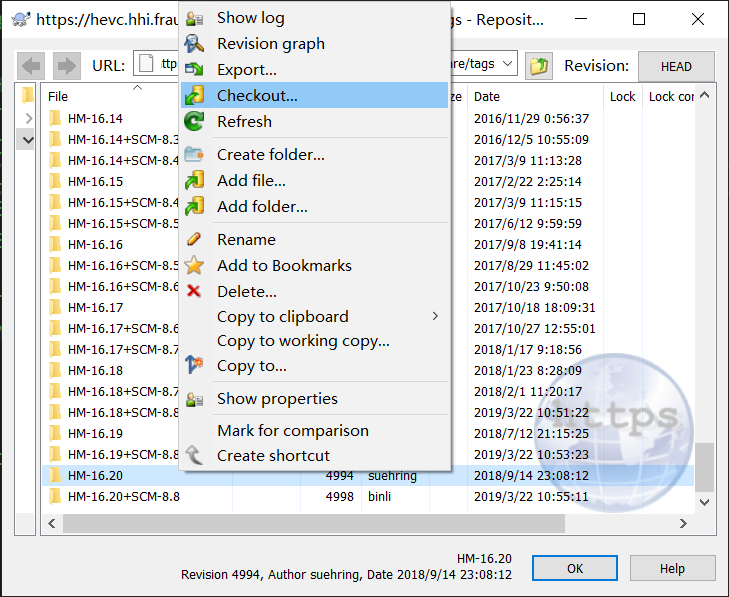

在弹出的URL框中输入HM的下载地址：https://hevc.hhi.fraunhofer.de/svn/svn_HEVCSoftware/tags/，可以看到不同版本的HM，这里我们选择最新的HM版本，并右键选择checkout，即可进行下载：

在这里插入图片描述

补充说明：后期版本的SCM表示该版本含有SHVC、MV-HEVC和3D-HEVC版本分支。

HM运行

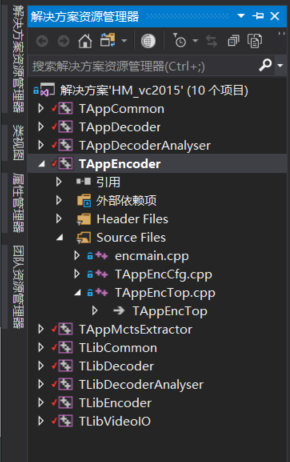

这里使用VS2017打开HM->build文件夹，选择vs2015.sln，此时可在解决方案资源管理器中看到九个项目：

在这里插入图片描述

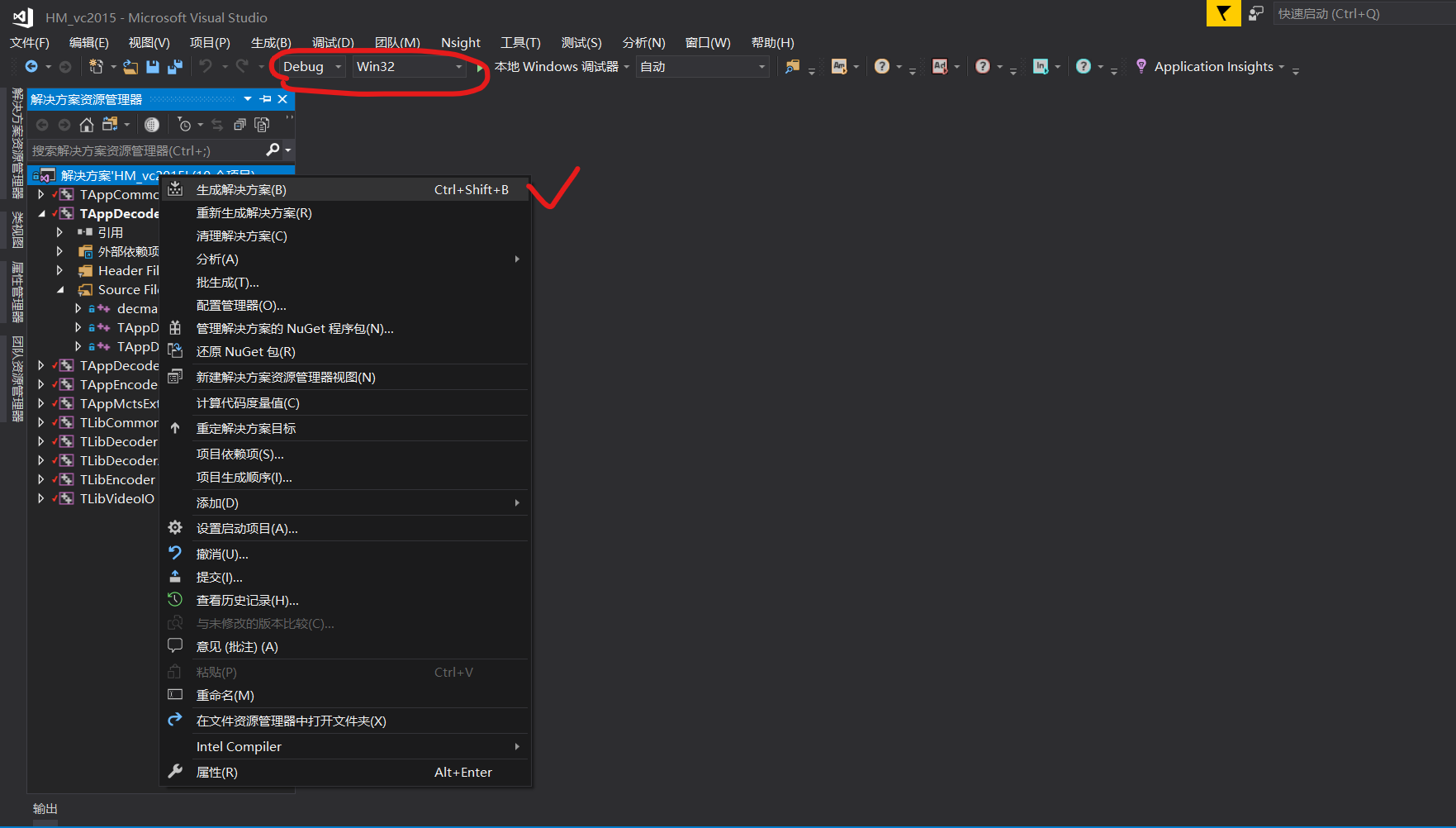

右击“解决方案’HM_vc2015’(10个项目)”->“生成解决方案”，可以选择debug或者win32模式，与系统是否是64位系统无关：

在这里插入图片描述

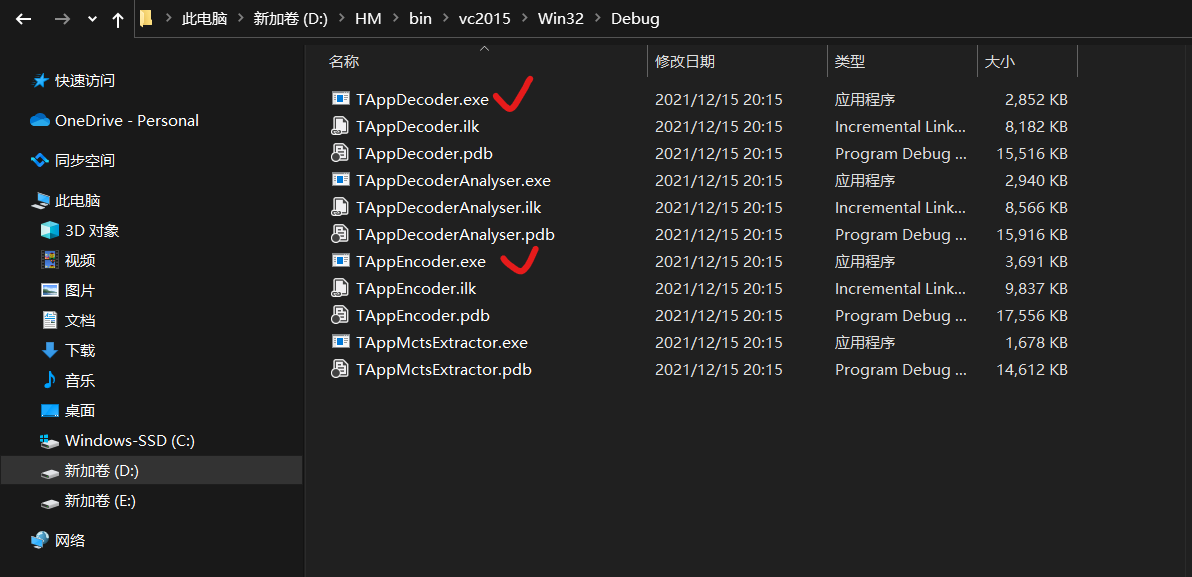

生成解决方案成功后，可在项目bin\vc2015\Win32\Debug下面看到TAppDecoder.exe和TAppEncoder.exe两个可执行文件：

在这里插入图片描述

一般我们更关注编码端，即如何将yuv文件转为HEVC文件，这里关注TAppEncoder项目：

在VS2017的解决方案资源管理器中右击TAppEncoder->“设为启动项目”，然后在此右击TAppEncoder->“属性”->“配置属性”->“调试”：

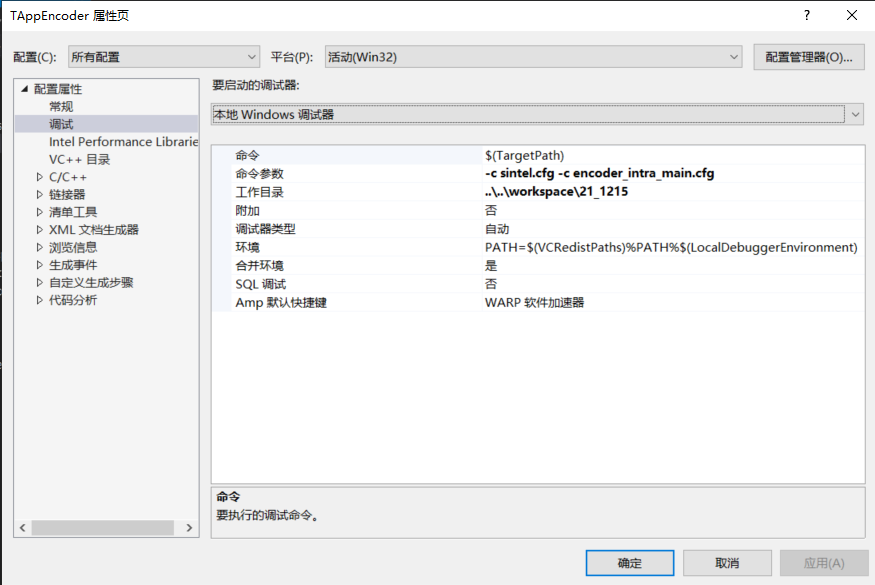

我们只需要修改工作目录，用于放置配置文件，这里按照日期命名，设为..\..\workspace\21_1215，即在HM->workspace下创建一个名为21_1215的空文件夹（自己创建），命令参数此处填入-c encoder_intra_main.cfg -c sintel.cfg，分别为帧内编码的配置文件和一个名为sintel的YUV序列文件的配置文件。

在这里插入图片描述

下面我们在刚才的workspace\21_1215中放置配置文件和视频序列：

encoder_intra_main.cfg可在HM->cfg中找到模板
sintel.cfg`可以在HM->cfg->per-sequence中找到模板
视频序列可以从Index of /hevc/hm-15.0-anchors/bitstreams/i_main/ (bbc.co.uk)中下载.bin格式的265压缩文件，然后在本地转为YUV序列，这里我们采用的是提前准备好的YUV序列：sintel.yuv

下面我们修改encoder_intra_main.cfg：

BitstreamFile 编码后的码流序列文件名，默认为str.bin
ReconFile 编码后重建的YUV文件名，默认为rec.yuv
QP 编码的量化系数，此处设为最大值51

然后修改sintel.cfg：

InputFile：可以写绝对地址，也可以直接写要编码的YUV文件名，但是此时要把文件放在workspace
SourceWidth和SourceHeight：帧宽和帧高
FramesToBeEncoded：要编码的帧的数目，此处设置为5

然后编译运行就可以了，结束后会在workspace下面看到编码后的码流序列str.bin和编码后重建的YUV文件rec.yuv。

后编译运行就可以了，结束后会在workspace下面看到编码后的码流序列str.bin和编码后重建的YUV文件rec.yuv。

配置文件

下面是配置文件21_1225\下面encoder_intra_main.cfg

#======== File I/O =====================
BitstreamFile                 : str.bin
ReconFile                     : rec.yuv

#======== Profile ================
Profile                       : main

#======== Unit definition ================
MaxCUWidth                    : 64          # Maximum coding unit width in pixel
MaxCUHeight                   : 64          # Maximum coding unit height in pixel
MaxPartitionDepth             : 4           # Maximum coding unit depth
QuadtreeTULog2MaxSize         : 5           # Log2 of maximum transform size for
                                            # quadtree-based TU coding (2...6)
QuadtreeTULog2MinSize         : 2           # Log2 of minimum transform size for
                                            # quadtree-based TU coding (2...6)
QuadtreeTUMaxDepthInter       : 3
QuadtreeTUMaxDepthIntra       : 3

#======== Coding Structure =============
IntraPeriod                   : 1           # Period of I-Frame ( -1 = only first)
DecodingRefreshType           : 1           # Random Accesss 0:none, 1:CRA, 2:IDR, 3:Recovery Point SEI
GOPSize                       : 1           # GOP Size (number of B slice = GOPSize-1)
ReWriteParamSetsFlag          : 1           # Write parameter sets with every IRAP

#=========== Motion Search =============
FastSearch                    : 1           # 0:Full search  1:TZ search
SearchRange                   : 64          # (0: Search range is a Full frame)
HadamardME                    : 1           # Use of hadamard measure for fractional ME
FEN                           : 1           # Fast encoder decision
FDM                           : 1           # Fast Decision for Merge RD cost

#======== Quantization =============
QP                            : 51          # Quantization parameter(0-51)
MaxDeltaQP                    : 0           # CU-based multi-QP optimization
MaxCuDQPDepth                 : 0           # Max depth of a minimum CuDQP for sub-LCU-level delta QP
DeltaQpRD                     : 0           # Slice-based multi-QP optimization
RDOQ                          : 1           # RDOQ
RDOQTS                        : 1           # RDOQ for transform skip

#=========== Deblock Filter ============
LoopFilterOffsetInPPS         : 1           # Dbl params: 0=varying params in SliceHeader, param = base_param + GOP_offset_param; 1 (default) =constant params in PPS, param = base_param)
LoopFilterDisable             : 0           # Disable deblocking filter (0=Filter, 1=No Filter)
LoopFilterBetaOffset_div2     : 0           # base_param: -6 ~ 6
LoopFilterTcOffset_div2       : 0           # base_param: -6 ~ 6
DeblockingFilterMetric        : 0           # blockiness metric (automatically configures deblocking parameters in bitstream). Applies slice-level loop filter offsets (LoopFilterOffsetInPPS and LoopFilterDisable must be 0)

#=========== Misc. ============
InternalBitDepth              : 8           # codec operating bit-depth

#=========== Coding Tools =================
SAO                           : 1           # Sample adaptive offset  (0: OFF, 1: ON)
AMP                           : 1           # Asymmetric motion partitions (0: OFF, 1: ON)
TransformSkip                 : 1           # Transform skipping (0: OFF, 1: ON)
TransformSkipFast             : 1           # Fast Transform skipping (0: OFF, 1: ON)
SAOLcuBoundary                : 0           # SAOLcuBoundary using non-deblocked pixels (0: OFF, 1: ON)

#============ Slices ================
SliceMode                : 0                # 0: Disable all slice options.
                                            # 1: Enforce maximum number of LCU in an slice,
                                            # 2: Enforce maximum number of bytes in an 'slice'
                                            # 3: Enforce maximum number of tiles in a slice
SliceArgument            : 1500             # Argument for 'SliceMode'.
                                            # If SliceMode==1 it represents max. SliceGranularity-sized blocks per slice.
                                            # If SliceMode==2 it represents max. bytes per slice.
                                            # If SliceMode==3 it represents max. tiles per slice.

LFCrossSliceBoundaryFlag : 1                # In-loop filtering, including ALF and DB, is across or not across slice boundary.
                                            # 0:not across, 1: across

#============ PCM ================
PCMEnabledFlag                      : 0                # 0: No PCM mode
PCMLog2MaxSize                      : 5                # Log2 of maximum PCM block size.
PCMLog2MinSize                      : 3                # Log2 of minimum PCM block size.
PCMInputBitDepthFlag                : 1                # 0: PCM bit-depth is internal bit-depth. 1: PCM bit-depth is input bit-depth.
PCMFilterDisableFlag                : 0                # 0: Enable loop filtering on I_PCM samples. 1: Disable loop filtering on I_PCM samples.

#============ Tiles ================
TileUniformSpacing                  : 0                # 0: the column boundaries are indicated by TileColumnWidth array, the row boundaries are indicated by TileRowHeight array
                                                       # 1: the column and row boundaries are distributed uniformly
NumTileColumnsMinus1                : 0                # Number of tile columns in a picture minus 1
TileColumnWidthArray                : 2 3              # Array containing tile column width values in units of CTU (from left to right in picture)
NumTileRowsMinus1                   : 0                # Number of tile rows in a picture minus 1
TileRowHeightArray                  : 2                # Array containing tile row height values in units of CTU (from top to bottom in picture)

LFCrossTileBoundaryFlag             : 1                # In-loop filtering is across or not across tile boundary.
                                                       # 0:not across, 1: across

#============ WaveFront ================
WaveFrontSynchro                    : 0                # 0:  No WaveFront synchronisation (WaveFrontSubstreams must be 1 in this case).
                                                       # >0: WaveFront synchronises with the LCU above and to the right by this many LCUs.

#=========== Quantization Matrix =================
ScalingList                   : 0                      # ScalingList 0 : off, 1 : default, 2 : file read
ScalingListFile               : scaling_list.txt       # Scaling List file name. If file is not exist, use Default Matrix.

#============ Lossless ================
TransquantBypassEnable     : 0                         # Value of PPS flag.
CUTransquantBypassFlagForce: 0                         # Force transquant bypass mode, when transquant_bypass_enable_flag is enabled

### DO NOT ADD ANYTHING BELOW THIS LINE ###
### DO NOT DELETE THE EMPTY LINE BELOW ###

和sintel.cfg

#======== File I/O ===============
InputFile                     : sintel_640_360.yuv
InputBitDepth                 : 8           # Input bitdepth
InputChromaFormat             : 420         # Ratio of luminance to chrominance samples
FrameRate                     : 50          # Frame Rate per second
FrameSkip                     : 0           # Number of frames to be skipped in input
SourceWidth                   : 640         # Input  frame width
SourceHeight                  : 360         # Input  frame height
FramesToBeEncoded             : 5         # Number of frames to be coded

Level                         : 2.1

YUV文件从官网下载Index of /hevc/hm-15.0-anchors/bitstreams/i_main/ (bbc.co.uk)，或者从百度云下载

链接：https://pan.baidu.com/s/1wEVowxJTX-gPdhPlsi2FbQ
提取码：ryhv
