Spark阶段RDD的分区数计算

1.调用textFile()

def textFile(
    path: String,
    minPartitions: Int = defaultMinPartitions): RDD[String] = withScope {
  assertNotStopped()
  hadoopFile(path, classOf[TextInputFormat], classOf[LongWritable], classOf[Text],
    minPartitions).map(pair => pair._2.toString)
}

2.minPartitions最小分区数计算

def defaultMinPartitions: Int = math.min(defaultParallelism, 2)

2.1解析defaultParallelism

def defaultParallelism: Int = {
  assertNotStopped()
  taskScheduler.defaultParallelism
}

这里调用的defaultParallelism是TaskScheduler特质中的方法，需要进一步寻找它的实现类：TaskSchedulerImpl

override def defaultParallelism(): Int = backend.defaultParallelism()

不过defaultParallelism仍然是SchedulerBackend特质中的方法，需要进一步寻找它的实现类：集群模式(yarn\mesos)和本地模式(local[])
org.apache.spark.scheduler.cluster.CoarseGrainedSchedulerBackend
org.apache.spark.scheduler.cluster.mesos.MesosSchedulerBackend
org.apache.spark.scheduler.local.LocalBackend
集群模式：(yarn)

override def defaultParallelism(): Int = {
  conf.getInt("spark.default.parallelism", math.max(totalCoreCount.get(), 2))
}

集群模式：(mesos)

override def defaultParallelism(): Int = sc.conf.getInt("spark.default.parallelism", 8)

本地模式：
从spark.default.parallelism或线程数量取值

override def defaultParallelism(): Int =
  scheduler.conf.getInt("spark.default.parallelism", totalCores)

org.apache.spark.SparkConf#getInt
def getInt(key: String, defaultValue: Int): Int = {
  getOption(key).map(_.toInt).getOrElse(defaultValue)
}

2.2minPartitions默认值：
minPartitions = min(defaultParallelism, 2)
默认并行度defaultParallelism：
如果设置spark.default.parallelism参数值，取该值
conf.getInt(“spark.default.parallelism”, math.max(totalCoreCount.get(), 2))
scheduler.conf.getInt(“spark.default.parallelism”, totalCores)

3.hadoopFile分析
hadoopFile(path, classOf[TextInputFormat], classOf[LongWritable], classOf[Text],
minPartitions).map(pair => pair._2.toString)

def hadoopFile[K, V](
    path: String,
    inputFormatClass: Class[_ <: InputFormat[K, V]],
    keyClass: Class[K],
    valueClass: Class[V],
    minPartitions: Int = defaultMinPartitions): RDD[(K, V)] = withScope {
  assertNotStopped()
  // A Hadoop configuration can be about 10 KB, which is pretty big, so broadcast it.
  val confBroadcast = broadcast(new SerializableConfiguration(hadoopConfiguration))
  val setInputPathsFunc = (jobConf: JobConf) => FileInputFormat.setInputPaths(jobConf, path)
  new HadoopRDD(
    this,
    confBroadcast,
    Some(setInputPathsFunc),
    inputFormatClass,
    keyClass,
    valueClass,
    minPartitions).setName(path)
}

3.1HadoopRDD类
成员变量minPartitions解释：
Minimum number of HadoopRDD partitions (Hadoop Splits) to generate

获取RDD分区数的方法：
调用partitions.length或getNumPartitions

/**
 * Get the array of partitions of this RDD, taking into account whether the
 * RDD is checkpointed or not.
 */
final def partitions: Array[Partition] = {
  checkpointRDD.map(_.partitions).getOrElse {
    if (partitions_ == null) {
    //getPartitions返回Array[HadoopPartition]
      partitions_ = getPartitions
    }
    partitions_
  }
}
/**
  * Returns the number of partitions of this RDD.
  */
@Since("1.6.0")
final def getNumPartitions: Int = partitions.length

上面的partitions中调用了getPartitions方法，

override def getPartitions: Array[Partition] = {
  val jobConf = getJobConf()
  // add the credentials here as this can be called before SparkContext initialized
  SparkHadoopUtil.get.addCredentials(jobConf)
  val inputFormat = getInputFormat(jobConf)
  //返回FileSplit[]
  val inputSplits = inputFormat.getSplits(jobConf, minPartitions)
  val array = new Array[Partition](inputSplits.size)
  for (i <- 0 until inputSplits.size) {
    array(i) = new HadoopPartition(id, i, inputSplits(i))
  }
  array
}

进一步解析inputSplits = inputFormat.getSplits(jobConf, minPartitions)
这里调用的是org.apache.hadoop.mapred.InputFormat特质中的getSplits方法，需要进一步寻找它的实现类：org.apache.hadoop.mapred.FileInputFormat#getSplits

public InputSplit[] getSplits(JobConf job, int numSplits)
  throws IOException {
  StopWatch sw = new StopWatch().start();
  FileStatus[] files = listStatus(job);

  // Save the number of input files for metrics/loadgen
  //设置输入文件的数目files.length
  job.setLong(NUM_INPUT_FILES, files.length);
  long totalSize = 0;                           // compute total size
  for (FileStatus file: files) {                // check we have valid files
    if (file.isDirectory()) {
      throw new IOException("Not a file: "+ file.getPath());
    }
    totalSize += file.getLen();//获取路径下的文件大小(单位Byte)
  }
 //循环files后得到路径下所有文件总和(Byte)--totalSize
  long goalSize = totalSize / (numSplits == 0 ? 1 : numSplits);
  //minSplitSize默认值1
  long minSize = Math.max(job.getLong(org.apache.hadoop.mapreduce.lib.input.
  FileInputFormat.SPLIT_MINSIZE, 1), minSplitSize);

// generate splits
ArrayList<FileSplit> splits = new ArrayList<FileSplit>(numSplits);
NetworkTopology clusterMap = new NetworkTopology();
//循环files，获取输入路径下的所有文件信息
for (FileStatus file: files) {
  Path path = file.getPath(); //文件路径
  long length = file.getLen(); //文件大小
  if (length != 0) {
    FileSystem fs = path.getFileSystem(job);
    BlockLocation[] blkLocations;
    if (file instanceof LocatedFileStatus) {
      blkLocations = ((LocatedFileStatus) file).getBlockLocations();
    } else {
      blkLocations = fs.getFileBlockLocations(file, 0, length);
    }
    if (isSplitable(fs, path)) {
      long blockSize = file.getBlockSize(); //块大小
      //方法内部调用Math.max(minSize, Math.min(goalSize, blockSize))
      long splitSize = computeSplitSize(goalSize, minSize, blockSize);

      long bytesRemaining = length; //文件剩余量
      //SPLIT_SLOP = 1.1  (10% slop)
      while (((double) bytesRemaining)/splitSize > SPLIT_SLOP) {
        String[][] splitHosts = getSplitHostsAndCachedHosts(blkLocations,
            length-bytesRemaining, splitSize, clusterMap);
        //add方法返回FileSplit
        splits.add(makeSplit(path, length-bytesRemaining, splitSize,
            splitHosts[0], splitHosts[1]));
        bytesRemaining -= splitSize;
      }

      if (bytesRemaining != 0) {
        String[][] splitHosts = getSplitHostsAndCachedHosts(blkLocations, length
            - bytesRemaining, bytesRemaining, clusterMap);
        //继续向ArrayList<FileSplit>中添加最后一个分片
        splits.add(makeSplit(path, length - bytesRemaining, bytesRemaining,
            splitHosts[0], splitHosts[1]));
      }
    } else {
      String[][] splitHosts = getSplitHostsAndCachedHosts(blkLocations,0,length,clusterMap);
      splits.add(makeSplit(path, 0, length, splitHosts[0], splitHosts[1]));
    }
  } else {
    //Create empty hosts array for zero length files
    splits.add(makeSplit(path, 0, length, new String[0]));
  }
}
sw.stop();
if (LOG.isDebugEnabled()) {
  LOG.debug("Total # of splits generated by getSplits: " + splits.size()
      + ", TimeTaken: " + sw.now(TimeUnit.MILLISECONDS));
}
//返回FileSplit[]数组
return splits.toArray(new FileSplit[splits.size()]);
}

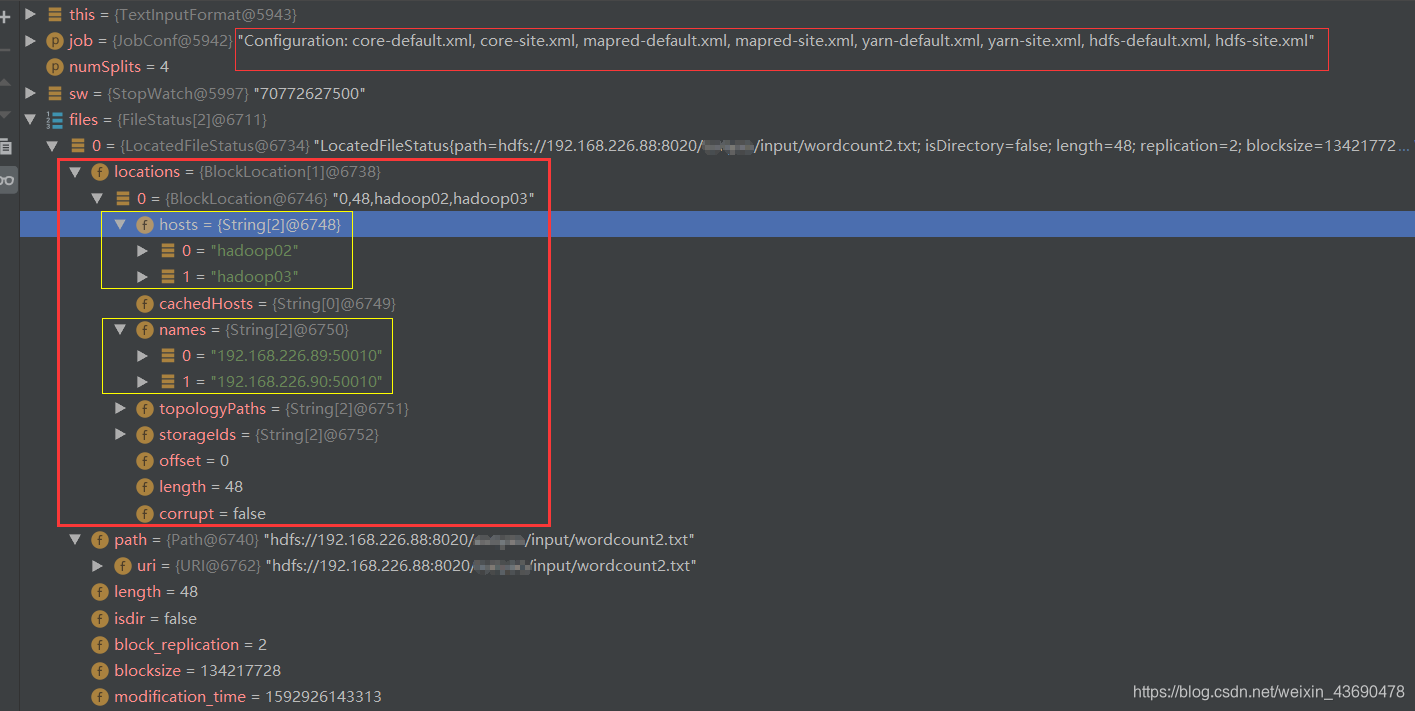

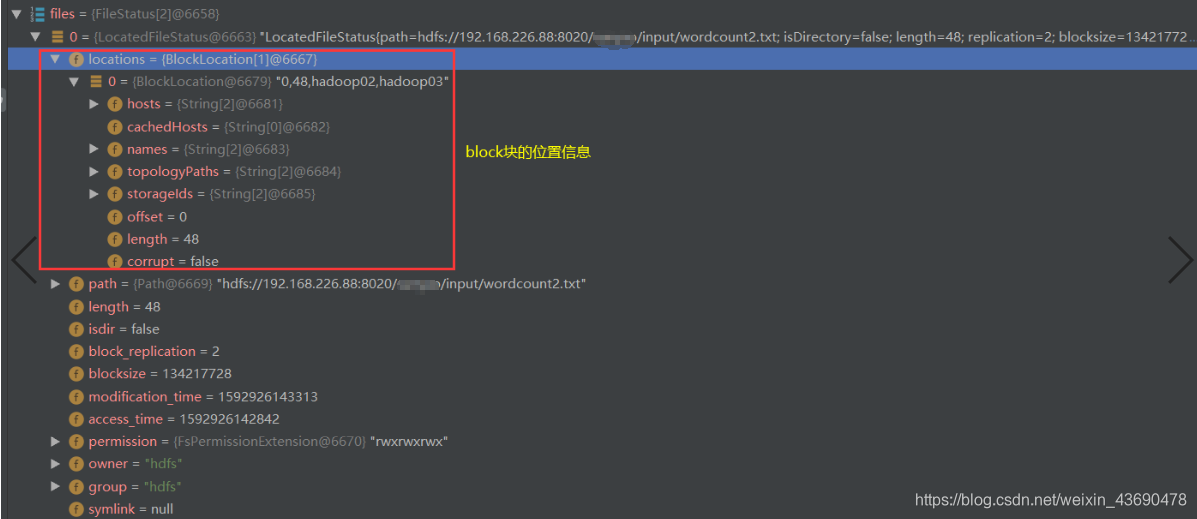

FileStatus类
封装了文件的路径、文件大小、副本数、block块大小、位置等信息

public class FileStatus implements Writable, Comparable {
    private Path path;
    private long length;
    private boolean isdir;
    private short block_replication;
    private long blocksize;
    private long modification_time;
    private long access_time;
    private FsPermission permission;
    private String owner;
    private String group;
    private Path symlink;
...
}

FileStatus类

4.总结
4.1首先计算最小分区数: 直接指定或使用默认值
minPartitions = math.min(defaultParallelism, 2)
defaultParallelism取决于spark.default.parallelism或cores
优先级：spark.default.parallelism > cores

4.2
//循环files后得到路径下所有文件总和(Byte)–totalSize
long goalSize = totalSize / (numSplits == 0 ? 1 : numSplits);
//minSplitSize默认值1
long minSize = Math.max(job.getLong(org.apache.hadoop.mapreduce.lib.input.
FileInputFormat.SPLIT_MINSIZE, 1), minSplitSize);
4.3
//方法内部调用Math.max(minSize, Math.min(goalSize, blockSize))
long splitSize = computeSplitSize(goalSize, minSize, blockSize);

4.4
bytesRemaining/splitSize > SPLIT_SLOP
