.net framework4.5.2+HttpSelfHostConfiguration 使用异常过滤器来做api接口的思想

.Net FrameWork4.5 已经是行将就木的老技术了，当时我刚开始工作的时候就用，现在得有6.7年了，
这次想用它来写个api接口

HttpSelfHostConfiguration 自宿主服务

宿主一词我们不会陌生，它可以看作是一个基础设施，它为一些服务和功能提供最底层的支持，如你的web应用程序可以运行在iis或者apache上，而这两个东西就是web应用程序的宿主，而今天说的自主宿主SelfHost就是说，它可以自己去监听自己的服务，如你可以把一个web应用程序宿主到一个console控制台程序上，或者把一个webApi宿主到一个console或者windowService上，这都是可以的。(这段话是抄的，大家理解一下就好)
下面是我的自宿主程序代码

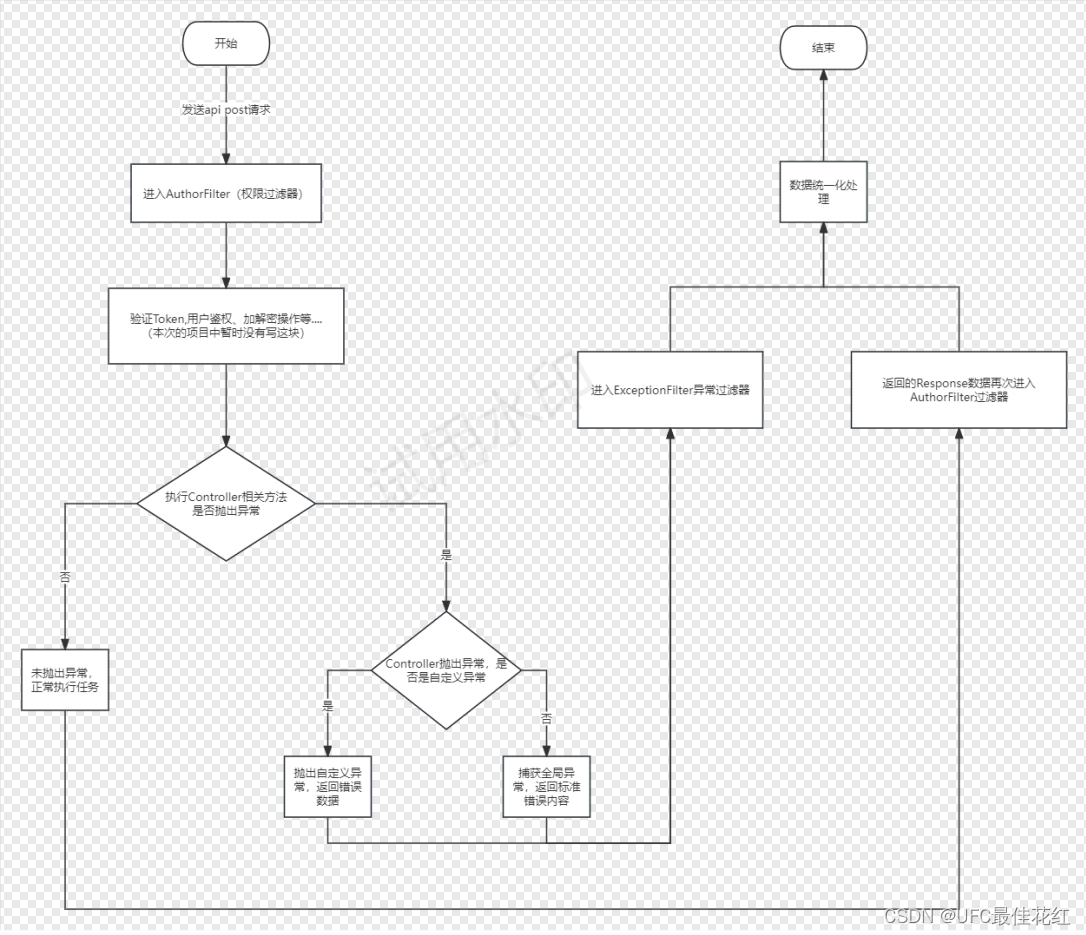

api接口流程图

api接口的设计流程图如下

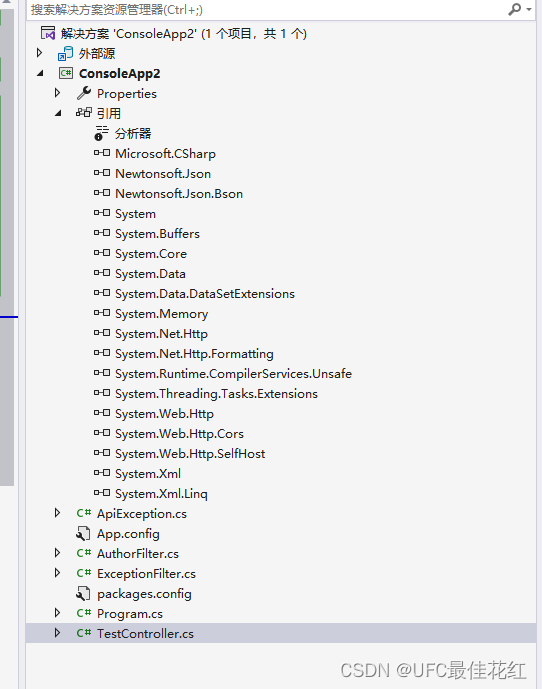

项目目录结构如下

后面有各个类的具体代码

使用控制台创建自宿主项目 + 绑定全局过滤器

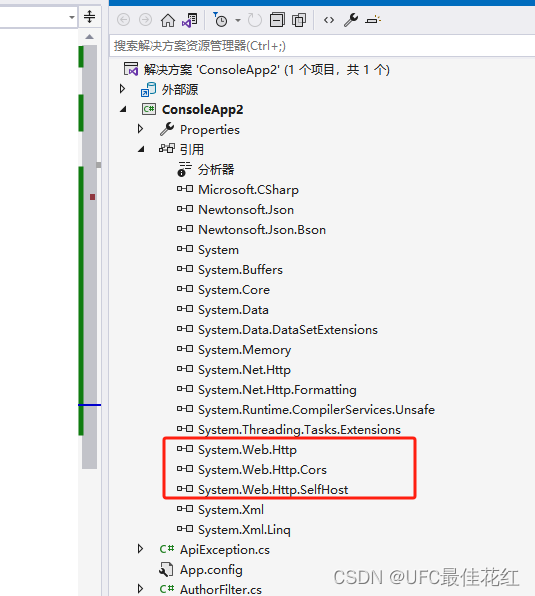

使用自宿主服务，项目要引用几个dll，如果没有的话大家可以去拷贝下载

using Newtonsoft.Json;
using Robot2.OpenApi.V2.Filter;
using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using System.Web.Http;
using System.Web.Http.Cors;
using System.Web.Http.SelfHost;

namespace ConsoleApp2
{
    internal class Program
    {
        static void Main(string[] args)
        {
            try
            {
                string url = string.Format("http://localhost:20100");
                var config = new HttpSelfHostConfiguration(url);
                config.Formatters.XmlFormatter.SupportedMediaTypes.Clear();
                config.Formatters.Add(new System.Net.Http.Formatting.JsonMediaTypeFormatter());
                HttpSelfHostServer _hostServer = new HttpSelfHostServer(config);
                config.EnableCors(new EnableCorsAttribute("*", "*", "*"));
                config.EnableCors(new EnableCorsAttribute("*", "*", "GET, POST, PUT, DELETE, OPTIONS") { SupportsCredentials = true });
                config.Filters.Add(new AuthorFilter());
                config.Filters.Add(new ExceptionFilter());
                config.Routes.MapHttpRoute(
                 name: "DefaultApi",
                routeTemplate: "api/{controller}/{action}",
                defaults: new
                {
                    controller = "Home",
                    action = "Index",
                    id = RouteParameter.Optional
                });
                _hostServer.OpenAsync().Wait();
                Console.WriteLine("服务端口打开成功");
            }
            catch (Exception ex)
            {
                Console.WriteLine("服务端口打开异常:" + JsonConvert.SerializeObject(ex));
            }
            Console.ReadKey();
        }
    }
}

.Net FrameWork4.5 中的过滤器

过滤器的知识基本做2年的后端工程师都会懂，就不做赘述了，但是不同于.net core更好的AOP思想
.net framework里内置的过滤器种类就少了很多，常用的基本就只有一两种，这次的api接口中
使用以下两种过滤器

• System.Web.Http.Filters.IAuthorizationFilter （权限过滤器）
• System.Web.Http.Filters.IExceptionFilter （异常过滤器）
  过滤器代码如下

using Microsoft.SqlServer.Server;
using Newtonsoft.Json;
using System;
using System.Collections.Generic;
using System.Diagnostics;
using System.Linq;
using System.Net;
using System.Net.Http;
using System.Runtime.Remoting.Contexts;
using System.Text;
using System.Text.RegularExpressions;
using System.Threading;
using System.Threading.Tasks;
using System.Web;
using System.Web.Http.Controllers;
using System.Web.Http.Filters;
using System.Web.Http.Results;

namespace Robot2.OpenApi.V2.Filter
{
    /// <summary>
    /// 请求过滤器(日志记录)
    /// </summary>
    public class AuthorFilter : System.Web.Http.Filters.IAuthorizationFilter
    {
        public class Message
        {
            public string Title { get; set; }
            public string Content { get; set; }
        }
        public bool AllowMultiple => throw new NotImplementedException();

        public async Task<HttpResponseMessage> ExecuteAuthorizationFilterAsync(HttpActionContext actionContext, CancellationToken cancellationToken, Func<Task<HttpResponseMessage>> continuation)
        {
            //Token校验验证
            var datas = await continuation();
            var value = ((System.Net.Http.ObjectContent)datas.Content).Value;
            Message data = new Message()
            {
                Title = "Success",
                Content = JsonConvert.SerializeObject(value)
            };
            string dataStr = JsonConvert.SerializeObject(data);
            var res = new HttpResponseMessage(HttpStatusCode.OK);
            res.Content = new StringContent(dataStr, Encoding.UTF8, "application/json");
            return res;
        }
    }
}

using Newtonsoft.Json;
using System;
using System.Collections.Generic;
using System.Linq;
using System.Net;
using System.Net.Http;
using System.Runtime.Remoting.Contexts;
using System.Text;
using System.Threading;
using System.Threading.Tasks;
using System.Web.Http.Filters;
using static Robot2.OpenApi.V2.Filter.AuthorFilter;

namespace Robot2.OpenApi.V2.Filter
{
    public class ExceptionFilter : System.Web.Http.Filters.IExceptionFilter
    {
        public bool AllowMultiple => throw new NotImplementedException();

        public Task ExecuteExceptionFilterAsync(HttpActionExecutedContext actionExecutedContext, CancellationToken cancellationToken)
        {

            Message msg = new Message()
            {
                Content = "服务器异常",
                Title = "Error"
            };
            return Task.Run(() =>
            {

                var errormsg = actionExecutedContext.Exception;
                if (errormsg is ApiException)
                {
                    var error = errormsg as ApiException;
                    msg.Content = error.ErrorMessage;
                }
                else
                {
                    Console.WriteLine(errormsg);
                }
                HttpResponseMessage httpResponse = new HttpResponseMessage();
                HttpContent httpContent = new StringContent(JsonConvert.SerializeObject(msg), Encoding.UTF8, "application/json");
                httpResponse.Content = httpContent;
                actionExecutedContext.Response = httpResponse;
            });
        }
    }
}

新增的异常类

很简单的异常类，就是继承Exception，来实现一个自定义异常

using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Threading.Tasks;

namespace Robot2.OpenApi.V2
{
    /// <summary>
    /// api异常编码
    /// </summary>
    public class ApiException : Exception
    {
        /// <summary>
        /// 状态编码
        /// </summary>
        public int StatusCode { get; set; } = 500;
        /// <summary>
        /// 错误描述
        /// </summary>
        public string ErrorMessage { get; set; }
        /// <summary>
        /// 错误编码
        /// </summary>
        public string ErrorCode { get; set; }
        /// <summary>
        /// 抛出异常错误,返回结果
        /// </summary>
        /// <param name="ErrorMsg"></param>
        /// <returns></returns>
        public static ApiException Oh(string ErrorMsg)
        {
            return new ApiException()
            {
                ErrorMessage = ErrorMsg,
                ErrorCode = "Error"
            };
        }

        /// <summary>
        /// 抛出异常错误,返回结果
        /// </summary>
        /// <param name="ErrorMsg"></param>
        /// <returns></returns>
        public static ApiException Oh(string ErrorCode, string ErrorMsg)
        {
            return new ApiException()
            {
                ErrorMessage = ErrorMsg,
                ErrorCode = ErrorCode
            };
        }
    }
}

新增Controller，编写api代码

Controller代码如下

using Robot2.OpenApi.V2;
using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using System.Web.Http;

namespace ConsoleApp2
{
    public class TestController: ApiController
    {
        [HttpPost]
        public string Test1() {
            return "ssss";
        }


         public class sss
        {
            public string text { get; set; }
        }
        [HttpPost]
        public int Test2(sss t)
        {
            throw ApiException.Oh($"{t.text}数据error");
        }

        public Dictionary<string, object> Test3() {
            return new Dictionary<string, object>
            {
                ["sdsds"]="wewewe",
                ["12121"]=3.65
            };
        }
    }
}

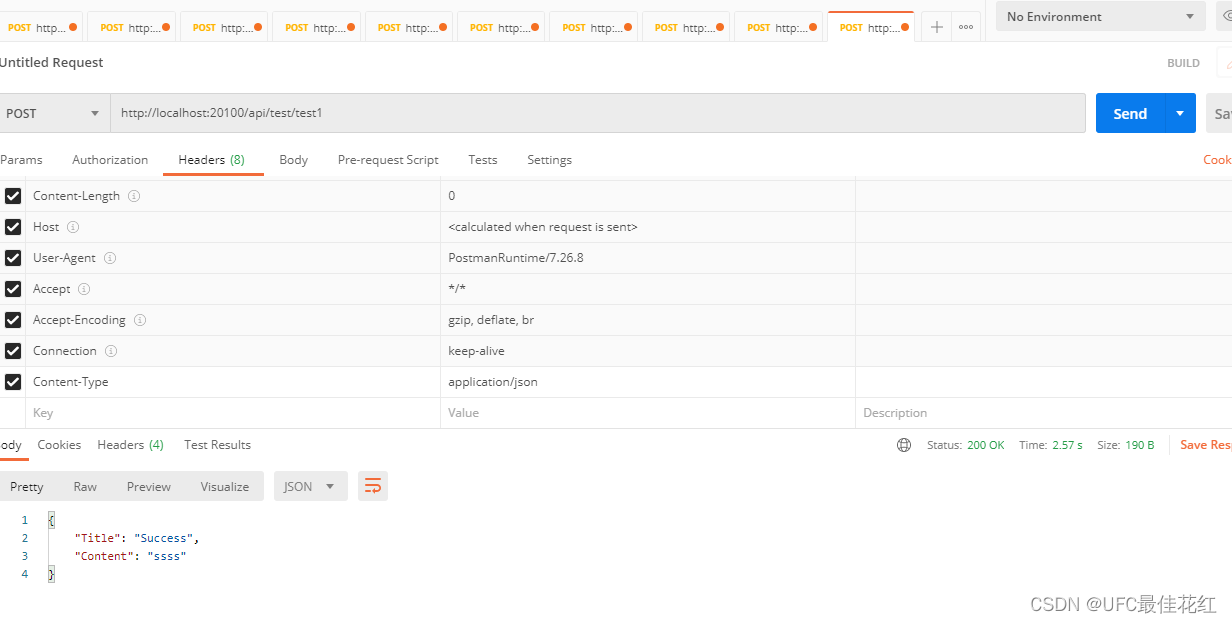

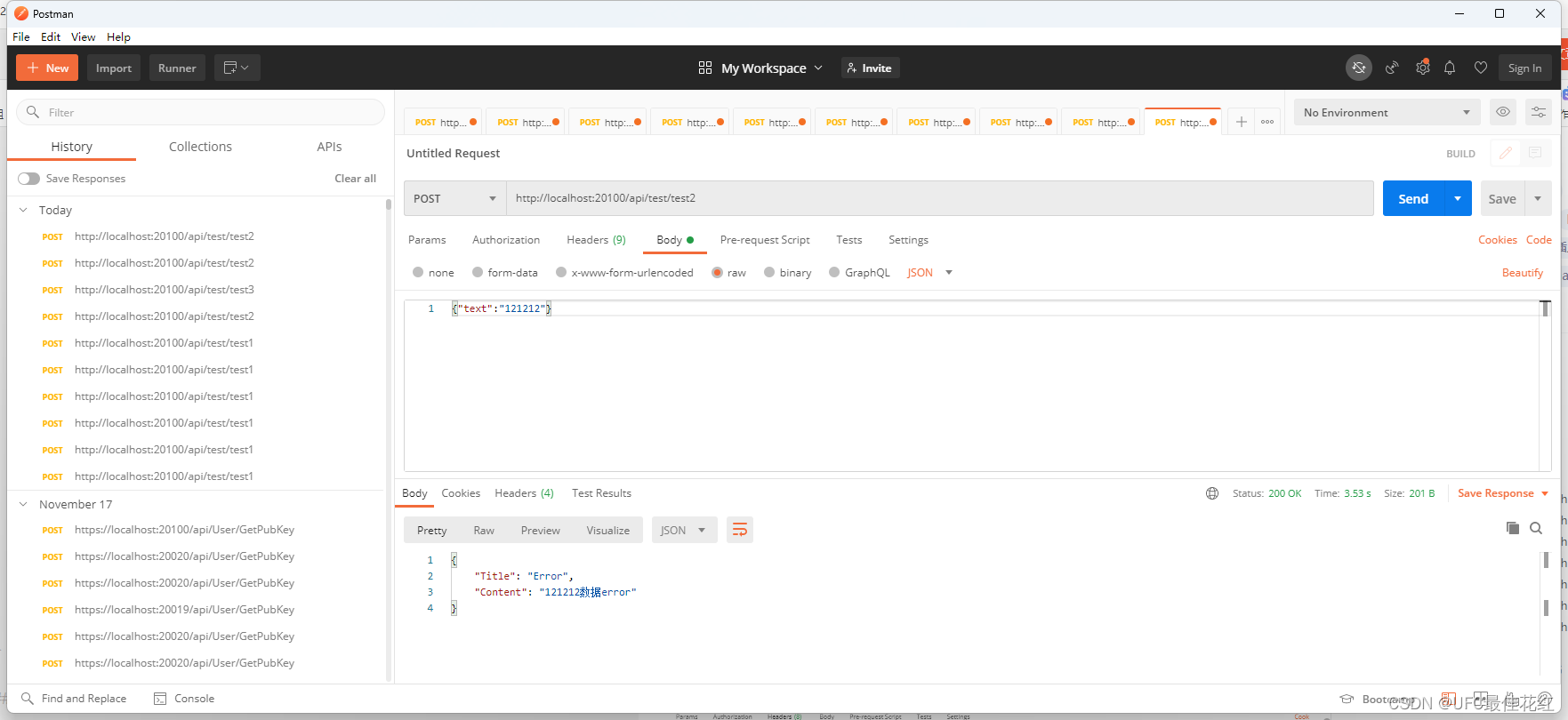

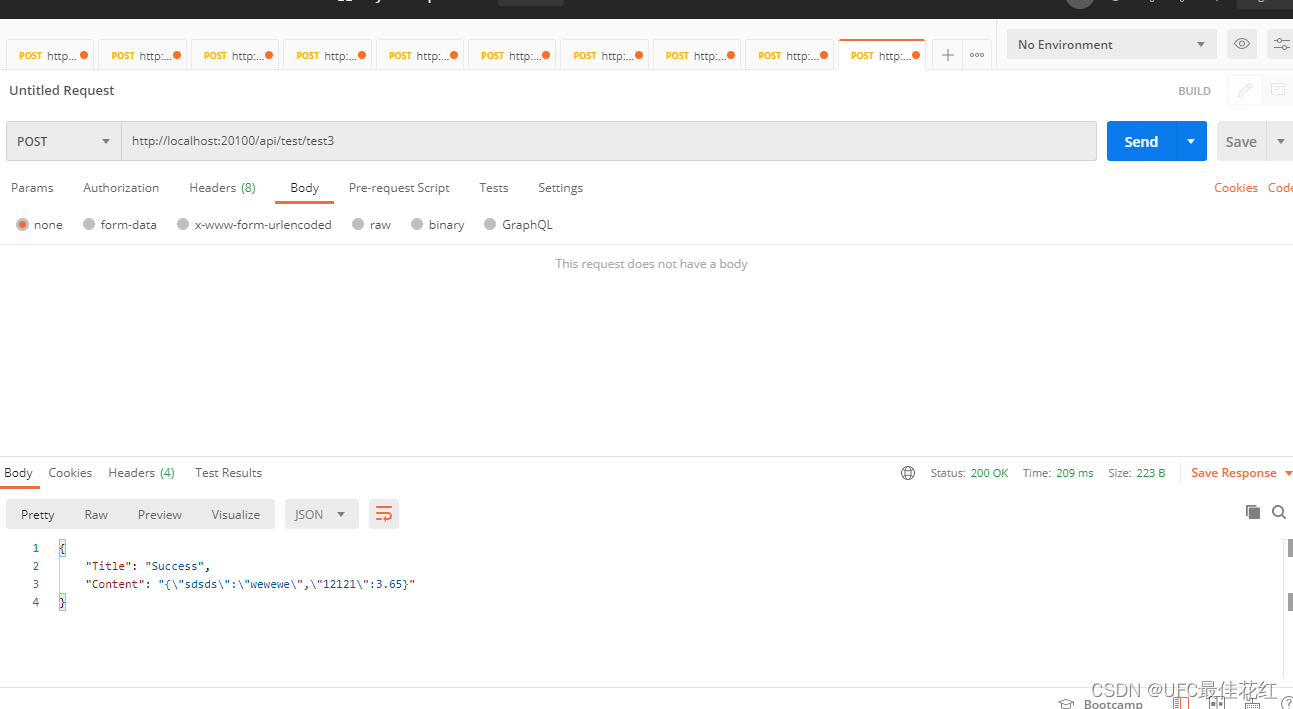

Controller 各方法调用截图如下

使用postman调用各个请求方法 ，调用的结果如下

总结

是个很巧妙的构思，希望大家可以一起交流借鉴，也体现了AOP切片思想编程么
如果要在.net core中实现，那就更有趣了
.net core的过滤器种类更多，且分工更细化
