【C#】学习之图形绘制：圆形卡尺

• 摘要
  • 本文描述了如何在Form窗体程序上的控件绘制圆形带卡尺图形。支持调整位置、大小、卡尺数量、卡尺宽度、卡尺长度。

---

• 前言

  • 实现思路：

    • 通过提取卡尺的基本属性，通过窗体界面控件调整参数值，实现卡尺工具的动态绘制。
    • 继承Panel控件设置DoubleBuffered = true减少绘制时闪烁，实现卡尺显示。
    • 通过滑动块调整卡尺的主要参数。

  • 主要参数：

    • Center 圆心
    • Radius 圆半径
    • CaliperCount 圆半径
    • CaliperLength 卡尺长度
    • CaliperWidth 卡尺宽度
    • InnerLengthRatio 内卡尺长度比例

  • 主要方法

    • 绘制圆和卡尺
      • public void Draw(Graphics g)
    • 绘制十字准心（大小3x3，线宽一个像素）
      • private void DrawCrosshair(Graphics g)
    • 绘制卡尺
      • private void DrawCalipers(Graphics g)
    • 绘制卡尺矩形区域
      • private void DrawCaliperRectangle(Graphics g, PointF center, float angle)

---

• 运行环境

  • 操作系统：Windows 11
  • 编程软件：Visual Stduio 2022

---

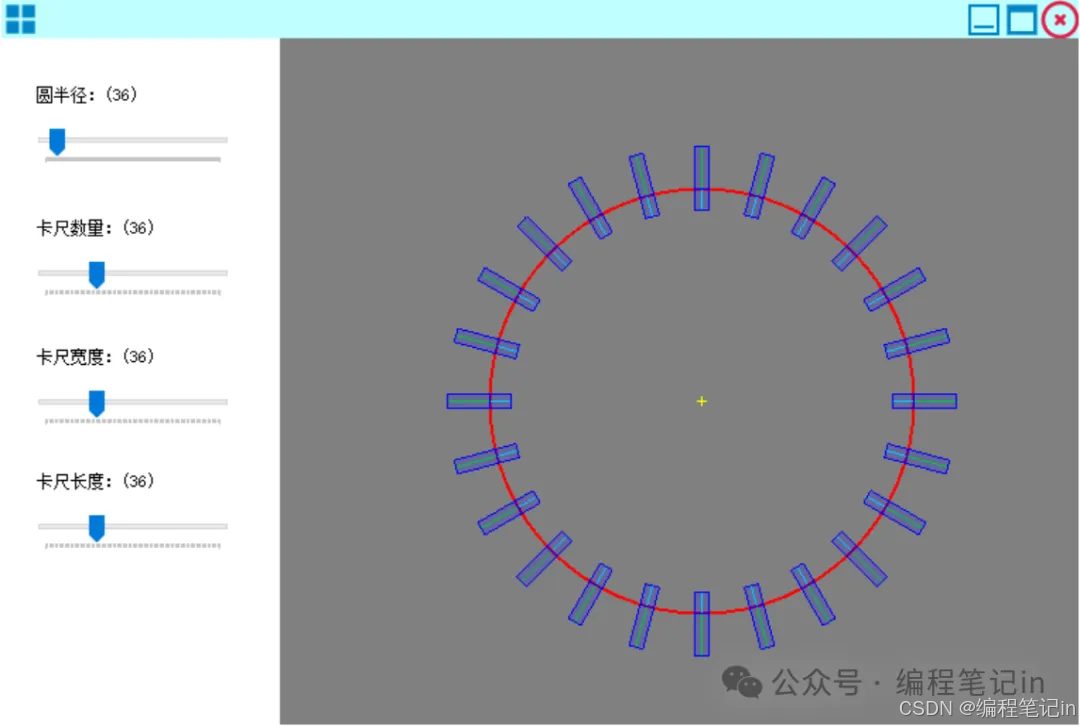

• 预览

  • 运行效果

---

一、代码

• MainForm 窗体代码

  • 主窗体添加四个参数调节控件（滑动块），实现动态调节卡尺参数：圆形半径，卡尺数量，卡尺宽度、卡尺高度。

  using CustomControls;
  using System.Drawing;
  using System.Windows.Forms;
  namespace CS学习之创建圆形卡尺工具
  {
      public partial class MainForm : WinFormBase
      {
          private CircleCaliper circleFinder;
          private Bitmap image;
          private bool isDrag = false;
          public MainForm()
          {
              InitializeComponent();
              this.CenterToParent();
              this.DoubleBuffered = true;
          }
          /// <summary>
          /// 窗体加载
          /// </summary>
          private void MainForm_Load(object sender, System.EventArgs e)
          {
              // 创建圆卡尺
              circleFinder = new CircleCaliper
              {
                  Center = new PointF(400, 300),
                  Radius = 150,
                  CaliperCount = 24,
                  CaliperLength = 30,
                  CaliperWidth = 10
              };
              canvas.BackColor = Color.Gray;
              canvas.Paint += Control_Paint;
              canvas.MouseDown += Control_MouseDown;
              canvas.MouseMove += Control_MouseMove;
              canvas.MouseUp += Control_MouseUp;
              UpdateControlShowValue();
              trackb_CallipersNumber.Scroll += trackb_CallipersNumber_Scroll;
              trackb_CallipersWidth.Scroll += trackb_CallipersWidth_Scroll;
              trackb_CallipersLength.Scroll += trackb_CallipersLength_Scroll;
              trackb_CircleRadios.Scroll += trackb_CircleRadio_Scroll;
          }

          #region 画布事件
          private void Control_Paint(object sender, PaintEventArgs e)
          {
              // 绘制圆查找器
              circleFinder.Draw(e.Graphics);
          }
          private void Control_MouseDown(object sender, MouseEventArgs e)
          {
              isDrag = true;
              canvas.Invalidate();
          }
          private void Control_MouseMove(object sender, MouseEventArgs e)
          {
              if (isDrag)
              {
                  circleFinder.Center = e.Location;
              }
              canvas.Invalidate();
          }
          private void Control_MouseUp(object sender, MouseEventArgs e)
          {
              isDrag = false;
              canvas.Invalidate();
          }
          #endregion

          #region 卡尺参数
          private void trackb_CallipersNumber_Scroll(object sender, System.EventArgs e)
          {
              circleFinder.CaliperCount = trackb_CallipersNumber.Value;
              UpdateControlShowValue();
              canvas.Invalidate();
          }
          private void trackb_CallipersWidth_Scroll(object sender, System.EventArgs e)
          {
              circleFinder.CaliperWidth = trackb_CallipersWidth.Value;
              UpdateControlShowValue();
              canvas.Invalidate();
          }
          private void trackb_CallipersLength_Scroll(object sender, System.EventArgs e)
          {
              circleFinder.CaliperLength = trackb_CallipersLength.Value;
              UpdateControlShowValue();
              canvas.Invalidate();
          }
          private void trackb_CircleRadio_Scroll(object sender, System.EventArgs e)
          {
              circleFinder.Radius = trackb_CircleRadios.Value;
              UpdateControlShowValue();
              canvas.Invalidate();
          }
          #endregion

          /// <summary>
          /// 值更新显示
          /// </summary>
          private void UpdateControlShowValue()
          {
              lab_CircleRadios.Text = $"圆半径：({trackb_CircleRadios.Value})";
              labNumber.Text = $"卡尺数量：({trackb_CallipersNumber.Value})";
              lab_CallipersWidth.Text = $"卡尺宽度：({trackb_CallipersWidth.Value})";
              lab_CallipersLength.Text = $"卡尺长度：({trackb_CallipersLength.Value})";
          }
      }
  }


---

• MainForm设计器 代码

  • 窗体、控件的一些初始化参数（添加控件时自带）。

  namespace CS学习之创建圆形卡尺工具
  {
      partial class MainForm
      {
          /// <summary>
          /// 必需的设计器变量。
          /// </summary>
          private System.ComponentModel.IContainer components = null;

          /// <summary>
          /// 清理所有正在使用的资源。
          /// </summary>
          /// <param name="disposing">如果应释放托管资源，为 true；否则为 false。</param>
          protected override void Dispose(bool disposing)
          {
              if (disposing && (components != null))
              {
                  components.Dispose();
              }
              base.Dispose(disposing);
          }

          #region Windows 窗体设计器生成的代码

          /// <summary>
          /// 设计器支持所需的方法 - 不要修改
          /// 使用代码编辑器修改此方法的内容。
          /// </summary>
          private void InitializeComponent()
          {
              this.canvas = new CS学习之创建圆形卡尺工具.Canvas();
              this.panel1 = new System.Windows.Forms.Panel();
              this.lab_CircleRadios = new System.Windows.Forms.Label();
              this.trackb_CircleRadios = new System.Windows.Forms.TrackBar();
              this.lab_CallipersLength = new System.Windows.Forms.Label();
              this.trackb_CallipersLength = new System.Windows.Forms.TrackBar();
              this.lab_CallipersWidth = new System.Windows.Forms.Label();
              this.trackb_CallipersWidth = new System.Windows.Forms.TrackBar();
              this.labNumber = new System.Windows.Forms.Label();
              this.trackb_CallipersNumber = new System.Windows.Forms.TrackBar();
              this.panel1.SuspendLayout();
              ((System.ComponentModel.ISupportInitialize)(this.trackb_CircleRadios)).BeginInit();
              ((System.ComponentModel.ISupportInitialize)(this.trackb_CallipersLength)).BeginInit();
              ((System.ComponentModel.ISupportInitialize)(this.trackb_CallipersWidth)).BeginInit();
              ((System.ComponentModel.ISupportInitialize)(this.trackb_CallipersNumber)).BeginInit();
              this.SuspendLayout();
              //
              // canvas
              //
              this.canvas.BackColor = System.Drawing.Color.Gray;
              this.canvas.Dock = System.Windows.Forms.DockStyle.Fill;
              this.canvas.Location = new System.Drawing.Point(3, 40);
              this.canvas.Name = "canvas";
              this.canvas.Size = new System.Drawing.Size(1140, 727);
              this.canvas.TabIndex = 4;
              //
              // panel1
              //
              this.panel1.Controls.Add(this.lab_CircleRadios);
              this.panel1.Controls.Add(this.trackb_CircleRadios);
              this.panel1.Controls.Add(this.lab_CallipersLength);
              this.panel1.Controls.Add(this.trackb_CallipersLength);
              this.panel1.Controls.Add(this.lab_CallipersWidth);
              this.panel1.Controls.Add(this.trackb_CallipersWidth);
              this.panel1.Controls.Add(this.labNumber);
              this.panel1.Controls.Add(this.trackb_CallipersNumber);
              this.panel1.Dock = System.Windows.Forms.DockStyle.Left;
              this.panel1.Location = new System.Drawing.Point(3, 40);
              this.panel1.Name = "panel1";
              this.panel1.Size = new System.Drawing.Size(296, 727);
              this.panel1.TabIndex = 6;
              //
              // lab_CircleRadios
              //
              this.lab_CircleRadios.AutoSize = true;
              this.lab_CircleRadios.Location = new System.Drawing.Point(35, 51);
              this.lab_CircleRadios.Name = "lab_CircleRadios";
              this.lab_CircleRadios.Size = new System.Drawing.Size(62, 18);
              this.lab_CircleRadios.TabIndex = 7;
              this.lab_CircleRadios.Text = "圆半径";
              //
              // trackb_CircleRadios
              //
              this.trackb_CircleRadios.Location = new System.Drawing.Point(27, 93);
              this.trackb_CircleRadios.Maximum = 500;
              this.trackb_CircleRadios.Minimum = 5;
              this.trackb_CircleRadios.Name = "trackb_CircleRadios";
              this.trackb_CircleRadios.Size = new System.Drawing.Size(225, 69);
              this.trackb_CircleRadios.TabIndex = 6;
              this.trackb_CircleRadios.Value = 36;
              //
              // lab_CallipersLength
              //
              this.lab_CallipersLength.AutoSize = true;
              this.lab_CallipersLength.Location = new System.Drawing.Point(35, 460);
              this.lab_CallipersLength.Name = "lab_CallipersLength";
              this.lab_CallipersLength.Size = new System.Drawing.Size(80, 18);
              this.lab_CallipersLength.TabIndex = 5;
              this.lab_CallipersLength.Text = "卡尺长度";
              //
              // trackb_CallipersLength
              //
              this.trackb_CallipersLength.Location = new System.Drawing.Point(27, 502);
              this.trackb_CallipersLength.Maximum = 100;
              this.trackb_CallipersLength.Minimum = 10;
              this.trackb_CallipersLength.Name = "trackb_CallipersLength";
              this.trackb_CallipersLength.Size = new System.Drawing.Size(225, 69);
              this.trackb_CallipersLength.TabIndex = 4;
              this.trackb_CallipersLength.Value = 36;
              //
              // lab_CallipersWidth
              //
              this.lab_CallipersWidth.AutoSize = true;
              this.lab_CallipersWidth.Location = new System.Drawing.Point(35, 329);
              this.lab_CallipersWidth.Name = "lab_CallipersWidth";
              this.lab_CallipersWidth.Size = new System.Drawing.Size(80, 18);
              this.lab_CallipersWidth.TabIndex = 3;
              this.lab_CallipersWidth.Text = "卡尺宽度";
              //
              // trackb_CallipersWidth
              //
              this.trackb_CallipersWidth.Location = new System.Drawing.Point(27, 371);
              this.trackb_CallipersWidth.Maximum = 100;
              this.trackb_CallipersWidth.Minimum = 10;
              this.trackb_CallipersWidth.Name = "trackb_CallipersWidth";
              this.trackb_CallipersWidth.Size = new System.Drawing.Size(225, 69);
              this.trackb_CallipersWidth.TabIndex = 2;
              this.trackb_CallipersWidth.Value = 36;
              //
              // labNumber
              //
              this.labNumber.AutoSize = true;
              this.labNumber.Location = new System.Drawing.Point(35, 192);
              this.labNumber.Name = "labNumber";
              this.labNumber.Size = new System.Drawing.Size(80, 18);
              this.labNumber.TabIndex = 1;
              this.labNumber.Text = "卡尺数量";
              //
              // trackb_CallipersNumber
              //
              this.trackb_CallipersNumber.Location = new System.Drawing.Point(27, 234);
              this.trackb_CallipersNumber.Maximum = 100;
              this.trackb_CallipersNumber.Minimum = 10;
              this.trackb_CallipersNumber.Name = "trackb_CallipersNumber";
              this.trackb_CallipersNumber.Size = new System.Drawing.Size(225, 69);
              this.trackb_CallipersNumber.TabIndex = 0;
              this.trackb_CallipersNumber.Value = 36;
              //
              // MainForm
              //
              this.AutoScaleDimensions = new System.Drawing.SizeF(9F, 18F);
              this.AutoScaleMode = System.Windows.Forms.AutoScaleMode.Font;
              this.ClientSize = new System.Drawing.Size(1146, 770);
              this.Controls.Add(this.panel1);
              this.Controls.Add(this.canvas);
              this.Name = "MainForm";
              this.Text = "MainForm";
              this.Load += new System.EventHandler(this.MainForm_Load);
              this.Controls.SetChildIndex(this.canvas, 0);
              this.Controls.SetChildIndex(this.panel1, 0);
              this.panel1.ResumeLayout(false);
              this.panel1.PerformLayout();
              ((System.ComponentModel.ISupportInitialize)(this.trackb_CircleRadios)).EndInit();
              ((System.ComponentModel.ISupportInitialize)(this.trackb_CallipersLength)).EndInit();
              ((System.ComponentModel.ISupportInitialize)(this.trackb_CallipersWidth)).EndInit();
              ((System.ComponentModel.ISupportInitialize)(this.trackb_CallipersNumber)).EndInit();
              this.ResumeLayout(false);

          }

          #endregion
          private Canvas canvas;
          private System.Windows.Forms.Panel panel1;
          private System.Windows.Forms.Label lab_CircleRadios;
          private System.Windows.Forms.TrackBar trackb_CircleRadios;
          private System.Windows.Forms.Label lab_CallipersLength;
          private System.Windows.Forms.TrackBar trackb_CallipersLength;
          private System.Windows.Forms.Label lab_CallipersWidth;
          private System.Windows.Forms.TrackBar trackb_CallipersWidth;
          private System.Windows.Forms.Label labNumber;
          private System.Windows.Forms.TrackBar trackb_CallipersNumber;
      }
  }


• Canvas 画布代码

  • 创建一个控件作为画布，主要是需要启用双缓冲，防止绘制时闪烁。

  using System.Drawing;
  using System.Windows.Forms;

  namespace CS学习之创建圆形卡尺工具
  {
      public class Canvas : Panel
      {
          public Canvas()
          {
              this.DoubleBuffered = true;
              this.BackColor = Color.Gray;
          }
      }
  }


• （四）圆卡尺类代码

  • 创建圆卡尺工具的基本属性，以及一些绘制方法。绘制圆、卡尺、准心。

  using System;
  using System.Drawing;
  namespace CS学习之创建圆形卡尺工具
  {
      public class CircleCaliper
      {
          #region 属性
          /// <summary>
          /// 圆心
          /// </summary>
          public PointF Center { get; set; }
          /// <summary>
          /// 圆半径
          /// </summary>
          public float Radius { get; set; }
          /// <summary>
          /// 卡尺个数
          /// </summary>
          public int CaliperCount { get; set; } = 36;
          /// <summary>
          /// 卡尺长度
          /// </summary>
          public float CaliperLength { get; set; } = 20;
          /// <summary>
          /// 卡尺宽度
          /// </summary>
          public float CaliperWidth { get; set; } = 5;
          /// <summary>
          /// 内卡尺长度比例
          /// </summary>
          public float InnerLengthRatio { get; set; } = 0.5f;
          #endregion

          #region 绘制方法
          /// <summary>
          /// 绘制圆和卡尺
          /// </summary>
          public void Draw(Graphics g)
          {
              // 绘制拟合的圆
              using (Pen circlePen = new Pen(Color.Red, 2))
              {
                  g.DrawEllipse(circlePen, Center.X - Radius, Center.Y - Radius,
                               Radius * 2, Radius * 2);
              }
              // 绘制圆形十字准心
              DrawCrosshair(g);
              // 绘制卡尺
              DrawCalipers(g);
          }

          /// <summary>
          /// 绘制十字准心，大小(3,3)，线宽一个像素
          /// </summary>
          private void DrawCrosshair(Graphics g)
          {
              float size = 3f; // 十字准心大小
              using (Pen crossPen = new Pen(Color.Yellow, 1))
              {
                  // 绘制水平线+垂直线
                  g.DrawLine(crossPen, Center.X - size, Center.Y, Center.X + size, Center.Y);
                  g.DrawLine(crossPen, Center.X, Center.Y - size, Center.X, Center.Y + size);
              }
          }

          /// <summary>
          /// 绘制卡尺
          /// </summary>
          private void DrawCalipers(Graphics g)
          {
              using (Pen outerPen = new Pen(Color.Lime, 1))
              using (Pen innerPen = new Pen(Color.Cyan, 1))
              {
                  for (int i = 0; i < CaliperCount; i++)
                  {
                      float angle = (float)(2 * Math.PI * i / CaliperCount);
                      float cos = (float)Math.Cos(angle);
                      float sin = (float)Math.Sin(angle);

                      // 理论边缘点
                      PointF edgePoint = new PointF(
                          Center.X + Radius * cos,
                          Center.Y + Radius * sin);

                      // 外卡尺
                      PointF outerEnd = new PointF(
                          edgePoint.X + CaliperLength * cos,
                          edgePoint.Y + CaliperLength * sin);

                      g.DrawLine(outerPen, edgePoint, outerEnd);

                      // 内卡尺
                      PointF innerEnd = new PointF(
                             edgePoint.X - CaliperLength * InnerLengthRatio * cos,
                             edgePoint.Y - CaliperLength * InnerLengthRatio * sin);
                      g.DrawLine(innerPen, edgePoint, innerEnd);

                      // 绘制卡尺矩形区域
                      DrawCaliperRectangle(g, edgePoint, angle);
                  }
              }
          }

          /// <summary>
          /// 绘制卡尺矩形区域
          /// </summary>
          private void DrawCaliperRectangle(Graphics g, PointF center, float angle)
          {
              float perpAngle = angle + (float)(Math.PI / 2);
              float dx = (float)(CaliperWidth / 2 * Math.Cos(perpAngle));
              float dy = (float)(CaliperWidth / 2 * Math.Sin(perpAngle));

              // 卡尺外矩形
              PointF[] outerRect = new PointF[4];
              outerRect[0] = new PointF(center.X - dx, center.Y - dy);
              outerRect[1] = new PointF(center.X + dx, center.Y + dy);
              outerRect[2] = new PointF(center.X + dx + (float)(CaliperLength * Math.Cos(angle)),
                                    center.Y + dy + (float)(CaliperLength * Math.Sin(angle)));
              outerRect[3] = new PointF(center.X - dx + (float)(CaliperLength * Math.Cos(angle)),
                                    center.Y - dy + (float)(CaliperLength * Math.Sin(angle)));

              // 卡尺内矩形
              PointF[] innerRect = null;
              innerRect = new PointF[4];
              innerRect[0] = new PointF(center.X - dx, center.Y - dy);
              innerRect[1] = new PointF(center.X + dx, center.Y + dy);
              innerRect[2] = new PointF(center.X + dx - (float)(CaliperLength * InnerLengthRatio * Math.Cos(angle)),
                                    center.Y + dy - (float)(CaliperLength * InnerLengthRatio * Math.Sin(angle)));
              innerRect[3] = new PointF(center.X - dx - (float)(CaliperLength * InnerLengthRatio * Math.Cos(angle)),
                                    center.Y - dy - (float)(CaliperLength * InnerLengthRatio * Math.Sin(angle)));

              // 绘制外卡尺区域
              using (Brush outerBrush = new SolidBrush(Color.FromArgb(50, Color.Blue)))
              {
                  g.FillPolygon(outerBrush, outerRect);
              }
              using (Pen outerPen = new Pen(Color.Blue, 1))
              {
                  g.DrawPolygon(outerPen, outerRect);
              }

              // 绘制内卡尺区域
              if (innerRect != null)
              {
                  using (Brush innerBrush = new SolidBrush(Color.FromArgb(50, Color.Blue)))
                  {
                      g.FillPolygon(innerBrush, innerRect);
                  }
                  using (Pen innerPen = new Pen(Color.Blue, 1))
                  {
                      g.DrawPolygon(innerPen, innerRect);
                  }
              }
          }
          #endregion
      }
  }


---

• 最后

  • 如果你觉得这篇文章对你有帮助，不妨点个赞再走呗！
  • 如有疑问，欢迎评论区留言讨论！
  • 也可以加入微信公众号 [编程笔记in] ，一起交流学习！
  • 项目地址：gitee.com/incodenotes/cshape-demos
