flutter 实现旋转星球

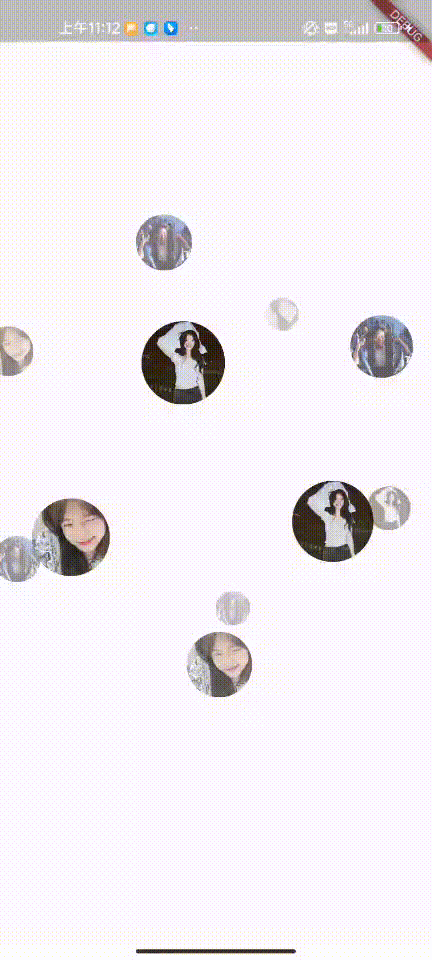

先看效果

planet_widget.dart

import 'dart:math';
import 'package:flutter/material.dart';
import 'package:vector_math/vector_math_64.dart' show Vector3;
import 'package:flutter/gestures.dart';
import 'package:flutter/physics.dart';

class PlanetWidget extends StatefulWidget {
  const PlanetWidget({Key? key, required this.children, this.minRadius = 50})
      : super(key: key);

  @override
  _PlanetWidgetState createState() => _PlanetWidgetState();

  final List<Widget> children;
  final double minRadius;
}

class _PlanetWidgetState extends State<PlanetWidget>
    with TickerProviderStateMixin {
  late AnimationController animationController;

  /// 启动加载或者重新加载的时候用的Controller
  late AnimationController reloadAnimationController;

  double preAngle = 0.0;
  double _radius = -1.0;

  List<PlanetTagInfo>? childTagList = [];

  /// 当前操作的向量信息
  Vector3 currentOperateVector = Vector3(1.0, 0.0, 0.0);

  @override
  void initState() {
    super.initState();
    animationController =
        AnimationController(lowerBound: 0, upperBound: pi * 2, vsync: this);
    reloadAnimationController = AnimationController(
        lowerBound: 0,
        upperBound: 1,
        duration: Duration(milliseconds: 300),
        vsync: this);

    animationController.addListener(() {
      setState(() {
        calTagInfo(animationController.value - preAngle);
      });
    });
    reloadAnimationController.addListener(() {
      setState(() {});
    });

    // initData();
  }

  void initData() {
    childTagList = widget.children
        .map((e) => PlanetTagInfo(child: e, planetTagPos: Vector3.zero()))
        .toList();

    currentOperateVector = updateOperateVector(Offset(-1.0, 1.0));

    initTagInfo();

    WidgetsBinding.instance!.addPostFrameCallback((_) {
      reloadAnimationController.forward().then((value) => _reStartAnimation());
    });
  }

  @override
  void didChangeDependencies() {
    super.didChangeDependencies();
    if (widget.children.isNotEmpty) {
      initData();
    }
  }

  @override
  void didUpdateWidget(covariant PlanetWidget oldWidget) {
    if (oldWidget.children != this.widget.children) {
      if (widget.children.isNotEmpty) {
        animationController.reset();
        reloadAnimationController.reset();
        initData();
      }
    }
    super.didUpdateWidget(oldWidget);
  }

  @override
  Widget build(BuildContext context) {
    return LayoutBuilder(
      builder: (BuildContext context, BoxConstraints constraints) {
        var radius = min(constraints.maxWidth, constraints.maxHeight) / 2.0;

        /// 太小就不显示了
        if (radius < widget.minRadius) {
          return SizedBox.shrink();
        }

        if (_radius != radius) {
          if (_radius == -1.0) {
            _radius = radius;
            initTagInfo();
          } else {
            _radius = radius;
            resizeTag
