Spring Boot（Smart Moon项目）集成Mybatis

Spring Boot（Smart Moon项目）集成Mybatis

一、Spring引入Mybatis

• 编辑项目根目录的pom.xml，添加以下内容

  <!-- mybatis-generator -->
  <dependency>
       <groupId>org.mybatis</groupId>
       <artifactId>mybatis</artifactId>
       <version>3.5.10</version>
  </dependency>
  <!-- mybatis-->
  <dependency>
       <groupId>org.mybatis.spring.boot</groupId>
       <artifactId>mybatis-spring-boot-starter</artifactId>
       <version>2.2.2</version>
  </dependency>


二、配置Mybatis generator自动生成CURD接口基础代码

• resource目录下配置generator.properties

  jdbc.driverLocation=D:\\SQL\\mysql-connector-8.0.23\\mysql-connector-java-8.0.23.jar
  jdbc.driverClass=com.mysql.cj.jdbc.Driver #需要指定连接驱动路径
  jdbc.connectionURL=jdbc:mysql://localhost:3306/database_name?characterEncoding=utf-8
  jdbc.userId=root
  jdbc.password=your_password



  pom.xml
  <build>
      <plugins>
          <plugin>
              <groupId>org.springframework.boot</groupId>
              <artifactId>spring-boot-maven-plugin</artifactId>
          </plugin>
          <!-- 新增配置-->
          <plugin>
              <groupId>org.mybatis.generator</groupId>
              <artifactId>mybatis-generator-maven-plugin</artifactId>
              <version>1.3.2</version>
              <configuration>
                  <verbose>true</verbose>
                  <overwrite>true</overwrite>
              </configuration>
          </plugin>
      </plugins>
  </build>



• resource目录下配置generatorConfig.xml

  <?xml version="1.0" encoding="UTF-8"?>
  <!DOCTYPE generatorConfiguration
          PUBLIC "-//mybatis.org//DTD MyBatis Generator Configuration 1.0//EN"
          "http://mybatis.org/dtd/mybatis-generator-config_1_0.dtd">

  <generatorConfiguration>
      <!--导入属性配置-->
      <properties resource="generator.properties"/>

      <!--指定特定数据库的jdbc驱动jar包的位置-->
      <classPathEntry location="${jdbc.driverLocation}"/>

      <context id="default" targetRuntime="MyBatis3">

          <!-- 注释 -->
          <commentGenerator>
              <property name="suppressAllComments" value="true" /><!-- 是否取消注释 -->
              <!-- <property name="suppressDate" value="true" />  是否生成注释代时间戳 -->
          </commentGenerator>

          <!--jdbc的数据库连接 -->
          <jdbcConnection
                  driverClass="${jdbc.driverClass}"
                  connectionURL="${jdbc.connectionURL}"
                  userId="${jdbc.userId}"
                  password="${jdbc.password}">
          </jdbcConnection>


          <!-- 非必需，类型处理器，在数据库类型和java类型之间的转换控制-->
          <javaTypeResolver>
              <property name="forceBigDecimals" value="false"/>
          </javaTypeResolver>


          <!-- Model模型生成器,用来生成含有主键key的类，记录类 以及查询Example类
              targetPackage     指定生成的model生成所在的包名
              targetProject     指定在该项目下所在的路径
          -->
          <javaModelGenerator targetPackage="com.demo.smartmoon.model"
                              targetProject="src/main/java">

              <!-- 是否允许子包，即targetPackage.schemaName.tableName -->
              <property name="enableSubPackages" value="false"/>
              <!-- 是否对model添加 构造函数 -->
              <property name="constructorBased" value="true"/>
              <!-- 是否对类CHAR类型的列的数据进行trim操作 -->
              <property name="trimStrings" value="true"/>
              <!-- 建立的Model对象是否 不可改变  即生成的Model对象不会有 setter方法，只有构造方法 -->
              <property name="immutable" value="false"/>
          </javaModelGenerator>

          <!--在resources目录下的mapper文件，生成数据库的表对应的xml文件 -->
          <sqlMapGenerator targetPackage="mapping"
                           targetProject="src/main/resources">
              <property name="enableSubPackages" value="false"/>
          </sqlMapGenerator>

          <!-- 生成dao层的java代码
                  type="ANNOTATEDMAPPER",生成Java Model 和基于注解的Mapper对象
                  type="MIXEDMAPPER",生成基于注解的Java Model 和相应的Mapper对象
                  type="XMLMAPPER",生成SQLMap XML文件和独立的Mapper接口
          -->
          <javaClientGenerator targetPackage="com.demo.smartmoon.mapper" #项目包配置
                               targetProject="src/main/java" type="XMLMAPPER">
              <property name="enableSubPackages" value="false"/>
          </javaClientGenerator>

          <!-- 数据表名及实体类名称  -->
          <table tableName="your_tableName" domainObjectName="希望生成的实体类的类名"
                 enableCountByExample="false" enableUpdateByExample="false"
                 enableDeleteByExample="false" enableSelectByExample="false"
                 selectByExampleQueryId="false">
          </table>

      </context>
  </generatorConfiguration>

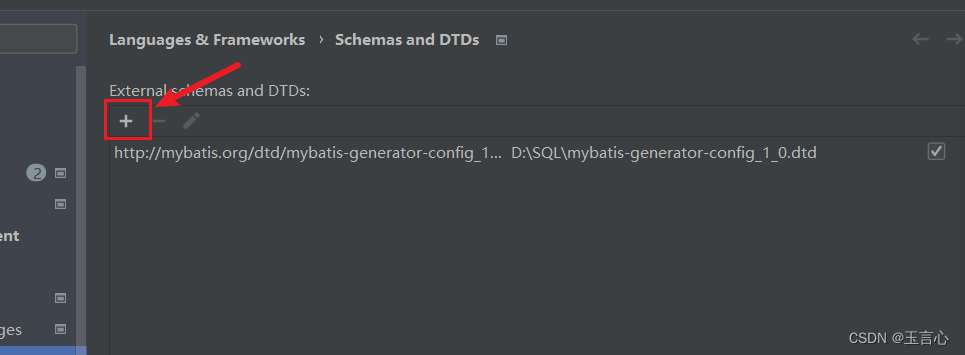

  如若：http://mybatis.org/dtd/mybatis-generator-config_1_0.dtd 报红，可以将此链接复制到浏览器打开，下载文件后，存在在自定义路径，然后编辑IEDA的file -> setting -> Schemas and DTDs -> 找到EXternal schemas and DTDs：点击 + 号，

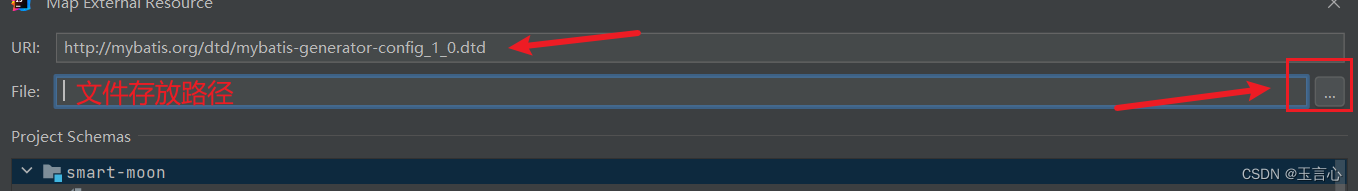

  • URL填写http://mybatis.org/dtd/mybatis-generator-config_1_0.dtd
  • File: 浏览找到文件下载后的存放位置，点击apply -> OK 退出




• 编辑Run配置

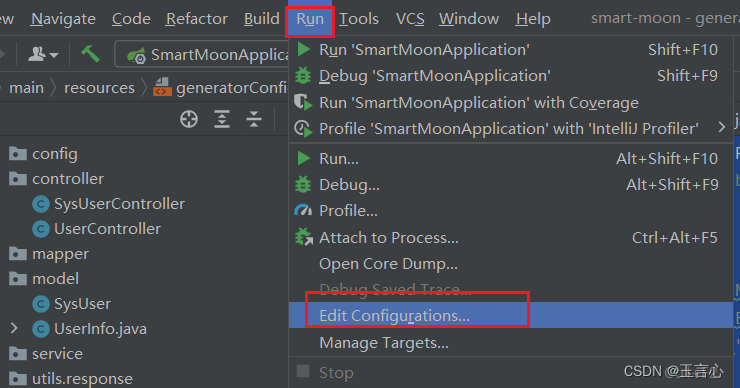

  • 点击工具栏Run -> Edit Configurations…

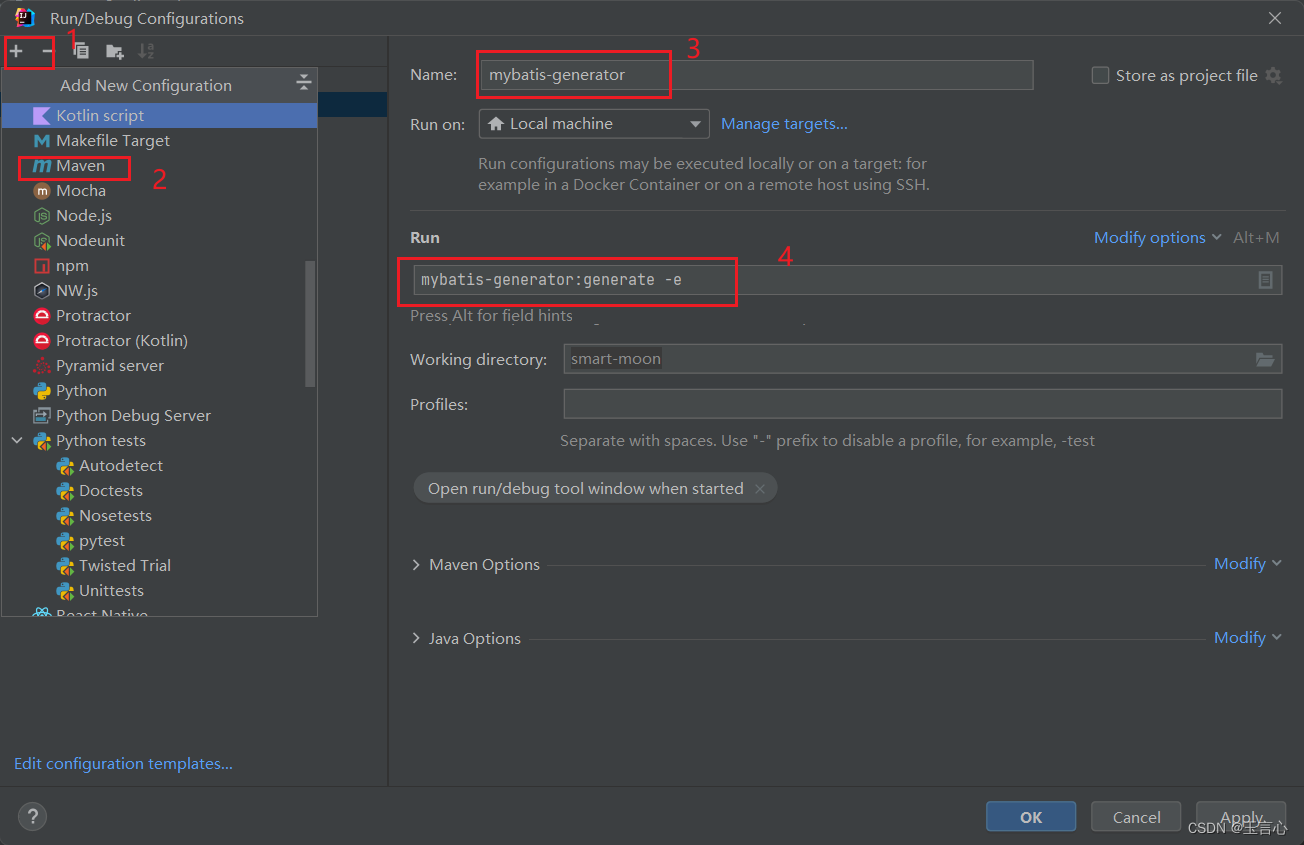

  • 点击+号 -> 选择maven，配置如下内容后点击apply -> Ok 退出：

    • Name: mybatis-generator 【可以自定义】
    • Run: mybatis-generator:generate -e



  • 点击Run选择：mybatis-generator，自动生成配置generatorConfig.xml文件配置中， 注释下的表的对应CURD基础代码

三、编写Controller

• 项目路径src\main\java\com\demo\smartmoon新建controller包，新建SysUserController【本项目使用】


  @RestController
  @RequestMapping(value = "/api/2/user", produces = MediaType.APPLICATION_JSON_VALUE)
  public class SysUserController {
      @Autowired
      private SysUserService sysUserService;

      @GetMapping(value = "/findByID")
      public Object findByID(@RequestParam Long id){
          return Response.success(sysUserService.findByID(id));
      }

      @ApiOperation(value = "新增用户信息")
      public Object insertSysUser(@RequestBody SysUser sysUser){
          return Response.success(sysUserService.insertSysUser(sysUser));
      }
  }

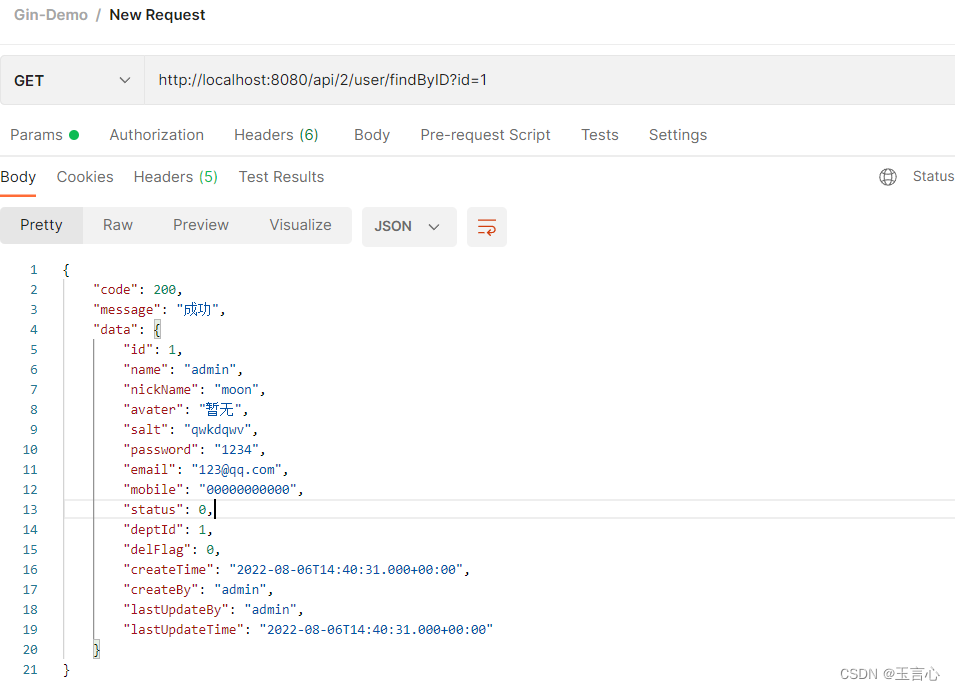

  • 测试效果：



四、对接Knife4j

• application.yml配置文件开启knife4j

  knife4j:
    # 开启增强配置
    enable: true


• controller新增注解


  @RestController
  @RequestMapping(value = "/api/2/user", produces = MediaType.APPLICATION_JSON_VALUE)
  @EnableOpenApi
  @Api(value = "信息管理", tags="账户管理")
  public class SysUserController {
      @Autowired
      private SysUserService sysUserService;

      @ApiOperation(value = "根据ID查询账户列表")
      @GetMapping(value = "/findByID")
      @ApiOperationSupport(author = "xuanyu.li")
      public Object findByID(@RequestParam Long id){
          System.out.println(id);
          return Response.success(sysUserService.findByID(id));
      }

      @ApiOperation(value = "新增用户信息")
      @PostMapping (value = "/insertSysUser")
      @ApiOperationSupport(author = "xuanyu.li")
      public Object insertSysUser(@RequestBody SysUser sysUser){
          return Response.success(sysUserService.insertSysUser(sysUser));
      }
  }

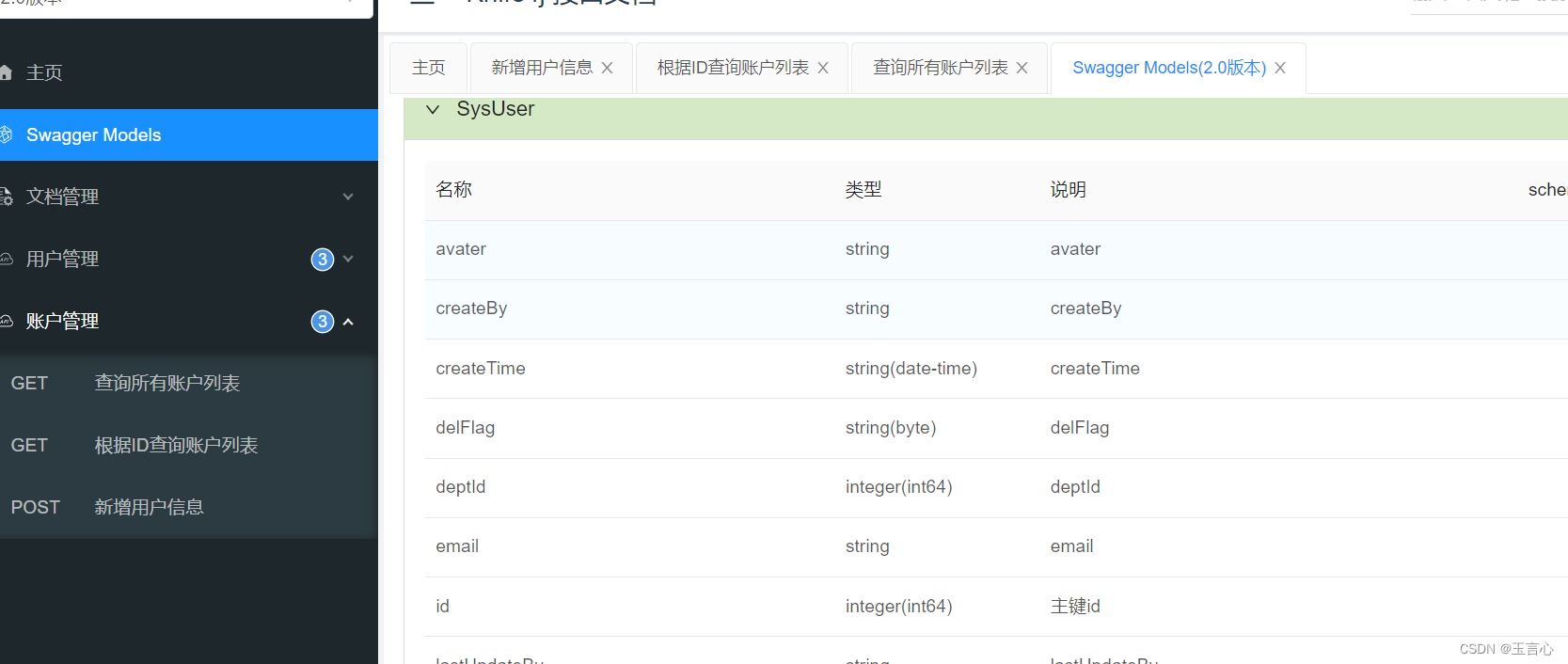

• 实体类model新增注解【如果想要在knife4j的swagger models看见】


  @Data
  @ApiModel(value = "SysUser",description = "用户实体对象")
  public class SysUser {
      @ApiModelProperty(value = "主键id", name = "id")
      private Long id;

      @ApiModelProperty(value = "name", name = "name")
      private String name;

      @ApiModelProperty(value = "nickName", name = "nickName")
      private String nickName;

      @ApiModelProperty(value = "avater", name = "avater")
      private String avater;

      @ApiModelProperty(value = "salt", name = "salt")
      private String salt;

      @ApiModelProperty(value = "password", name = "password")
      private String password;

      @ApiModelProperty(value = "email", name = "email")
      private String email;

      @ApiModelProperty(value = "mobile", name = "mobile")
      private String mobile;

      @ApiModelProperty(value = "status", name = "status")
      private Byte status;

      @ApiModelProperty(value = "deptId", name = "deptId")
      private Long deptId;
  ......【略，根据自己表确定】

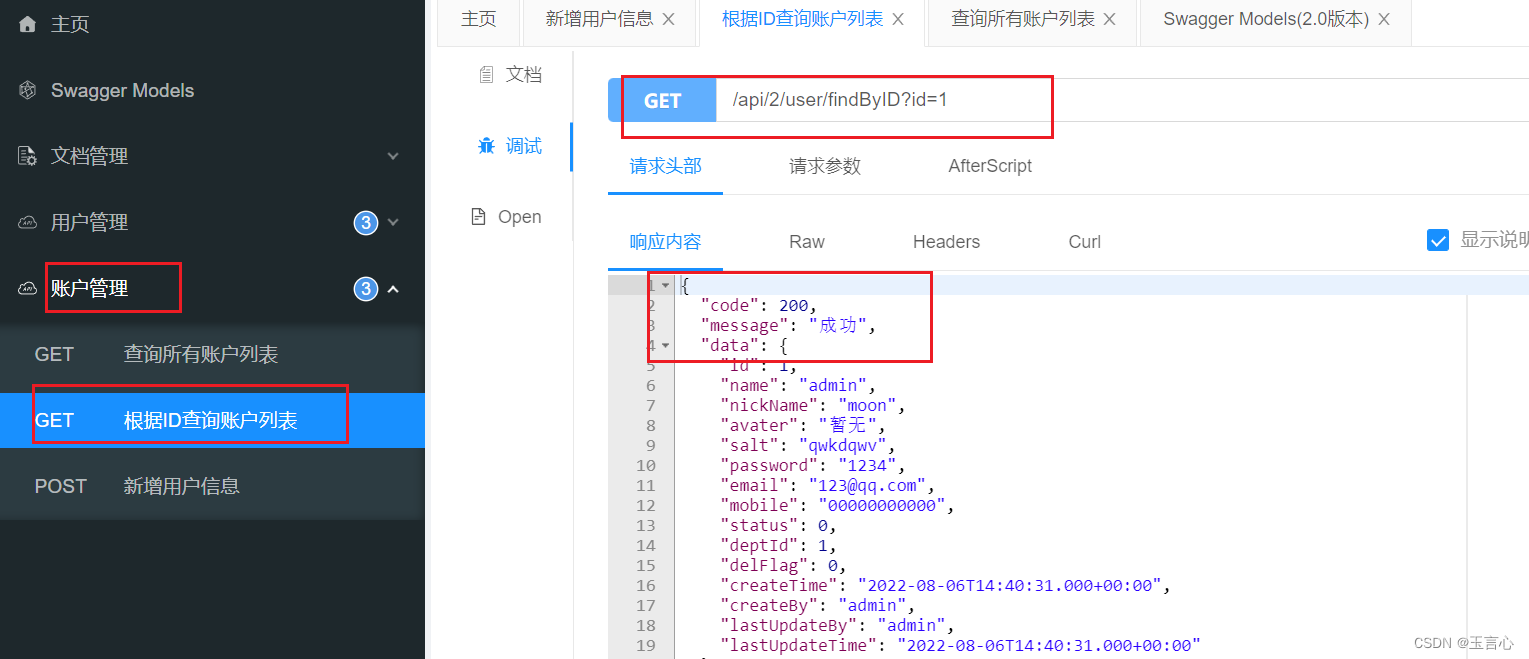

• 效果：
