xlwt的实际应用

实习期间的需求

读取文件写成xls格式的表格，里面包含sheet1和sheet2页，sheet1页用于计算和读取sheet2页原有的数据，最后生成csv格式

遇到的问题和解决方法

1.for循环的冗杂；

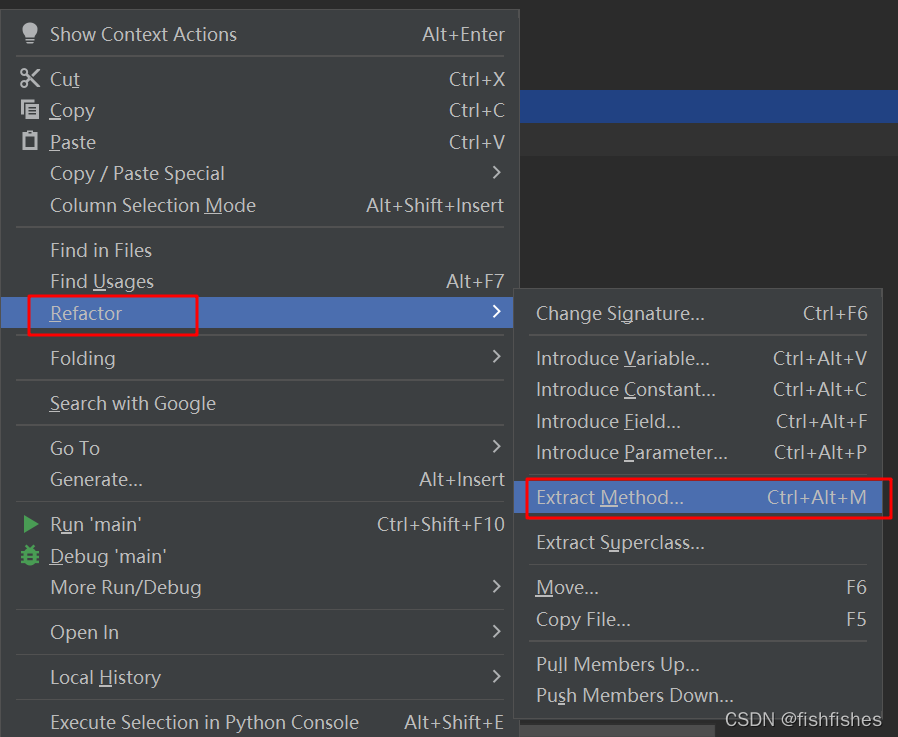

2.重复代码——使用函数封装 快捷键



3.时间格式的转换 —— 在此很是感谢我的同事，方法是他帮忙解决的

4.转成csv格式

import pandas as pd

data = pd.read_excel('xxxx.xls', 'sheet1')
# print(type(data['Time'][0]))  结果是datetime.time类型可以使用time.strftime
# 此处进行格式的修改
data['Time'] = data['Time'].apply(lambda x: x.strftime("%H:%M:%S.%f")[:-3])
# index=False设定不要序号展示
data.to_csv('xxx.csv', encoding='utf-8', index=False)

from decimal import Decimal

import xlrd
import xlwt


# 写入sheet1页的数据
def write_sheet1():
    heads = ["", "Year", "Month", "Day", "Hour", "Minute", "Second", "Elevation", "Azimuth", "Distance", "K",
             "Delta(D)", "Delta(K)", "I=(K-1)*51.4GHz", "J=(K-1)*20.2GHz", "I+J", "Delta(I)", "Delta(J)", "Delta(I+J)",
             "", "Time", "Delay(ns)", "Power(dBm)", "Doppler(Hz)"
             ]
    # 生成sheet1的表头
    for h in range(len(heads)):
        worksheet1.write(0, h, heads[h])


# 写入sheet2页的数据
def write_sheet2(filepath):
    file_contents = open(filepath, "r")
    # 将所有内容取到
    datas = file_contents.readlines()
    # 计算行数
    i = 1
    for data in datas:
        # 删除空格
        data = data.split()
        for j in range(len(data)):
            # 计算列数
            # 直接在此处将同样的数据写入到sheet1页
            worksheet1.write(i, j, data[j])
            worksheet2.write(i, j, data[j])
        i = i + 1


# 计算sheet1页
def calculation():
    subtraction(9, 11, Decimal)
    subtraction(10, 12, Decimal)
    cal_IJ(51.4, 13)
    cal_IJ(20.2, 14)
    addition(13, 14)
    subtraction(13, 16, Decimal)
    subtraction(14, 17, Decimal)
    addition(16, 17)
    cal_T()
    cal_Time()
    cal_Delay()
    cal_Power()
    cal_Doppler()


def subtraction(number, column, type):
    sheet_1 = read_sheet1(filepath)
    Delta_dki_col_nums = delete_header(number, sheet_1)
    col_nums = list(map(type, Delta_dki_col_nums))
    for i in range(0, len(col_nums) - 1):
        worksheet1.write(i + 2, column, Decimal(col_nums[i + 1]) - Decimal(col_nums[i]))
    workbook.save(filepath+".xls")


def addition(column1, column2):
    sheet_1 = read_sheet1(filepath)
    column1_datas = delete_header(column1, sheet_1)
    column2_datas = delete_header(column2, sheet_1)
    if column1 == 16:
        del (column1_datas[0])
        del (column2_datas[0])
        column1_data = list(map(Decimal, column1_datas))
        column2_data = list(map(Decimal, column2_datas))
        for n in range(0, len(column1_data)):
            res1 = Decimal(column1_data[n]) + Decimal(column2_data[n])
            worksheet1.write(n + 2, 18, res1)
    else:
        column1_data = list(map(Decimal, column1_datas))
        column2_data = list(map(Decimal, column2_datas))
        for n in range(0, len(column1_data)):
            res2 = Decimal(column1_data[n]) + Decimal(column2_data[n])
            worksheet1.write(n + 1, 15, res2)
    workbook.save(filepath+".xls")


def delete_header(column1, sheet_1):
    column1_datas = sheet_1.col_values(column1)
    del (column1_datas[0])
    return column1_datas


def cal_IJ(number, column):
    sheet_1 = read_sheet1(filepath)
    K = delete_header(10, sheet_1)
    K_nums = list(map(Decimal, K))
    for k in range(0, len(K_nums)):
        formula = round(Decimal(K_nums[k]-1)*Decimal(number)*Decimal(1000000000))
        worksheet1.write(k+1, column, formula)
    workbook.save(filepath+".xls")


def cal_Delay():
    sheet_1 = read_sheet1(filepath)
    J = delete_header(9, sheet_1)
    J_nums = list(map(Decimal, J))
    for j in range(0, len(J_nums)):
        formula = round(Decimal(J_nums[j] * 2) / Decimal(0.3))
        worksheet1.write(j + 1, 21, formula)
    workbook.save(filepath+".xls")


def cal_T():
    sheet_1 = read_sheet1(filepath)
    D = delete_header(3, sheet_1)
    E = delete_header(4, sheet_1)
    F = delete_header(5, sheet_1)
    G = delete_header(6, sheet_1)
    D_nums = list(map(Decimal, D))
    E_nums = list(map(Decimal, E))
    F_nums = list(map(Decimal, F))
    G_nums = list(map(Decimal, G))
    for d in range(0, len(D_nums)):
        d_handle = Decimal(D_nums[d] - D_nums[0]) * Decimal(86400)
        e_handle = Decimal(E_nums[d] - E_nums[0]) * Decimal(3600)
        f_handle = Decimal(F_nums[d] - F_nums[0]) * Decimal(60)
        g_handle = Decimal(G_nums[d] - G_nums[0])
        worksheet1.write(d+1, 19, Decimal(d_handle+e_handle+f_handle+g_handle))
    workbook.save(filepath+".xls")


def cal_Time():
    style = xlwt.easyxf(num_format_str="HH:MM:SS.000")
    sheet_1 = read_sheet1(filepath)
    time_datas = delete_header(19, sheet_1)
    time_data = list(map(Decimal, time_datas))
    for td in range(0, len(time_data)):
        td_handles = Decimal(time_data[td]) / Decimal(86400)
        worksheet1.write(td+1, 20, td_handles, style)
    workbook.save(filepath+".xls")


def cal_Power():
    sheet_1 = read_sheet1(filepath)
    benchmark = delete_header(1, sheet_1)
    benchmark_data = list(map(Decimal, benchmark))
    for b in range(0, len(benchmark_data)):
        worksheet1.write(b + 1, 22, -35)
    workbook.save(filepath+".xls")


def cal_Doppler():
    sheet_1 = read_sheet1(filepath)
    Doppler_datas = delete_header(15, sheet_1)
    Doppler_data = list(map(Decimal, Doppler_datas))
    for d in range(0, len(Doppler_data)):
        worksheet1.write(d + 1, 23, Doppler_data[d])
    workbook.save(filepath+".xls")


def read_sheet1(filepath):
    work_book = xlrd.open_workbook(filepath+'.xls')
    sheet_1 = work_book.sheet_by_index(0)
    return sheet_1


def excel_copy(filepath):
    style = xlwt.easyxf(num_format_str="HH:MM:SS.000")
    wb = xlrd.open_workbook(filepath+".xls")
    sheet1 = wb.sheet_by_index(0)
    # 组装文件名
    year = sheet1.col_values(1)[1]
    month = sheet1.col_values(2)[1]
    day = sheet1.col_values(3)[1]
    exact_date = year + month + day
    filename = filepath + exact_date
    # 获取单元格数据
    Time = sheet1.col_values(20)
    Delay = sheet1.col_values(21)
    Power = sheet1.col_values(22)
    Doppler = sheet1.col_values(23)
    # 创建写入文件
    workbook = xlwt.Workbook()
    # 创建写入sheet页
    worksheet = workbook.add_sheet("sheet1", cell_overwrite_ok=True)
    # 写入excel
    for t in range(0, len(Time)):
        worksheet.write(t, 0, Time[t], style)
        worksheet.write(t, 1, Delay[t])
        worksheet.write(t, 2, Power[t])
        worksheet.write(t, 3, Doppler[t])

    workbook.save(filename+".xls")


if __name__ == '__main__':
    filepath = "Sat0_STATION_out_doppler_gw"
    # 创建一个工作簿
    workbook = xlwt.Workbook()
    # 创建sheet页
    worksheet1 = workbook.add_sheet("sheet1", cell_overwrite_ok=True)
    worksheet2 = workbook.add_sheet("sheet2", cell_overwrite_ok=True)
    write_sheet1()
    write_sheet2(filepath=filepath)
    workbook.save(filepath+".xls")
    read_sheet1(filepath)
    calculation()
    excel_copy(filepath)
