k8s部署nacos集群-PG版本

上一篇内容写的是部署支持mysql的nacos，今天实验部署一下支持postgresql的nacos

一、k8s架构

master: 11.0.1.3
node: 11.0.1.4,11.0.1.5(nfs)
nfs: 11.0.1.5

二、安装nfs

安装nfs-utils和rpcbind

nfs客户端和服务端都安装nfs-utils包

yum install nfs-utils rpcbind -y

创建共享目录

mkdir -p /nfsdata
chmod 777 /nfsdata

编辑/etc/exports文件添加如下内容

vi /etc/exports

/nfsdata *(rw,sync,no_root_squash)

启动服务

 systemctl enable rpcbind.service --now
 systemctl enable nfs.service --now

启动顺序一定是rpcbind->nfs，否则有可能出现错误

三、部署自动分配PV的相关程序

先从github上拉取nacos的代码：

git clone https://github.com/nacos-group/nacos-k8s.git

内容结构如下：

[root@master1 ~]# tree nacos-k8s/deploy
nacos-k8s/deploy
├── ceph
│   ├── pvc.yaml
│   └── sc.yaml
├── ingress
│   ├── ingress-nginx.yaml
│   └── service-nodeport.yaml
├── mysql
│   ├── mysql-ceph.yaml
│   ├── mysql-local.yaml
│   ├── mysql-nfs.yaml
│   └── mysql.yaml
├── nacos
│   ├── nacos-ingress.yaml
│   ├── nacos-no-pvc-ingress.yaml
│   ├── nacos-pvc-ceph.yaml
│   ├── nacos-pvc-nfs.yaml
│   ├── nacos-quick-start.yaml
│   └── nacos-tmp.yaml
└── nfs
    ├── class.yaml
    ├── deployment.yaml
    └── rbac.yaml

因为StorageClass可以实现自动配置，所以使用StorageClass之前，我们需要先安装存储驱动的自动配置程序，而这个配置程序必须拥有一定的权限去访问我们的kubernetes集群(类似dashboard一样，必须有权限访问各种api，才能实现管理)。

创建rbac：

[root@master1 ~]# cat nacos-k8s/deploy/nfs/rbac.yaml
apiVersion: v1
kind: ServiceAccount
metadata:
  name: nfs-client-provisioner
  namespace: devops
---
kind: ClusterRole
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  name: nfs-client-provisioner-runner
rules:
- apiGroups: [""]
  resources: ["persistentvolumes"]
  verbs: ["get", "list", "watch", "create", "delete"]
- apiGroups: [""]
  resources: ["persistentvolumeclaims"]
  verbs: ["get", "list", "watch", "update"]
- apiGroups: [""]
  resources: ["endpoints"]
  verbs: ["get", "list", "watch", "create", "update", "patch"]
- apiGroups: ["storage.k8s.io"]
  resources: ["storageclasses"]
  verbs: ["get", "list", "watch"]
- apiGroups: [""]
  resources: ["events"]
  verbs: ["create", "update", "patch"]
---
kind: ClusterRoleBinding
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  name: run-nfs-client-provisioner
subjects:
- kind: ServiceAccount
  name: nfs-client-provisioner
  namespace: devops
roleRef:
  kind: ClusterRole
  name: nfs-client-provisioner-runner
  apiGroup: rbac.authorization.k8s.io
---
kind: Role
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  name: leader-locking-nfs-client-provisioner
rules:
- apiGroups: [""]
  resources: ["endpoints"]
  verbs: ["get", "list", "watch", "create", "update", "patch"]
---
kind: RoleBinding
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  name: leader-locking-nfs-client-provisioner
subjects:
- kind: ServiceAccount
  name: nfs-client-provisioner
  # replace with namespace where provisioner is deployed
  namespace: devops
roleRef:
  kind: Role
  name: leader-locking-nfs-client-provisioner
  apiGroup: rbac.authorization.k8s.io

创建StorageClass

[root@master1 ~]# cat nacos-k8s/deploy/nfs/class.yaml
apiVersion: storage.k8s.io/v1
kind: StorageClass
metadata:
  name: managed-nfs-storage
provisioner: fuseim.pri/ifs
parameters:
  archiveOnDelete: "false"

创建自动配置程序 - NFS客户端

kind: Deployment
apiVersion: apps/v1
metadata:
  name: nfs-client-provisioner
  namespace: devops
spec:
  replicas: 1
  strategy:
    type: Recreate
  selector:
    matchLabels:
      app: nfs-client-provisioner
  template:
    metadata:
      labels:
        app: nfs-client-provisioner
    spec:
      serviceAccount: nfs-client-provisioner
      containers:
        - name: nfs-client-provisioner
          image: quay.io/external_storage/nfs-client-provisioner:latest
          volumeMounts:
            - name: nfs-client-root
              mountPath: /persistentvolumes
          env:
            - name: PROVISIONER_NAME
              value: fuseim.pri/ifs
            - name: NFS_SERVER
            # 这里IP是你nfs服务器的IP
              value: 11.0.1.5
            - name: NFS_PATH
            # 这里路径就是你上面的nfs服务器上的路径
              value: /nfsdata
      volumes:
        - name: nfs-client-root
          nfs:
            # 这里IP是你nfs服务器的IP
            server: 11.0.1.5
            # 这里路径就是你上面的nfs服务器上的路径
            path: /nfsdata

四、构建nacos-pg镜像
（一）手动构建镜像
下载源码：https://download.youkuaiyun.com/download/weixin_43334786/87792995
下载完成后进行build即可。

五、部署PG数据库
部署所使用的yaml在上面源码包里，按需修改名称空间、configmap内参数等。

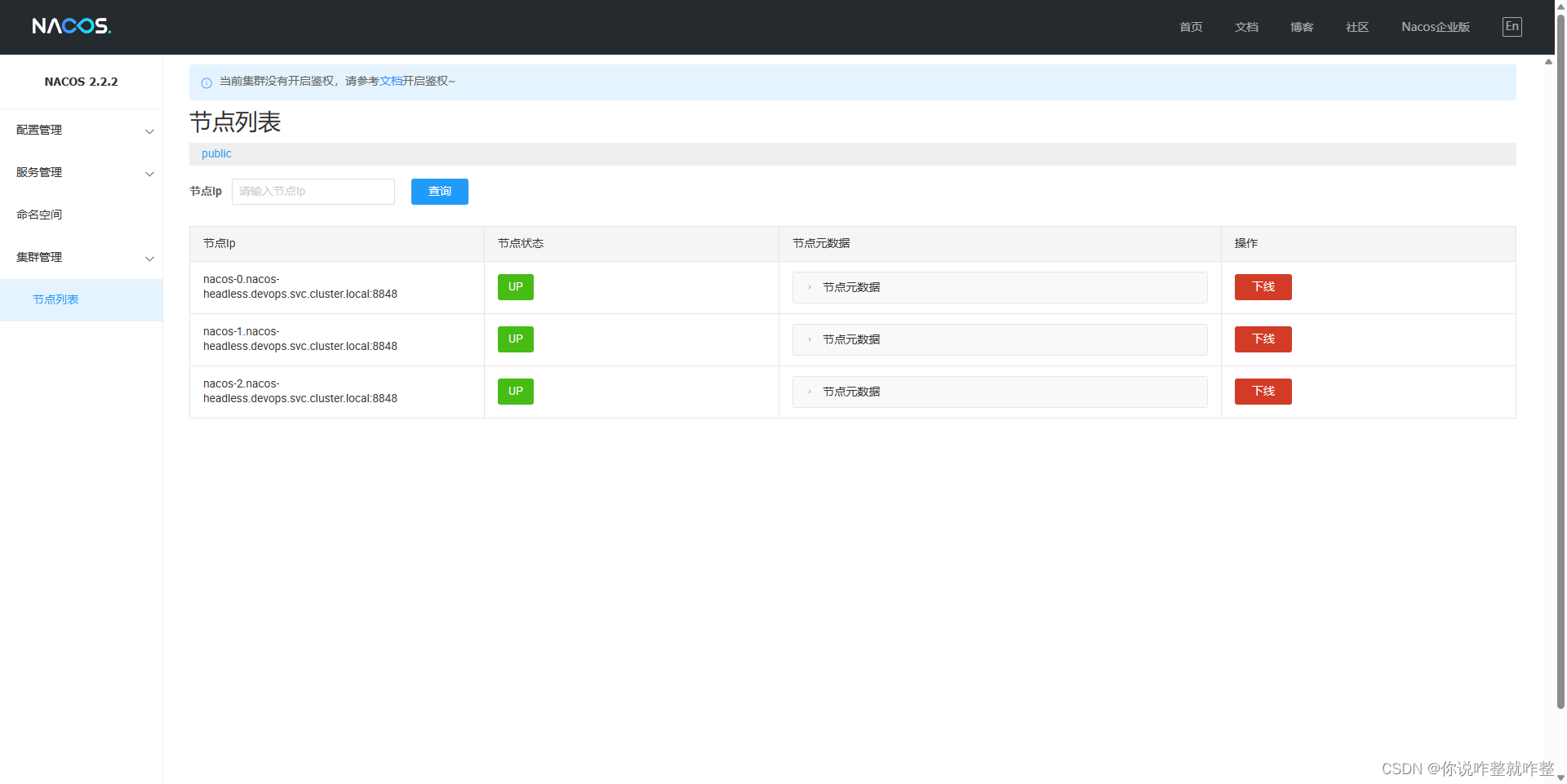

部署完成后，检查nacos三个pod是否运行正常，然后通过浏览器访问服务页面，检查三个节点是否都处于在线状态。
用户名和密码均为nacos。
