spring如何管理mybatis的事务

springaop如何接管mybatis的事务，或者说spring和mybatis如何保证操作的是同一个Connection

本文重点：

• aop的大致流程
• mybatis如何把事务托管给spring

mybatis和spring整合的使用（本文看不懂的建议先看看这个）

1.依赖、测试方法同上篇文章

2.开始测试

aop大致流程

//1.项目启动
	->spring的refresh方法
	->refresh方法里面的finishBeanFactoryInitialization，初始化剩下的单实例，非懒加载bean
		->getBean---doGetBean---createBean---doCreateBean
		重点在doCreateBean这一步
		populateBean(beanName, mbd, instanceWrapper);//属性赋值，上一步的userService是一个空壳，这里面会创建所需的bean，包括dataSource等
			exposedObject = initializeBean(beanName, exposedObject, mbd);//将创建出来的userService暴露出去（供我们使用的bean）
			->initializeBean,见下一页
				->AnnotationAwareAspectJAutoProxyCreator.postProcessAfterInitialization
					->需要增强，获取所有的通知，创建代理bean
						->重点看事物的通知类


protected Object initializeBean(final String beanName, final Object bean, @Nullable RootBeanDefinition mbd) {
		if (System.getSecurityManager() != null) {
			AccessController.doPrivileged((PrivilegedAction<Object>) () -> {
				invokeAwareMethods(beanName, bean);
				return null;
			}, getAccessControlContext());
		}
		else {
            //执行实现了 xxxAware接口的方法
			invokeAwareMethods(beanName, bean);
		}

		Object wrappedBean = bean;
		if (mbd == null || !mbd.isSynthetic()) {
            //执行BeanPostProcessors的beforeInitialization方法，在初始化之前执行（本文重点不在这）
			wrappedBean = applyBeanPostProcessorsBeforeInitialization(wrappedBean, beanName);
		}

		try {
            //执行初始化方法，包括init，jsr注解、实现spring的声明周期函数等
			invokeInitMethods(beanName, wrappedBean, mbd);
		}
		catch (Throwable ex) {
			throw new BeanCreationException(
					(mbd != null ? mbd.getResourceDescription() : null),
					beanName, "Invocation of init method failed", ex);
		}
		if (mbd == null || !mbd.isSynthetic()) {
            //执行BeanPostProcessors的afterInitialization方法，在初始化之后执行，本文重点，aop的重点,遍历所有的BeanPostProcessor，循环执行，关注的重点在于
			wrappedBean = applyBeanPostProcessorsAfterInitialization(wrappedBean, beanName);
		}

		return wrappedBean;
	}

//前面判断是否需要增强，org.springframework.aop.framework.autoproxy.AbstractAutoProxyCreator

// Create proxy if we have advice.
//获得所有的通知，这个方法未深究，里面是根据名称获取的beanadvisors.add(this.beanFactory.getBean(name, Advisor.class));，最后的结果是org.springframework.transaction.interceptor.BeanFactoryTransactionAttributeSourceAdvisor
		Object[] specificInterceptors = getAdvicesAndAdvisorsForBean(bean.getClass(), beanName, null);
		if (specificInterceptors != DO_NOT_PROXY) {
			this.advisedBeans.put(cacheKey, Boolean.TRUE);
            //创建代理对象，不管是jdk还是cglib关注点应该是，specificInterceptors
			Object proxy = createProxy(
					bean.getClass(), beanName, specificInterceptors, new SingletonTargetSource(bean));
			this.proxyTypes.put(cacheKey, proxy.getClass());
			return proxy;
		}

spring事物通知类

spring事物通知类，这里不熟悉的参考spring原生aop用法

public class BeanFactoryTransactionAttributeSourceAdvisor extends AbstractBeanFactoryPointcutAdvisor {
	//这个类有几个实现，看基于注解的 ，@Transactional
    //AnnotationTransactionAttributeSource
	@Nullable
	private TransactionAttributeSource transactionAttributeSource;

	private final TransactionAttributeSourcePointcut pointcut = new TransactionAttributeSourcePointcut() {
		@Override
		@Nullable
		protected TransactionAttributeSource getTransactionAttributeSource() {
			return transactionAttributeSource;
		}
	};


	/**
	 * Set the transaction attribute source which is used to find transaction
	 * attributes. This should usually be identical to the source reference
	 * set on the transaction interceptor itself.
	 * @see TransactionInterceptor#setTransactionAttributeSource
	 */
	public void setTransactionAttributeSource(TransactionAttributeSource transactionAttributeSource) {
		this.transactionAttributeSource = transactionAttributeSource;
	}

	/**
	 * Set the {@link ClassFilter} to use for this pointcut.
	 * Default is {@link ClassFilter#TRUE}.
	 */
	public void setClassFilter(ClassFilter classFilter) {
		this.pointcut.setClassFilter(classFilter);
	}

	@Override
	public Pointcut getPointcut() {
		return this.pointcut;
	}

}

执行带有@Transactional方法的,是TransactionInterceptor里面的

public Object invoke(MethodInvocation invocation) throws Throwable {
		// Work out the target class: may be {@code null}.
		// The TransactionAttributeSource should be passed the target class
		// as well as the method, which may be from an interface.
		Class<?> targetClass = (invocation.getThis() != null ? AopUtils.getTargetClass(invocation.getThis()) : null);

		// Adapt to TransactionAspectSupport's invokeWithinTransaction...
    //执行带有事物的方法
		return invokeWithinTransaction(invocation.getMethod(), targetClass, invocation::proceed);
	}

spring管理事物的代码

spring的事务管理代码(以DataSourceTransactionManager为例，只看重点)

@Nullable
	protected Object invokeWithinTransaction(Method method, @Nullable Class<?> targetClass,
			final InvocationCallback invocation) throws Throwable {

		// If the transaction attribute is null, the method is non-transactional.
		TransactionAttributeSource tas = getTransactionAttributeSource();
		final TransactionAttribute txAttr = (tas != null ? tas.getTransactionAttribute(method, targetClass) : null);
        //这个就是自己配置的事务类型，springboot默认就有一个DataSourceTransactionManager
		final TransactionManager tm = determineTransactionManager(txAttr);

		if (this.reactiveAdapterRegistry != null && tm instanceof ReactiveTransactionManager) {
			ReactiveTransactionSupport txSupport = this.transactionSupportCache.computeIfAbsent(method, key -> {
				if (KotlinDetector.isKotlinType(method.getDeclaringClass()) && KotlinDelegate.isSuspend(method)) {
					throw new TransactionUsageException(
							"Unsupported annotated transaction on suspending function detected: " + method +
							". Use TransactionalOperator.transactional extensions instead.");
				}
				ReactiveAdapter adapter = this.reactiveAdapterRegistry.getAdapter(method.getReturnType());
				if (adapter == null) {
					throw new IllegalStateException("Cannot apply reactive transaction to non-reactive return type: " +
							method.getReturnType());
				}
				return new ReactiveTransactionSupport(adapter);
			});
			return txSupport.invokeWithinTransaction(
					method, targetClass, invocation, txAttr, (ReactiveTransactionManager) tm);
		}

		PlatformTransactionManager ptm = asPlatformTransactionManager(tm);
		final String joinpointIdentification = methodIdentification(method, targetClass, txAttr);
		//一般txAttr不为空，但是ptm是DataSourceTransactionManager，所以这个判断是true
		if (txAttr == null || !(ptm instanceof CallbackPreferringPlatformTransactionManager)) {
			// Standard transaction demarcation with getTransaction and commit/rollback calls.
            //判断是否需要开启事务，这个是重点
			TransactionInfo txInfo = createTransactionIfNecessary(ptm, txAttr, joinpointIdentification);

			Object retVal;
			try {
				// This is an around advice: Invoke the next interceptor in the chain.
				// This will normally result in a target object being invoked.
                //执行业务方法，自己的方法，包括里面访问数据库的访问，这里面如果有多重aop设置也会正常访问
				retVal = invocation.proceedWithInvocation();
			}
			catch (Throwable ex) {
				// target invocation exception
                //有一场，在里面处理，包括事务回滚
				completeTransactionAfterThrowing(txInfo, ex);
				throw ex;
			}
			finally {
                //清理本次事务
				cleanupTransactionInfo(txInfo);
			}

			if (vavrPresent && VavrDelegate.isVavrTry(retVal)) {
				// Set rollback-only in case of Vavr failure matching our rollback rules...
				TransactionStatus status = txInfo.getTransactionStatus();
				if (status != null && txAttr != null) {
					retVal = VavrDelegate.evaluateTryFailure(retVal, txAttr, status);
				}
			}
			//提交事务
			commitTransactionAfterReturning(txInfo);
            //返回结果
			return retVal;
		}

		else {
			final ThrowableHolder throwableHolder = new ThrowableHolder();

			// It's a CallbackPreferringPlatformTransactionManager: pass a TransactionCallback in.
			try {
				Object result = ((CallbackPreferringPlatformTransactionManager) ptm).execute(txAttr, status -> {
					TransactionInfo txInfo = prepareTransactionInfo(ptm, txAttr, joinpointIdentification, status);
					try {
						Object retVal = invocation.proceedWithInvocation();
						if (vavrPresent && VavrDelegate.isVavrTry(retVal)) {
							// Set rollback-only in case of Vavr failure matching our rollback rules...
							retVal = VavrDelegate.evaluateTryFailure(retVal, txAttr, status);
						}
						return retVal;
					}
					catch (Throwable ex) {
						if (txAttr.rollbackOn(ex)) {
							// A RuntimeException: will lead to a rollback.
							if (ex instanceof RuntimeException) {
								throw (RuntimeException) ex;
							}
							else {
								throw new ThrowableHolderException(ex);
							}
						}
						else {
							// A normal return value: will lead to a commit.
							throwableHolder.throwable = ex;
							return null;
						}
					}
					finally {
						cleanupTransactionInfo(txInfo);
					}
				});

				// Check result state: It might indicate a Throwable to rethrow.
				if (throwableHolder.throwable != null) {
					throw throwableHolder.throwable;
				}
				return result;
			}
			catch (ThrowableHolderException ex) {
				throw ex.getCause();
			}
			catch (TransactionSystemException ex2) {
				if (throwableHolder.throwable != null) {
					logger.error("Application exception overridden by commit exception", throwableHolder.throwable);
					ex2.initApplicationException(throwableHolder.throwable);
				}
				throw ex2;
			}
			catch (Throwable ex2) {
				if (throwableHolder.throwable != null) {
					logger.error("Application exception overridden by commit exception", throwableHolder.throwable);
				}
				throw ex2;
			}
		}
	}

createTransactionIfNecessary的重点代码

//createTransactionIfNecessary的重点代码
TransactionInfo txInfo = createTransactionIfNecessary(ptm, txAttr, joinpointIdentification);


protected TransactionInfo createTransactionIfNecessary(@Nullable PlatformTransactionManager tm,
			@Nullable TransactionAttribute txAttr, final String joinpointIdentification) {

		// If no name specified, apply method identification as transaction name.
		if (txAttr != null && txAttr.getName() == null) {
			txAttr = new DelegatingTransactionAttribute(txAttr) {
				@Override
				public String getName() {
					return joinpointIdentification;
				}
			};
		}

		TransactionStatus status = null;
		if (txAttr != null) {
			if (tm != null) {
                //重点在这
				/
			}
			else {
				if (logger.isDebugEnabled()) {
					logger.debug("Skipping transactional joinpoint [" + joinpointIdentification +
							"] because no transaction manager has been configured");
				}
			}
		}
		return prepareTransactionInfo(tm, txAttr, joinpointIdentification, status);
	}

//status = tm.getTransaction(txAttr);里面的代码
//开始事物
->return startTransaction(def, transaction, debugEnabled, suspendedResources);

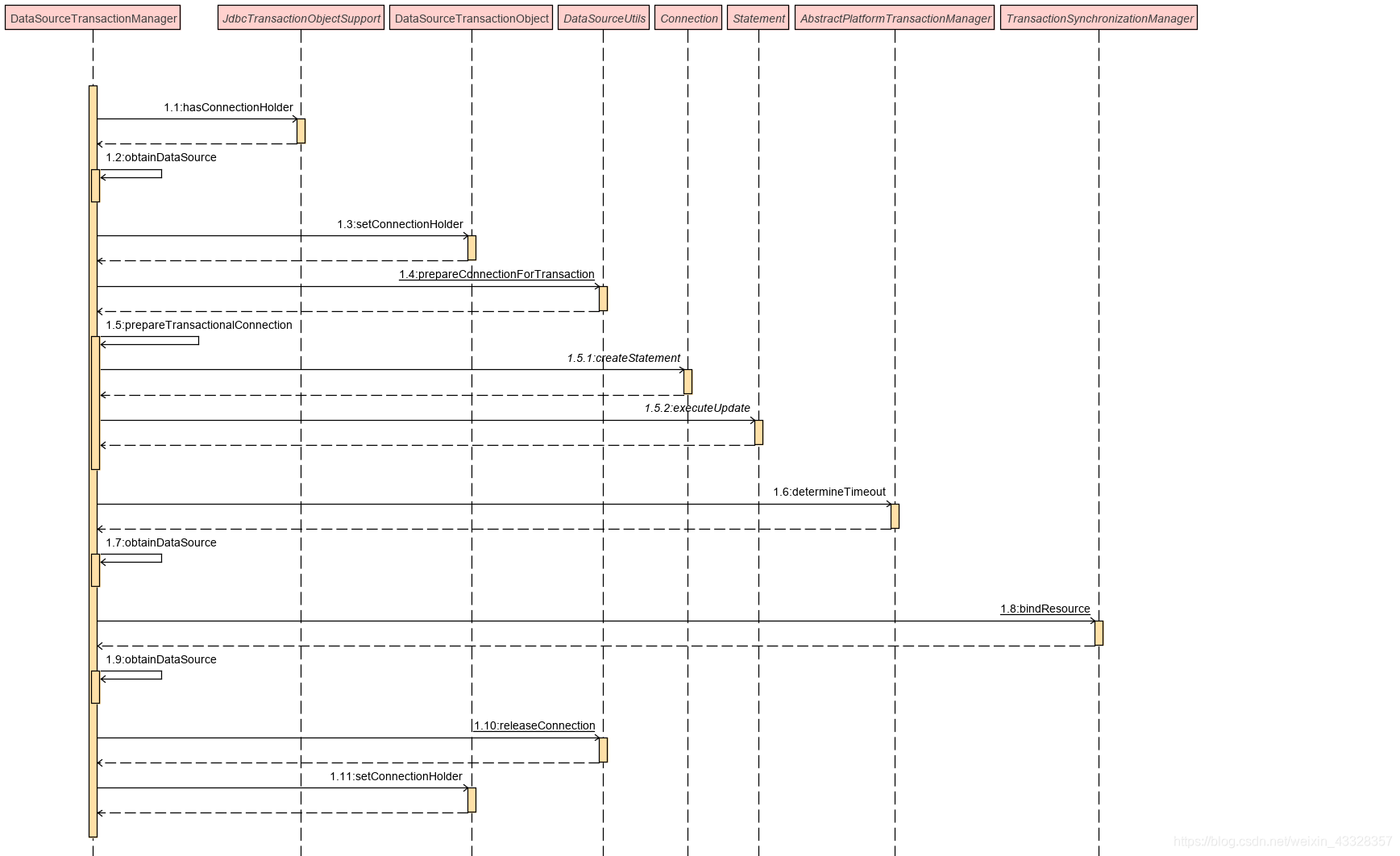

	->doBegin(transaction, definition);//这里是核心
		->里面获取数据库连接connection
		->...
        ->TransactionSynchronizationManager.bindResource(obtainDataSource(), txObject.getConnectionHolder());
			->把连接存放在private static final ThreadLocal<Map<Object, Object>> resources =
			new NamedThreadLocal<>("Transactional resources");里面

可以看到，这里有把资源绑定到当前线程

进入自己的业务方法，mybatis执行sql的connection获取和释放

private class SqlSessionInterceptor implements InvocationHandler {
    @Override
    public Object invoke(Object proxy, Method method, Object[] args) throws Throwable {
        //获取sqlsession
      SqlSession sqlSession = getSqlSession(SqlSessionTemplate.this.sqlSessionFactory,
          SqlSessionTemplate.this.executorType, SqlSessionTemplate.this.exceptionTranslator);
      try {
          //执行sql
        Object result = method.invoke(sqlSession, args);
          //判断是否开启事务
        if (!isSqlSessionTransactional(sqlSession, SqlSessionTemplate.this.sqlSessionFactory)) {
          // force commit even on non-dirty sessions because some databases require
          // a commit/rollback before calling close()
          //没有就提交
          sqlSession.commit(true);
        }
        return result;
      } catch (Throwable t) {
        Throwable unwrapped = unwrapThrowable(t);
        if (SqlSessionTemplate.this.exceptionTranslator != null && unwrapped instanceof PersistenceException) {
          // release the connection to avoid a deadlock if the translator is no loaded. See issue #22
            //关闭连接
          closeSqlSession(sqlSession, SqlSessionTemplate.this.sqlSessionFactory);
          sqlSession = null;
          Throwable translated = SqlSessionTemplate.this.exceptionTranslator
              .translateExceptionIfPossible((PersistenceException) unwrapped);
          if (translated != null) {
            unwrapped = translated;
          }
        }
        throw unwrapped;
      } finally {
        if (sqlSession != null) {
          closeSqlSession(sqlSession, SqlSessionTemplate.this.sqlSessionFactory);
        }
      }
    }
  }

里面两个关键点

• getSqlSession

• closeSqlSession

• 如何获取connection

public static SqlSession getSqlSession(SqlSessionFactory sessionFactory, ExecutorType executorType,
      PersistenceExceptionTranslator exceptionTranslator) {

    notNull(sessionFactory, NO_SQL_SESSION_FACTORY_SPECIFIED);
    notNull(executorType, NO_EXECUTOR_TYPE_SPECIFIED);
	//从当前线程获取，第一次一般没有
    SqlSessionHolder holder = (SqlSessionHolder) TransactionSynchronizationManager.getResource(sessionFactory);
	//有的话就获取SqlSession并返回，这里面如果有的话会把计数加一
    SqlSession session = sessionHolder(executorType, holder);
    if (session != null) {
      return session;
    }

    LOGGER.debug(() -> "Creating a new SqlSession");
    //没有就创建sqlsession，这里也是关键点，重点是事物工厂已经是SpringManagedTransactionFactory，这个类是mybatis-spring里面的，本段后面展开
    session = sessionFactory.openSession(executorType);
	//存储本次的SqlSessionHolder
    registerSessionHolder(sessionFactory, executorType, exceptionTranslator, session);
	//返回新创建的sqlsession
    return session;
  }


//关闭sqlsession的方法
public static void closeSqlSession(SqlSession session, SqlSessionFactory sessionFactory) {
    notNull(session, NO_SQL_SESSION_SPECIFIED);
    notNull(sessionFactory, NO_SQL_SESSION_FACTORY_SPECIFIED);
	//当前线程的map里面有的话计数减一
    SqlSessionHolder holder = (SqlSessionHolder) TransactionSynchronizationManager.getResource(sessionFactory);
    if ((holder != null) && (holder.getSqlSession() == session)) {
      LOGGER.debug(() -> "Releasing transactional SqlSession [" + session + "]");
      holder.released();
    } else {
      LOGGER.debug(() -> "Closing non transactional SqlSession [" + session + "]");
        //没有的话直接关闭
      session.close();
    }
  }


//后面通过mybatis操作数据库，里面会获取connection连接，
//采用的方法是DataSourceUtil里面的，这个方法保证了连接的connection是同一个，
return doGetConnection(dataSource);
public static Connection doGetConnection(DataSource dataSource) throws SQLException {
		Assert.notNull(dataSource, "No DataSource specified");
		//前面已经存了
		ConnectionHolder conHolder = (ConnectionHolder) TransactionSynchronizationManager.getResource(dataSource);
		if (conHolder != null && (conHolder.hasConnection() || conHolder.isSynchronizedWithTransaction())) {
			conHolder.requested();
			if (!conHolder.hasConnection()) {
				logger.debug("Fetching resumed JDBC Connection from DataSource");
				conHolder.setConnection(fetchConnection(dataSource));
			}
			return conHolder.getConnection();
		}
		// Else we either got no holder or an empty thread-bound holder here.

		logger.debug("Fetching JDBC Connection from DataSource");
		Connection con = fetchConnection(dataSource);

		if (TransactionSynchronizationManager.isSynchronizationActive()) {
			try {
				// Use same Connection for further JDBC actions within the transaction.
				// Thread-bound object will get removed by synchronization at transaction completion.
				ConnectionHolder holderToUse = conHolder;
				if (holderToUse == null) {
					holderToUse = new ConnectionHolder(con);
				}
				else {
					holderToUse.setConnection(con);
				}
				holderToUse.requested();
				TransactionSynchronizationManager.registerSynchronization(
						new ConnectionSynchronization(holderToUse, dataSource));
				holderToUse.setSynchronizedWithTransaction(true);
				if (holderToUse != conHolder) {
					TransactionSynchronizationManager.bindResource(dataSource, holderToUse);
				}
			}
			catch (RuntimeException ex) {
				// Unexpected exception from external delegation call -> close Connection and rethrow.
				releaseConnection(con, dataSource);
				throw ex;
			}
		}

		return con;
	}

3.总结

1.spring和mybatis能管理事物的本质是数据库连接Connection对象的commit和rollback方法，其实是mybatils为了继承spring写了mybatis-spring这个包，和spring的事务相结合

2.@Transactional方法的注册，使用的是spring自己aop方式

3.springaop的注册只分析了大致流程，springtx也未深究有兴趣的请参观本人自己实现的给予注解的springaop
4.本文代码略多，其实核心就是第一个第二点的思路
