弹出层配置

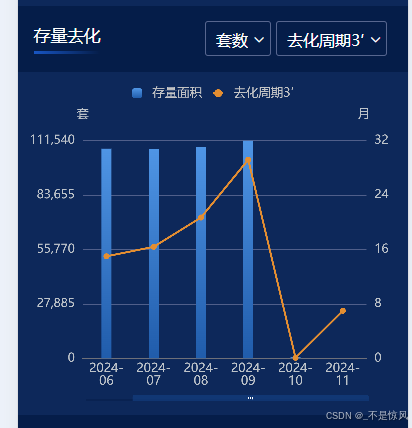

示例，双y轴刻度，防止线重叠
![在这里插入图片描述](https://i-blog.csdnimg.cn/direct/af54309fb2714e20b2371977621f5d54.png

测试数据

 chartData: [
        {
          name: "W29",
          visit: 143,
          sale: 8,
          price: 65642,
        },
        {
          name: "W30",
          visit: 138,
          sale: 4,
          price: 61147,
        },
        {
          name: "W31",
          visit: 148,
          sale: 5,
          price: 60506,
        },
        {
          name: "W32",
          visit: 143,
          sale: 6,
          price: 64730,
        },
        {
          name: "W33",
          visit: 192,
          sale: 4,
          price: 66901,
        },
        {
          name: "W34",
          visit: 234,
          sale: 7,
          price: 57480,
        },
        {
          name: "W35",
          visit: 185,
          sale: 4,
          price: 62975,
        },
        {
          name: "W36",
          visit: 161,
          sale: 7,
          price: 57905,
        },
      ],

let optionData = {
	series:[],
	...
}
const splitNumber = 4;

//计算双轴刻度最大值，防止线重叠
//数据中的最大值seriesDataLMax1 ，interval1 分割刻度间隔数 ，splitNumber 分割几条线
//计算左右轴刻度最大值方法1：
let seriesDataLMax1 = Math.max(...optionData.series[0].data)
let interval1 = seriesDataLMax1 % splitNumber != 0 ? Math.trunc(seriesDataLMax1 / splitNumber) + 1 : seriesDataLMax1 / splitNumber;
seriesDataLMax1 = interval1 * splitNumber;

let seriesDataLMax2 = Math.max(...optionData.series[optionData.series.length - 1].data)
let interval2 = seriesDataLMax2 % splitNumber != 0 ? Math.trunc(seriesDataLMax2 / splitNumber) + 1 : seriesDataLMax2 / splitNumber;
seriesDataLMax2 = interval2 * splitNumber;

//计算左右轴刻度最大值方法2：
	//左轴最大值
  const seriesDataLMax = this.$global.numberFormat(
   Math.max(
     ...this.chartData.map((item) => item.visit),
     ...this.chartData.map((item) => item.sale)
   )
 );
	 //右轴最大值
 const seriesDataRMax = this.$global.numberFormat(
   Math.max(...this.chartData.map((item) => item.price))
 );
//charts中yAxis配置
interval: parseFloat((seriesDataLMax / splitNumber).toFixed(2)), //左
interval: parseFloat((seriesDataRMax / splitNumber).toFixed(2)), //右



let legendData = optionData?.series?.map(i => {
      return i.name
})
option = {
	 grid: {
	      top: optionData.series.length == 4 ? '24%' : '20%', //动态顶部距离
	      bottom: '8%',
	      right: '5%',
	      left: '3%',
	      containLabel: true
	      // containLabel: true,
	  },
		//滑动
	  dataZoom: [{
          type: 'slider',
          startValue: optionData.xAxis.length - 5,//配置起始位置，默认显示最后
          endValue: optionData.xAxis.length,//配置起始位置，默认显示最后
          //   end: 150,
          height: 0, // 设置滑动条的高度
          bottom: 20,
          moveHandleSize: 6, //默认显示个数
          borderColor: '#051d49',
          moveHandleStyle: {
              color: '#123D7F',
          },
      }],

	 tooltip: {
			trigger: 'axis',
	        extraCssText: 'z-index:10', // 修改层级
	        axisPointer: {
	               type: "none", //隐藏中心线
	        },
	       confine: true, //适配，在移动端展示展示，防止溢出
	       //调用封装
	        ...this.tooltipFormat('unit'),
	        //直接使用
	        valueFormatter: function (value) {  //添加单位
	            return value ? value + ' ' + unit : '-';
	        }
	 },
	 legend: {
          data: legendData,
           top: '10px',
           icon: '',
           // type: 'scroll',
           // icon: 'rect',
           pageIconColor: '#fff',  //翻页器颜色
           pageIconInactiveColor: '#333',//翻页器颜色
           pageTextStyle: {
               color: '#C2C3C4',//翻页器颜色
           },
           itemStyle: {
               borderRadius: 0,
           },
           textStyle: {
               color: "#C2C3C4",
               fontSize: this.$global.vw(12),
               padding: [0, 0, 0, this.$global.vw(5)],
           },
           itemWidth: 10,
           itemHeight: 10,
       },
       xAxis: [{
             type: 'category',
              data: optionData.xAxis,
              axisPointer: {
                  // type: 'shadow',
                  color: '#BDC3C9',
                  fontSize: 12,
                  fontWeight: 400
              },
              axisTick: {
                  show: false, //隐藏刻度小线
              },
              axisLabel: {
                  margin: this.$global.vw(4),
                  formatter: function (value) {
                  		//x轴文案显示格式化，如果有-，换行显示文本
                      return optionData.xAxis.length > 4 ? value.split('-').join('-\n') : value;
                  },
                  textStyle: {
                      color: "#BDC3C9",
                      fontSize: this.$global.vw(12),
                  },
              },
              splitLine: {
                  lineStyle: {
                      color: "#38487A",
                  },
              },
          }],
  		yAxis: [{
             type: 'value',
              name: optionData.unit1,
              nameTextStyle: {
                  color: '#BDC3C9',
                  fontSize: 12,
                  padding: [0, 0, 5, seriesDataLMax1 ? '' : 20]
              },

              splitNumber: splitNumber,
              interval: interval1,
              max: seriesDataLMax1,//dataZoom显示刻度必须设置
              min: 0,//dataZoom显示刻度必须设置
              axisLabel: {
                  textStyle: {
                      color: '#BDC3C9',
                      fontSize: 12,
                      fontWeight: 400
                  }
              },
              splitLine: {
                  lineStyle: {
                      color: ['#505F8A']
                  }
              }
          },
          {
              type: 'value',
              name: optionData.unit2,
              nameTextStyle: {
                  color: '#BDC3C9',
                  fontSize: 12,
                  padding: [0, 5, 5, 0]
              },
              max: seriesDataLMax2,
              splitNumber: splitNumber,
              interval: interval2,
              min: 0,
              axisLabel: {
                  textStyle: {
                      color: '#BDC3C9',  //刻度文字颜色
                      fontSize: 12,
                      fontWeight: 400
                  }
              },
              splitLine: {
                  lineStyle: {
                      color: ['#505F8A']
                  }
              }
          }
      ],
      series: [
      {
         name: "来访(组)",
         type: "bar",
         yAxisIndex: 0,
         itemStyle: {
           color: new this.$echarts.graphic.LinearGradient(0.5, 1, 0.5, 0, [ //渐变色
             {
               offset: 0,
               color: "#205CAB",
             },
             {
               offset: 1,
               color: "#4F95E5",
             },
           ]),
         },
         barGap: 0,
         barWidth: this.$global.vw(10),
         data: this.chartData.map((item) => item.visit),
       },
        {
            name: "价格(元/㎡)",
            type: "line",
            yAxisIndex: 1,
            symbol: "circle",
            symbolSize: this.$global.vw(8),
            smooth: true,
            lineStyle: {
              color: "#E48E31",
              width: this.$global.vw(2),
            },
            itemStyle: {
              color: "#E48E31",
            },
            emphasis: {
              scale: false,
            },
            data: this.chartData.map((item) => item.price),
          },
      ]
 }
 methods: {
 //封装tooltip,数据格式化
  tooltipFormat(unit) {
            return {
                valueFormatter: function (value) {
                    return value ? value + ' ' + unit : '-';
                }
            }
  },
 }

封住一些常用js方法


创建目录utils/global.js文件，
再main.js引入 import global from '@/utils/global.js'
Vue.prototype.$global = global;


export default {
    setCookie: function (cname, cvalue, exdays) {
        var d = new Date();
        d.setTime(d.getTime() + (exdays * 24 * 60 * 60 * 1000));
        var expires = "expires=" + d.toUTCString();
        document.cookie = cname + "=" + cvalue + "; " + expires;
    },

    deepClone(obj, map = new WeakMap()) {
        if (obj === null || typeof obj !== 'object') return obj;
        if (obj instanceof Date) return new Date(obj);
        if (obj instanceof RegExp) return new RegExp(obj);
        if (map.has(obj)) return map.get(obj);

        const clone = Array.isArray(obj) ? [] : {};
        map.set(obj, clone);

        for (const key in obj) {
            if (obj.hasOwnProperty(key)) {
                clone[key] = this.deepClone(obj[key], map);
            }
        }
        return clone;
    },

    uuid() {
        var s = [];
        var hexDigits = "0123456789abcdef";
        for (var i = 0; i < 36; i++) {
            s[i] = hexDigits.substr(Math.floor(Math.random() * 0x10), 1);
        }
        s[14] = "4"; // bits 12-15 of the time_hi_and_version field to 0010
        s[19] = hexDigits.substr((s[19] & 0x3) | 0x8, 1); // bits 6-7 of the clock_seq_hi_and_reserved to 01
        s[8] = s[13] = s[18] = s[23] = "-";

        var uuid = s.join("");
        return uuid;
    },

    groupedByCategory(list, category) {
        const object = list.reduce((acc, item) => {
            const _category = item[category];

            // 如果分类不存在于结果对象中，创建一个新的数组
            if (!acc[_category]) {
                acc[_category] = [];
            }

            // 将当前项添加到对应的分类数组中
            acc[_category].push(item);

            return acc;
        }, {});
        return object
    },

    vw: (val) => {
        return val / 375 * document.body.clientWidth;
    },

    numberFormat: (num, isMax = true) => {
        let arr = num.toString().split('')
        if (isMax) {
            if (arr.length > 2) {
                let list = []
                arr.forEach((item, index) => {
                    if (index === 0) {
                        list.push(parseInt(item) + 1)
                    } else {
                        list.push(0)
                    }
                });
                return parseInt(list.join(''))
            } else if (arr.length > 1) {
                return 100;
            } else {
                return 10
            }
        } else {
            if (arr.length > 1) {
                let list = []
                arr.forEach((item, index) => {
                    if (index === 0) {
                        list.push(parseInt(item) + 1)
                    } else {
                        list.push(0)
                    }
                });
                return parseInt(list.join(''))
            } else {
                return 10
            }
        }
    },

    getWeekData(year) {
        let list = [];
        if (year) {
            let beginDate = year + "-01-01";
            let week = dayjs(beginDate).day();
            week = week ? week : 7;
            if (week !== 1) {
                beginDate = dayjs(beginDate)
                    .subtract(week - 1, "day")
                    .add(7, "day")
                    .format("YYYY-MM-DD");
            }
            let i = 0;
            do {
                let endDate = dayjs(beginDate)
                    .add(6, "day")
                    .format("YYYY-MM-DD");
                list.push({
                    year: year,
                    week: ++i,
                    beginDate: dayjs(beginDate).format("MM/DD"),
                    endDate: dayjs(endDate).format("MM/DD"),
                    beginAllDate: beginDate,
                    endAllDate: endDate,
                });
                beginDate = dayjs(beginDate).add(7, "day").format("YYYY-MM-DD");
            } while (Number(beginDate.substring(0, 4)) === year);
        }
        return list;
    },

    getRouterParams() {
        const temp1 = window.location.href.split('?');
        const pram = temp1[1];
        if (!pram) return;
        const keyValue = pram.split('&');
        let obj = {};
        for (let i = 0; i < keyValue.length; i++) {
            const item = keyValue[i].split('=');
            const key = item[0];
            const value = item[1];
            if (key === 'name' || key === 'vue') {
                obj[key] = decodeURI(value)
            } else {
                obj[key] = decodeURI(value)
            }

        }
        return obj
    },

    objectToQuery(obj) {
        return Object.keys(obj)
            .map(key => encodeURIComponent(key) + '=' + encodeURIComponent(obj[key]))
            .join('&');
    },

    waltzMobile() {
        if (/Mobi|Android|iPhone/i.test(navigator.userAgent)) {
            waltz.call({
                module: 'WZApi',
                handlerName: 'setResultData',
                data: {
                    appId: 'f71eaf99d2c78d358254cf070a1aa446',
                    taskComplete: true
                }
            }).then(() => {
                // 调用华尔兹返回函数，返回上一级页面
                this.waltz.window.close()
            }).catch(err => {
                /*handle error here */
            });
        } else {
            waltz.call({
                module: 'WZApi',
                appId: 'f71eaf99d2c78d358254cf070a1aa446',
                handlerName: 'sendMessage',
                data: {
                    type: 'task_center',
                    focus: true,
                    data: {
                        taskComplete: true
                    }
                }
            }).then(() => {
                // 调用华尔兹返回函数，返回上一级页面
                this.waltz.window.close()
            }).catch(err => {
                /*handle error here */
            });
        }
    },


    px2rem(px) {
        if (/%/ig.test(px)) { // 有百分号%，特殊处理，表述pc是一个有百分号的数，比如：90%
            return px
        } else {
            return (parseFloat(px) / 37.5) + 'rem'
        }
    },

    pxFitScreen(px) {
        if (window.innerWidth < 450) {
            return px
        }
        if (/%/ig.test(px)) { // 有百分号%，特殊处理，表述pc是一个有百分号的数，比如：90%
            return px
        } else {
            return (parseFloat(px) / 37.5) * px
        }
    }
}
