Elasticsearch 8.9 flush刷新缓存中的数据到磁盘源码

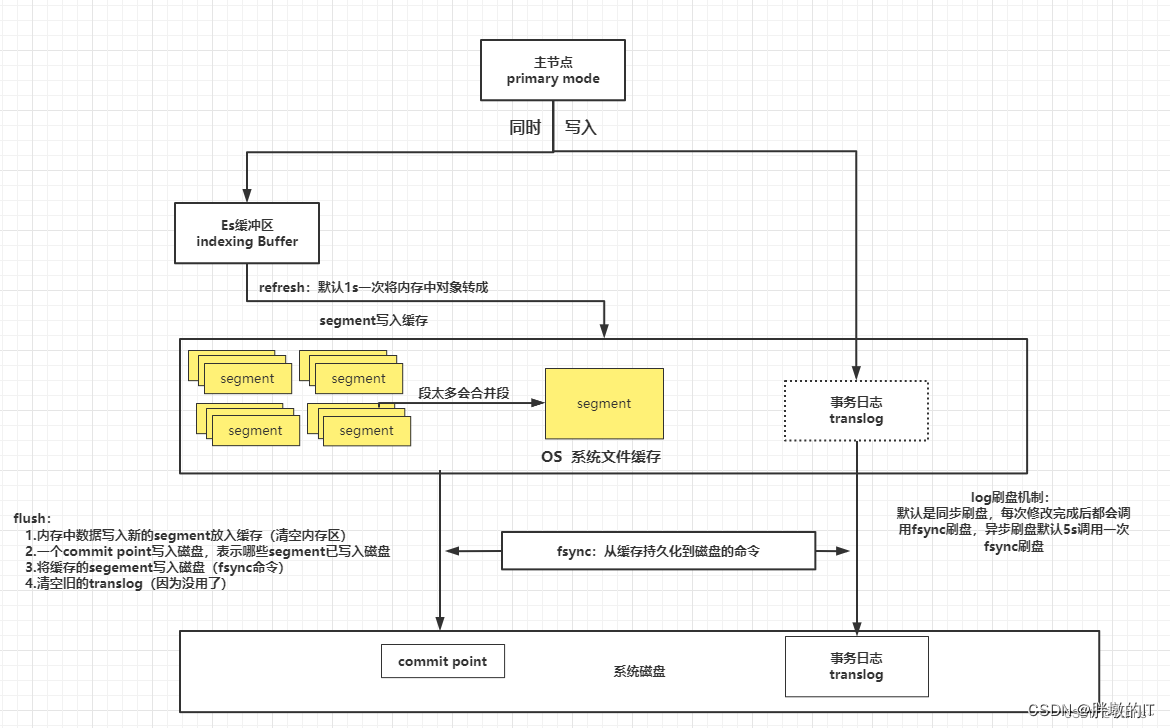

下面的图来自ElasticSearch——刷盘原理流程，这篇文章主要讲的是人工通过flush命令把批量写入内存segment的数据刷新进磁盘，不涉及到在translog.log和Lucene的数据结构。
通过这个流程知道ES如何把数据刷新进磁盘的，主要是下图的下半部分中fsync部分

图片中主节点同时写入Es缓冲区和translog部分，请看Elasticsearch 8.9 Bulk批量给索引增加数据源码
图片中refresh部分，请看Elasticsearch 8.9 refresh刷Es缓冲区的数据到Lucene，更新segemnt，使数据可见

一、相关API的handler

在ActionModule.java中

registerHandler.accept(new RestFlushAction());
actions.register(FlushAction.INSTANCE, TransportFlushAction.class);
actions.register(TransportShardFlushAction.TYPE, TransportShardFlushAction.class);

1、接收HTTP请求的hander

public class RestFlushAction extends BaseRestHandler {


    @Override
    public List<Route> routes() {

        return List.of(
            new Route(GET, "/_flush"),
            new Route(POST, "/_flush"),
            new Route(GET, "/{index}/_flush"),
            new Route(POST, "/{index}/_flush")
        );
    }

    @Override
    public String getName() {

        return "flush_action";
    }

    @Override
    public RestChannelConsumer prepareRequest(final RestRequest request, final NodeClient client) throws IOException {

        FlushRequest flushRequest = new FlushRequest(Strings.splitStringByCommaToArray(request.param("index")));
        flushRequest.indicesOptions(IndicesOptions.fromRequest(request, flushRequest.indicesOptions()));
        flushRequest.force(request.paramAsBoolean("force", flushRequest.force()));
        flushRequest.waitIfOngoing(request.paramAsBoolean("wait_if_ongoing", flushRequest.waitIfOngoing()));
        return channel -> client.admin().indices().flush(flushRequest, new RestToXContentListener<>(channel));
    }
}

上面会执行下面这个，至于怎么到这里的，可以看Elasticsearch 8.9 Master节点处理请求源码

/**
 * Flush Action.
 */
public class TransportFlushAction extends TransportBroadcastReplicationAction<
    FlushRequest,
    FlushResponse,
    ShardFlushRequest,
    ReplicationResponse> {


    @Inject
    public TransportFlushAction(
        ClusterService clusterService,
        TransportService transportService,
        NodeClient client,
        ActionFilters actionFilters,
        IndexNameExpressionResolver indexNameExpressionResolver
    ) {

        super(
            FlushAction.NAME,
            FlushRequest::new,
            clusterService,
            transportService,
            client,
            actionFilters,
            indexNameExpressionResolver,
            TransportShardFlushAction.TYPE, //注意这个
            ThreadPool.Names.FLUSH
        );
    }

  //省略代码
}

这里需要注意上面的TransportShardFlushAction.TYPE

这里看一下它的父类TransportBroadcastReplicationAction

public abstract class TransportBroadcastReplicationAction<
    Request extends BroadcastRequest<Request>,
    Response extends BaseBroadcastResponse,
    ShardRequest extends ReplicationRequest<ShardRequest>,
    ShardResponse extends ReplicationResponse> extends HandledTransportAction<Request, Response> {


    private final ActionType<ShardResponse> replicatedBroadcastShardAction;
	 public TransportBroadcastReplicationAction(
        String name,
        Writeable.Reader<Request> requestReader,
        ClusterService clusterService,
        TransportService transportService,
        NodeClient client,
        ActionFilters actionFilters,
        IndexNameExpressionResolver indexNameExpressionResolver,
        ActionType<ShardResponse> replicatedBroadcastShardAction,
        String executor
    ) {

       	//省略代码
       	//这里即上面的TransportShardFlushAction.TYPE
        this.replicatedBroadcastShardAction = replicatedBroadcastShardAction;

    }
	@Override
    protected void doExecute(Task task, Request request, ActionListener<Response> listener) {

        clusterService.threadPool().executor(executor).execute(ActionRunnable.wrap(listener, createAsyncAction(task, request)));
    }
	private CheckedConsumer<ActionListener<Response>, Exception> createAsyncAction(Task task, Request request) {

        return new CheckedConsumer<ActionListener<Response>, Exception>() {

			//省略代码
            @Override
            public void accept(ActionListener<Response> listener) {


                final ClusterState clusterState = clusterService.state();
                final List<ShardId> shards = shards(request, clusterState);
                final Map<String, IndexMetadata> indexMetadataByName = clusterState.getMetadata().indices();
				//遍历分片
                try (var refs = new RefCountingRunnable(() -> finish(listener))) {

                    for (final ShardId shardId : shards) {

                        // NB This sends O(#shards) requests in a tight loop; TODO add some throttling here?
                        shardExecute(
                            task,
                            request,
                            shardId,
                            ActionListener.releaseAfter(new ReplicationResponseActionListener(shardId, indexMetadataByName), refs.acquire())
                        );
                    }
                }
            }
			//省略代码
        };
    }
    protected void shardExecute(Task task, Request request, ShardId shardId, ActionListener<ShardResponse> shardActionListener) {

        assert Transports.assertNotTransportThread("may hit all the shards");
        ShardRequest shardRequest = newShardRequest(request, shardId);
        shardRequest.setParentTask(clusterService.localNode().getId(), task.getId());
        //通过执行replicatedBroadcastShardAction，即TransportShardFlushAction.class来实现分片的刷新
        client.executeLocally(replicatedBroadcastShardAction, shardRequest, shardActionListener);
    }
}
