sql优化实操

以下是同事人员发过来的sql，让我帮他优化一下，clickhouse的语句，需要替换成在自己的数据库上执行，dth_diagnosis_all 这个表的数据量90217505 ，千万级的数据量，说是内存不足，sql执行不了。

select sum(case when re.diagnosis_code = 'E10' then 1 else 0 end) as E10Count,
   sum(case when re.diagnosis_code = 'E11' then 1 else 0 end) as E11Count,
   sum(case when re.diagnosis_code != 'E10' and re.diagnosis_code != 'E11' then 1 else 0 end) as otherCount
from (select t1.id_no as id_no, left(t1.diagnosis_code,3) as diagnosis_code
                          from (select t2.id_no, t2.org_code, t2.event_type_code, t2.org_treatment_no,
                                       max(t2.register_date) as register_date,t2.diagnosis_code
                                from dth.dth_diagnosis_all t2
                                where t2.register_date <= #{initYear}
                                      and left(t2.diagnosis_code,3) in('E10','E11','E12','E13','E14')
                group by t2.id_no,t2.org_code,t2.event_type_code,t2.org_treatment_no,t2.diagnosis_code)t3,
          dth.dth_diagnosis_all t1
          where t1.id_no = t3.id_no
                and t1.org_code = t3.org_code and t1.diagnosis_code = t3.diagnosis_code
                and t1.event_type_code = t3.event_type_code
                and t1.org_treatment_no = t3.org_treatment_no
                and t1.register_date = t3.register_date
                and t1.org_province = #{province}
                and t1.org_city = #{city}
            )re left join (select * from dth_ehr_pir_all
        where birth_date  <=  #{initYear}
        and register_province = #{province}
            and register_city = #{city}
        and diabetes_flag != '0'
        and (death_date = ''
                        or death_date > #{initYear})) t
                        on t.id_no = re.id_no
where t.birth_date  <=  #{initYear}
and t.register_province = #{province}
    and t.register_city = #{city}
and t.diabetes_flag != '0'
and (t.death_date = '' or t.death_date > #{initYear})
参数：initYear(查询年份12月31，如2029-12-31)， #{province}，查询省份：（山东省）， #{city}  ：查询城市

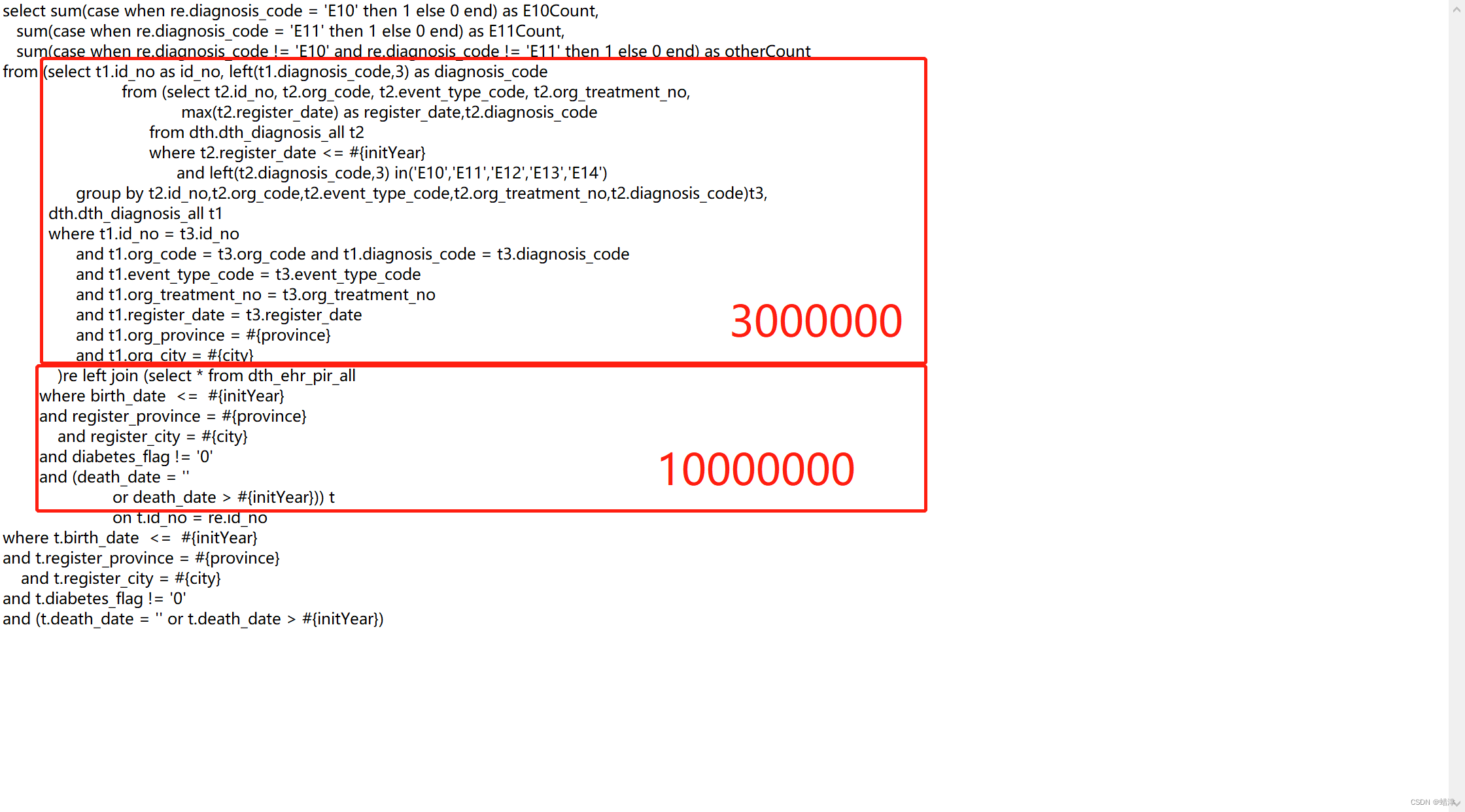

两个子查询的数据量

 以下为优化后的sql，看这个sql子查询t1和t3，其实是同一张表，然后对同一张表做连接查询，对t3表做了where条件过滤（这个不用改），之后连接查询之后又对t1表进行了where条件过滤，如下：

t1.org_province = #{province}
and t1.org_city = #{city}

为啥不提前提到t1子查询里面去呢，

再看一下join条件中

and t1.diagnosis_code = t3.diagnosis_code

and t1.register_date = t3.register_date，

说明t3和t1连接条件是一样的，又是同一张表，t3中也对这两个列做了where限制，那么子查询t1中也可以加入这两个条件，于是把一下四个条件提到t1的子查询中去，大大降低了临时表占用的内存空间，

t1.org_province = #{province}
and t1.org_city = #{city}

and register_date <= #{initYear}
and left(diagnosis_code,3) in('E10','E11','E12','E13','E14')

 (
        select *
        from dth.dth_diagnosis_all
        where
            org_province = #{province} and org_city = #{city}
            and register_date <= #{initYear}
            and left(diagnosis_code,3) in('E10','E11','E12','E13','E14')
    ) t1

然后就是针对 t 表做优化，子查询中已经对 t 表做了where条件过滤，连接查询后面又对 t 表进行单独的过滤，这个完全没必要再加同样的条件了。

之后再看最外层的

   sum(case when re.diagnosis_code = 'E10' then 1 else 0 end) as E10Count,
   sum(case when re.diagnosis_code = 'E11' then 1 else 0 end) as E11Count,
   sum(case when re.diagnosis_code != 'E10' and re.diagnosis_code != 'E11' then 1 else 0 end) as otherCount

这个一看就是对条件进行统计个数，可以改成效率更高的count

改下如下：

    count(case when re.diagnosis_code = 'E10' then '1' else null end) as E10Count,
    count(case when re.diagnosis_code = 'E11' then '1' else null end) as E11Count,
    count(case when re.diagnosis_code != 'E10' and re.diagnosis_code != 'E11' then '1' else null end) as otherCount

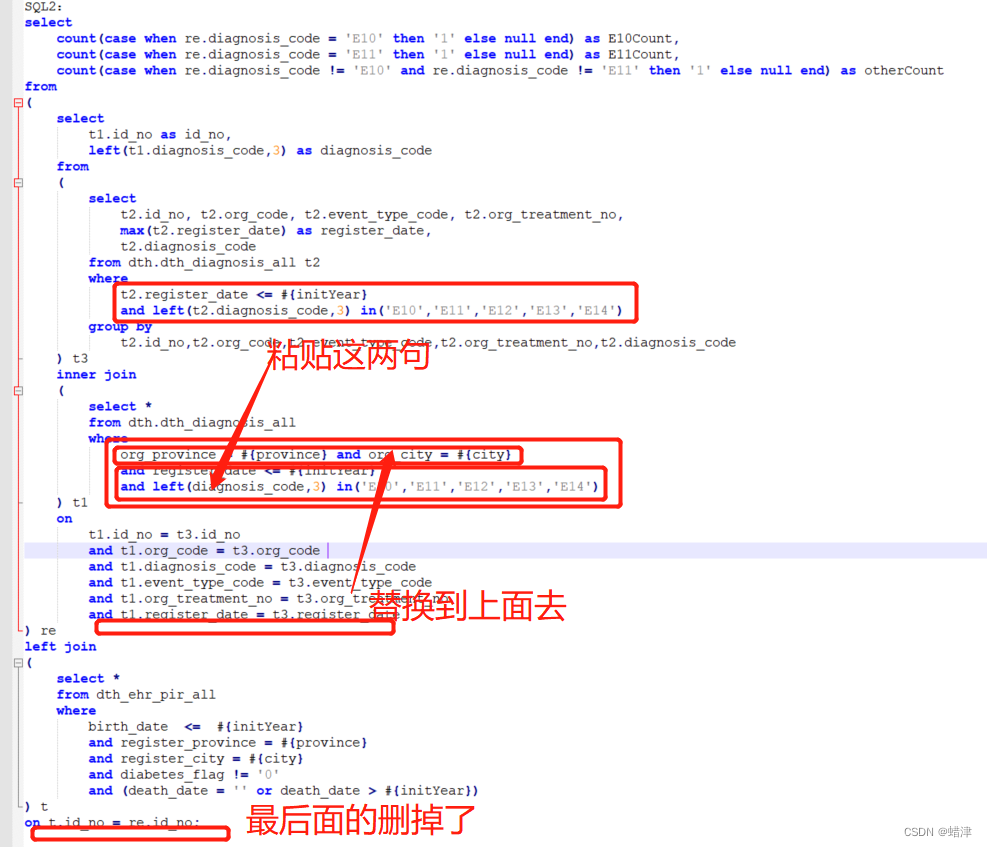

至此改完之后的结果

select
    count(case when re.diagnosis_code = 'E10' then '1' else null end) as E10Count,
    count(case when re.diagnosis_code = 'E11' then '1' else null end) as E11Count,
    count(case when re.diagnosis_code != 'E10' and re.diagnosis_code != 'E11' then '1' else null end) as otherCount
from
(
    select
        t1.id_no as id_no,
        left(t1.diagnosis_code,3) as diagnosis_code
    from
    (
        select
            t2.id_no, t2.org_code, t2.event_type_code, t2.org_treatment_no,
            max(t2.register_date) as register_date,
            t2.diagnosis_code
        from dth.dth_diagnosis_all t2
        where
            t2.register_date <= #{initYear}
            and left(t2.diagnosis_code,3) in('E10','E11','E12','E13','E14')
        group by
            t2.id_no,t2.org_code,t2.event_type_code,t2.org_treatment_no,t2.diagnosis_code
    ) t3
    inner join
    (
        select *
        from dth.dth_diagnosis_all
        where
            org_province = #{province} and org_city = #{city}
            and register_date <= #{initYear}
            and left(diagnosis_code,3) in('E10','E11','E12','E13','E14')
    ) t1
    on
        t1.id_no = t3.id_no
        and t1.org_code = t3.org_code
        and t1.diagnosis_code = t3.diagnosis_code
        and t1.event_type_code = t3.event_type_code
        and t1.org_treatment_no = t3.org_treatment_no
        and t1.register_date = t3.register_date
) re
left join
(
    select *
    from dth_ehr_pir_all
    where
        birth_date  <=  #{initYear}
        and register_province = #{province}
        and register_city = #{city}
        and diabetes_flag != '0'
        and (death_date = '' or death_date > #{initYear})
) t
on t.id_no = re.id_no;



sql能跑出来了，不会报出内存不足了
