mycat实现读写分离

• 编写schema.xml

<?xml version="1.0"?>
<!DOCTYPE mycat:schema SYSTEM "schema.dtd">
<mycat:schema xmlns:mycat="http://io.mycat/">
	<schema name="QUAN" checkSQLschema="true" sqlMaxLimit="100">
		<table name="TB_TEST" dataNode="dn1" primaryKey="id"/>
	</schema>

	<dataNode name="dn1" dataHost="localhost1" database="db1" />

	<dataHost name="localhost1" maxCon="1000" minCon="10" balance="1" writeType="0" dbType="mysql"
				dbDriver="native" switchType="1"  slaveThreshold="100">
		<heartbeat>select user()</heartbeat>
		<writeHost host="hostM1" url="192.168.88.3:3306" user="root" password="123456">
			<readHost host="hostS1" url="192.168.88.4:3306" user="root" password="123456" />
		</writeHost>
	</dataHost>
</mycat:schema>

• 修改server.xml

<user name="root" defaultAccount="true">
		<property name="password">123456</property>
		<property name="schemas">QUAN</property>
	</user>

	<user name="user">
		<property name="password">123456</property>
		<property name="schemas">QUAN</property>
		<property name="readOnly">true</property>
	</user>

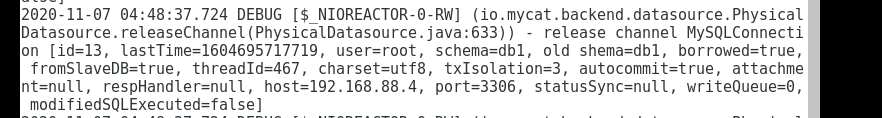

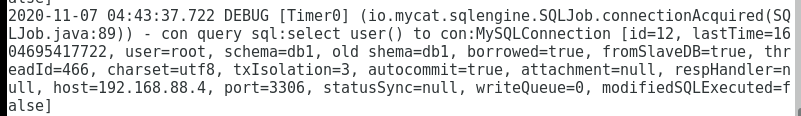

• 为了方便测试查看日志，修改log42.xml, level=“debug”

<asyncRoot level="debug" includeLocation="true">

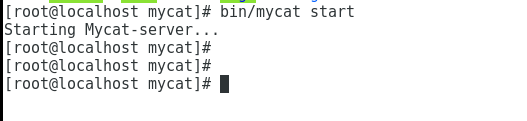

• 重启mycat

bin/mycat start

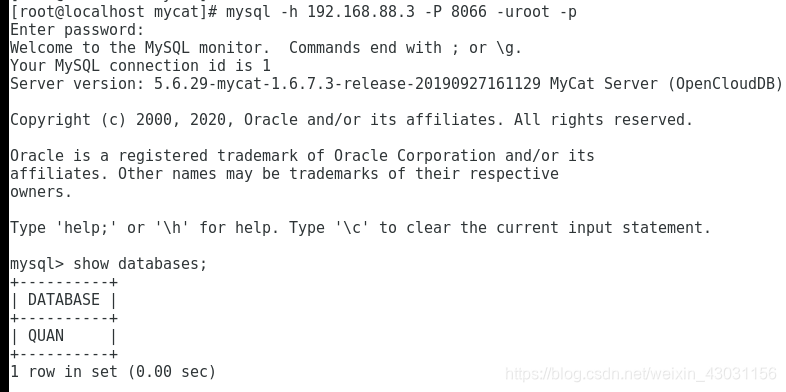

• 登录mycat

mysql -h 127.0.0.1 -P 8066 -uroot -p

• 测试查询

select * from TB_TEST;

• 测试插入

insert into TB_TEST(id,title) VALUES(3,'quan');
