glib主事件循环

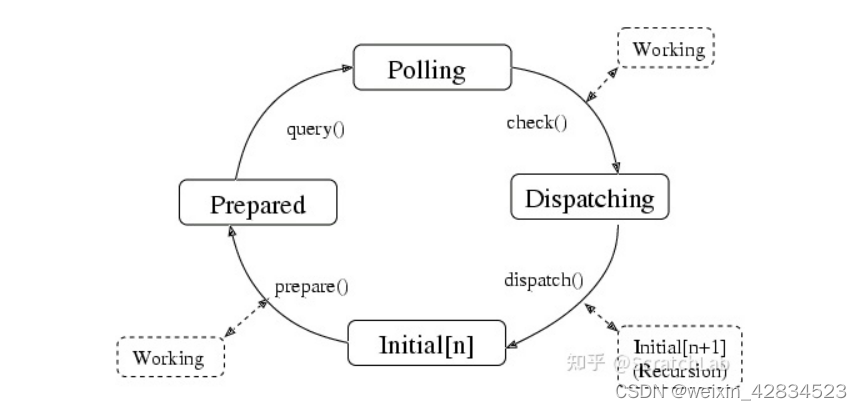

qemu中对于消息循环的处理采用了Glib事件循环机制。每个事件称为一个事件源，叫做GSource,对于自建事件源，其第一个元素必须是GSource.每个事件源都会关联一个GMainContext,一个线程只能运行一个GMainContext,但是再其他线程中能够对事件源进行添加和删除。

步骤一（prepare）：调用各事件源的prepare回调函数，检查事件源中是否有事件发生。对于无需poll的事件源（例如：idle事件源），其返回TRUE，表示idle事件已经发生了。对于需要poll的事件源（例如：文件事件源），其返回FALSE，因为只有在poll文件之后，才能直到文件事件是否发生。对应g_main_context_prepare()函数。
步骤二 （query）：获取实际需要poll的文件fd。对应g_main_context_query()函数。
步骤三（check）：调用poll对fd进行监听，调用各事件源的check回调函数，检查事件源是否有事件发生。对应g_main_context_query()函数。
步骤四（dispatch）：若某事件源有事件发生（prepare或check返回TRUE），则调用其事件处理函数。对应g_main_context_check()函数。新事件源用于来处理GDK事件。通过从GSource结构体派生来创建新事件源。表示新事件源的结构体的第一个元素为GSource实例，其他元素与新事件源本身相关。通过调用g_source_new创建新事件源的实例，创建时需传递新事件源结构体的大小和一张函数表，而这张函数表决定了新事件源的行为。

几种常见的结构体定义如下：

struct GSourceFuncs {
gboolean (*prepare) (GSource *source,gint *timeout_);
  gboolean (*check) (GSource *source);
  gboolean (*dispatch) (GSource *source, GSourceFunc callback, gpointer user_data);
  void (*finalize) (GSource *source);
};

//和pollFD类似
struct GPollFD
{
 gint fd;
gushort events;
gushort revents;
}

struct GSourceList
{
 GSource *head,*tail;
gint priority;
}

typedef void* gpointer;
struct GList
{
   gpointer data;
   GList *next;
   GList*prev;
}；是一个双向链表

struct GSList{
    gpointer data;
    GSList *next;
}

struct _GMainContext
{
/* The following lock is used for both the list of sources
and the list of poll records
*/
GMutex mutex;
GCond cond;
GThread *owner;
guint owner_count;
GMainContextFlags flags;
GSList waiters;
gint ref_count;  / (atomic) */
GHashTable sources;              / guint -> GSource */
GPtrArray pending_dispatches;
gint timeout;			/ Timeout for current iteration */
guint next_id;

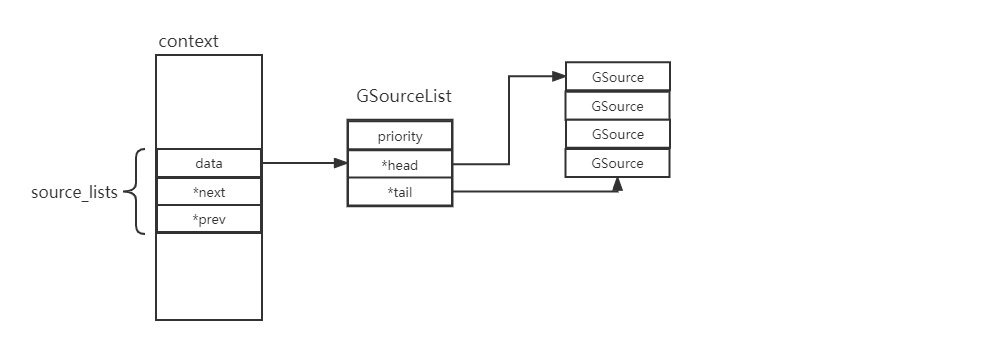

GList *source_lists;
gint in_check_or_prepare;
GPollRec *poll_records;
guint n_poll_records;
GPollFD *cached_poll_array;
guint cached_poll_array_size;
GWakeup wakeup;
GPollFD wake_up_rec;
/ Flag indicating whether the set of fd's changed during a poll */
gboolean poll_changed;
GPollFunc poll_func;
gint64   time;
gboolean time_is_fresh;
};

struct _GMainLoop
{
  GMainContext *context;
  gboolean is_running; /* (atomic) */
  gint ref_count;  /* (atomic) */
};

struct _GSource
{
  /*< private >*/
  gpointer callback_data;
  GSourceCallbackFuncs *callback_funcs;
  const GSourceFuncs *source_funcs;
  guint ref_count;
  GMainContext *context;
  gint priority;
  guint flags;
  guint source_id;
  GSList *poll_fds;
  GSource *prev;
  GSource *next;
  char    *name;
  GSourcePrivate *priv;
};

第一步：要使用Glib事件循环机制，首先得创建一个GMainLoop实例，

GMainLoop *loop = g_main_loop_new(NULL, FALSE);

g_main_loop_new代码如下，其第一个参数是GMainContext,如果为空，则使用默认的GMainContext,g_main_context_default会创建一个GMainContext,g_main_context_ref对GMainContext引用计数加一。

GMainLoop *
g_main_loop_new (GMainContext *context,
		 gboolean      is_running)
{
  GMainLoop *loop;

  if (!context)
    context = g_main_context_default();

  g_main_context_ref (context);

  loop = g_new0 (GMainLoop, 1);
  loop->context = context;
  loop->is_running = is_running != FALSE;
  loop->ref_count = 1;

  TRACE (GLIB_MAIN_LOOP_NEW (loop, context));

  return loop;
}

第二步：通过调用g_source_new创建新事件源的实例，创建时需传递新事件源结构体的大小和一张函数表，而这张函数表决定了新事件源的行为。
从函数里面可以看出，主要是分配了内存空间和指定了函数表

GSource *
g_source_new (GSourceFuncs *source_funcs,
	      guint         struct_size)
{
  GSource *source;

  g_return_val_if_fail (source_funcs != NULL, NULL);
  g_return_val_if_fail (struct_size >= sizeof (GSource), NULL);

  source = (GSource*) g_malloc0 (struct_size);
  source->priv = g_slice_new0 (GSourcePrivate);
  source->source_funcs = source_funcs;
  source->ref_count = 1;

  source->priority = G_PRIORITY_DEFAULT;

  source->flags = G_HOOK_FLAG_ACTIVE;

  source->priv->ready_time = -1;

  /* NULL/0 initialization for all other fields */

  TRACE (GLIB_SOURCE_NEW (source, source_funcs->prepare, source_funcs->check,
                          source_funcs->dispatch, source_funcs->finalize,
                          struct_size));

  return source;
}

第三步：为GSource分配回调函数，和回调函数需要的数据。回调函数会在dispatch中被调用。

void
g_source_set_callback (GSource        *source,
		       GSourceFunc     func,
		       gpointer        data,
		       GDestroyNotify  notify)
{
  GSourceCallback *new_callback;

  g_return_if_fail (source != NULL);
  g_return_if_fail (g_atomic_int_get (&source->ref_count) > 0);

  TRACE (GLIB_SOURCE_SET_CALLBACK (source, func, data, notify));

  new_callback = g_new (GSourceCallback, 1);

  new_callback->ref_count = 1;
  new_callback->func = func;
  new_callback->data = data;
  new_callback->notify = notify;

  g_source_set_callback_indirect (source, new_callback, &g_source_callback_funcs);
}

第四步，将文件描述符表放入GSource中的poll_fds单向链表中(采用头插法）。

void
g_source_add_poll (GSource *source,
		   GPollFD *fd)
{
  GMainContext *context;

  g_return_if_fail (source != NULL);
  g_return_if_fail (g_atomic_int_get (&source->ref_count) > 0);
  g_return_if_fail (fd != NULL);
  g_return_if_fail (!SOURCE_DESTROYED (source));

  context = source->context;

  if (context)
    LOCK_CONTEXT (context);

  source->poll_fds = g_slist_prepend (source->poll_fds, fd);

  if (context)
    {
      if (!SOURCE_BLOCKED (source))
	g_main_context_add_poll_unlocked (context, source->priority, fd);
      UNLOCK_CONTEXT (context);
    }
}

第五步：将GSource添加到context实例，移除可以调用g_source_destroy()函数。在g_source_attach中又调用了g_source_attach_unlocked函数。

guint
g_source_attach (GSource      *source,
		 GMainContext *context)
{
  guint result = 0;

  g_return_val_if_fail (source != NULL, 0);
  g_return_val_if_fail (g_atomic_int_get (&source->ref_count) > 0, 0);
  g_return_val_if_fail (source->context == NULL, 0);
  g_return_val_if_fail (!SOURCE_DESTROYED (source), 0);

  if (!context)
    context = g_main_context_default ();

  LOCK_CONTEXT (context);

  result = g_source_attach_unlocked (source, context, TRUE);

  TRACE (GLIB_MAIN_SOURCE_ATTACH (g_source_get_name (source), source, context,
                                  result));

  UNLOCK_CONTEXT (context);

  return result;
}

static guint
g_source_attach_unlocked (GSource      *source,
                          GMainContext *context,
                          gboolean      do_wakeup)
{
  GSList *tmp_list;
  guint id;

  /* The counter may have wrapped, so we must ensure that we do not
   * reuse the source id of an existing source.
   */
  do
    id = context->next_id++;
  while (id == 0 || g_hash_table_contains (context->sources, GUINT_TO_POINTER (id)));

  source->context = context;
  source->source_id = id;
  g_source_ref (source);

  g_hash_table_insert (context->sources, GUINT_TO_POINTER (id), source);

  source_add_to_context (source, context);

  if (!SOURCE_BLOCKED (source))
    {
      tmp_list = source->poll_fds;
      while (tmp_list)
        {
          g_main_context_add_poll_unlocked (context, source->priority, tmp_list->data);
          tmp_list = tmp_list->next;
        }

      for (tmp_list = source->priv->fds; tmp_list; tmp_list = tmp_list->next)
        g_main_context_add_poll_unlocked (context, source->priority, tmp_list->data);
    }

  tmp_list = source->priv->child_sources;
  while (tmp_list)
    {
      g_source_attach_unlocked (tmp_list->data, context, FALSE);
      tmp_list = tmp_list->next;
    }

  /* If another thread has acquired the context, wake it up since it
   * might be in poll() right now.
   */
  if (do_wakeup &&
      (context->flags & G_MAIN_CONTEXT_FLAGS_OWNERLESS_POLLING ||
       (context->owner && context->owner != G_THREAD_SELF)))
    {
      g_wakeup_signal (context->wakeup);
    }

  g_trace_mark (G_TRACE_CURRENT_TIME, 0,
                "GLib", "g_source_attach",
                "%s to context %p",
                (g_source_get_name (source) != NULL) ? g_source_get_name (source) : "(unnamed)",
                context);

  return source->source_id;
}

GMainContext中的sources属性是一个hash表，source_id为key,source为value,因此在g_source_attach_unlocked中，首先找sources中未使用的id赋予source,然后插入到sources中。context的source_lists是一个双向链表，data为GSourceList,GSoureList指定了优先级相同的GSource链.source_add_to_context中首先在context中找到优先级相同的sources。然后将source插入到sources.如果有父对象则先插入父对象信息源后面。否则就将信息源插入都同优先级信息源链表尾部。然后通过g_main_contest_add_poll_unlocked将fd注册到poll要监听的pollfd链表中。这个链表在context->poll_records中。自此，就把GSource与GMainContext关联起来。

第五步：然后运行g_main_loop_run(loop）函数。直到某事件的回调函数调用g_main_loop_quit退出主循环，g_main_loop_run返回。

void
g_main_loop_run (GMainLoop *loop)
{
  GThread *self = G_THREAD_SELF;

  g_return_if_fail (loop != NULL);
  g_return_if_fail (g_atomic_int_get (&loop->ref_count) > 0);

  /* Hold a reference in case the loop is unreffed from a callback function */
  g_atomic_int_inc (&loop->ref_count);

  if (!g_main_context_acquire (loop->context))
    {
      gboolean got_ownership = FALSE;

      /* Another thread owns this context */
      LOCK_CONTEXT (loop->context);

      g_atomic_int_set (&loop->is_running, TRUE);

      while (g_atomic_int_get (&loop->is_running) && !got_ownership)
        got_ownership = g_main_context_wait_internal (loop->context,
                                                      &loop->context->cond,
                                                      &loop->context->mutex);

      if (!g_atomic_int_get (&loop->is_running))
	{
	  UNLOCK_CONTEXT (loop->context);
	  if (got_ownership)
	    g_main_context_release (loop->context);
	  g_main_loop_unref (loop);
	  return;
	}

      g_assert (got_ownership);
    }
  else
    LOCK_CONTEXT (loop->context);

  if (loop->context->in_check_or_prepare)
    {
      g_warning ("g_main_loop_run(): called recursively from within a source's "
		 "check() or prepare() member, iteration not possible.");
      g_main_loop_unref (loop);
      return;
    }

  g_atomic_int_set (&loop->is_running, TRUE);
  while (g_atomic_int_get (&loop->is_running))
    g_main_context_iterate (loop->context, TRUE, TRUE, self);

  UNLOCK_CONTEXT (loop->context);

  g_main_context_release (loop->context);

  g_main_loop_unref (loop);
}

主要关注的是g_main_context_iterate函数

static gboolean
g_main_context_iterate (GMainContext *context,
			gboolean      block,
			gboolean      dispatch,
			GThread      *self)
{
  gint max_priority = 0;
  gint timeout;
  gboolean some_ready;
  gint nfds, allocated_nfds;
  GPollFD *fds = NULL;
  gint64 begin_time_nsec G_GNUC_UNUSED;

  UNLOCK_CONTEXT (context);

  begin_time_nsec = G_TRACE_CURRENT_TIME;

  if (!g_main_context_acquire (context))
    {
      gboolean got_ownership;

      LOCK_CONTEXT (context);

      if (!block)
	return FALSE;

      got_ownership = g_main_context_wait_internal (context,
                                                    &context->cond,
                                                    &context->mutex);

      if (!got_ownership)
	return FALSE;
    }
  else
    LOCK_CONTEXT (context);

  if (!context->cached_poll_array)
    {
      context->cached_poll_array_size = context->n_poll_records;
      context->cached_poll_array = g_new (GPollFD, context->n_poll_records);
    }

  allocated_nfds = context->cached_poll_array_size;
  fds = context->cached_poll_array;

  UNLOCK_CONTEXT (context);

  g_main_context_prepare (context, &max_priority);

  while ((nfds = g_main_context_query (context, max_priority, &timeout, fds,
				       allocated_nfds)) > allocated_nfds)
    {
      LOCK_CONTEXT (context);
      g_free (fds);
      context->cached_poll_array_size = allocated_nfds = nfds;
      context->cached_poll_array = fds = g_new (GPollFD, nfds);
      UNLOCK_CONTEXT (context);
    }

  if (!block)
    timeout = 0;

  g_main_context_poll (context, timeout, max_priority, fds, nfds);

  some_ready = g_main_context_check (context, max_priority, fds, nfds);

  if (dispatch)
    g_main_context_dispatch (context);

  g_main_context_release (context);

  g_trace_mark (begin_time_nsec, G_TRACE_CURRENT_TIME - begin_time_nsec,
                "GLib", "g_main_context_iterate",
                "Context %p, %s ⇒ %s", context, block ? "blocking" : "non-blocking", some_ready ? "dispatched" : "nothing");

  LOCK_CONTEXT (context);

  return some_ready;
}

首先都要调用g_main_context_acquire(context)获取该线程对context的控制权。然后调用g_main_context_prepare()函数，调用每个信息源的prepare函数，并将time_out与context中设置的time进行对比，选择最小的time作为poll的阻塞时间。如果需要进行poll,则返回false,否则返回true.

g_main_context-query()会将优先级高于max_priority的fd的监听event进行初始化，并添加到fds数组中，最后返回fds数组的数量n_fds.

g_main_context_poll()主要执行了poll函数。

g_main_context_check()来执行事件源的check函数，如果满足，则check函数返回true,并将事件源添加到context->pending_dispatches中

g_main_context_dispatch()会
