程序

nt pinDigitron = 2; //管脚D2连接到数码管的A脚，D3连B... D9连h

void setup() {
  for(int x=0; x<8; x++)
    pinMode(pinDigitron+x, OUTPUT); //设置各脚为输出状态
}

//在数码管中显示数字的函数
void displayDigit(unsigned char digit) {
  //定义一个数组表：不同数字的abcdefgh各段的取值
  unsigned char abcdefgh[][8] = {
    {0,1,1,1,1,0,1,1},  //1
    {0,0,1,0,1,1,0,0},  //2
    {0,0,1,0,1,0,0,1},  //3
    {0,1,0,0,1,0,1,1},  //4
    {1,0,0,0,1,0,0,1},  //5
    {1,0,0,0,1,0,0,0},  //6
    {0,0,1,1,1,0,1,1},  //7
    {0,0,0,0,1,0,0,0},  //8
    {0,0,0,0,1,0,0,1},  //9
    {0,0,0,0,1,0,1,0},  //A
    {1,1,0,0,1,0,0,0},  //b
    {1,0,0,1,1,1,0,0},  //C
    {0,1,1,0,1,0,0,0},  //d
    {1,0,0,0,1,1,0,0},  //E
    {1,0,0,0,1,1,1,0},  //F
  };

  if ( digit >= 15 ) return;
  for (unsigned char x=0; x<8; x++)
    digitalWrite( pinDigitron + x, abcdefgh[digit][x] );
}

void loop() {
   //在数码管中显示1-9,A-F各个数字
   for (int x=0; x<15; x++) {
     displayDigit(x);  //调用displayDigit()子函数，显示数字
     delay(1000); //等待1000毫秒
   }
}

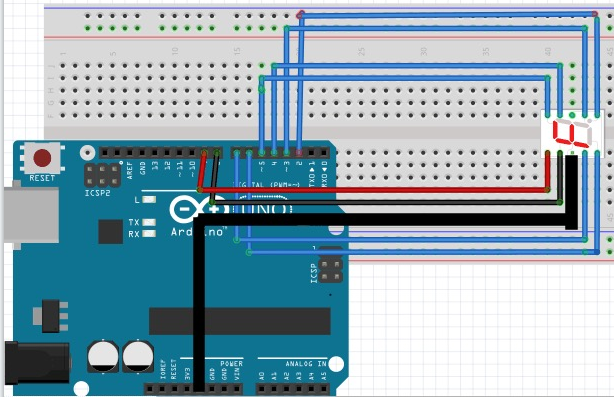

接线图

演示视频

数码管

---
