网络拓扑图和背景说明

要求：

1、中控室网段通过防火墙使用10M专线上网，不与办公网互通。
2、办公网网段通过防火墙使用100M专线上网，可以互通。

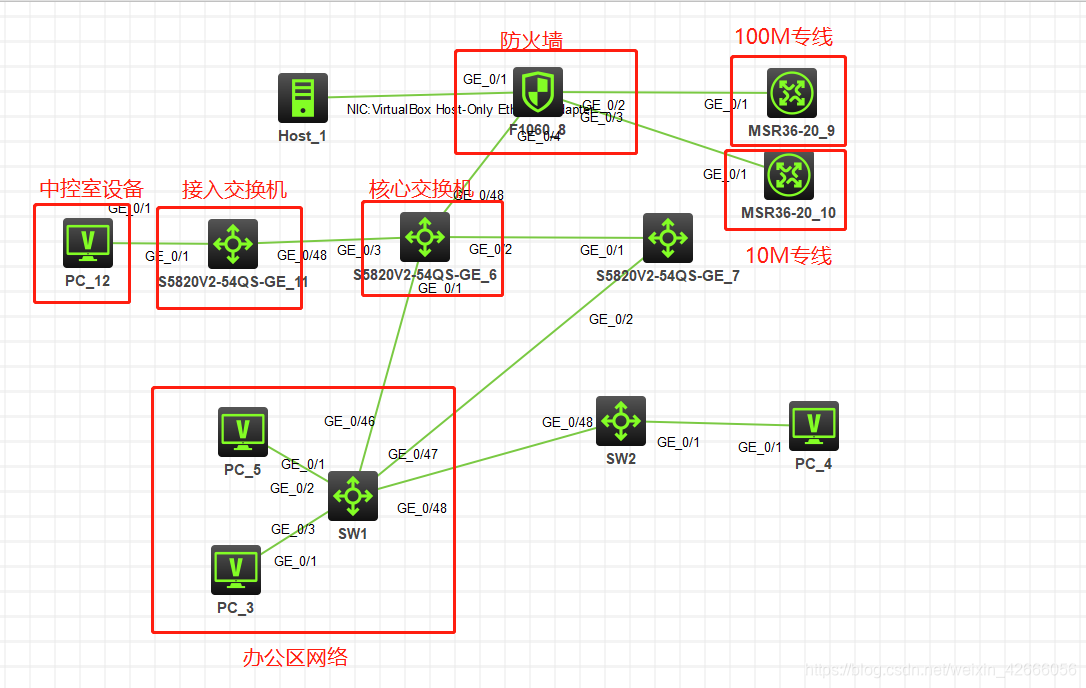

拓扑图

在这里插入图片描述

防火墙配置：

通过策略路由控制不同网段访问不同的外网出口。

<FW>dis cu
#
 version 7.1.064, Alpha 7164
#
 sysname FW
#
context Admin id 1
#
 telnet server enable
#
 irf mac-address persistent timer
 irf auto-update enable
 undo irf link-delay
 irf member 1 priority 1
#
 xbar load-single
 password-recovery enable
 lpu-type f-series
#
vlan 1
#
object-group ip address bangong
#
object-group ip address youxian
 0 network subnet 192.168.1.0 255.255.255.0
 10 network subnet 192.168.2.0 255.255.255.0
 20 network subnet 192.168.3.0 255.255.255.0
#
policy-based-route bangong permit node 5
 if-match acl 3000
 apply next-hop 202.106.0.20
#
policy-based-route bangong permit node 10
 if-match acl 3001
 apply next-hop 202.106.2.2
#
interface NULL0
#
interface GigabitEthernet1/0/0
 port link-mode route
 combo enable copper
#
interface GigabitEthernet1/0/1
 port link-mode route
 combo enable copper
 ip address 192.168.0.1 255.255.255.0
#
interface GigabitEthernet1/0/2
 port link-mode route
 combo enable copper
 ip address 202.106.0.21 255.255.255.0
 nat outbound 2000
#
interface GigabitEthernet1/0/3
 port link-mode route
 combo enable copper
 ip address 202.106.2.3 255.255.255.0
 nat outbound 2001
#
interface GigabitEthernet1/0/4
 port link-mode route
 combo enable copper
 ip address 192.168.100.253 255.255.255.0
 ip policy-based-route bangong
#
interface GigabitEthernet1/0/5
 port link-mode route
 combo enable copper
#
interface GigabitEthernet1/0/6
 port link-mode route
 combo enable copper
#
interface GigabitEthernet1/0/7
 port link-mode route
 combo enable copper
#
interface GigabitEthernet1/0/8
 port link-mode route
 combo enable copper
#
interface GigabitEthernet1/0/9
 port link-mode route
 combo enable copper
#
interface GigabitEthernet1/0/10
 port link-mode route
 combo enable copper
#
interface GigabitEthernet1/0/11
 port link-mode route
 combo enable copper
#
interface GigabitEthernet1/0/12
 port link-mode route
 combo enable copper
#
interface GigabitEthernet1/0/13
 port link-mode route
 combo enable copper
#
interface GigabitEthernet1/0/14
 port link-mode route
 combo enable copper
#
interface GigabitEthernet1/0/15
 port link-mode route
 combo enable copper
#
interface GigabitEthernet1/0/16
 port link-mode route
 combo enable copper
#
interface
