leveldb 读写流程

API

// A DB is a persistent ordered map from keys to values.
// A DB is safe for concurrent access from multiple threads without
// any external synchronization.
class LEVELDB_EXPORT DB {

 public:
  // Open the database with the specified "name".
  // Stores a pointer to a heap-allocated database in *dbptr and returns
  // OK on success.
  // Stores nullptr in *dbptr and returns a non-OK status on error.
  // Caller should delete *dbptr when it is no longer needed.
  static Status Open(const Options& options, const std::string& name,
                     DB** dbptr);
  ...
  // Set the database entry for "key" to "value".  Returns OK on success,
  // and a non-OK status on error.
  // Note: consider setting options.sync = true.
  virtual Status Put(const WriteOptions& options, const Slice& key,
                     const Slice& value) = 0;

  // Remove the database entry (if any) for "key".  Returns OK on
  // success, and a non-OK status on error.  It is not an error if "key"
  // did not exist in the database.
  // Note: consider setting options.sync = true.
  virtual Status Delete(const WriteOptions& options, const Slice& key) = 0;

  // Apply the specified updates to the database.
  // Returns OK on success, non-OK on failure.
  // Note: consider setting options.sync = true.
  virtual Status Write(const WriteOptions& options, WriteBatch* updates) = 0;

  // If the database contains an entry for "key" store the
  // corresponding value in *value and return OK.
  //
  // If there is no entry for "key" leave *value unchanged and return
  // a status for which Status::IsNotFound() returns true.
  //
  // May return some other Status on an error.
  virtual Status Get(const ReadOptions& options, const Slice& key,
                     std::string* value) = 0;

  // Return a heap-allocated iterator over the contents of the database.
  // The result of NewIterator() is initially invalid (caller must
  // call one of the Seek methods on the iterator before using it).
  //
  // Caller should delete the iterator when it is no longer needed.
  // The returned iterator should be deleted before this db is deleted.
  virtual Iterator* NewIterator(const ReadOptions& options) = 0;

  // Return a handle to the current DB state.  Iterators created with
  // this handle will all observe a stable snapshot of the current DB
  // state.  The caller must call ReleaseSnapshot(result) when the
  // snapshot is no longer needed.
  virtual const Snapshot* GetSnapshot() = 0;

  // Release a previously acquired snapshot.  The caller must not
  // use "snapshot" after this call.
  virtual void ReleaseSnapshot(const Snapshot* snapshot) = 0;
  ...
};


class DBImpl : public DB {

 public:
 ...
 // Implementations of the DB interface
  Status Put(const WriteOptions&, const Slice& key,
             const Slice& value) override;
  Status Delete(const WriteOptions&, const Slice& key) override;
  Status Write(const WriteOptions& options, WriteBatch* updates) override;
  Status Get(const ReadOptions& options, const Slice& key,
             std::string* value) override;
  Iterator* NewIterator(const ReadOptions&) override;
  const Snapshot* GetSnapshot() override;
  void ReleaseSnapshot(const Snapshot* snapshot) override;
  ...
}

Put & Delete

本质上最后都是用的 Write
put是写入kTypeValue标记的KV，delete是写入kTypeDeletion标记KV

Status DBImpl::Put(const WriteOptions& o, const Slice& key, const Slice& val) {

  return DB::Put(o, key, val);
}

// Default implementations of convenience methods that subclasses of DB
// can call if they wish
Status DB::Put(const WriteOptions& opt, const Slice& key, const Slice& value) {

  WriteBatch batch;
  batch.Put(key, value);
  return Write(opt, &batch);
}

Status DBImpl::Delete(const WriteOptions& options, const Slice& key) {

  return DB::Delete(options, key);
}

Status DB::Delete(const WriteOptions& opt, const Slice& key) {

  WriteBatch batch;
  batch.Delete(key);
  return Write(opt, &batch);
}

WriteBatch

WriteBatch 封装一个或者多个要写的数据

class LEVELDB_EXPORT WriteBatch {

 public:

  ...

  WriteBatch();

  // Intentionally copyable.
  WriteBatch(const WriteBatch&) = default;
  WriteBatch& operator=(const WriteBatch&) = default;

  ~WriteBatch() {
    Clear(); }

  // Store the mapping "key->value" in the database.
  void Put(const Slice& key, const Slice& value);

  // If the database contains a mapping for "key", erase it.  Else do nothing.
  void Delete(const Slice& key);

  // WriteBatch header has an 8-byte sequence number followed by a 4-byte count.
  static const size_t kHeader = 12;

  // Clear all updates buffered in this batch.
  void Clear() ;

 ...

 private:
  friend class WriteBatchInternal;

  std::string rep_;  // See comment in write_batch.cc for the format of rep_
};

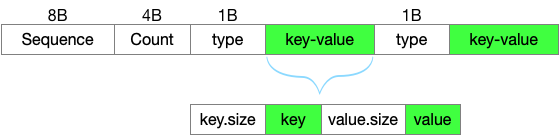

WriteBatch 的 std::string rep_存储了所有通过 Put/Delete 接口传入的数据。
按照一定格式记录了:sequence (8 byte，该WriteBatch中第一条KV的seq), count (4 byte，该WriteBatch总共包含多少条KV), [操作类型(Put or Delete)，key/value的长度及key/value本身]…

Write

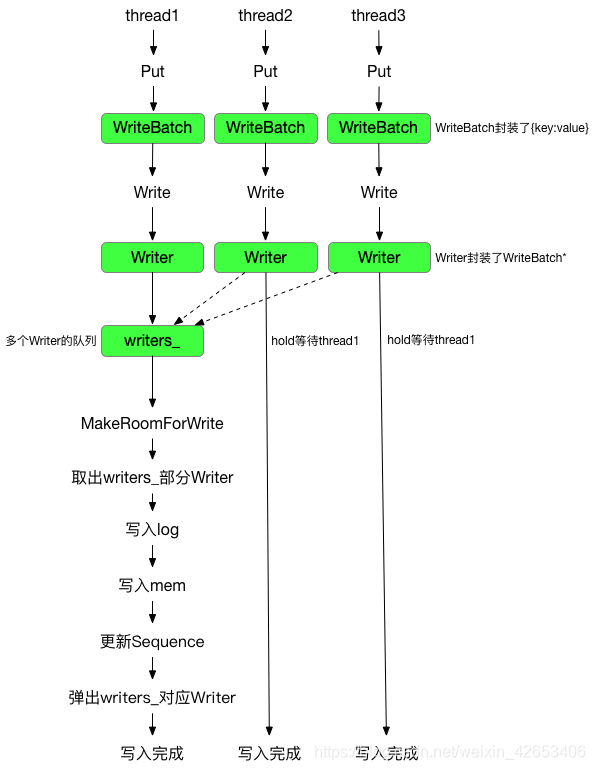

外部调写的接口是可以并发的，但leveldb内部保证了写是单线程无并发的

WriterBatch封装了数据，DBImpl::Writer则封装了WriteBatch 和 mutex cond 同步原语，以及是否sync。

// Information kept for every waiting writer
struct DBImpl::Writer {

  Status status;
  WriteBatch* batch;
  bool sync;
  bool done;
  port::CondVar cv;

  explicit Writer(port::Mutex* mu) : cv(mu) {
    }
};

先初始化 Writer

Status DBImpl::Write(const WriteOptions& options, WriteBatch* updates) {

  Writer w(&mutex_);
  w.batch = updates;
  w.sync = options.sync;
  w.done = false;

把 w 放进 writers_ 队列，只要自己还没有被写入（一定还在队列里），且队列前面还有其他 Writer，这个线程就等着。

  MutexLock l(&mutex_);
  writers_.push_back(&w);
  while (!w.done && &w != writers_.front()) {

    w.cv.Wait();
  }
  if (w.done) {
    // 自己已经被写入（一定已经被弹出队列了），可以返回结果了
    return w.status;
  }

走到这里，这时候这个线程的 Writer w 已经是队列的第一个了，且拿到了mutex_

MakeRoomForWrite

  // May temporarily unlock and wait.
  Status status = MakeRoomForWrite(updates == nullptr);

BuildBatchGroup 的作用是聚合队列中多个线程的 WriteBatch 写请求到一个 WriteBatch，当然聚合后的 size 是有上限的，不能过大。

1. last_writer = &w
2. 向后遍历 writers_ 队列，逐渐递增 batch
3. 更新 last_writer, 相当于记录哪些 writer 中的 batch 已经被聚合了，后面不用再写这些 writer。

  uint64_t last_sequence = versions_->LastSequence(); // 获取 last seq
  Writer* last_writer = &w;
  if (status.ok() && updates != nullptr) {
     // nullptr batch is for compactions
    WriteBatch* write_batch = BuildBatchGroup(&last_writer);

设置这个聚合过后的write_batch的seq，并且last_sequence += write_batch的entry数量

    WriteBatchInternal::SetSequence(write_batch, last_sequence + 1);
    last_sequence += WriteBatchInternal::Count(write_batch);

先将write_batch的rep_这一整个string（WriteBatchInternal::Contents(write_batch)）作为一条record写入log
再将这个write_batch的每一条entry一条一条的写入mem table，且每一条entry的seq递增（WriteBatchInternal::InsertInto(write_batch, mem_)）

    // Add to log and apply to memtable.  We can release the lock
    // during this phase since &w is currently responsible for logging
    // and protects against concurrent loggers and concurrent writes
    // into mem_.
    {

      mutex_.Unlock();
      status = log_->AddRecord(WriteBatchInternal::Contents(write_batch));
      bool sync_error = false;
      if (status.ok() && options.sync) {
    // sync
        status = logfile_->Sync();
        if (!status.ok()) {

          sync_error = true;
        }
      }
      if (status.ok()) {

        status = WriteBatchInternal::InsertInto(write_batch, mem_);
      }
      mutex_.Lock();
      if (sync_error) {

        // The state of the log file is indeterminate: the log record we
        // just added may or may not show up when the DB is re-opened.
        // So we force the DB into a mode where all future writes fail.
        RecordBackgroundError(status);
      }
    }
    if (write_batch == tmp_batch_) tmp_batch_->Clear();

更新VersionSet::last_sequence_

    versions_->SetLastSequence(last_sequence);
  }

因为last_writer和在它之前的writer都已经被BuildBatchGroup聚合到一起写入了，所以要现将这些writer弹出，将它们所属的线程唤醒，最后唤醒剩余队列中的第一个writer

  while (true) {

    Writer* ready = writers_.front();
    writers_.pop_front();
    if (ready != &w) {
    // 不用唤醒 w，因为现在正在执行的就是 w 线程
      ready->status = status;
      ready->done = true;
      ready->cv
