Prism 弹窗右上角按钮设置以及宽高自适应

原创已于 2024-12-12 16:04:56 修改 · 547 阅读

5 ·

CC 4.0 BY-SA版权

文章标签：

#wpf

于 2024-12-12 14:14:32 首次发布

Prism 专栏收录该内容

2 篇文章

订阅专栏

一.无放大缩小按钮但是点击右上角可以关闭

搭建好Prism框架后开始对DialogWindow和Dialog的UserControl设置

window设置

 	<WindowChrome GlassFrameThickness="-1"/>

当 GlassFrameThickness=“1” 时候点击右上角无响应

完整代码

<Window x:Class="XXDialogWindow.DialogWindowEx"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
        xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
        xmlns:local="clr-namespace:XXDialogWindow"
        mc:Ignorable="d"
        Title="DialogWindowEx" Height="450" Width="800">
    <WindowChrome.WindowChrome>
        <WindowChrome GlassFrameThickness="-1"/>
    </WindowChrome.WindowChrome>
    <Grid>

    </Grid>
</Window>

二. 显示右上角窗口按钮

将DialogWindow 的窗体背景颜色Background设置为Transparent，显示右上角的窗口按钮；将ResizeMode设置为NoMode，窗口按钮只保留退出x。

Background=“Transparent”

<Window x:Class="XXDialogWindow.DialogWindowEx"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
        xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
        xmlns:local="clr-namespace:XXDialogWindow"
        mc:Ignorable="d" d:DesignHeight="200" d:DesignWidth="200" Height="480" Width="500"
        Title="DialogWindowEx" Background="Transparent" >
    <WindowChrome.WindowChrome>
        <WindowChrome GlassFrameThickness="-1"/>
    </WindowChrome.WindowChrome>
    <Grid>

    </Grid>
</Window>

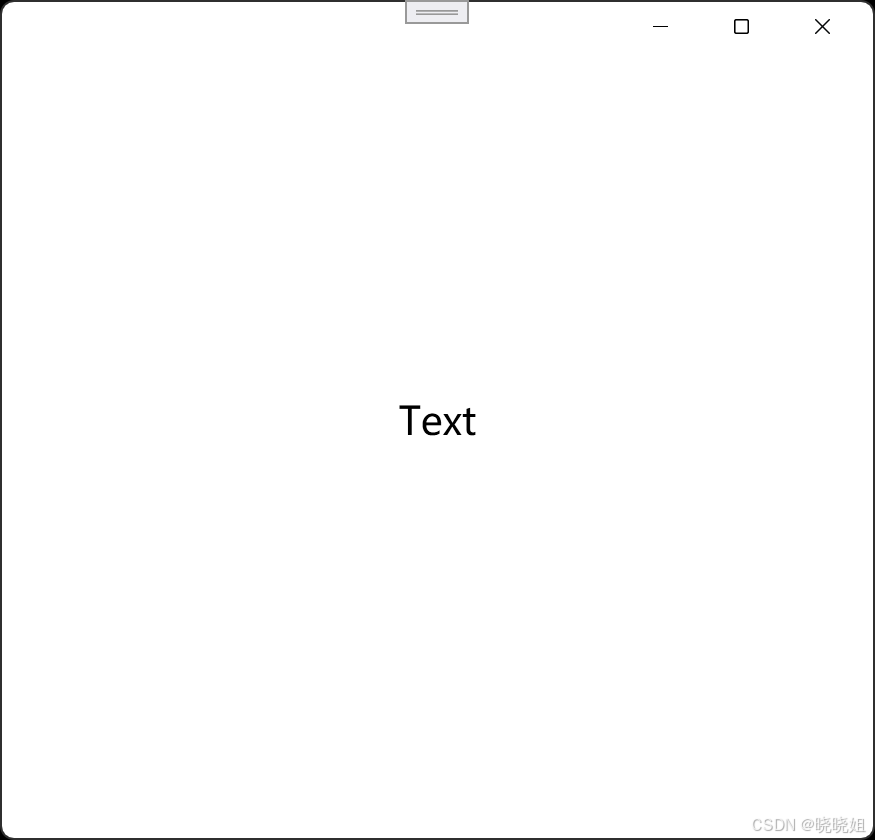

```![在这里插入图片描述](https://i-blog.csdnimg.cn/direct/0130730a1caf4a048c4117aadc052b4f.png#pic_center)

 2.  ResizeMode="NoResize"


```csharp
<Window x:Class="XXDialogWindow.DialogWindowEx"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
        xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
        xmlns:local="clr-namespace:XXDialogWindow"
        mc:Ignorable="d" d:DesignHeight="200" d:DesignWidth="200" Height="480" Width="500"
        Title="DialogWindowEx" Background="Transparent" ResizeMode="NoResize">
    <WindowChrome.WindowChrome>
        <WindowChrome GlassFrameThickness="-1"/>
    </WindowChrome.WindowChrome>
    <Grid>

    </Grid>
</Window>

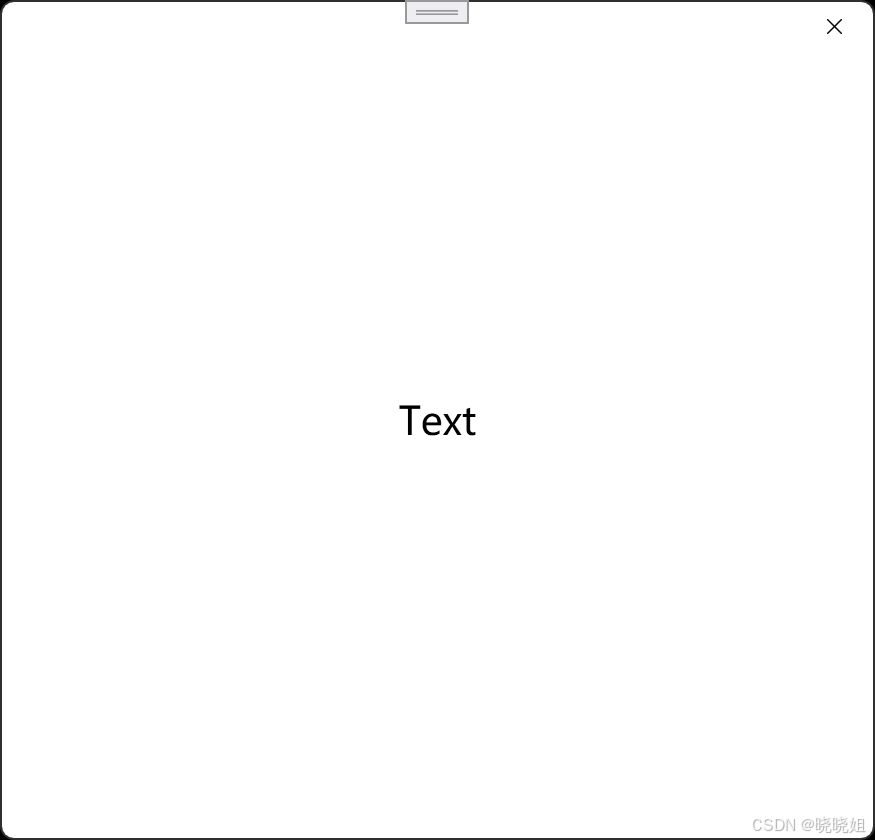

在这里插入图片描述

二. 弹窗宽高自适应

目前已知有三种方式可以实现。

一种是DialogWindow的宽高做绑定

  Width="{Binding Content.Width,RelativeSource={RelativeSource Self}}"
  Height="{Binding Content.Height,RelativeSource={RelativeSource Self}}">

DialogView采用prism style

<UserControl x:Class="XXDialogWindow.Views.TextView"
             xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
             xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
             xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
             xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
             xmlns:local="clr-namespace:XXDialogWindow.Views"
             mc:Ignorable="d"
             xmlns:p="http://prismlibrary.com/"
             d:DesignHeight="400" d:DesignWidth="800" >
    <p:Dialog.WindowStyle>
        <Style TargetType="Window">
            <Setter Property="Height" Value="300"/>
            <Setter Property="Width" Value="300"/>
            <Setter Property="p:Dialog.WindowStartupLocation" Value="CenterScreen" />
            <Setter Property="ResizeMode" Value="NoResize"/>
            <Setter Property="ShowInTaskbar" Value="False"/>
            <!--<Setter Property="SizeToContent" Value="WidthAndHeight"/>-->

        </Style>
    </p:Dialog.WindowStyle>
    <Grid>
        <TextBlock Text="Text" VerticalAlignment="Center" HorizontalAlignment="Center" FontSize="22"/>
    </Grid>
</UserControl>

Dialogwindow

<Window x:Class="XXDialogWindow.DialogWindowEx"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
        xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
        xmlns:local="clr-namespace:XXDialogWindow"
        mc:Ignorable="d"  Height="480" Width="500"
        Title="DialogWindowEx" Background="Transparent" ResizeMode="NoResize">
    <WindowChrome.WindowChrome>
        <WindowChrome GlassFrameThickness="-1"/>
    </WindowChrome.WindowChrome>
    <Grid>

    </Grid>
</Window>

将Dialogwindow 的SizeToContent属性设置为WidthAndHeight，并设置DialogView的宽高
Dialogwindow

<Window x:Class="XXDialogWindow.DialogWindowEx"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
        xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
        xmlns:local="clr-namespace:XXDialogWindow"
        mc:Ignorable="d"  Height="480" Width="500" SizeToContent="WidthAndHeight"
        Title="DialogWindowEx" Background="Transparent" ResizeMode="NoResize">
    <WindowChrome.WindowChrome>
        <WindowChrome GlassFrameThickness="-1"/>
    </WindowChrome.WindowChrome>
    <Grid>

    </Grid>
</Window>

DialogView

<UserControl x:Class="XXDialogWindow.Views.TextView"
             xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
             xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
             xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
             xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
             xmlns:local="clr-namespace:XXDialogWindow.Views"
             mc:Ignorable="d"
             xmlns:p="http://prismlibrary.com/"
             d:DesignHeight="400" d:DesignWidth="800" Height="200" Width="100">
    <p:Dialog.WindowStyle>
        <Style TargetType="Window">
            <!--<Setter Property="Height" Value="300"/>
            <Setter Property="Width" Value="300"/>-->
            <!--<Setter Property="p:Dialog.WindowStartupLocation" Value="CenterScreen" />
            <Setter Property="ResizeMode" Value="NoResize"/>
            <Setter Property="ShowInTaskbar" Value="False"/>-->
            <!--<Setter Property="SizeToContent" Value="WidthAndHeight"/>-->

        </Style>
    </p:Dialog.WindowStyle>
    <Grid>
        <TextBlock Text="Text" VerticalAlignment="Center" HorizontalAlignment="Center" FontSize="22"/>
    </Grid>
</UserControl>
