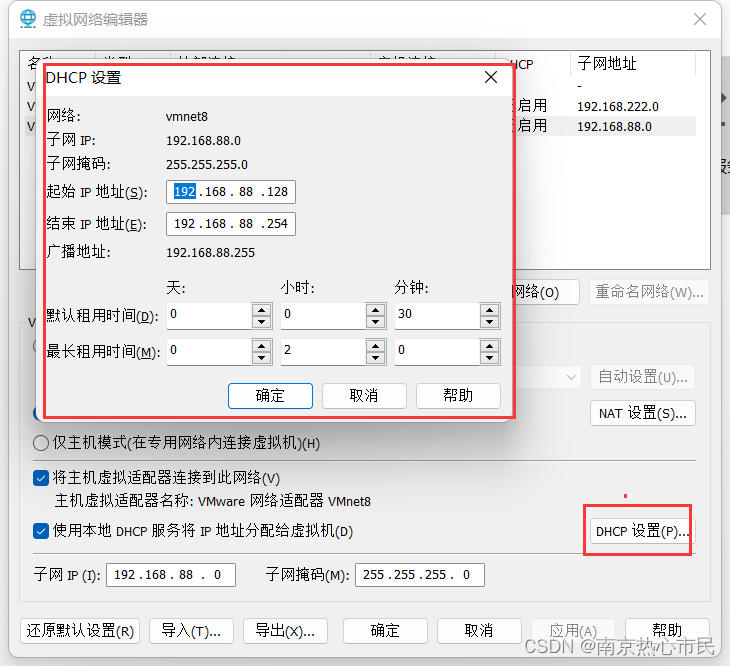

本文档记录了在CentOS7系统中如何查看和配置网络接口ens33的静态IP，包括修改`ifcfg-ens33`文件，设置IP地址、子网掩码和网关，并检查防火墙状态。同时，展示了主机VMware的VMnet8网络设置及DHCP和NAT配置。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

仅做记录。

1.起因：ifconfig无问题，此处可以看到网卡使用的是`ens33`


[root@localhost ~]# ifconfig
docker0: flags=4099<UP,BROADCAST,MULTICAST>  mtu 1500
        inet 172.17.0.1  netmask 255.255.0.0  broadcast 0.0.0.0
        ether 02:42:97:74:1b:d4  txqueuelen 0  (Ethernet)
        RX packets 0  bytes 0 (0.0 B)
        RX errors 0  dropped 0  overruns 0  frame 0
        TX packets 0  bytes 0 (0.0 B)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0

ens33: flags=4163<UP,BROADCAST,RUNNING,MULTICAST>  mtu 1500
        inet 192.168.88.188  netmask 255.255.255.0  broadcast 192.168.88.255
        inet6 fe80::20c:29ff:fe59:d173  prefixlen 64  scopeid 0x20<link>
        ether 00:0c:29:59:d1:73  txqueuelen 1000  (Ethernet)
        RX packets 210  bytes 20110 (19.6 KiB)
        RX errors 0  dropped 0  overruns 0  frame 0
        TX packets 414  bytes 40524 (39.5 KiB)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0

lo: flags=73<UP,LOOPBACK,RUNNING>  mtu 65536
        inet 127.0.0.1  netmask 255.0.0.0
        inet6 ::1  prefixlen 128  scopeid 0x10<host>
        loop  txqueuelen 1000  (Local Loopback)
        RX packets 0  bytes 0 (0.0 B)
        RX errors 0  dropped 0  overruns 0  frame 0
        TX packets 0  bytes 0 (0.0 B)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0

virbr0: flags=4099<UP,BROADCAST,MULTICAST>  mtu 1500
        inet 192.168.122.1  netmask 255.255.255.0  broadcast 192.168.122.255
        ether 52:54:00:c5:c9:26  txqueuelen 1000  (Ethernet)
        RX packets 0  bytes 0 (0.0 B)
        RX errors 0  dropped 0  overruns 0  frame 0
        TX packets 0  bytes 0 (0.0 B)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0

2. centos 7 查看防火墙命令：

[root@localhost /]# systemctl status firewalld.service
● firewalld.service - firewalld - dynamic firewall daemon
   Loaded: loaded (/usr/lib/systemd/system/firewalld.service; disabled; vendor preset: enabled)
   Active: inactive (dead)
     Docs: man:firewalld(1)

dead为关闭状态

进入到 /etc/sysconfig/network-script下,ls查看

[root@localhost /]# cd /etc/sysconfig/network-scripts/
[root@localhost network-scripts]# ls
ifcfg-ens33   ifdown           ifdown-eth   ifdown-isdn    ifdown-sit     ifup-TeamPort  ifup-ib    ifup-plip   ifup-routes    init.ipv6-global
ifcfg-ens33~  ifdown-Team      ifdown-ib    ifdown-post    ifdown-tunnel  ifup-aliases   ifup-ippp  ifup-plusb  ifup-sit       network-functions
ifcfg-ens3z~  ifdown-TeamPort  ifdown-ippp  ifdown-ppp     ifup           ifup-bnep      ifup-ipv6  ifup-post   ifup-tunnel    network-functions-ipv6
ifcfg-lo      ifdown-bnep      ifdown-ipv6  ifdown-routes  ifup-Team      ifup-eth       ifup-isdn  ifup-ppp    ifup-wireless
[root@localhost network-scripts]#

然后vim编辑ifcfg-ens33

[root@localhost network-scripts]# vim ifcfg-ens33

ifcfg-ens33内容如下：
里面有几项需要需要改：
BOOTPROTO=static，代表ip固定
ONBOOT=yes，代表开机启动

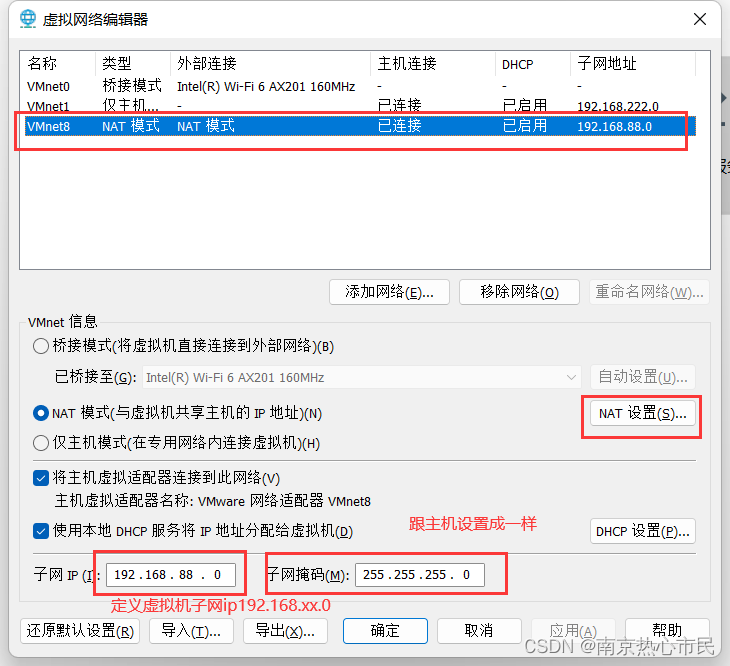

IPADDR=“192.168.88.188”，代表你自定义的IP，网段取决于你VM网络设置的网段。

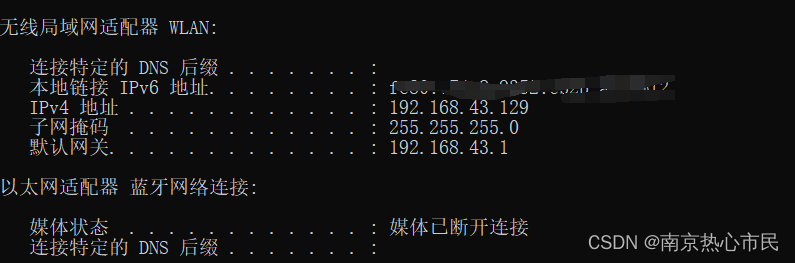

NETMASK=255.255.255.0需要跟Vm虚拟设置中的子网掩码相同，具体来源还是主机的子网掩码，可以到主机cmd ipconfig查看，如还没配好主机的Vmnet8配置，则需要先看第3步。

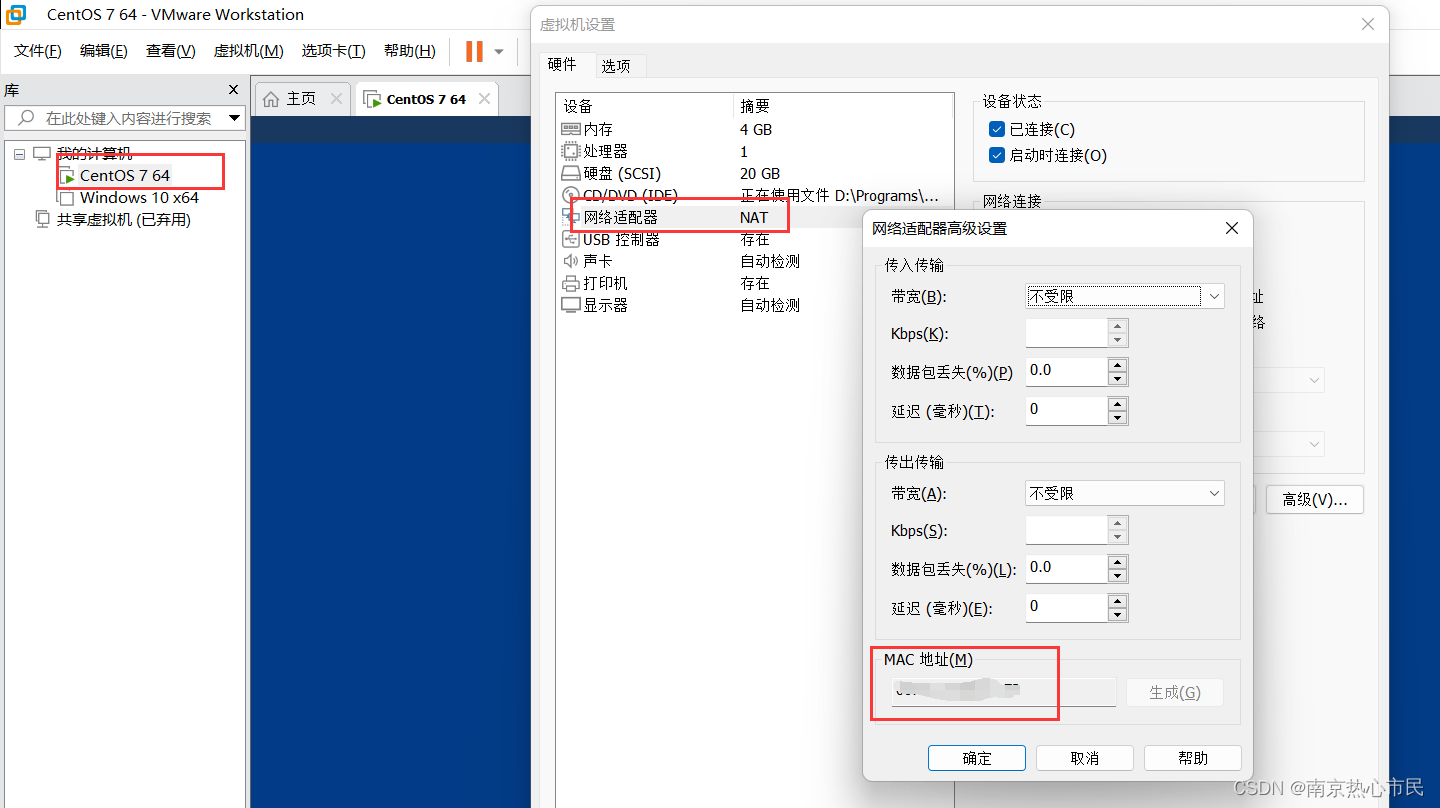

HWADDR=“00:0C:33:59:Dd:11” 则在右键虚拟机-->虚拟机设置-->网络适配器-->高级。如图

在这里插入图片描述

TYPE="Ethernet"
PROXY_METHOD="none"
BROWSER_ONLY="no"
BOOTPROTO="static"
DEFROUTE="yes"
IPV4_FAILURE_FATAL="no"
IPV6INIT="yes"
IPV6_AUTOCONF="yes"
IPV6_DEFROUTE="yes"
IPV6_FAILURE_FATAL="no"
IPV6_ADDR_GEN_MODE="stable-privacy"
NAME="ens33"
DEVICE="ens33"
ONBOOT="yes"
IPADDR="192.168.88.188"
NETMASK="255.255.255.0"

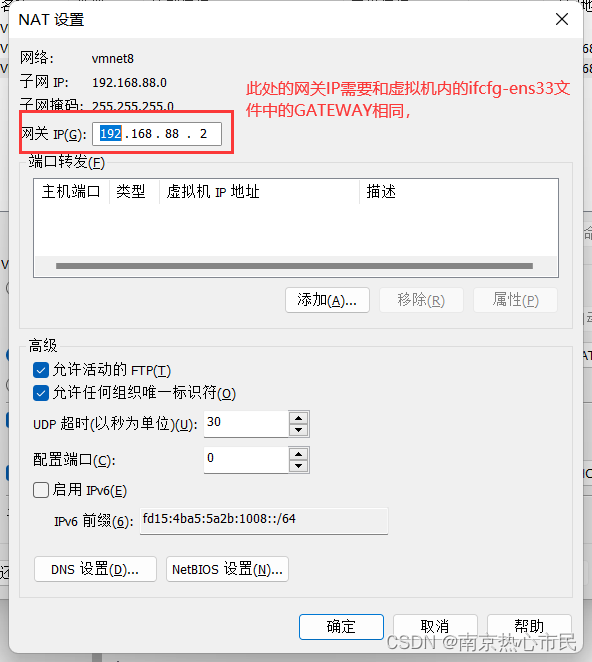

GATEWAY="192.168.88.2"
HWADDR="00:0C:33:59:Dd:11"
