基于免疫优化算法的枢纽选址（matlab）

玩问题描述：在30个城市，给出枢纽个数，基于免疫优化算法对城市枢纽进行选择，并显示结果

算法描述：

1、识别抗原，将种群信息定义为一个结构体

2、产生初始抗体群，迭代寻优

3、抗体多样性评价

4、根据excellence，形成父代群，更新记忆库

5、选择，交叉，变异操作，再加入记忆库中抗体，产生新种群

6、画出免疫算法收敛曲线，配送中心选址图

7、找出配送最近点，计算派送点地址

部分代码

clc
clear
sizepop=50;           % 种群规模
overbest=10;          % 记忆库容量
MAXGEN=100;            % 迭代次数
pcross=0.5;           % 交叉概率
pmutation=0.4;        % 变异概率
ps=0.95;              % 多样性评价参数
length=3;             % 枢纽中心数
M=sizepop+overbest;

individuals = struct('fitness',zeros(1,M), 'concentration',zeros(1,M),'excellence',zeros(1,M),'chrom',[]);
%% step2
individuals.chrom = popinit(M,length);
trace=[];

for iii=1:MAXGEN


     for i=1:M
         individuals.fitness(i) = fitness(individuals.chrom(i,:));      % 抗体与抗原亲和度(适应度值）计算
         individuals.concentration(i) = concentration(i,M,individuals); % 抗体浓度计算
     end
     individuals.excellence = excellence(individuals,M,ps);


     [best,index] = min(individuals.fitness);   % 找出最优适应度
     bestchrom = individuals.chrom(index,:);    % 找出最优个体
     average = mean(individuals.fitness);       % 计算平均适应度
     trace = [trace;best,average];              % 记录

     bestindividuals = bestselect(individuals,M,overbest);   % 更新记忆库
     individuals = bestselect(individuals,M,sizepop);        % 形成父代群

     individuals = Select(individuals,sizepop);                                                             % 选择
     individuals.chrom = Cross(pcross,individuals.chrom,sizepop,length);                                    % 交叉
     individuals.chrom = Mutation(pmutation,individuals.chrom,sizepop,length);   % 变异
     individuals = incorporate(individuals,sizepop,bestindividuals,overbest);

end

figure(1)
plot(trace(:,1));
hold on
% plot(trace(:,2),'--');
legend('最优适应度值','平均适应度值')
title('遗传算法收敛曲线','fontsize',12)
xlabel('迭代次数','fontsize',12)
ylabel('适应度值','fontsize',12)

%城市坐标
city_coordinate=[116.405285,39.90498901;
                 121.472644,31.23170602;
                 113.280637,23.1251703;
                 120.153576,30.2874504;
                 104.065735,30.6594605;
                 112.982279,28.194006;
                 114.298572,30.58435507;
                 114.085947,22.54708;
                 114.177314,22.2664109;
                 113.549134,22.19875010;
                 117.000923,36.67580011;
                 114.502461,38.045474012;
                 125.3245,43.88684013;
                 126.642464,45.756967014;
                 123.429096,41.796767015;
                 111.670801,40.818311016;
                 87.617733,43.792818017;
                 103.823557,36.058039018;
                  106.278179,38.46637019;
                  112.549248,37.857014020;
                  108.550522,34.1501021;
                  113.665412,34.75797022;
                  117.283042,31.86119023;
                  118.767413,32.041544024;
                  119.306239,26.075302025;
                  115.892151,28.676493026;
                  108.320004,22.82402027;
                  102.712251,25.040609028;
                  101.778916,36.623178029;
                  117.190182,39.125596030;
                  106.504962,29.533155031;
                  121.549792,29.868388032;
                  118.11022,24.490474033;
                  109.508268,18.247872034;
                  110.33119,20.031971035;
                  113.552724,22.255899036;
                  106.713478,26.578343037;
                  121.618622,38.91459038;
                  120.369557,36.094406039]
carge=[1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1];

for i=1:39
    distance(i,:)=dist(city_coordinate(i,:),city_coordinate(bestchrom,:)');
end
[a,b]=min(distance');

index=cell(1,length);

for i=1:length

index{i}=find(b==i);
end
figure(1+1)
title('最优规划派送路线')
cargox=city_coordinate(bestchrom,1);
cargoy=city_coordinate(bestchrom,2);
plot(cargox,cargoy,'rs','LineWidth',2,...
    'MarkerEdgeColor','r',...
    'MarkerFaceColor','w',...
    'MarkerSize',20)
hold on

plot(city_coordinate(:,1),city_coordinate(:,2),'o','LineWidth',2,...
    'MarkerEdgeColor','k',...
    'MarkerFaceColor','g',...
    'MarkerSize',10)

for i=1:39
    x=[city_coordinate(i,1),city_coordinate(bestchrom(b(i)),1)];
    y=[city_coordinate(i,2),city_coordinate(bestchrom(b(i)),2)];
    text(x,y,num2str(i))
    plot(x,y,'b');
    hold on
end
text()

需要完整代码可以加博主qq：1176688637

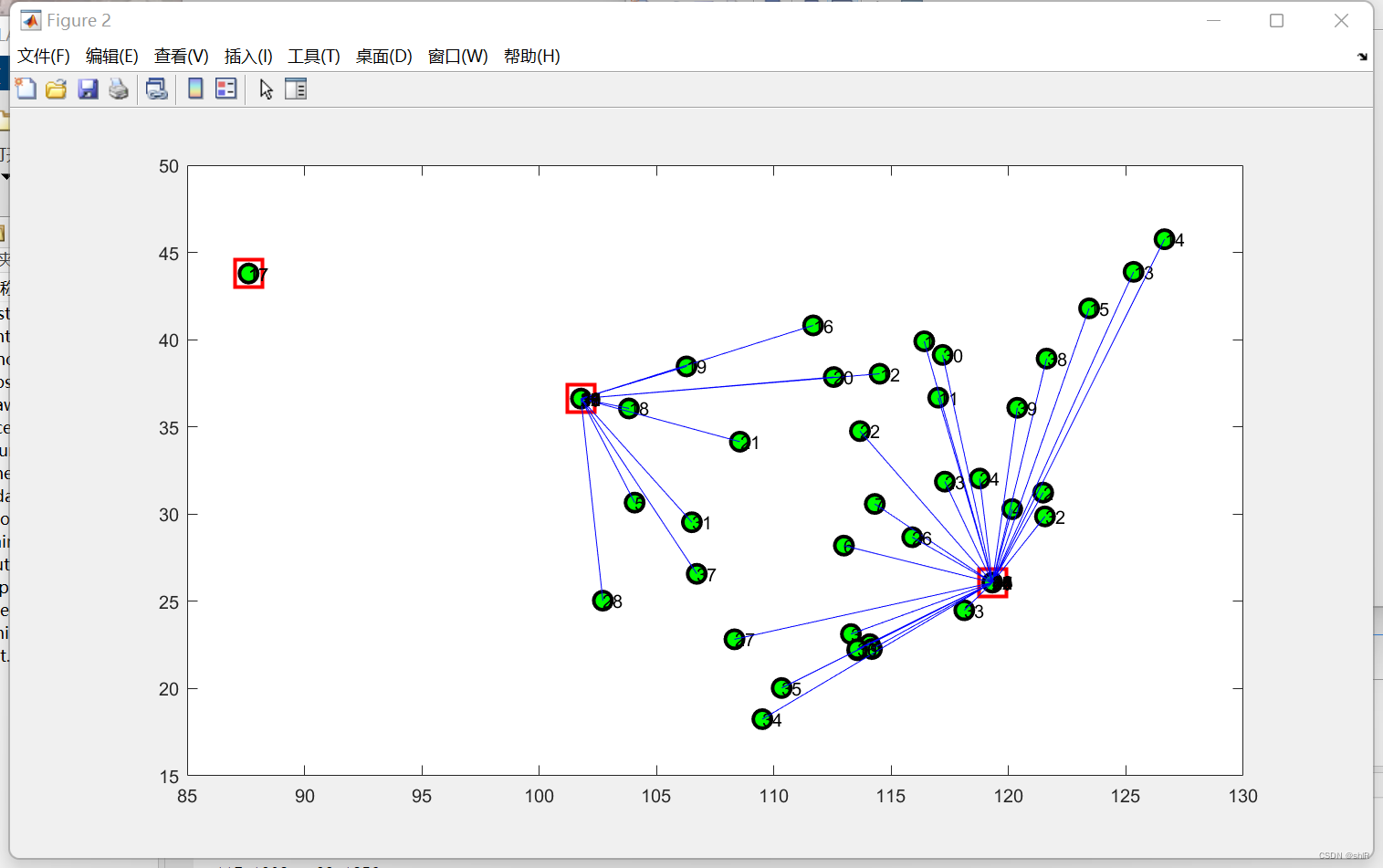

实现结果：

tips：标识出城市代号

text（x,y,num2str(i)）
