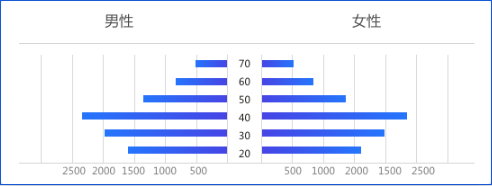

先看一下设计效果图，如下图；这里完全实现这个效果是不好实现的，个人觉得有两个难点，一个是Y轴的列标，还有就是渐变效果，尝试了一下没有成功，就打住了

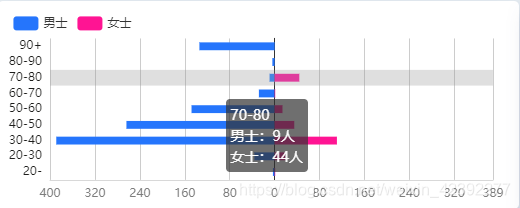

然后看一下最终的效果图，虽然有点丑，理想和现实总是有差距的对吧，废话不多说，下面看看我实现的心路历程吧。

获取数据

数据来源也是自己获取的，在数据库表中，只存了用户的出生年月日，也就是说，我需要根据当前系统时间，和存在库表中的时间计算年龄，然后根据算出来的年龄和性别分组，得到count即可，以下是我使用mssql数据库的查询语句,需要查看的就是sql中的datediff()这个方法，百度一下很多说明的，没有什么难点，很简单理解的sql语句

SELECT sex,CASE when datediff(year,Birthday,getdate()) <= 19 then '20岁以内'when datediff(year,Birthday,getdate()) between 20 and 29 then '20-30'when datediff(year,Birthday,getdate()) between 30 and 39 then '30-40'when datediff(year,Birthday,getdate()) between 40 and 49 then '40-50'when datediff(year,Birthday,getdate()) between 50 and 59 then '50-60'when datediff(year,Birthday,getdate()) between 60 and 69 then '60-70'when datediff(year,Birthday,getdate()) between 70 and 79 then '70-80'when datediff(year,Birthday,getdate()) between 80 and 89 then '90-90'else '90岁以上' end as 年龄段,count(*) as 年龄段人数from User WHERE DeleteStatus = 0group byCASE when datediff(year,Birthday,getdate()) <= 19 then '20岁以内'when datediff(year,Birthday,getdate()) between 20 and 29 then '20-30'when datediff(year,Birthday,getdate()) between 30 and 39 then '30-40'when datediff(year,Birthday,getdate()) between 40 and 49 then '40-50'when datediff(year,Birthday,getdate()) between 50 and 59 then '50-60'when datediff(year,Birthday,getdate()) between 60 and 69 then '60-70'when datediff(year,Birthday,getdate()) between 70 and 79 then '70-80'when datediff(year,Birthday,getdate()) between 80 and 89 then '90-90'else '90岁以上' END,sex

优化后
select t1.ageLevel,t1.sex,count(0) amount from (
select case when age between 20 and 29 then '20-30'
when age between 30 and 39 then '30-40'
when age between 40 and 49 then '40-50'
when age between 50 and 59 then '50-60'
when age between 60 and 69 then '60-70'
when age between 70 and 79 then '70-80'
when age between 80 and 89 then '80-90'
else '90以上' end
as ageLevel,sex from (
select datediff(year,Birthday,getdate()) age,* from User
) t
) t1
group by t1.ageLevel,t1.sex
order by t1.sex,t1.ageLevel

前端echarts实现

我结合网上查找的实例，和官网的api参数说明，凑出了最后的效果，话不多说，直接上代码

 ajaxFormData('@Url.Action("GetTalentsAgesGrade", "Home")', {},
                function (res) {
                    let data = res.Data;
                    for (var i = 0; i < data.length; i++) {
                        gendarGrade.push(data[i].name)
                        let temp = {
                            name: "",
                            value: ""
                        };

                        if (data[i].sex == "男") {
                            temp.name = data[i].name;
                            temp.value = -data[i].value;
                            maleList.push(temp)
                        } else {
                            temp.name = data[i].name;
                            temp.value = data[i].value;
                            femaleList.push(temp)
                        }
                        list.push(data[i].value);
                    }
                    list.sort(function (num1, num2) {
                        return num1 - num2;
                    })
                    let tempString = '1';
                    maxValue = eval(list[list.length - 1]);//取最大值
                    for (let i = 0; i <= maxValue.length - 1; i++) {
                        tempString += '0';
                    }
                   // maxValue = Math.ceil(maxValue / 100) * 100;//向上取整（比如346 取400）
                    maxValue = Math.ceil(maxValue / Number(tempString)) *
Number(tempString);//向上取整（比如346 取400）
                    gendarGrade = Array.from(new Set(gendarGrade));//目录去重
                        let mybarChart = echarts.init(document.getElementById('barContainer1'));
                        let option = {
                            title: {
                                show: false,
                                text: '人才男女比例结构图',
                            },
                            backgroundColor: '#fff',
                            tooltip: {
                                trigger: 'axis',
                                axisPointer: {            // 坐标轴指示器，坐标轴触发有效
                                    type: 'shadow'        // 默认为直线，可选为：'line' |
'shadow'
                                },
                                formatter: function (data) {
                                    let ttt = data[0].name;
                                    for (let i = 0; i < data.length; i++) {
                                        ttt += '<br/>' + data[i].seriesName + '：' +
(Math.abs(data[i].value))+'人';
                                    }
                                    return ttt;
                                }
                            },

                            legend: {//图例设置
                                data: ['男士', '女士'],
                                x: '2%',
                                y:'5%',
                            },
                            color: ['#2575fc', '#ff1493'],//颜色设置、
                            grid: {
                                x: '10%',
                                x2: '5%',
                                y: '18%',
                                y2:'14%'
                            },
                            xAxis: [
                                {
                                    type: 'value',
                                    mix: function () {
                                        let aa =-1 *  maxValue;
                                        return aa;
                                    },
                                    max: maxValue,
                                    axisLabel: {
                                        formatter: function (a) {
                                            return Math.abs(a);
                                        },
                                        color: '#7d7d7d',
                                        fontWeight:'11'
                                    },
                                    axisTick: { show: false },
                                    axisLine: {
                                        lineStyle: {
                                            color:'#d8d8d8',
                                        }
                                    },
                                    splitLine: {
                                        show: true
                                    },
                                    splitNumber: 100,
                                    minInterval: 80,
                                    maxInterval: 200,
                                    itemStyle: {
                                        normal: {//这里设置了没有效果，本来是尝试做渐变效果的
                                            color: new echarts.graphic.LinearGradient(
                                                //右 / 下 / 左 / 上
                                                1, 0, 0, 0,
                                                [
                                                    { offset: 0, color: '#2575fc' },
                                                    { offset: 0.5, color: '#2c6af6' },
                                                    { offset: 1, color: '#6a11cb' }
                                                ]
                                            )
                                        }
                                    }
                                }
                            ],
                            yAxis: [
                                {
                                    type: 'category',
                                    nameLocation: "middle",
                                     axisTick: { show: false },
                                     data: gendarGrade,
                                     axisLabel: {
                                         color: '#1d1d1b',
                                         fontWeight: '11'
                                     },
                                }
                            ],
                            series: [
                                {
                                    name: '男士',
                                    type: 'bar',
                                    stack: '总量',
                                    barWidth:'50%',
                                    data: maleList
                                },
                                {
                                    name: '女士',
                                    type: 'bar',
                                    stack: '总量',
                                    barWidth: '50%',
                                    data: femaleList
                                }
                            ]
                        };
                         mybarChart.setOption(option);
                });

最后简单总结下前端实现的思路，其实就是一个柱状图的实现，让其分组结果左右显示，最重要的是左边，我让其value全部为负数了，这样就能显示在左边了，最后鼠标移入和图形显示为什么不是负数呢，建议看一下tooltip.formatter()和xAxis.formatter()这里的重写方法，echarts的官方说明文档是有详细说明的。最后比较坑的点是，如果左右最大值不一样的话，y轴就没在整个图的中间，这里我的解决办法，是xAxis.max设置的值是，这两组数据的最大值。

我做的还原度不是很好，但对没接触过echarts的我来说又是一次小成长，在学习的路上，我一直是捡贝壳的小男孩。
