ADC

PC0----ADC2CH1::确定蓝牙和ST读头组合

PC1----ADC1CH2::确定总电压的 基本放弃意义 总是TURE

现在看看PC0采集  一个脚干活！

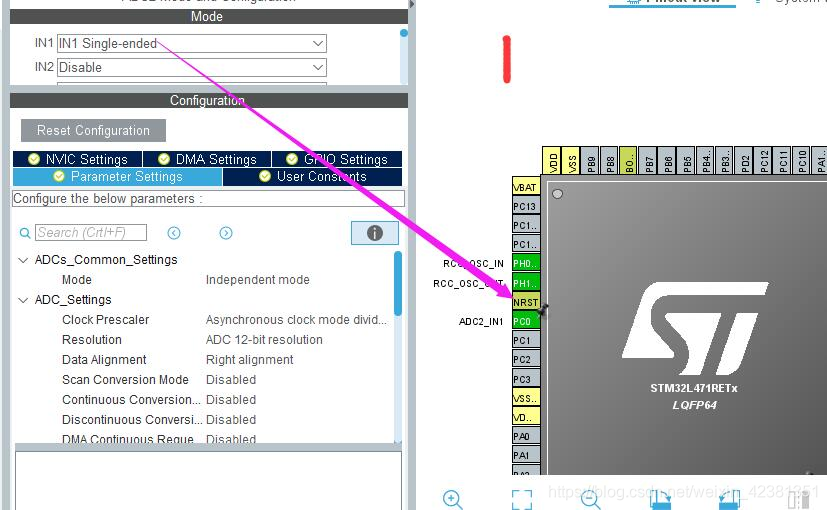

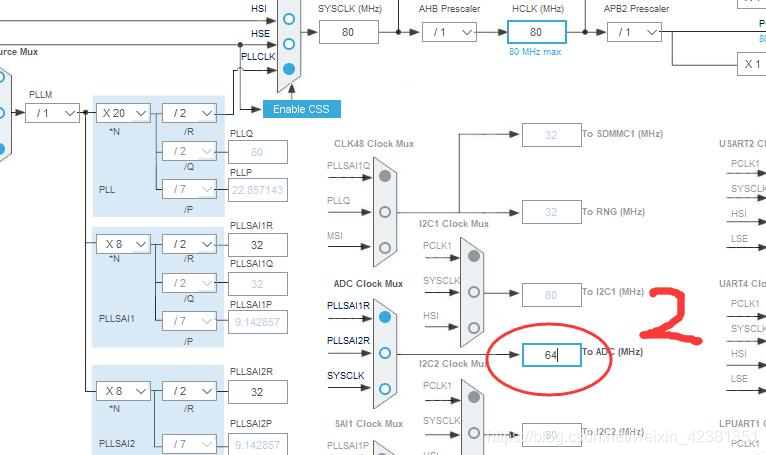

MX比较简单 默认的





可以了

uint32_t read_choose_module_value( void )



uint32_t read_choose_module_value( void )
{
#define MAX(x,y) 				((x > y)? x : y)
#define MIN(x,y) 				((x < y)? x : y)
	uint16_t readVdd[10] , max = 0  , min = 0xFFFF ,vddValue = 0;
	uint32_t total = 0 ,returnvalue = 0;


	for( uint8_t i = 0 ; i < 10 ; i++ )
	{
		HAL_ADC_Start(&hadc2);
		HAL_ADC_PollForConversion(&hadc2, 50);
		if(HAL_IS_BIT_SET(HAL_ADC_GetState(&hadc2), HAL_ADC_STATE_REG_EOC))
		{
			readVdd[i] = HAL_ADC_GetValue(&hadc2);
		}
		HAL_ADC_Stop(&hadc2);

	}

	for( uint8_t i = 0 ; i < 10 ; i++ )
	{
		max = MAX(max , readVdd[i]);
		min = MIN(min , readVdd[i]);

		total += readVdd[i];
	}

	vddValue = (total - max - min ) / 8;

	returnvalue =  ((vddValue*330)/4096)+5;

    printf("read value adc2 =%d :: %d \n" ,vddValue, returnvalue );

	return( returnvalue );

}

read value adc2 =732 :: 63
