vue3+vue-cropper+Acrodesign截图组件封装

一、引入 Vue Cropper

1、Vue 3 组件内引入

npm install vue-cropper@next
import 'vue-cropper/dist/index.css'
import { VueCropper }  from "vue-cropper";

2、Vue3 全局引入

import VueCropper from 'vue-cropper';
import 'vue-cropper/dist/index.css'

const app = createApp(App)
app.use(VueCropper)
app.mount('#app')

二、封装组件（局部引用弹框实现）

1、 index.vue

相关功能：1、上传图片地址,相关服务器地址自行配置

                    2、裁剪尺寸自定义

                    3、截取图片实时回显及编辑回显

                    4、目前根据项目需求写的固定尺寸，其他相关配置可查阅文档

<template>
  <div class="cropper-content">
    <div class="cropper-box">
      <div class="cropper">
        <vue-cropper
          ref="cropper"
          :img="option.img"
          :outputSize="option.outputSize"
          :outputType="option.outputType"
          :info="option.info"
          :canScale="option.canScale"
          :autoCrop="option.autoCrop"
          :autoCropWidth="option.autoCropWidth"
          :autoCropHeight="option.autoCropHeight"
          :fixed="option.fixed"
          :fixedNumber="option.fixedNumber"
          :full="option.full"
          :fixedBox="option.fixedBox"
          :canMove="option.canMove"
          :canMoveBox="option.canMoveBox"
          :original="option.original"
          :centerBox="option.centerBox"
          :height="option.height"
          :infoTrue="option.infoTrue"
          :maxImgSize="option.maxImgSize"
          :enlarge="option.enlarge"
          :mode="option.mode"
          @realTime="realTime"
          @imgLoad="imgLoad"
        >
        </vue-cropper>
      </div>
      <!--底部操作工具按钮-->
      <div class="footer-btn">
        <div class="scope-btn">
          <label class="btn" for="uploads">选择封面</label>
          <input
            type="file"
            id="uploads"
            style="position: absolute; clip: rect(0 0 0 0)"
            accept="image/png, image/jpeg, image/gif, image/jpg"
            @change="selectImg($event)"
          />
          <a-space>
            <a-button size="small" type="outline" status="danger" @click="changeScale(1)">放大</a-button>
            <a-button size="small" type="outline" status="danger" @click="changeScale(-1)">缩小</a-button>
            <a-button size="small" type="outline" status="danger" @click="rotateLeft">↺ 左旋转</a-button>
            <a-button size="small" type="outline" status="danger" @click="rotateRight">↻ 右旋转</a-button>
          </a-space>
        </div>
        <div class="upload-btn">
          <a-button size="small" type="primary" status="success" @click="uploadImg('blob')">保存封面 <i class="el-icon-upload"></i></a-button>
        </div>
      </div>
    </div>
    <!--预览效果图-->
    <div class="show-preview">
      <div
        v-if="previews.url == '' && imgCropper == ''"
        :style="{ width: option.autoCropWidth + 'px', height: option.autoCropHeight + 'px' }"
        class="noPreview"
      ></div>
      <div v-else :style="previews.div" class="preview">
        <img :src="previews.url" :style="previews.img" />
      </div>
      <div v-if="imgCropper && previews.url == ''">
        <img :src="baseUrl + imgCropper" />
      </div>
      <div style="margin-top: 10px; color: #4e5969; font-size: 16px">固定尺寸：{{ option.autoCropWidth }}*{{ option.autoCropHeight }}px</div>
    </div>
  </div>
</template>
<script setup lang="ts">
  import { ref, reactive, computed, defineEmits, defineProps, defineExpose, watch, onMounted } from 'vue';
  import { Message, Modal } from '@arco-design/web-vue';
  import { getToken } from '@/utils/auth';
  import useLoading from '@/hooks/loading';
  const baseUrl = import.meta.env.VITE_API_BASE_URL;

  const { loading, setLoading } = useLoading();
  // import 'vue-cropper/dist/index.css'
  import { VueCropper } from 'vue-cropper';
  import { uploadFile } from '@/api/file';
  import { getAllClassify } from '@/api/tagManage/tagManage';

  const emit = defineEmits(['uploadImgSuccess']);
  onMounted(() => {
    setCropSize();
  });
  // 图片接口路径
  const uploadUrl = ref('');
  uploadUrl.value = import.meta.env.VITE_API_BASE_URL + '/file/upload';
  const previews = reactive({});
  const option = reactive({
    img: '', //裁剪图片的地址
    autoCrop: true, // 是否默认生成截图框
    autoCropWidth: '', // 默认生成截图框宽度
    autoCropHeight: '', // 默认生成截图框高度
    fixedBox: true, // 固定截图框大小 不允许改变
    canMove: true, // 上传图片是否可以移动
  });
  // const option = reactive({
  //   // img: 'https://avatars2.githubusercontent.com/u/15681693?s=460&v=4',
  //   img: '',
  //   outputSize: 1, // 裁剪生成图片的质量
  //   outputType: 'png', // 裁剪生成图片的格式
  //   info: true, // 裁剪框的大小信息
  //   canScale: true, // 图片是否允许滚动缩放
  //   autoCrop: true, // 是否默认生成截图狂
  //   autoCropWidth: 320, // 默认生成截图框宽度
  //   autoCropHeight: 440, // 默认生成截图框高度
  //   fixed: true, // 是否开启截图框宽高固定比例
  //   fixedNumber: [8, 11], // 截图框的宽高比例
  //   full: true, // 是否输出原图比例的截图
  //   fixedBox: false, // 固定截图框大小 不允许改变
  //   canMove: true, // 上传图片是否可以移动
  //   canMoveBox: true, // 截图框能否拖动
  //   original: false, // 上传图片按照原始比例渲染
  //   centerBox: true, // 截图框是否被限制在图片里面
  //   high: false, // 是否按照设备的dpr输出等比例图片
  //   infoTrue: true, // true为展示真实输出图片宽高false展示看到的截图框宽高
  //   maximgSize: 100, // 限制图片最大宽度和高度
  //   enlarge: 1, // 图片根据截图框输出比例倍数
  //   mode: 'contain', // 图片默认渲染方式(contain, cover, 100px, 100% auto)
  // })

  // props相关类型
  const props = defineProps({
    name: {
      type: String,
      default: '',
    },
    img: {
      type: String,
      default: '',
    },
    imgCropper: {
      type: String,
      default: '',
    },
    bannerType: {
      type: Number,
      default: 6,
    },
  });

  //初始化函数
  const imgLoad = (msg) => {
    console.log('工具初始化函数=====' + msg);
  };

  const cropper = ref('');
  //图片缩放
  const changeScale = (num) => {
    num = num || 1;
    cropper.value.changeScale(num);
  };
  //向左旋转
  const rotateLeft = () => {
    cropper.value.rotateLeft();
  };
  //向右旋转
  const rotateRight = () => {
    cropper.value.rotateRight();
  };
  //实时预览函数
  const realTime = (data) => {
    Object.assign(previews, data);
  };
  //选择图片
  const selectImg = (e) => {
    let file = e.target.files[0];
    if (e.target.value !== '') {
      if (!/\.(jpg|jpeg|png|JPG|PNG)$/.test(e.target.value)) {
        Message.error('图片类型要求：jpeg、jpg、png');
        return false;
      }
    } else {
      return false;
    }

    //转化为blob
    let reader = new FileReader();
    reader.onload = (e) => {
      let data;
      if (typeof e.target.result === 'object') {
        data = window.URL.createObjectURL(new Blob([e.target.result]));
      } else {
        data = e.target.result;
      }
      option.img = data;
    };
    //转化为base64
    reader.readAsDataURL(file);
  };
  //上传图片
  const uploadImg = (type) => {
    if (type === 'blob') {
      //获取截图的blob数据
      cropper.value.getCropBlob(async (data) => {
        let formData = new FormData();
        formData.append('files', data, 'DX.jpg');

        //调用axios上传
        let res = await uploadFile(formData);
        if (res.code == 0) {
          Message.success('截取封面成功');
          let imgInfo = {
            name: props.name,
            url: res.data[0].filePath,
          };
          emit('uploadImgSuccess', imgInfo);
        } else {
          Message.error('文件服务异常，请联系管理员！');
        }
      });
    }
  };
  const previewView = () => {
    let img = new Image();
    img.src = baseUrl + props.imgCropper;
    img.onload = () => {
      // 转化为base64
      let canvas = document.createElement('canvas');
      canvas.height = img.height;
      canvas.width = img.width;
      let ctx = canvas.getContext('2d');
      ctx.drawImage(img, 0, 0, img.width, img.height);
      let dataURL = canvas.toBlob(
        (blob) => {
          console.log('blob', URL.createObjectURL(blob));
          option.img = URL.createObjectURL(blob);
        },
        'image/jpeg',
        0.8
      );
    };
  };
  watch(
    () => props.imgCropper,
    (val) => {
      if (val) {
        console.log(val, '>>>>>>>>>>>>>>>>>>>>>>');
        previewView();
      }
    },
    { immediate: true }
  );
  // 回显

  // 根据类型设置裁剪框大小
  const setCropSize = () => {
    if (props.bannerType === 1 || props.bannerType === 4) {
      option.autoCropWidth = 375;
      option.autoCropHeight = 200;
    } else if (props.bannerType === 2 || props.bannerType === 3 || props.bannerType === 5) {
      option.autoCropWidth = 343;
      option.autoCropHeight = 80;
    } else if (props.bannerType === 6) {
      option.autoCropWidth = 300;
      option.autoCropHeight = 400;
    }
  };
</script>
<style>
  @import 'vue-cropper/dist/index.css';
</style>
<style scoped lang="less">
  .cropper-content {
    display: flex;
    display: -webkit-flex;
    justify-content: space-between;

    .cropper-box {
      flex: 1;
      width: 100%;

      .cropper {
        width: auto;
        height: 440px;
      }
    }

    .show-preview {
      display: flex;
      display: -webkit-flex;
      -webkit-flex: 1;
      flex-direction: column;
      margin-left: 60px;
      //flex: 1;
      //justify-content: center;
      .preview {
        overflow: hidden;
        background: #fff;
        border: 1px solid #67c23a;
      }

      .noPreview {
        width: 300px;
        height: 400px;
        background-color: #fff;
        border: 1px solid #67c23a;
      }
    }
  }

  .footer-btn {
    display: flex;
    display: -webkit-flex;
    justify-content: flex-end;
    margin-top: 30px;

    .scope-btn {
      display: flex;
      display: -webkit-flex;
      justify-content: space-between;
      padding-right: 10px;
    }

    .upload-btn {
      display: flex;
      display: -webkit-flex;
      -webkit-flex: 1;
      flex: 1;
      justify-content: center;
    }

    .btn {
      display: inline-block;
      -webkit-box-sizing: border-box;
      box-sizing: border-box;
      margin-right: 10px;
      padding: 6px 15px;
      color: #fff;
      font-weight: 500;
      font-size: 14px;
      line-height: 1;
      white-space: nowrap;
      text-align: center;
      background-color: #2a8dff;
      border-color: #2a8dff;
      border-radius: 3px;
      outline: none;
      outline: 0;
      cursor: pointer;
      -webkit-transition: 0.1s;
      transition: 0.1s;
      -webkit-appearance: none;
    }
  }
</style>

 三、组件使用

1、封装的bl-form表单

<template #advertisingPicture>
            <a-form-item v-if="route.query.type === 'detail'" label="广告图片 :" :rules="[{ required: true, message: '广告图片不能为空' }]">
              <div class="image_box1">
                <a-image width="80px" height="80px" :src="baseUrl + formData.advertisingPicture" />
              </div>
              <template #extra>支持格式：.PNG .JPEG .JPG ，仅支持上传单张</template>
            </a-form-item>
            <a-form-item v-else field="advertisingPicture" label="广告图片 :" :rules="[{ required: true, message: '广告图片不能为空' }]">
              <div v-if="formData.advertisingPicture !== ''" class="image_box">
                <img class="img_class" :src="baseUrl + formData.advertisingPicture" @click="uploadPicture('flagImg')" />
              </div>
              <div v-else class="upload-btn" @click="uploadPicture('flagImg')">
                <div class="icon_class">
                  <icon-plus />
                </div>
              </div>
              <template #extra>支持格式：.PNG .JPEG .JPG ，仅支持上传单张</template>
            </a-form-item>
          </template>

 2、相关方法实现

// **************************裁剪图片****************************************
  const cropPictureModal = reactive({
    visible: false,
    title: '修改资讯封面图',
  });
  //图片上传成功后
  const handleUploadSuccess = (data: any) => {
    console.log(data);
    switch (data.name) {
      case 'flagImg':
        formData.advertisingPicture = data.url;
        break;
    }
    cropPictureModal.visible = false;
  };

  const cropperName = ref('');
  const bannerTypeValue = ref('');

  const uploadPicture = (name: any) => {
    if (formData.advertisingLocation) {
      bannerTypeValue.value = formData.advertisingLocation;
    } else {
      Message.error('请先选择广告位置');
      return false;
    }
    cropperName.value = name;
    cropPictureModal.visible = true;
    // 根据formData.advertisingLocation的值修改裁剪图片的title
    const locationOptions = {
      '1': '修改首页轮播图',
      '2': '修改首页banner',
      '3': '修改线上问诊banner',
      '4': '修改在线商城轮播图',
      '5': '修改在线商城banner',
    };
    const { advertisingLocation } = formData;
    const title = locationOptions[advertisingLocation] || '';
    cropPictureModal.title = title;
  };
  const cancelPictureModal = () => {
    console.log('hhhhhh');
    cropPictureModal.visible = false;
  };

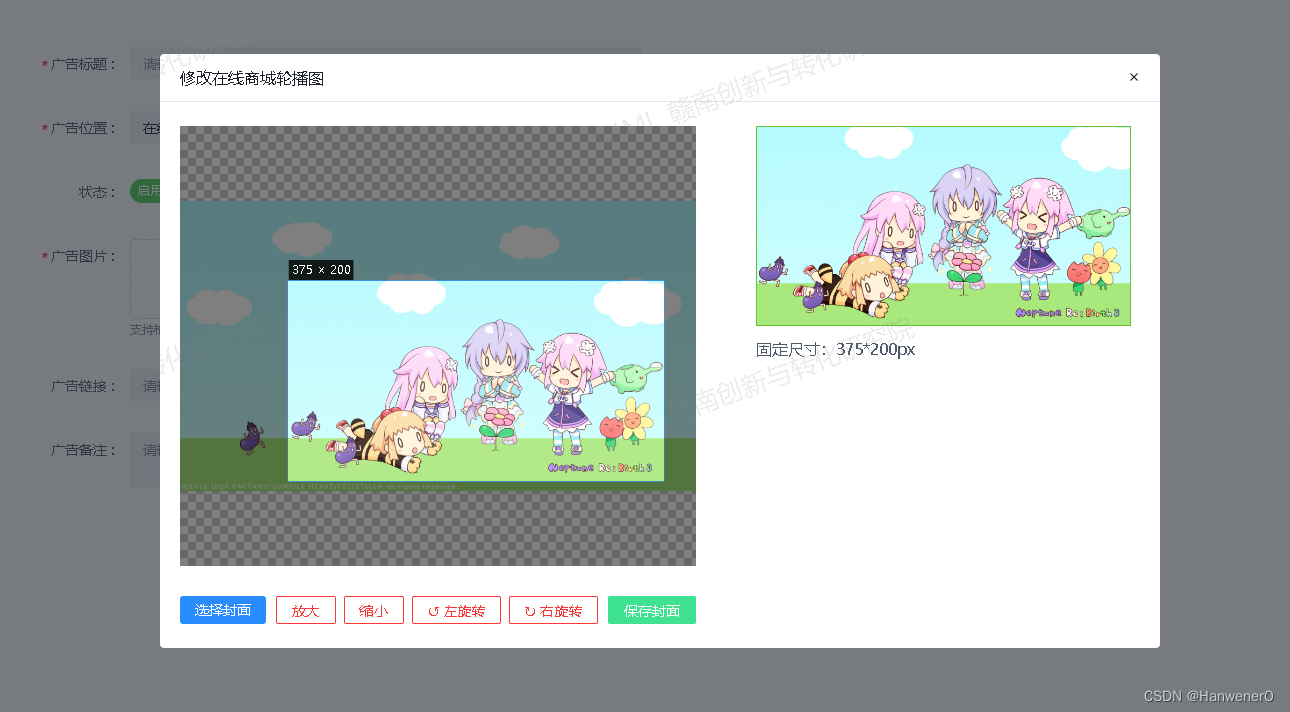

如图所示：裁剪广告图片类型为bannerType值为1，375*200
