本文介绍了如何针对Fckeditor 2.5版本的图片上传功能进行改造，解决中文乱码、上传Bug，并添加水印功能。通过创建新的Servlet和重写相关方法，将上传图片保存到服务器特定位置，避免工程下文件过大的问题，同时实现图片预览和水印添加功能。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

Fckeditor默认是带图片上传的功能但是这不能满足我们的要求比如说有的版本的Fckeditor有中文乱码的问题,我用的这个Fckediotr上传图片还有Bug,另外也没办法给图片加水印,传上去的图片还是放在工程下的将来会导致图片越来越庞大，怎么办呢？我们自己动手丰衣足食,把fckeditor改造成我们需要的.

我用的Fckeditor的jar包是2.5版本的这个版本图片没有中文乱码另外如果有中文乱码的问题我建议也不要把图片名称改为UUID名称,因为当用户把自己的图片传上去的时候想点浏览在去找这张图片的时候他发现上面的那么多的名字根本分不清哪个是他这次传上来的.有人会问那图片名字重复了怎么办呢？Fckeditor已经考虑到这个问题了他检测到服务器上有这个名字的图片他会自动重命名.废话不多说了我们来看我是怎么干的.

我们要解决的几个问题

1.上传图片放到服务器的一个物理位置而不是工程下.

2.解决Fckeditor2.5版本中图片上传没有flush的问题

3.增加水印功能.

Fckeditor低版本的时候我们需要重写一个Servlet 但是我发现这个版本图片上传功能是放在一个类下的而不是

旧版本中的ConnectorServlet.那既然需要重写一个类而这个类呢有是ConnectorServlet中调用的那我们是不是得先重写ConnectorServlet 然后在重写这个类，然后再把自己写的ConnectorServlet配置到web.xml中呢？不用那么麻烦我不是那样做的看下图我是怎么做的 ,并请大家自己思考为什么可以这么做.

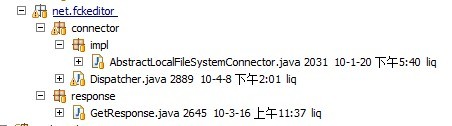

我在工程下建了和fckeditor相同的包结构然后把我需要重写的类从Fckeditor源代码中拷了过来

好了我们开始修改吧

Dispatcher.java中doPost方法

UploadResponse doPost(final HttpServletRequest request) {

logger.debug("Entering Dispatcher#doPost");

//String type = null;

Context context = ThreadLocalData.getContext();

context.logBaseParameters();

UploadResponse uploadResponse = null;

// check permissions for user actions

if (!RequestCycleHandler.isEnabledForFileUpload(request))

uploadResponse = UploadResponse.getFileUploadDisabledError();

// check parameters

else if (!Command.isValidForPost(context.getCommandStr()))

uploadResponse = UploadResponse.getInvalidCommandError();

else if (!ResourceType.isValidType(context.getTypeStr()))

uploadResponse = UploadResponse.getInvalidResourceTypeError();

else if (!UtilsFile.isValidPath(context.getCurrentFolderStr()))

uploadResponse = UploadResponse.getInvalidCurrentFolderError();

else {

// call the Connector#fileUpload

ResourceType type = context.getDefaultResourceType();

FileItemFactory factory = new DiskFileItemFactory();

ServletFileUpload upload = new ServletFileUpload(factory);

try {

List items = upload.parseRequest(request);

// We upload just one file at the same time

FileItem uplFile = items.get(0);

// Some browsers transfer the entire source path not just the

// filename

String fileName = FilenameUtils.getName(uplFile.getName());

logger.debug("Parameter NewFile: {}", fileName);

// check the extension

if (type.isNotAllowedExtension(FilenameUtils

.getExtension(fileName)))

uploadResponse = UploadResponse.getInvalidFileTypeError();

// Secure image check (can't be done if QuickUpload)

else if (type.equals(ResourceType.IMAGE)

&& PropertiesLoader.isSecureImageUploads()

&& !UtilsFile.isImage(uplFile.getInputStream())) {

uploadResponse = UploadResponse.getInvalidFileTypeError();

} else {

String sanitizedFileName = UtilsFile

.sanitizeFileName(fileName);

//修改为UUID文件名称我这里注释掉了如下代码可以把上传的图片名称改为UUID

//sanitizedFileName = UUID.randomUUID().toString()+sanitizedFileName.substring(sanitizedFileName.lastIndexOf("."), sanitizedFileName.length());

logger.debug("Parameter NewFile (sanitized): {}",

sanitizedFileName);

String newFileName = connector.fileUpload(type, context

.getCurrentFolderStr(), sanitizedFileName, uplFile

.getInputStream());

String fileUrl = UtilsResponse.fileUrl(RequestCycleHandler

.getUserFilesPath(request), type, context

.getCurrentFolderStr(), newFileName);

//Fckeditor上传有两种一种是上传图片一种是上传附件

//如果是图片的话我用这个action来预览图片

if(type.equals(ResourceType.IMAGE))

{

fileUrl = "tumbnail.action?fileName="+sanitizedFileName;

}

//如果是上传附件的话用如下的action来下载附件

else if(type.equals(ResourceType.FILE)){

sanitizedFileName = URLEncoder.encode(sanitizedFileName, "utf-8");

fileUrl = request.getContextPath()+"/attachmentDownload.action?fileName="+sanitizedFileName;

}

if (sanitizedFileName.equals(newFileName))

uploadResponse = UploadResponse.getOK(fileUrl);

else {

uploadResponse = UploadResponse.getFileRenamedWarning(fileUrl, newFileName);

logger.debug("Parameter NewFile (renamed): {}",

newFileName);

}

uplFile.delete();

} catch (InvalidCurrentFolderException e) {

uploadResponse = UploadResponse.getInvalidCurrentFolderError();

} catch (WriteException e) {

uploadResponse = UploadResponse.getFileUploadWriteError();

} catch (IOException e) {

uploadResponse = UploadResponse.getFileUploadWriteError();

} catch (FileUploadException e) {

uploadResponse = UploadResponse.getFileUploadWriteError();

}

logger.debug("Exiting Dispatcher#doPost");

return uploadResponse;

}

AbstractLocalFileSystemConnector.java 中 fileUpload方法

public String fileUpload(final ResourceType type, final String currentFolder, final String fileName, final InputStream inputStream) throws InvalidCurrentFolderException, WriteException {

String absolutePath = getRealUserFilesAbsolutePath(RequestCycleHandler.getUserFilesAbsolutePath(ThreadLocalData.getRequest()));

File typeDir = getOrCreateResourceTypeDir(absolutePath, type);

File currentDir = new File(typeDir, currentFolder);

if (!currentDir.exists() || !currentDir.isDirectory())

throw new InvalidCurrentFolderException();

File newFile = new File(currentDir, fileName);

File fileToSave = UtilsFile.getUniqueFile(newFile.getAbsoluteFile());

OutputStream outputStream = null;

try {

outputStream = new FileOutputStream(fileToSave);

IOUtils.copyLarge(inputStream, outputStream);

} catch (IOException e) {

throw new WriteException();

} finally {

try {

if (outputStream != null) {

//这里解决这个版本中图片上传没有flush的bug

outputStream.flush();

IOUtils.closeQuietly(outputStream);

}

IOUtils.closeQuietly(inputStream);

} catch (IOException e) {

// TODO Auto-generated catch block

e.printStackTrace();

}

String format = fileToSave.getName().substring(fileToSave.getName().lastIndexOf(".") + 1, fileToSave.getName().length());

//下面给图片加水印

//如果是图片的话加水印

if (ImageUtils.isPicture(format)) {

ImageUtils.pressImage(servletContext.getRealPath("themes/cms/image/") +"\\"+ "sxgajj.png", newFile.getAbsoluteFile().getAbsolutePath());

}

return fileToSave.getName();

}

另外还有图片预览的action 和加水印的代码

图片预览的action代码

public class FckImgPreviewAction {

private String fileName;

public String execute() {

if (fileName != null) {

//图片在服务器上的物理存放路径

String path = ResourceBundle.getBundle("sysConfig").getString("userFilePath.image");

File file = new File("/" + path + fileName);

HttpServletResponse resp = ServletActionContext.getResponse();

OutputStream os = null;

InputStream is = null;

if (file.exists()) {

try {

is = new FileInputStream(file);

os = resp.getOutputStream();

IOUtils.copyLarge(is, os);

} catch (IOException e) {

e.printStackTrace();

}finally{

try {

IOUtils.closeQuietly(is);

if(os != null)

{

os.flush();

IOUtils.closeQuietly(os);

}

} catch (IOException e) {

e.printStackTrace();

}

return null;

}

public String getFileName() {

return fileName;

}

public void setFileName(String fileName) {

this.fileName = fileName;

}

/**

* @param pressImg 水印文件路径

* @param targetImg 目标文件路径

public final static void pressImage(String pressImg, String targetImg) {

FileOutputStream out = null;

try {

File _file = new File(targetImg);

Image src = ImageIO.read(_file);

int wideth = src.getWidth(null);

int height = src.getHeight(null);

BufferedImage image = new BufferedImage(wideth, height, BufferedImage.TYPE_INT_RGB);

Graphics g = image.createGraphics();

g.drawImage(src, 0, 0, wideth, height, null);

// 水印文件

File _filebiao = new File(pressImg);

Image src_biao = ImageIO.read(_filebiao);

int wideth_biao = src_biao.getWidth(null);

int height_biao = src_biao.getHeight(null);

g.drawImage(src_biao, wideth - wideth_biao, height - height_biao, wideth_biao, height_biao, null);

// /

g.dispose();

out = new FileOutputStream(targetImg);

JPEGImageEncoder encoder = JPEGCodec.createJPEGEncoder(out);

encoder.encode(image);

} catch (Exception e) {

e.printStackTrace();

}finally{

if(out!=null)

{

try {

out.flush();

out.close();

} catch (IOException e) {

// TODO Auto-generated catch block

e.printStackTrace();

}

还有个重要的类差点忘了 GetResponse.java GetResponse方法

让fck在上传完图片后 fck图片预览图片url正确的显示

public GetResponse(Command command, ResourceType type,

String currentFolder, String constructedUrl) {

try {

DocumentBuilderFactory factory = DocumentBuilderFactory

.newInstance();

DocumentBuilder builder = factory.newDocumentBuilder();

document = builder.newDocument();

} catch (ParserConfigurationException e) {

throw new RuntimeException(e);

}

Element root = document.createElement("Connector");

document.appendChild(root);

root.setAttribute("command", command.getName());

root.setAttribute("resourceType", type.getName());

Element currentFolderElement = document.createElement("CurrentFolder");

currentFolderElement.setAttribute("path", currentFolder);

if(type.equals(ResourceType.IMAGE))

{

constructedUrl = "tumbnail.action?fileName=";

}

else if(type.equals(ResourceType.FILE)){

constructedUrl = "attachmentDownload.action?fileName=";

}

currentFolderElement.setAttribute("url", constructedUrl);

//System.out.println(constructedUrl);

root.appendChild(currentFolderElement);

}

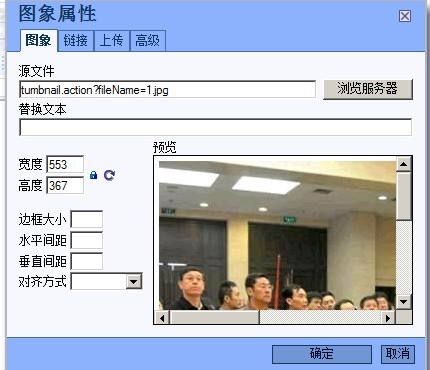

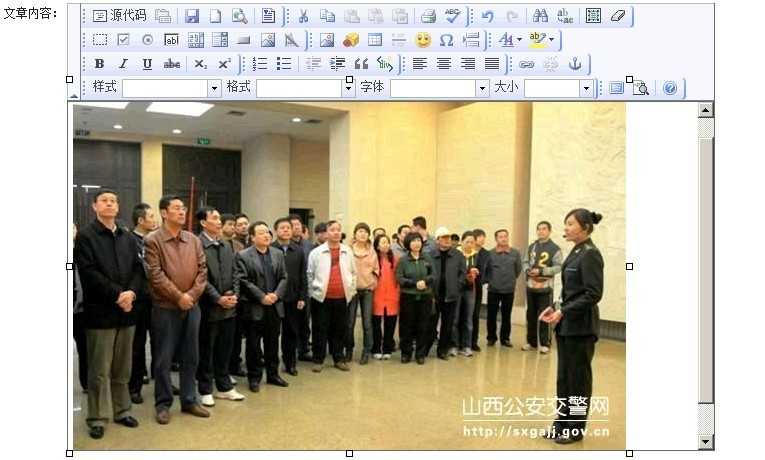

ok了看下效果

大小: 16.6 KB

大小: 20 KB

大小: 40.1 KB

大小: 86.2 KB
