前言：

理论学习总感觉差不多了，但是实际运行后才能更深刻的理解，今天运行了路科uvm0的实验lab1中的phase_order_test，算是具体了解phase机制各个组件和对象build_phase、connect_phase、run_phase、与report_phase运行的规律了。下有一目了然结构图，一秒就看懂。

1、运行代码


package phase_order_pkg;
  import uvm_pkg::*;
  `include "uvm_macros.svh"

  class comp2 extends uvm_component;
    `uvm_component_utils(comp2)
    function new(string name = "comp2", uvm_component parent = null);
      super.new(name, parent);
      `uvm_info("CREATE", $sformatf("unit type [%s] created", name), UVM_LOW)
    endfunction
    //TODO-3.1
    //Refer comp1 and define methods:
    // - build_phase()
	function void build_phase(uvm_phase phase);
    super.build_phase(phase);
	`uvm_info("BUILD","comp2 bulid phase entered", UVM_LOW)

	`uvm_info("BUILD","comp2 bulid phase exited", UVM_LOW)
	endfunction

	function void connect_phase(uvm_phase phase);
	  super.connect_phase(phase);
	  `uvm_info("CONNECT","comp2 connect phase entered",UVM_LOW)
	  `uvm_info("CONNECT","comp2 connect phase exited",UVM_LOW)
	endfunction
	task run_phase(uvm_phase phase);
	  super.run_phase(phase);
	  `uvm_info("RUN","comp2 run_phase entered",UVM_LOW)
	  `uvm_info("RUN","comp2 run_phase exited",UVM_LOW)
	endtask
	function void report_phase(uvm_phase phase);
	     super.report_phase(phase);
		 `uvm_info("REPORT","comp2 report_phase entered",UVM_LOW)
		 `uvm_info("REPORT","comp2 report_phase exited",UVM_LOW)
    endfunction


	// - connect_phase()
    // - run_phase()
    // - report_phase()
  endclass

  class comp3 extends uvm_component;
    `uvm_component_utils(comp3)
    function new(string name = "comp3", uvm_component parent = null);
      super.new(name, parent);
      `uvm_info("CREATE", $sformatf("unit type [%s] created", name), UVM_LOW)
    endfunction

	function void build_phase(uvm_phase phase);
    super.build_phase(phase);
	`uvm_info("BUILD","comp3 bulid phase entered", UVM_LOW)

	`uvm_info("BUILD","comp3 bulid phase exited", UVM_LOW)
	endfunction

	function void connect_phase(uvm_phase phase);
	  super.connect_phase(phase);
	  `uvm_info("CONNECT","comp3 connect phase entered",UVM_LOW)
	  `uvm_info("CONNECT","comp3 connect phase exited",UVM_LOW)
	endfunction
	task run_phase(uvm_phase phase);
	  super.run_phase(phase);
	  `uvm_info("RUN","comp3 run_phase entered",UVM_LOW)
	  `uvm_info("RUN","comp3 run_phase exited",UVM_LOW)
	endtask
	function void report_phase(uvm_phase phase);
	     super.report_phase(phase);
		 `uvm_info("REPORT","comp3 report_phase entered",UVM_LOW)
		 `uvm_info("REPORT","comp3 report_phase exited",UVM_LOW)
    endfunction
		//TODO-3.1
    //Refer comp1 and define methods:
    // - build_phase()
    // - connect_phase()
    // - run_phase()
    // - report_phase()
  endclass

  class comp1 extends uvm_component;
    comp2 c2;
    comp3 c3;
    `uvm_component_utils(comp1)
    function new(string name = "comp1", uvm_component parent = null);
      super.new(name, parent);
      `uvm_info("CREATE", $sformatf("unit type [%s] created", name), UVM_LOW)
    endfunction
    function void build_phase(uvm_phase phase);
      super.build_phase(phase);
      `uvm_info("BUILD", "comp1 build phase entered", UVM_LOW)
      c2 = comp2::type_id::create("c2", this);
      c3 = comp3::type_id::create("c3", this);
      `uvm_info("BUILD", "comp1 build phase exited", UVM_LOW)
    endfunction
    function void connect_phase(uvm_phase phase);
      super.connect_phase(phase);
      `uvm_info("CONNECT", "comp1 connect phase entered", UVM_LOW)
      `uvm_info("CONNECT", "comp1 connect phase exited", UVM_LOW)
    endfunction
    task run_phase(uvm_phase phase);
      super.run_phase(phase);
      `uvm_info("RUN", "comp1 run phase entered", UVM_LOW)
      `uvm_info("RUN", "comp1 run phase exited", UVM_LOW)
    endtask
    function void report_phase(uvm_phase phase);
      super.report_phase(phase);
      `uvm_info("REPORT", "comp1 report phase entered", UVM_LOW)
      `uvm_info("REPORT", "comp1 report phase exited", UVM_LOW)
    endfunction
  endclass

  class phase_order_test extends uvm_test;
    comp1 c1;
    `uvm_component_utils(phase_order_test)
    function new(string name = "phase_order_test", uvm_component parent = null);
      super.new(name, parent);
    endfunction
    function void build_phase(uvm_phase phase);
      super.build_phase(phase);
      `uvm_info("BUILD", "phase_order_test build phase entered", UVM_LOW)
      c1 = comp1::type_id::create("c1", this);
      `uvm_info("BUILD", "phase_order_test build phase exited", UVM_LOW)
    endfunction
    function void connect_phase(uvm_phase phase);
      super.connect_phase(phase);
      `uvm_info("CONNECT", "phase_order_test connect phase entered", UVM_LOW)
      `uvm_info("CONNECT", "phase_order_test connect phase exited", UVM_LOW)
    endfunction
    task run_phase(uvm_phase phase);
      super.run_phase(phase);
      `uvm_info("RUN", "phase_order_test run phase entered", UVM_LOW)
      phase.raise_objection(this);
      #1us;
      phase.drop_objection(this);
      `uvm_info("RUN", "phase_order_test run phase exited", UVM_LOW)
    endtask
    function void report_phase(uvm_phase phase);
      super.report_phase(phase);
      `uvm_info("REPORT", "phase_order_test report phase entered", UVM_LOW)
      `uvm_info("REPORT", "phase_order_test report phase exited", UVM_LOW)
    endfunction

    //TODO-3.2
    //Refer to phase_order_test::run_phase and define phase tasks:
    // - reset_phase()
    // - main_phase()
    //Ask each task to be finished within 1us
    task reset_phase(uvm_phase phase);
	 `uvm_info("RESET","phase_order_test reset_phase entered",UVM_LOW)
	 phase.raise_objection(this);
	 #1us;
	 phase.drop_objection(this);
	 `uvm_info("RESET","phase_order_test reset_phase exited",UVM_LOW)
    endtask
    task main_phase(uvm_phase phase);
     `uvm_info("MAIN","phase_order_test main_phase entered",UVM_LOW)
      phase.raise_objection(this);
      #1us;
      phase.drop_objection(this);
      `uvm_info("MAIN","phase_order_test main_phase exited",UVM_LOW)
   endtask
  endclass
endpackage

module phase_order;

  import uvm_pkg::*;
  `include "uvm_macros.svh"
  import phase_order_pkg::*;

  initial begin
    run_test(""); // empty test name
  end

endmodule

总结来说代码的结构为：

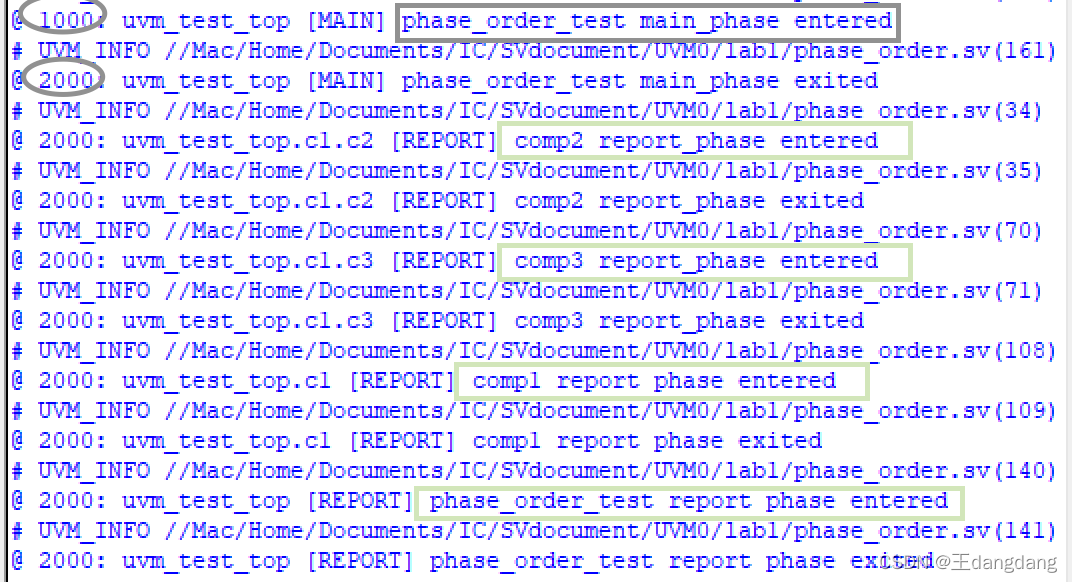

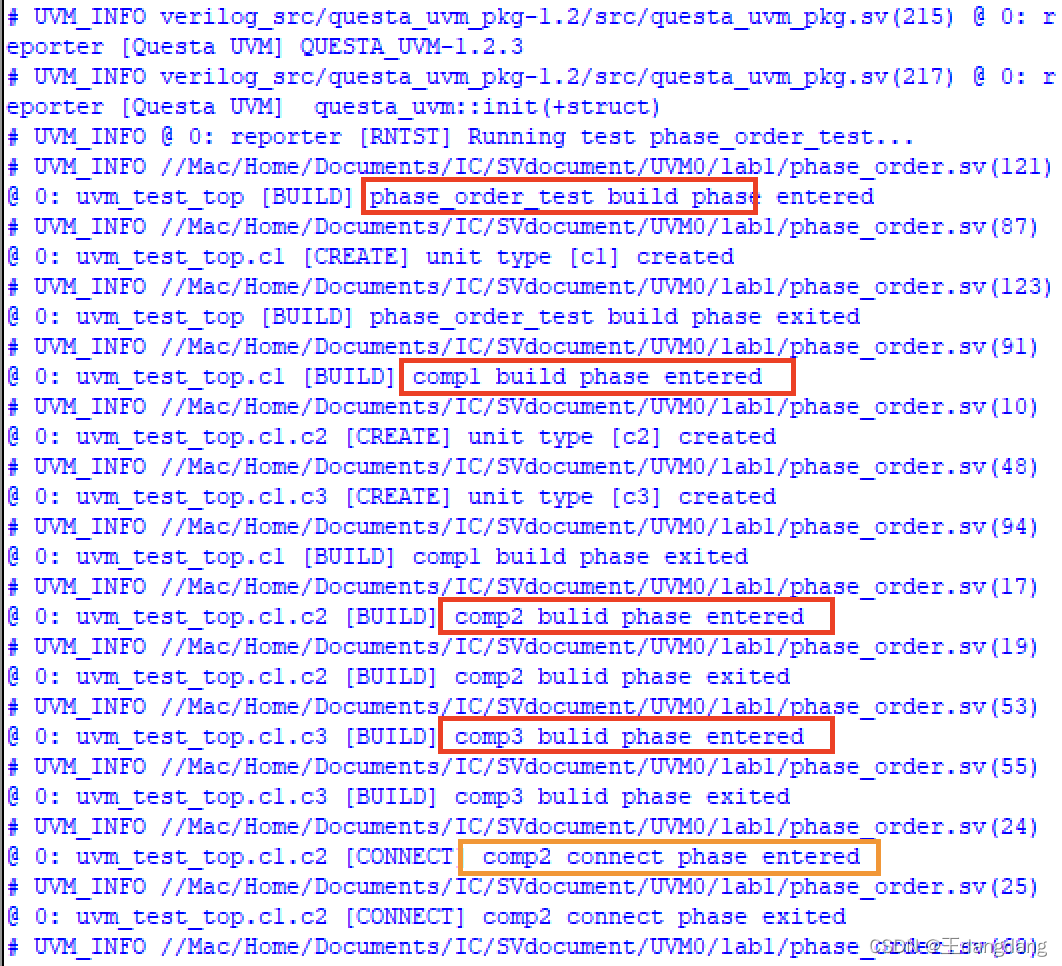

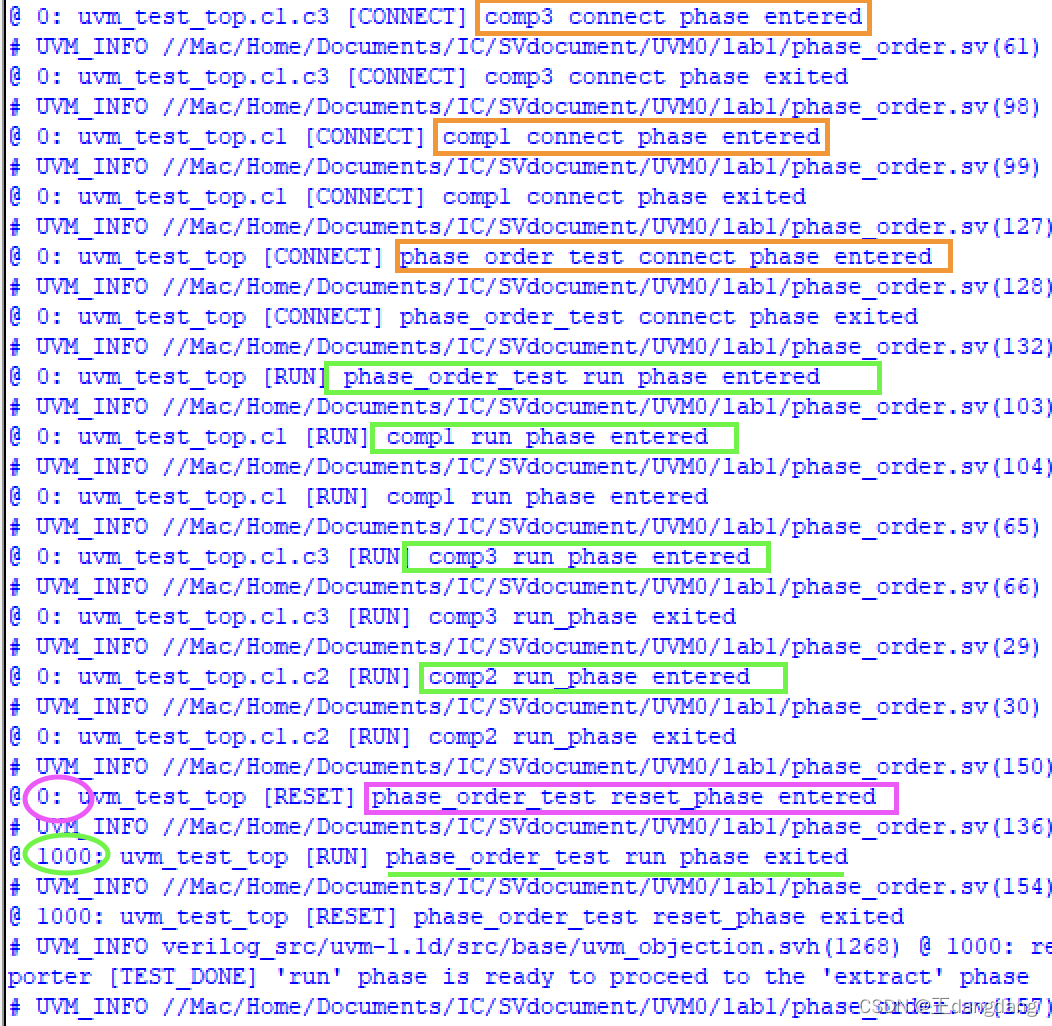

2、运行结果

相同phase的运行结果我都用同一种颜色表示出来了,在结构图中表示呢如下：

3、总结

1）自顶向下：bulid_phase与run_phase是从顶层开始运行。其中run_phase与其他12个小phase是并行开始的，12个小phase按照既定的顺序运行。run_phase的结束不用等待其他12个小phase，但只有等其他12个小phase全部运行结束，才能进入report_phase阶段。

2）自底向上：connect_phase与report_phase是从层次底部开始运行。

3）各层次相同phase执行完后，才会进入下一个phase。

4）上述代码总共运行了2us，因为run_phase(1us)与reset_phase(1us)、main_phase(1us)并行执行，总共运行2us。
