1.zk选举流程

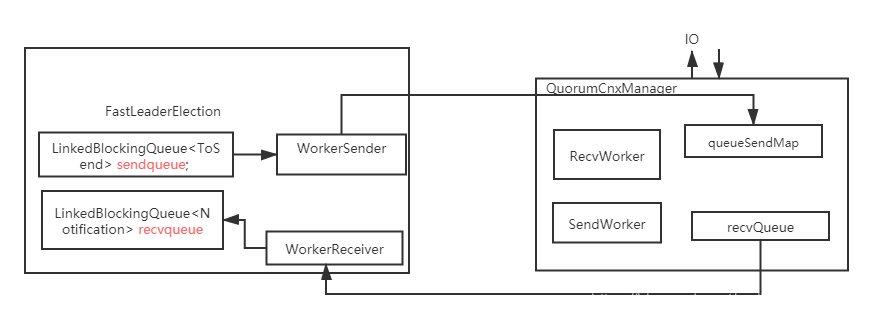

FastLeaderElection 选举过程其实在这个投票过程中就涉及到几个类，FastLeaderElection：FastLeaderElection 实现了 Election 接口，实现各服务器之间基于 TCP 协议进行选举Notification：内部类，Notification 表示收到的选举投票信息（其他服务器发来的选举投票信息），其包含了被选举者的 id、zxid、选举周期等信息ToSend：ToSend表示发送给其他服务器的选举投票信息，也包含了被选举者的 id、zxid、选举周期等信息
Messenger ： Messenger 包含了 WorkerReceiver 和WorkerSender 两个内部类；WorkerReceiver 实现了 Runnable 接口，是选票接收器。其会不断地从 QuorumCnxManager 中获取其他服务器发来的选举消息，并将其转换成一个选票，然后保存到recvqueue 中WorkerSender 也实现了 Runnable 接口，为选票发送器，其会不断地从 sendqueue 中获取待发送的选票，并将其传递到底层 QuorumCnxManager 中。
2.相关源码分析
2.1 QuorumCnxManager
QuorumCnxManager :
// key=serverId(myid) value = 保存着当前服务器向其他服务器发送消息的队列
final ConcurrentHashMap<Long, ArrayBlockingQueue<ByteBuffer>> queueSendMap;
/*
* Reception queue
* 收到的其他服务器发送过来的msg
*/
public final ArrayBlockingQueue<Message> recvQueue;
涉及的两个内部类
2.1.1 SendWorker的run()
public void run() {
threadCnt.incrementAndGet();
try {
//在SendWorker中，一旦Zookeeper发现针对当前服务器的消息发送队列为空，
// 那么此时需要从lastMessageSent中取出一个最近发送过的消息来进行再次发送，
// 这是为了解决接收方在消息接收前或者接收到消息后服务器挂了，导致消息尚未被正确处理。
// 同时，Zookeeper能够保证接收方在处理消息时，会对重复消息进行正确的处理
ArrayBlockingQueue<ByteBuffer> bq = queueSendMap.get(sid);
if (bq == null || isSendQueueEmpty(bq)) {
//筛选最近发送过的消息
ByteBuffer b = lastMessageSent.get(sid);
if (b != null) {
LOG.debug("Attempting to send lastMessage to sid=" + sid);
send(b);
}
}
} catch (IOException e) {
LOG.error("Failed to send last message. Shutting down thread.", e);
this.finish();
}
try {
while (running && !shutdown && sock != null) {
ByteBuffer b = null;
try {
ArrayBlockingQueue<ByteBuffer> bq = queueSendMap
.get(sid);
if (bq != null) {
b = pollSendQueue(bq, 1000, TimeUnit.MILLISECONDS);//从queueSendMap key-sid value 对应的发送队列移除一个发送消息
} else {
LOG.error("No queue of incoming messages for " +
"server " + sid);
break;
}
if(b != null){
lastMessageSent.put(sid, b);
send(b);//发送消息
}
} catch (InterruptedException e) {
LOG.warn("Interrupted while waiting for message on queue",
e);
}
}
} catch (Exception e) {
LOG.warn("Exception when using channel: for id " + sid + " my id = " +
self.getId() + " error = " + e);
}
this.finish();
LOG.warn("Send worker leaving thread " + " id " + sid + " my id = " + self.getId());
}
}
synchronized boolean finish() {
LOG.debug("Calling finish for " + sid);
if(!running){
/*
* Avoids running finish() twice.
*/
return running;
}
running = false;
closeSocket(sock);
this.interrupt();
if (recvWorker != null) {
recvWorker.finish();
}
LOG.debug("Removing entry from senderWorkerMap sid=" + sid);
//send方法发送消息之后，移除key为sid的消息
senderWorkerMap.remove(sid, this);
threadCnt.decrementAndGet();
return running;
}
2.1.2 RecvWorker的run()
通过socket的输入流将收到的消息读取后recvQueue队列
public void run() {
threadCnt.incrementAndGet();
try {
while (running && !shutdown && sock != null) {
/**
* Reads the first int to determine the length of the
* message
*/
int length = din.readInt();
if (length <= 0 || length > PACKETMAXSIZE) {
throw new IOException(
"Received packet with invalid packet: "
+ length);
}
/**
* Allocates a new ByteBuffer to receive the message
*/
byte[] msgArray = new byte[length];
din.readFully(msgArray, 0, length);
ByteBuffer message = ByteBuffer.wrap(msgArray);
addToRecvQueue(new Message(message.duplicate(), sid));
}
} catch (Exception e) {
LOG.warn("Connection broken for id " + sid + ", my id = " +
self.getId() + ", error = " , e);
} finally {
LOG.warn("Interrupting SendWorker");
sw.finish();
closeSocket(sock);
}
}
}
2.2 FastLeaderElection
实现了Election接口
public interface Election {
public Vote lookForLeader() throws InterruptedException;//选举方法
public void shutdown();
}
FastLeaderElection内部有Notification、ToSend、Messager内部类
表示消息的结构类：
Notification类：消息结构，当本server改变了所选举的leader时向其他server发送消息用的数据结构。该类包括了5个主要数据：
Leader – 本server想要选举的leader的id(server id)
Zxid – 本server想要选举的leader的zxid
Epoch – 标识算法instance中的一个round
State – 本server的当前状态(包括looking，leading，following，observing)
Sid – 发送方服务器id
ToSend类：消息结构，server传递消息的数据结构
Leader – 本server想要选举的leader的id(server id)
Zxid – 本server想要选举的leader的zxid
Epoch – 标识算法instance中的一个round
State – 本server的当前状态(包括looking，leading，following，observing)
Sid – 接收方服务器id
2.2.1 Messager的WorkerSender
public void run() {
while (!stop) {
try {
//从发送队列中获取消息实体
ToSend m = sendqueue.poll(3000, TimeUnit.MILLISECONDS);
if(m == null) continue;
process(m);
} catch (InterruptedException e) {
break;
}
}
LOG.info("WorkerSender is down");
}
void process(ToSend m) {
ByteBuffer requestBuffer = buildMsg(m.state.ordinal(),
m.leader,
m.zxid,
m.electionEpoch,
m.peerEpoch,
m.configData);
manager.toSend(m.sid, requestBuffer);
}
这里调用了QuorumCnxManager的toSend方法
public void toSend(Long sid, ByteBuffer b) {
/*
* If sending message to myself, then simply enqueue it (loopback).
*/
if (self.getId() == sid) { //如果是自己，就不走网络发送，直接添加到本地接收队列
b.position(0);
addToRecvQueue(new Message(b.duplicate(), sid));
/*
* Otherwise send to the corresponding thread to send.
*/
} else {
//发送给别的节点，判断之前是不是发送过
ArrayBlockingQueue<ByteBuffer> bq = new ArrayBlockingQueue<ByteBuffer>(
SEND_CAPACITY);
//这个SEND_CAPACITY的大小是1，所以如果之前已经有一个还在等待发送，则会把之前的一个删除掉，发送新的（queueSendMap.putIfAbsent这个方法如果返回为空，说明为新插入的key）
ArrayBlockingQueue<ByteBuffer> oldq = queueSendMap.putIfAbsent(sid, bq);
if (oldq != null) {//发送过 queueSendMap 里面的队列值进行了更新
addToSendQueue(oldq, b);
} else {
addToSendQueue(bq, b);
}
//这里是真正的发送逻辑了
connectOne(sid);
}
}l
2.2.2 Messager的WorkerReceiver
从RquorumCnxManage的recvQueue中获取消息，并将其转换成一个选票，然后保存到
recvqueue (类型为Notication)中
public void run() {
Message response;
while (!stop) {
// Sleeps on receive
try {//quorumCnxManager
response = manager.pollRecvQueue(3000, TimeUnit.MILLISECONDS);
if(response == null) continue;
// The current protocol and two previous generations all send at least 28 bytes
if (response.buffer.capacity() < 28) {
LOG.error("Got a short response: " + response.buffer.capacity());
continue;
}
boolean backCompatibility28 = (response.buffer.capacity() == 28);
// this is the backwardCompatibility mode for no version information
boolean backCompatibility40 = (response.buffer.capacity() == 40);
response.buffer.clear();
// Instantiate Notification and set its attributes
Notification n = new Notification();
int rstate = response.buffer.getInt();
long rleader = response.buffer.getLong();
long rzxid = response.buffer.getLong();
long relectionEpoch = response.buffer.getLong();
long rpeerepoch;
int version = 0x0;
if (!backCompatibility28) {
rpeerepoch = response.buffer.getLong();
if (!backCompatibility40) {
/*
* Version added in 3.4.6
*/
version = response.buffer.getInt();
} else {
LOG.info("Backward compatibility mode (36 bits), server id: {}", response.sid);
}
} else {
LOG.info("Backward compatibility mode (28 bits), server id: {}", response.sid);
rpeerepoch = ZxidUtils.getEpochFromZxid(rzxid);
}
QuorumVerifier rqv = null;
// check if we have a version that includes config. If so extract config info from message.
if (version > 0x1) {
int configLength = response.buffer.getInt();
byte b[] = new byte[configLength];
response.buffer.get(b);
synchronized(self) {
try {
rqv = self.configFromString(new String(b));
QuorumVerifier curQV = self.getQuorumVerifier();
if (rqv.getVersion() > curQV.getVersion()) {
LOG.info("{} Received version: {} my version: {}", self.getId(),
Long.toHexString(rqv.getVersion()),
Long.toHexString(self.getQuorumVerifier().getVersion()));
if (self.getPeerState() == ServerState.LOOKING) {
LOG.debug("Invoking processReconfig(), state: {}", self.getServerState());
self.processReconfig(rqv, null, null, false);
if (!rqv.equals(curQV)) {
LOG.info("restarting leader election");
self.shuttingDownLE = true;
self.getElectionAlg().shutdown();
break;
}
} else {
LOG.debug("Skip processReconfig(), state: {}", self.getServerState());
}
}
} catch (IOException e) {
LOG.error("Something went wrong while processing config received from {}", response.sid);
} catch (ConfigException e) {
LOG.error("Something went wrong while processing config received from {}", response.sid);
}
}
} else {
LOG.info("Backward compatibility mode (before reconfig), server id: {}", response.sid);
}
/*
* If it is from a non-voting server (such as an observer or
* a non-voting follower), respond right away.
*/
if(!self.getCurrentAndNextConfigVoters().contains(response.sid)) {
Vote current = self.getCurrentVote();
QuorumVerifier qv = self.getQuorumVerifier();
ToSend notmsg = new ToSend(ToSend.mType.notification,
current.getId(),
current.getZxid(),
logicalclock.get(),
self.getPeerState(),
response.sid,
current.getPeerEpoch(),
qv.toString().getBytes());
sendqueue.offer(notmsg);
} else {
// Receive new message
if (LOG.isDebugEnabled()) {
LOG.debug("Receive new notification message. My id = "
+ self.getId());
}
// State of peer that sent this message
QuorumPeer.ServerState ackstate = QuorumPeer.ServerState.LOOKING;
switch (rstate) {
case 0:
ackstate = QuorumPeer.ServerState.LOOKING;
break;
case 1:
ackstate = QuorumPeer.ServerState.FOLLOWING;
break;
case 2:
ackstate = QuorumPeer.ServerState.LEADING;
break;
case 3:
ackstate = QuorumPeer.ServerState.OBSERVING;
break;
default:
continue;
}
n.leader = rleader;
n.zxid = rzxid;
n.electionEpoch = relectionEpoch;
n.state = ackstate;
n.sid = response.sid;
n.peerEpoch = rpeerepoch;
n.version = version;
n.qv = rqv;
/*
* Print notification info
*/
if(LOG.isInfoEnabled()){
printNotification(n);
}
/*
* If this server is looking, then send proposed leader
*/
if(self.getPeerState() == QuorumPeer.ServerState.LOOKING){
recvqueue.offer(n);//加入到recvqueue队列
/*
* Send a notification back if the peer that sent this
* message is also looking and its logical clock is
* lagging behind.
*/
if((ackstate == QuorumPeer.ServerState.LOOKING)
&& (n.electionEpoch < logicalclock.get())){
Vote v = getVote();
QuorumVerifier qv = self.getQuorumVerifier();
ToSend notmsg = new ToSend(ToSend.mType.notification,
v.getId(),
v.getZxid(),
logicalclock.get(),
self.getPeerState(),
response.sid,
v.getPeerEpoch(),
qv.toString().getBytes());
sendqueue.offer(notmsg);
}
} else {
/*
* If this server is not looking, but the one that sent the ack
* is looking, then send back what it believes to be the leader.
*/
Vote current = self.getCurrentVote();
if(ackstate == QuorumPeer.ServerState.LOOKING){
if(LOG.isDebugEnabled()){
LOG.debug("Sending new notification. My id ={} recipient={} zxid=0x{} leader={} config version = {}",
self.getId(),
response.sid,
Long.toHexString(current.getZxid()),
current.getId(),
Long.toHexString(self.getQuorumVerifier().getVersion()));
}
QuorumVerifier qv = self.getQuorumVerifier();
ToSend notmsg = new ToSend(
ToSend.mType.notification,
current.getId(),
current.getZxid(),
current.getElectionEpoch(),
self.getPeerState(),
response.sid,
current.getPeerEpoch(),
qv.toString().getBytes());
sendqueue.offer(notmsg);
}
}
}
} catch (InterruptedException e) {
LOG.warn("Interrupted Exception while waiting for new message" +
e.toString());
}
}
LOG.info("WorkerReceiver is down");
}
}
``
3.选举流程
先从入口函数QuorumPeerMain：
public static void main(String[] args) {
QuorumPeerMain main = new QuorumPeerMain();
try {
main.initializeAndRun(args);
```
}
}
protected void initializeAndRun(String[] args)
throws ConfigException, IOException, AdminServerException
{
QuorumPeerConfig config = new QuorumPeerConfig();
if (args.length == 1) {
config.parse(args[0]);
}
// Start and schedule the the purge task
DatadirCleanupManager purgeMgr = new DatadirCleanupManager(config
.getDataDir(), config.getDataLogDir(), config
.getSnapRetainCount(), config.getPurgeInterval());
purgeMgr.start();
//判断是standalone模式还是集群模式
if (args.length == 1 && config.isDistributed()) {
runFromConfig(config);
} else {
LOG.warn("Either no config or no quorum defined in config, running "
+ " in standalone mode");
// there is only server in the quorum -- run as standalone
ZooKeeperServerMain.main(args);
}
}
public void runFromConfig(QuorumPeerConfig config)
throws IOException, AdminServerException
{
```````
LOG.info("Starting quorum peer");
try {
ServerCnxnFactory cnxnFactory = null;
ServerCnxnFactory secureCnxnFactory = null;
//为客户端提供读写的server， 也就是2181这个端口的访问功能
if (config.getClientPortAddress() != null) {
cnxnFactory = ServerCnxnFactory.createFactory();
cnxnFactory.configure(config.getClientPortAddress(),
config.getMaxClientCnxns(),
false);
}
``````
//ZK的逻辑主线程，负责选举、投票
quorumPeer = getQuorumPeer();
quorumPeer.setTxnFactory(new FileTxnSnapLog(
config.getDataLogDir(),
config.getDataDir()));
quorumPeer.enableLocalSessions(config.areLocalSessionsEnabled());
quorumPeer.enableLocalSessionsUpgrading(
config.isLocalSessionsUpgradingEnabled());
//quorumPeer.setQuorumPeers(config.getAllMembers());
quorumPeer.setElectionType(config.getElectionAlg());
quorumPeer.setMyid(config.getServerId());
quorumPeer.setTickTime(config.getTickTime());
quorumPeer.setMinSessionTimeout(config.getMinSessionTimeout());
quorumPeer.setMaxSessionTimeout(config.getMaxSessionTimeout());
quorumPeer.setInitLimit(config.getInitLimit());
quorumPeer.setSyncLimit(config.getSyncLimit());
quorumPeer.setConfigFileName(config.getConfigFilename());
quorumPeer.setZKDatabase(new ZKDatabase(quorumPeer.getTxnFactory()));
quorumPeer.setQuorumVerifier(config.getQuorumVerifier(), false);
if (config.getLastSeenQuorumVerifier()!=null) {
quorumPeer.setLastSeenQuorumVerifier(config.getLastSeenQuorumVerifier(), false);
}
quorumPeer.initConfigInZKDatabase();
quorumPeer.setCnxnFactory(cnxnFactory);
quorumPeer.setSecureCnxnFactory(secureCnxnFactory);
quorumPeer.setLearnerType(config.getPeerType());
quorumPeer.setSyncEnabled(config.getSyncEnabled());
quorumPeer.setQuorumListenOnAllIPs(config.getQuorumListenOnAllIPs());
quorumPeer.start();//启动主线程，QuorumPeer 重写了 Thread.start 方法
quorumPeer.join();
}
quorumPeer.start()方法
public synchronized void start() {
if (!getView().containsKey(myid)) {
throw new RuntimeException("My id " + myid + " not in the peer list");
}
loadDataBase(); //恢复DB
startServerCnxnFactory();
try {
adminServer.start();
} catch (AdminServerException e) {
LOG.warn("Problem starting AdminServer", e);
System.out.println(e);
}
startLeaderElection();//选举初始化
super.start();
}
loadDataBase方法：DB、zxid、epoch从本地文件中恢复数据
private void loadDataBase() {
try {
zkDb.loadDataBase(); //从本地文件恢复db
// load the epochs
//从最新的zxid恢复epoch变量、zxid64位，前32位是epoch的值，后32位是zxid
long lastProcessedZxid = zkDb.getDataTree().lastProcessedZxid;
long epochOfZxid = ZxidUtils.getEpochFromZxid(lastProcessedZxid);
try {
//从文件中读取当前的epoch
currentEpoch = readLongFromFile(CURRENT_EPOCH_FILENAME);
} catch(FileNotFoundException e) {
// pick a reasonable epoch number
// this should only happen once when moving to a
// new code version
currentEpoch = epochOfZxid;
LOG.info(CURRENT_EPOCH_FILENAME
+ " not found! Creating with a reasonable default of {}. This should only happen when you are upgrading your installation",
currentEpoch);
writeLongToFile(CURRENT_EPOCH_FILENAME, currentEpoch);
}
if (epochOfZxid > currentEpoch) {
throw new IOException("The current epoch, " + ZxidUtils.zxidToString(currentEpoch) + ", is older than the last zxid, " + lastProcessedZxid);
}
try {
//从文件中读取接收的epoch
acceptedEpoch = readLongFromFile(ACCEPTED_EPOCH_FILENAME);
} catch(FileNotFoundException e) {
// pick a reasonable epoch number
// this should only happen once when moving to a
// new code version
acceptedEpoch = epochOfZxid;
LOG.info(ACCEPTED_EPOCH_FILENAME
+ " not found! Creating with a reasonable default of {}. This should only happen when you are upgrading your installation",
acceptedEpoch);
writeLongToFile(ACCEPTED_EPOCH_FILENAME, acceptedEpoch);
}
if (acceptedEpoch < currentEpoch) {
throw new IOException("The accepted epoch, " + ZxidUtils.zxidToString(acceptedEpoch) + " is less than the current epoch, " + ZxidUtils.zxidToString(currentEpoch));
}
} catch(IOException ie) {
LOG.error("Unable to load database on disk", ie);
throw new RuntimeException("Unable to run quorum server ", ie);
}
}
startLeaderElection选举初始化，第一票首先都是投给自己。electionType默认值为3
synchronized public void startLeaderElection() {
try {
//如果当前节点的状态是LOOKING，则投票给自己
if (getPeerState() == ServerState.LOOKING) {
currentVote = new Vote(myid, getLastLoggedZxid(), getCurrentEpoch());
}
} catch(IOException e) {
RuntimeException re = new RuntimeException(e.getMessage());
re.setStackTrace(e.getStackTrace());
throw re;
}
//根据配置获取选举选法
this.electionAlg = createElectionAlgorithm(electionType);
}
采用策略模式决定使用哪种选举算法
protected Election createElectionAlgorithm(int electionAlgorithm){
//采用策略模式
Election le=null;
//TODO: use a factory rather than a switch
switch (electionAlgorithm) {
case 1:
le = new AuthFastLeaderElection(this);
break;
case 2:
le = new AuthFastLeaderElection(this, true);
break;
case 3:
//Leader选举IO负责类
qcm = new QuorumCnxManager(this);
QuorumCnxManager.Listener listener = qcm.listener;
if(listener != null){
listener.start(); //启动已绑定端口的选举线程，等待集群中其他机器连接
//基于TCP的选举算法
FastLeaderElection fle = new FastLeaderElection(this, qcm);
fle.start();
le = fle;
} else {
LOG.error("Null listener when initializing cnx manager");
}
break;
default:
assert false;
}
return le;
}
fle.start()方法启动FastLeaderElection
FastLeaderElection初始化发送队列sendqueue 和 接收队列 recvqueue
public FastLeaderElection(QuorumPeer self, QuorumCnxManager manager){
this.stop = false;
this.manager = manager;
starter(self, manager);
}
private void starter(QuorumPeer self, QuorumCnxManager manager) {
this.self = self;
proposedLeader = -1;
proposedZxid = -1;
//业务层发送队列，业务对象ToSend
sendqueue = new LinkedBlockingQueue<ToSend>();
//业务层接收队列，业务对象Notification
recvqueue = new LinkedBlockingQueue<Notification>();
this.messenger = new Messenger(manager);
}
FastLeaderElection内部类
Messenger(QuorumCnxManager manager) {
this.ws = new WorkerSender(manager);
this.wsThread = new Thread(this.ws,
"WorkerSender[myid=" + self.getId() + "]");
this.wsThread.setDaemon(true);
this.wr = new WorkerReceiver(manager);
this.wrThread = new Thread(this.wr,
"WorkerReceiver[myid=" + self.getId() + "]");
this.wrThread.setDaemon(true);
}
start(){
this.wsThread.start();//启动发送线程
this.wrThread.start();//启动接收线程
}
选举初始化完成后，最后调用super.start();即运行 QuorumPeer 的run 方法
public void run() {
updateThreadName();
LOG.debug("Starting quorum peer");
try { //此处通过JMX来监控一些属性
`````````
try {
/*
* Main loop
*/
while (running) {
switch (getPeerState()) { //判断当前节点的状态
case LOOKING: //如果是LOOKING，则进入选举流程
LOG.info("LOOKING");
if (Boolean.getBoolean("readonlymode.enabled")) {
LOG.info("Attempting to start ReadOnlyZooKeeperServer");
// Create read-only server but don't start it immediately
final ReadOnlyZooKeeperServer roZk =
new ReadOnlyZooKeeperServer(logFactory, this, this.zkDb);
Thread roZkMgr = new Thread() {
public void run() {
try {
// lower-bound grace period to 2 secs
sleep(Math.max(2000, tickTime));
if (ServerState.LOOKING.equals(getPeerState())) {
roZk.startup();
}
} catch (InterruptedException e) {
LOG.info("Interrupted while attempting to start ReadOnlyZooKeeperServer, not started");
} catch (Exception e) {
LOG.error("FAILED to start ReadOnlyZooKeeperServer", e);
}
}
};
try {
roZkMgr.start();
reconfigFlagClear();
if (shuttingDownLE) {
shuttingDownLE = false;
startLeaderElection();
}
//此处通过策略模式来决定当前用哪个选举算法来进行领导选举
setCurrentVote(makeLEStrategy().lookForLeader());
} catch (Exception e) {
LOG.warn("Unexpected exception", e);
setPeerState(ServerState.LOOKING);
} finally {
// If the thread is in the the grace period, interrupt
// to come out of waiting.
roZkMgr.interrupt();
roZk.shutdown();
}
} else {
try {
reconfigFlagClear();
if (shuttingDownLE) {
shuttingDownLE = false;
startLeaderElection();
}
setCurrentVote(makeLEStrategy().lookForLeader());
} catch (Exception e) {
LOG.warn("Unexpected exception", e);
setPeerState(ServerState.LOOKING);
}
}
break;
case OBSERVING:
try {
LOG.info("OBSERVING");
setObserver(makeObserver(logFactory));
observer.observeLeader();
} catch (Exception e) {
LOG.warn("Unexpected exception",e );
} finally {
observer.shutdown();
setObserver(null);
updateServerState();
}
break;
case FOLLOWING:
try {
LOG.info("FOLLOWING");
setFollower(makeFollower(logFactory));
follower.followLeader();
} catch (Exception e) {
LOG.warn("Unexpected exception",e);
} finally {
follower.shutdown();
setFollower(null);
updateServerState();
}
break;
case LEADING:
LOG.info("LEADING");
try {
setLeader(makeLeader(logFactory));
leader.lead();
setLeader(null);
} catch (Exception e) {
LOG.warn("Unexpected exception",e);
} finally {
if (leader != null) {
leader.shutdown("Forcing shutdown");
setLeader(null);
}
updateServerState();
}
break;
}
start_fle = Time.currentElapsedTime();
}
} finally {
LOG.warn("QuorumPeer main thread exited");
MBeanRegistry instance = MBeanRegistry.getInstance();
instance.unregister(jmxQuorumBean);
instance.unregister(jmxLocalPeerBean);
for (RemotePeerBean remotePeerBean : jmxRemotePeerBean.values()) {
instance.unregister(remotePeerBean);
}
jmxQuorumBean = null;
jmxLocalPeerBean = null;
jmxRemotePeerBean = null;
}
}
makeLEStrategy().lookForLeader()为策略模式进行选举。
判断过程为:
（1）先投票给自己，发送投票，包括发送给自己2
（2）判断收到消息的节点的状态
第一种：
Looking:当前sid是不是这个集群中的选举
2.1 逻辑时钟的判断：
1）n.electionEpoch > logicalclock.get() 说明本机的消息已经过时，那么这个时候需要更新本地的logicalclock值，清空recvset。还需要比较本地的zxid、epoch、serverId与消息中的这三个值。谁大谁最更新为proposal进行广播
2）n.electionEpoch < logicalclock.get() 如果收到的消息epoch小于当前节点的epoch，则忽略这条消息
3）如果是epoch相同的话，就继续比较zxid、myid，如果胜出，则更新自己的票据，并且发出广播
2.2 把接收的消息放入recvset，方便后期进行票数的合计
2.3 判断选举是否结束，默认算法是超过半数server同意
2.4 确定leader，修改状态，返回最后的选举结果Vote
第二种
FOLLOWING或者LEADING
根据n.electionEpoch 和logicalclock.get， 从而判断epoch是否相同
相同的话，将收到的投票信息加入到本机的投票集合
termPredicate方法判断投票是否结束，如果结束，再确认LEADER是否有效
进而修改自己的状态并返回投票结果
//收到的投票
HashMap<Long, Vote> recvset = new HashMap<Long, Vote>();
//存储选举结果
HashMap<Long, Vote> outofelection = new HashMap<Long, Vote>();
int notTimeout = finalizeWait;
synchronized(this){
logicalclock.incrementAndGet(); //增加逻辑时钟（每选举一次就会新增1）
//proposal设置为自己的zxid和epoch
updateProposal(getInitId(), getInitLastLoggedZxid(), getPeerEpoch());
}
LOG.info("New election. My id = " + self.getId() +
", proposed zxid=0x" + Long.toHexString(proposedZxid));
sendNotifications(); //发送投票，包括发送给自己(消息入队sendqueue)
········
//具体的判断逻辑
while ((self.getPeerState() == ServerState.LOOKING) &&
(!stop)){
//主循环，直到选举出leader
/*
* Remove next notification from queue, times out after 2 times
* the termination time
*/
// 从IO线程里拿到投票消息，自己的投票也在这里处理
//LinkedBlockedQueue()
Notification n = recvqueue.poll(notTimeout,
TimeUnit.MILLISECONDS);
/*
* Sends more notifications if haven't received enough.
* Otherwise processes new notification.
*/
if(n == null){
//如果空闲的情况下，消息发完了，继续发送，一直到选出leader为止
if(manager.haveDelivered()){
sendNotifications();
} else {
//消息还没投递出去，可能是其他server还没启动，尝试再连接
manager.connectAll();
}
/*
* Exponential backoff
*/
//延长超时时间
int tmpTimeOut = notTimeout*2;
notTimeout = (tmpTimeOut < maxNotificationInterval?
tmpTimeOut : maxNotificationInterval);
LOG.info("Notification time out: " + notTimeout);
}
//收到了投票消息，判断收到的消息中带有的serverId是不是属于这个集群内
else if (self.getCurrentAndNextConfigVoters().contains(n.sid)) {
/*
* Only proceed if the vote comes from a replica in the current or next
* voting view.
*/
switch (n.state) {//判断收到消息的节点的状态
case LOOKING:
if (getInitLastLoggedZxid() == -1) {
LOG.debug("Ignoring notification as our zxid is -1");
break;
}
if (n.zxid == -1) {
LOG.debug("Ignoring notification from member with -1 zxid" + n.sid);
break;
}
// If notification > current, replace and send messages out
//判断接收到的节点epoch大于logicalclock，则表示当前是新一轮的选举（选举信息已经过期，需要更新本地信息）
if (n.electionEpoch > logicalclock.get()) {
logicalclock.set(n.electionEpoch); //更新本地的logicalclock
recvset.clear(); //清空接收队列
//检查收到的这个消息是否可以胜出，一次比较epoch，zxid、myid
if(totalOrderPredicate(n.leader, n.zxid, n.peerEpoch,
getInitId(), getInitLastLoggedZxid(), getPeerEpoch())) {
//胜出以后，把投票改为对方的票据
updateProposal(n.leader, n.zxid, n.peerEpoch);
} else {//否则，票据不变
updateProposal(getInitId(),
getInitLastLoggedZxid(),
getPeerEpoch());
}
sendNotifications();//继续广播消息，让其他节点知道我现在的票据
//如果收到的消息epoch小于当前节点的epoch，则忽略这条消息
} else if (n.electionEpoch < logicalclock.get()) {
if(LOG.isDebugEnabled()){
LOG.debug("Notification election epoch is smaller than logicalclock. n.electionEpoch = 0x"
+ Long.toHexString(n.electionEpoch)
+ ", logicalclock=0x" + Long.toHexString(logicalclock.get()));
}
break;
//如果是epoch相同的话，就继续比较zxid、myid，如果胜出，则更新自己的票据，并且发出广播
} else if (totalOrderPredicate(n.leader, n.zxid, n.peerEpoch,
proposedLeader, proposedZxid, proposedEpoch)) {
updateProposal(n.leader, n.zxid, n.peerEpoch);
sendNotifications();
}
if(LOG.isDebugEnabled()){
LOG.debug("Adding vote: from=" + n.sid +
", proposed leader=" + n.leader +
", proposed zxid=0x" + Long.toHexString(n.zxid) +
", proposed election epoch=0x" + Long.toHexString(n.electionEpoch));
}
//添加到本机投票集合，用来做选举终结判断
recvset.put(n.sid, new Vote(n.leader, n.zxid, n.electionEpoch, n.peerEpoch));
//判断选举是否结束，默认算法是超过半数server同意
if (termPredicate(recvset,
new Vote(proposedLeader, proposedZxid,
logicalclock.get(), proposedEpoch))) {
// Verify if there is any change in the proposed leader
//一直等新的notification到达，直到超时
while((n = recvqueue.poll(finalizeWait,
TimeUnit.MILLISECONDS)) != null){
if(totalOrderPredicate(n.leader, n.zxid, n.peerEpoch,
proposedLeader, proposedZxid, proposedEpoch)){
recvqueue.put(n);
break;
}
}
/*
* This predicate is true once we don't read any new
* relevant message from the reception queue
*/
//确定leader
if (n == null) {
//修改状态，LEADING or FOLLOWING
self.setPeerState((proposedLeader == self.getId()) ?
ServerState.LEADING: learningState());
//返回最终投票结果
Vote endVote = new Vote(proposedLeader,
proposedZxid, proposedEpoch);
leaveInstance(endVote);
return endVote;
}
}
break;
//如果收到的选票状态不是LOOKING，比如这台机器刚加入一个已经正在运行的zk集群时
//OBSERVING机器不参数选举
case OBSERVING:
LOG.debug("Notification from observer: " + n.sid);
break;
//这2种需要参与选举
case FOLLOWING:
case LEADING:
/*
* Consider all notifications from the same epoch
* together.
*/
if(n.electionEpoch == logicalclock.get()){ //判断epoch是否相同
//加入到本机的投票集合
recvset.put(n.sid, new Vote(n.leader, n.zxid, n.electionEpoch, n.peerEpoch));
//投票是否结束，如果结束，再确认LEADER是否有效
//如果结束，修改自己的状态并返回投票结果
if(termPredicate(recvset, new Vote(n.leader,
n.zxid, n.electionEpoch, n.peerEpoch, n.state))
&& checkLeader(outofelection, n.leader, n.electionEpoch)) {
self.setPeerState((n.leader == self.getId()) ?
ServerState.LEADING: learningState());
Vote endVote = new Vote(n.leader, n.zxid, n.peerEpoch);
leaveInstance(endVote);
return endVote;
}
}
outofelection.put(n.sid, new Vote(n.leader,
IGNOREVALUE, IGNOREVALUE, n.peerEpoch, n.state));
if (termPredicate(outofelection, new Vote(n.leader,
IGNOREVALUE, IGNOREVALUE, n.peerEpoch, n.state))
&& checkLeader(outofelection, n.leader, IGNOREVALUE)) {
synchronized(this){
logicalclock.set(n.electionEpoch);
self.setPeerState((n.leader == self.getId()) ?
ServerState.LEADING: learningState());
}
Vote endVote = new Vote(n.leader, n.zxid, n.peerEpoch);
leaveInstance(endVote);
return endVote;
}
break;
default:
LOG.warn("Notification state unrecoginized: " + n.state
+ " (n.state), " + n.sid + " (n.sid)");
break;
}
} else {
LOG.warn("Ignoring notification from non-cluster member " + n.sid);
}
}
判断本地和接受消息的zxid、epoch和sid大小：
protected boolean totalOrderPredicate(long newId, long newZxid, long newEpoch, long curId, long curZxid, long curEpoch) {
LOG.debug("id: " + newId + ", proposed id: " + curId + ", zxid: 0x" +
Long.toHexString(newZxid) + ", proposed zxid: 0x" + Long.toHexString(curZxid));
if(self.getQuorumVerifier().getWeight(newId) == 0){
return false;
}
// 1.判断消息里的epoch是不是比当前的大，如果大则消息中id对应的服务器就是leader
// 2. 如果epoch相等则判断zxid，如果消息里的zxid大，则消息中id对应的服务器就是leader
// 3. 如果前面两个都相等那就比较服务器id，如果大，则其就是leader
return ((newEpoch > curEpoch) ||
((newEpoch == curEpoch) &&
((newZxid > curZxid) || ((newZxid == curZxid) && (newId > curId)))));
}
判断选举是否结束：
private boolean termPredicate(HashMap<Long, Vote> votes, Vote vote) {
SyncedLearnerTracker voteSet = new SyncedLearnerTracker();
voteSet.addQuorumVerifier(self.getQuorumVerifier());
if (self.getLastSeenQuorumVerifier() != null
&& self.getLastSeenQuorumVerifier().getVersion() > self
.getQuorumVerifier().getVersion()) {
voteSet.addQuorumVerifier(self.getLastSeenQuorumVerifier());
}
//遍历已经接收的投票集合，把等于当前投票的项放入set
for (Map.Entry<Long, Vote> entry : votes.entrySet()) {
if (vote.equals(entry.getValue())) {
voteSet.addAck(entry.getKey());
}
}
//统计set集合，查看投某个id的票数是否超过一半
return voteSet.hasAllQuorums();
}
public static class QuorumVerifierAcksetPair {
private final QuorumVerifier qv;
private final HashSet<Long> ackset;
public QuorumVerifierAcksetPair(QuorumVerifier qv, HashSet<Long> ackset) {
this.qv = qv;
this.ackset = ackset;
}
public QuorumVerifier getQuorumVerifier() {
return this.qv;
}
public HashSet<Long> getAckset() {
return this.ackset;
}
}
//ArrayList<QuorumVerifierAcksetPair> qvAcksetPairs
public boolean hasAllQuorums() {
for (QuorumVerifierAcksetPair qvAckset : qvAcksetPairs) {
if (!qvAckset.getQuorumVerifier().containsQuorum(qvAckset.getAckset()))
return false;
}
return true;
}
}
//QuorumMaj实现了QuorumVerifier接口，half = votingMembers.size() / 2;
public boolean containsQuorum(Set<Long> ackSet) {
return (ackSet.size() > half);
}
扫一扫
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
