springboot 集成 mybatis原理

自动装配

POM文件添加mybatis支持

        <dependency>
			<groupId>org.mybatis.spring.boot</groupId>
			<artifactId>mybatis-spring-boot-starter</artifactId>
			<version>2.1.4</version>
		</dependency>

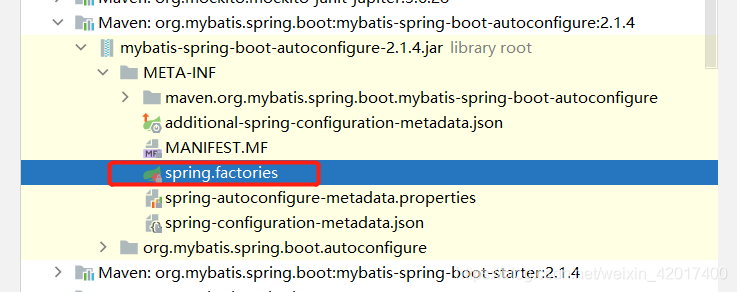

该starter会导入mybatis自动装配类MybatisAutoConfiguration.class

# Auto Configure
org.springframework.boot.autoconfigure.EnableAutoConfiguration=\
org.mybatis.spring.boot.autoconfigure.MybatisLanguageDriverAutoConfiguration,\
org.mybatis.spring.boot.autoconfigure.MybatisAutoConfiguration

MybatisAutoConfiguration.class主要做了如下几件事情：

1.构建SqlSessionFactory

2.构建SqlSessionTemplate：整合SqlSession与Spring事务

3.注册组件：MapperScannerConfigurer.class

Mapper自动扫描

可以通过@MapperScan("com.example.demo")注解执行扫描根路径org.mybatis.spring.mapper.MapperScannerConfigurer#postProcessBeanDefinitionRegistry

通过ClassPathMapperScanner.scan

-->doScan(basePackages)

-->processBeanDefinitions(beanDefinitions)

private void processBeanDefinitions(Set<BeanDefinitionHolder> beanDefinitions) {
    AbstractBeanDefinition definition;
    BeanDefinitionRegistry registry = getRegistry();
    for (BeanDefinitionHolder holder : beanDefinitions) {
      definition = (AbstractBeanDefinition) holder.getBeanDefinition();
      boolean scopedProxy = false;
      if (ScopedProxyFactoryBean.class.getName().equals(definition.getBeanClassName())) {
        definition = (AbstractBeanDefinition) Optional
            .ofNullable(((RootBeanDefinition) definition).getDecoratedDefinition())
            .map(BeanDefinitionHolder::getBeanDefinition).orElseThrow(() -> new IllegalStateException(
                "The target bean definition of scoped proxy bean not found. Root bean definition[" + holder + "]"));
        scopedProxy = true;
      }
      String beanClassName = definition.getBeanClassName();
      LOGGER.debug(() -> "Creating MapperFactoryBean with name '" + holder.getBeanName() + "' and '" + beanClassName
          + "' mapperInterface");

      // the mapper interface is the original class of the bean
      // but, the actual class of the bean is MapperFactoryBean
      definition.getConstructorArgumentValues().addGenericArgumentValue(beanClassName); // issue #59
      definition.setBeanClass(this.mapperFactoryBeanClass);

      definition.getPropertyValues().add("addToConfig", this.addToConfig);

      // Attribute for MockitoPostProcessor
      // https://github.com/mybatis/spring-boot-starter/issues/475
      definition.setAttribute(FACTORY_BEAN_OBJECT_TYPE, beanClassName);

      boolean explicitFactoryUsed = false;
      if (StringUtils.hasText(this.sqlSessionFactoryBeanName)) {
        definition.getPropertyValues().add("sqlSessionFactory",
            new RuntimeBeanReference(this.sqlSessionFactoryBeanName));
        explicitFactoryUsed = true;
      } else if (this.sqlSessionFactory != null) {
        definition.getPropertyValues().add("sqlSessionFactory", this.sqlSessionFactory);
        explicitFactoryUsed = true;
      }

      if (StringUtils.hasText(this.sqlSessionTemplateBeanName)) {
        if (explicitFactoryUsed) {
          LOGGER.warn(
              () -> "Cannot use both: sqlSessionTemplate and sqlSessionFactory together. sqlSessionFactory is ignored.");
        }
        definition.getPropertyValues().add("sqlSessionTemplate",
            new RuntimeBeanReference(this.sqlSessionTemplateBeanName));
        explicitFactoryUsed = true;
      } else if (this.sqlSessionTemplate != null) {
        if (explicitFactoryUsed) {
          LOGGER.warn(
              () -> "Cannot use both: sqlSessionTemplate and sqlSessionFactory together. sqlSessionFactory is ignored.");
        }
        definition.getPropertyValues().add("sqlSessionTemplate", this.sqlSessionTemplate);
        explicitFactoryUsed = true;
      }

      if (!explicitFactoryUsed) {
        LOGGER.debug(() -> "Enabling autowire by type for MapperFactoryBean with name '" + holder.getBeanName() + "'.");
        definition.setAutowireMode(AbstractBeanDefinition.AUTOWIRE_BY_TYPE);
      }

      definition.setLazyInit(lazyInitialization);

      if (scopedProxy) {
        continue;
      }

      if (ConfigurableBeanFactory.SCOPE_SINGLETON.equals(definition.getScope()) && defaultScope != null) {
        definition.setScope(defaultScope);
      }

      if (!definition.isSingleton()) {
        BeanDefinitionHolder proxyHolder = ScopedProxyUtils.createScopedProxy(holder, registry, true);
        if (registry.containsBeanDefinition(proxyHolder.getBeanName())) {
          registry.removeBeanDefinition(proxyHolder.getBeanName());
        }
        registry.registerBeanDefinition(proxyHolder.getBeanName(), proxyHolder.getBeanDefinition());
      }

    }
  }

最终会通过MapperFactoryBean.getObject()方法创建mapper实例

Mapper代理对象的调用

通过org.apache.ibatis.binding.MapperProxy#invoke调用，最终会通过org.apache.ibatis.binding.MapperMethod#execute根据sql语句类型执行SqlSession对应的操作

 public Object execute(SqlSession sqlSession, Object[] args) {
    Object result;
    switch (command.getType()) {
      case INSERT: {
        Object param = method.convertArgsToSqlCommandParam(args);
        result = rowCountResult(sqlSession.insert(command.getName(), param));
        break;
      }
      case UPDATE: {
        Object param = method.convertArgsToSqlCommandParam(args);
        result = rowCountResult(sqlSession.update(command.getName(), param));
        break;
      }
      case DELETE: {
        Object param = method.convertArgsToSqlCommandParam(args);
        result = rowCountResult(sqlSession.delete(command.getName(), param));
        break;
      }
      case SELECT:
        if (method.returnsVoid() && method.hasResultHandler()) {
          executeWithResultHandler(sqlSession, args);
          result = null;
        } else if (method.returnsMany()) {
          result = executeForMany(sqlSession, args);
        } else if (method.returnsMap()) {
          result = executeForMap(sqlSession, args);
        } else if (method.returnsCursor()) {
          result = executeForCursor(sqlSession, args);
        } else {
          Object param = method.convertArgsToSqlCommandParam(args);
          result = sqlSession.selectOne(command.getName(), param);
          if (method.returnsOptional()
              && (result == null || !method.getReturnType().equals(result.getClass()))) {
            result = Optional.ofNullable(result);
          }
        }
        break;
      case FLUSH:
        result = sqlSession.flushStatements();
        break;
      default:
        throw new BindingException("Unknown execution method for: " + command.getName());
    }
    if (result == null && method.getReturnType().isPrimitive() && !method.returnsVoid()) {
      throw new BindingException("Mapper method '" + command.getName()
          + " attempted to return null from a method with a primitive return type (" + method.getReturnType() + ").");
    }
    return result;
  }
