three.js-顶点

点

在这里插入图片描述

let geometry = new THREE.BufferGeometry();
let vertices = new Float32Array([
    0, 0, 0, //顶点1坐标
    50, 0, 0, //顶点2坐标
    0, 100, 0, //顶点3坐标
    0, 0, 10, //顶点4坐标
    0, 0, 100, //顶点5坐标
    50, 0, 10, //顶点6坐标
]);
let attribue = new THREE.BufferAttribute(vertices, 3);
geometry.attributes.position = attribue;
// 点
let material = new THREE.PointsMaterial({
    color: 0x6c92fa,
    size: 10.0
});
let point = new THREE.Points(geometry, material);
this.scene.add(point);

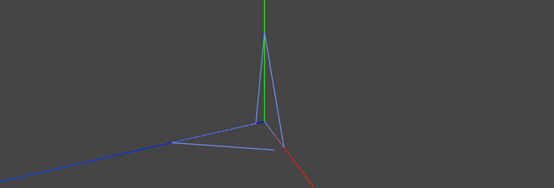

线

在这里插入图片描述

let geometry = new THREE.BufferGeometry();
let vertices = new Float32Array([
    0, 0, 0, //顶点1坐标
    50, 0, 0, //顶点2坐标
    0, 100, 0, //顶点3坐标
    0, 0, 10, //顶点4坐标
    0, 0, 100, //顶点5坐标
    50, 0, 10, //顶点6坐标
]);
let attribue = new THREE.BufferAttribute(vertices, 3);
geometry.attributes.position = attribue;
// 线
let material = new THREE.LineBasicMaterial({
    color: 0x6c92fa,
});
let line = new THREE.Line(geometry, material);
this.scene.add(line);

mesh面

在这里插入图片描述

let geometry = new THREE.BufferGeometry();
let vertices = new Float32Array([
    0, 0, 0, //顶点1坐标
    50, 0, 0, //顶点2坐标
    0, 100, 0, //顶点3坐标
    0, 0, 10, //顶点4坐标
    0, 0, 100, //顶点5坐标
    50, 0, 10, //顶点6坐标
]);
let attribue = new THREE.BufferAttribute(vertices, 3);
geometry.attributes.position = attribue;
// mesh模型
let material = new THREE.MeshLambertMaterial({ color: 0x3dce6f });
let cube = new THREE.Mesh(geometry, material);
this.scene.add(cube);

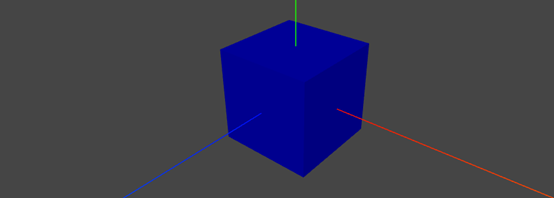

box模型

在这里插入图片描述

let geometry = new THREE.BoxGeometry(100, 100, 100);
let material = new THREE.MeshLambertMaterial({
    color: 0x0000ff
});
let mesh = new THREE.Mesh(geometry, material);
this.scene.add(mesh);

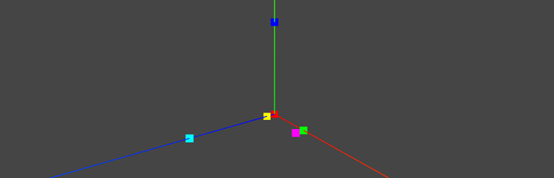

点着色

在这里插入图片描述

let geometry = new THREE.BufferGeometry();
let vertices = new Float32Array([
    0, 0, 0, //顶点1坐标
    50, 0, 0, //顶点2坐标
    0, 100, 0, //顶点3坐标
    0, 0, 10, //顶点4坐标
    0, 0, 100, //顶点5坐标
    50, 0, 10, //顶点6坐标
]);
let attribue = new THREE.BufferAttribute(vertices, 3);
geometry.attributes.position = attribue;
let colors = new Float32Array([
    1, 0, 0, //顶点1颜色
    0, 1, 0, //顶点2颜色
    0, 0, 1, //顶点3颜色
    1, 1, 0, //顶点4颜色
    0, 1, 1, //顶点5颜色
    1, 0, 1, //顶点6颜色
]);
geometry.attributes.color = new THREE.BufferAttribute(colors, 3);
let material = new THREE.PointsMaterial({
    // color: 0xff0000,
    vertexColors: THREE.VertexColors,
    size: 10.0
});
let points = new THREE.Points(geometry, material);
this.scene.add(points);

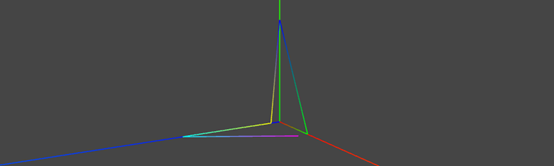

线-着色-渐变

在这里插入图片描述

let geometry = new THREE.BufferGeometry();
let vertices = new Float32Array([
    0, 0, 0, //顶点1坐标
    50, 0, 0, //顶点2坐标
    0, 100, 0, //顶点3坐标
    0, 0, 10, //顶点4坐标
    0, 0, 100, //顶点5坐标
    50, 0, 10, //顶点6坐标
]);
let attribue = new THREE.BufferAttribute(vertices, 3);
geometry.attributes.position = attribue;
let colors = new Float32Array([
    1, 0, 0, //顶点1颜色
    0, 1, 0, //顶点2颜色
    0, 0, 1, //顶点3颜色
    1, 1, 0, //顶点4颜色
    0, 1, 1, //顶点5颜色
    1, 0, 1, //顶点6颜色
]);
geometry.attributes.color = new THREE.BufferAttribute(colors, 3);
// line
let material = new THREE.LineBasicMaterial({
    // color: 0x3dce6f,
    vertexColors: THREE.VertexColors,
});
let cube = new THREE.Line(geometry, material);
this.scene.add(cube);

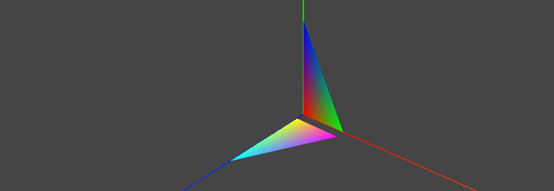

面-着色-渐变

在这里插入图片描述

let geometry = new THREE.BufferGeometry();
let vertices = new Float32Array([
    0, 0, 0, //顶点1坐标
    50, 0, 0, //顶点2坐标
    0, 100, 0, //顶点3坐标
    0, 0, 10, //顶点4坐标
    0, 0, 100, //顶点5坐标
    50, 0, 10, //顶点6坐标
]);
let attribue = new THREE.BufferAttribute(vertices, 3);
geometry.attributes.position = attribue;
let colors = new Float32Array([
    1, 0, 0, //顶点1颜色
    0, 1, 0, //顶点2颜色
    0, 0, 1, //顶点3颜色
    1, 1, 0, //顶点4颜色
    0, 1, 1, //顶点5颜色
    1, 0, 1, //顶点6颜色
]);
geometry.attributes.color = new THREE.BufferAttribute(colors, 3);
// mesh模型
let material = new THREE.MeshBasicMaterial({
    // color: 0x3dce6f,
    vertexColors: THREE.VertexColors,
});
let cube = new THREE.Mesh(geometry, material);
this.scene.add(cube);

three.js-顶点法向量

设置法向量之后，在光照下，模型更有棱角感。
在这里插入图片描述

let geometry = new THREE.BufferGeometry();
let vertices = new Float32Array([
    0, 0, 0, //顶点1坐标
    50, 0, 0, //顶点2坐标
    0, 100, 0, //顶点3坐标
    0, 0, 0, //顶点4坐标
    0, 0, 100, //顶点5坐标
    50, 0, 0, //顶点6坐标
]);
let attribue = new THREE.BufferAttribute(vertices, 3);
geometry.attributes.position = attribue;
var normals = new Float32Array([
    0, 0, 1, //顶点1法向量
    0, 0, 1, //顶点2法向量
    0, 0, 1, //顶点3法向量
    0, 1, 0, //顶点4法向量
    0, 1, 0, //顶点5法向量
    0, 1, 0, //顶点6法向量
]);
// normal属性访问几何体顶点法向量数据
// 设置几何体attributes属性的位置normal属性
geometry.attributes.normal = new THREE.BufferAttribute(normals, 3);
let material = new THREE.MeshLambertMaterial({ color: 0x3dce6f });
let cube = new THREE.Mesh(geometry, material);
this.scene.add(cube);
