语义分割学习【Day 6】

用训练得到的模型预测-单张图片

载入配置文件和模型

import numpy as np
import matplotlib.pyplot as plt
# %matplotlib inline

from mmseg.apis import init_model, inference_model, show_result_pyplot
import mmcv
import cv2

# 载入 config 配置文件
from mmengine import Config
cfg = Config.fromfile('../Zihao-Configs/ZihaoDataset_Segformer_20230712.py')

checkpoint_path = '../work_dirs/ZihaoDataset-Segformer/iter_40000.pth'

model = init_model(cfg, checkpoint_path, 'cuda:0')

载入图片进行语义分割

img_path = '../Watermelon87_Semantic_Seg_Mask/img_dir/val/01bd15599c606aa801201794e1fa30.jpg'

img_bgr = cv2.imread(img_path)

result = inference_model(model, img_bgr)

pred_mask = result.pred_sem_seg.data[0].cpu().numpy()

plt.figure(figsize=(8, 8))
plt.imshow(pred_mask)
plt.savefig('../outputs/K1-0.jpg')

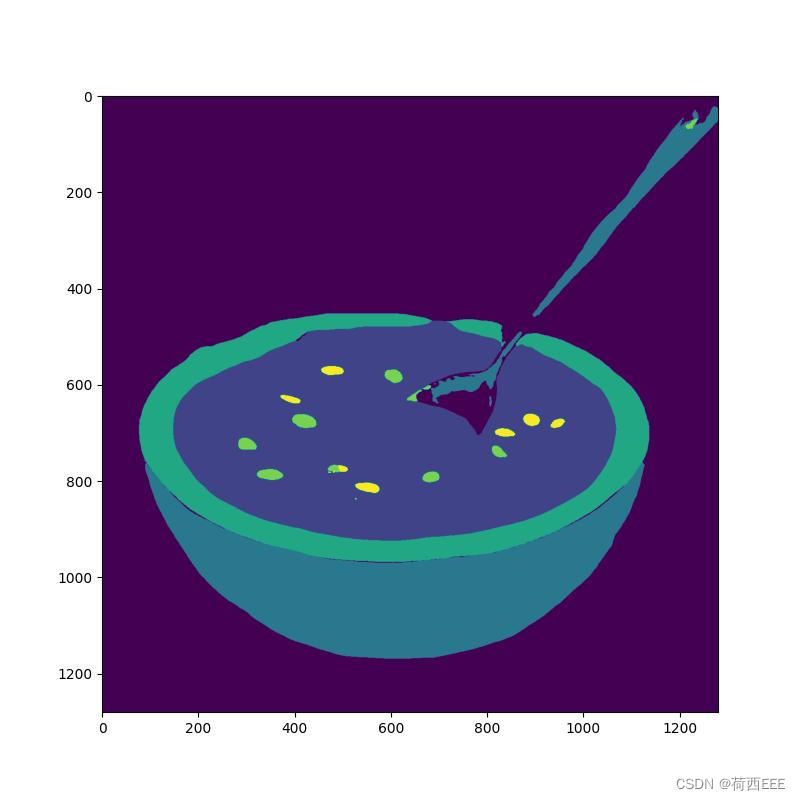

分割结果

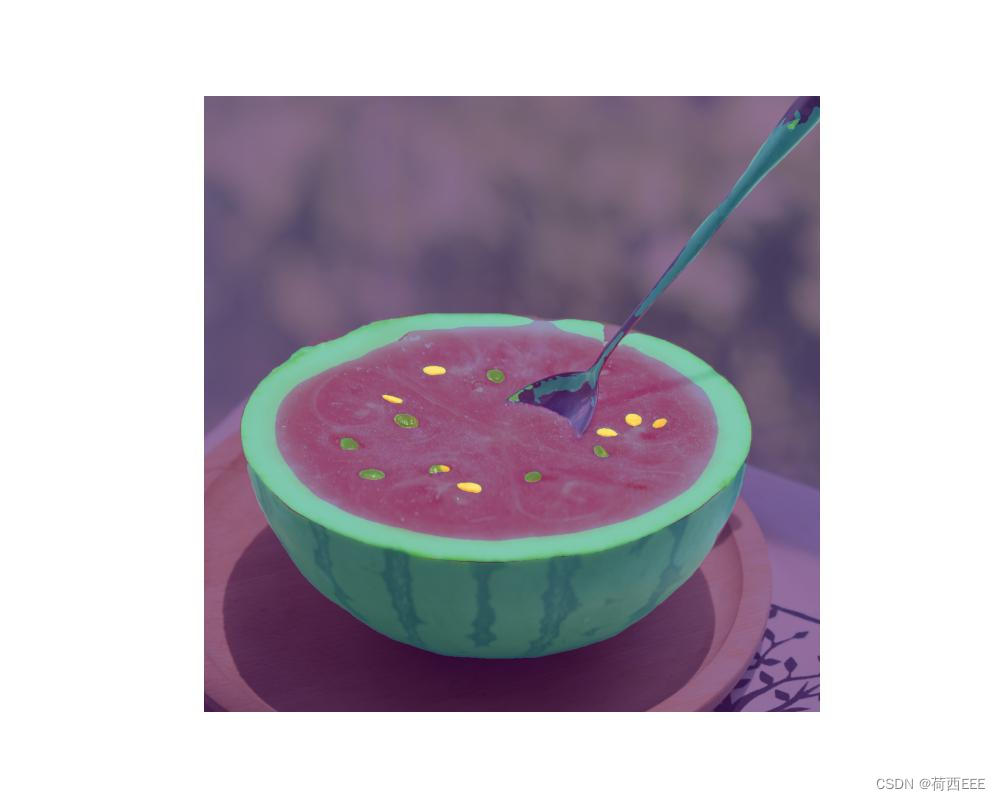

设置高亮区域透明度

# 显示语义分割结果
plt.figure(figsize=(10, 8))
plt.imshow(img_bgr[:,:,::-1])
plt.imshow(pred_mask, alpha=0.55) # alpha 高亮区域透明度，越小越接近原图
plt.axis('off')
plt.savefig('../outputs/K1-1.jpg')
plt.show()

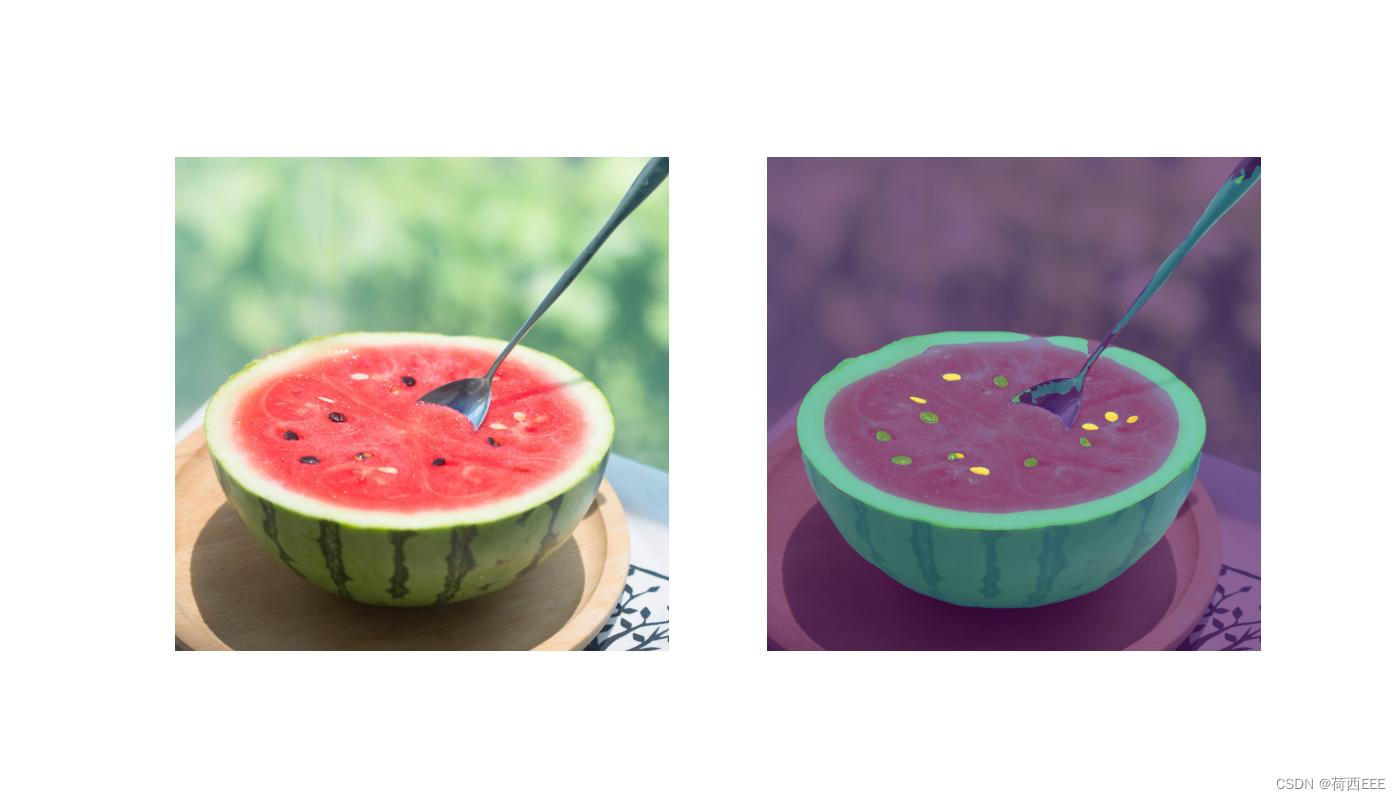

将分割结果与原图并排显示

plt.figure(figsize=(14, 8))

plt.subplot(1,2,1)
plt.imshow(img_bgr[:,:,::-1])
plt.axis('off')

plt.subplot(1,2,2)
plt.imshow(img_bgr[:,:,::-1])
plt.imshow(pred_mask, alpha=0.6) # alpha 高亮区域透明度，越小越接近原图
plt.axis('off')
plt.savefig('../outputs/K1-2.jpg')

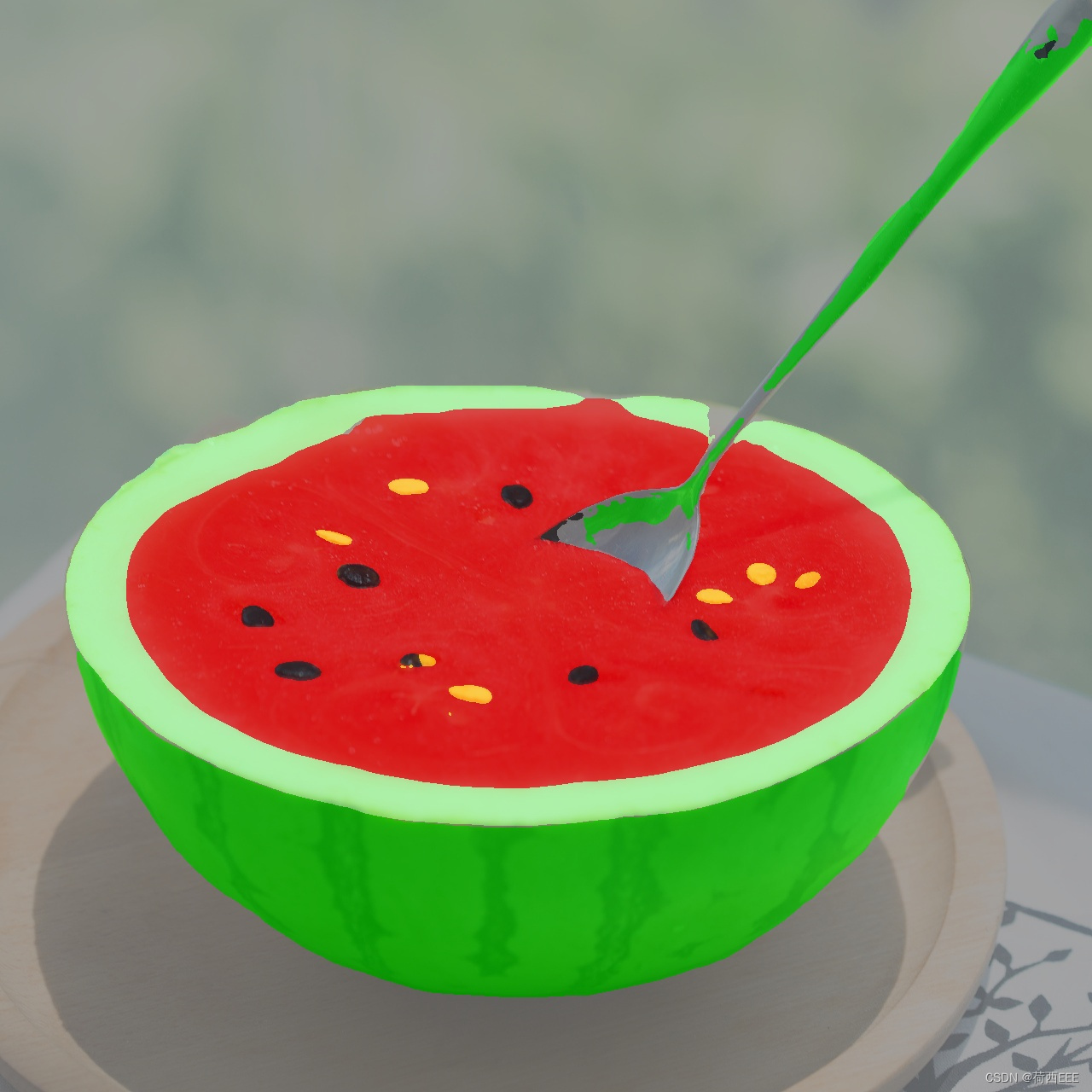

按配色方案叠加在原图上显示

# 各类别的配色方案（BGR）
palette = [
    ['background', [127,127,127]],
    ['red', [0,0,200]],
    ['green', [0,200,0]],
    ['white', [144,238,144]],
    ['seed-black', [30,30,30]],
    ['seed-white', [8,189,251]]
]

palette_dict = {}
for idx, each in enumerate(palette):
    palette_dict[idx] = each[1]

opacity = 0.3 # 透明度，越大越接近原图

# 将预测的整数ID，映射为对应类别的颜色
pred_mask_bgr = np.zeros((pred_mask.shape[0], pred_mask.shape[1], 3))
for idx in palette_dict.keys():
    pred_mask_bgr[np.where(pred_mask==idx)] = palette_dict[idx]
pred_mask_bgr = pred_mask_bgr.astype('uint8')

# 将语义分割预测图和原图叠加显示
pred_viz = cv2.addWeighted(img_bgr, opacity, pred_mask_bgr, 1-opacity, 0)

cv2.imwrite('../outputs/K1-3.jpg', pred_viz)

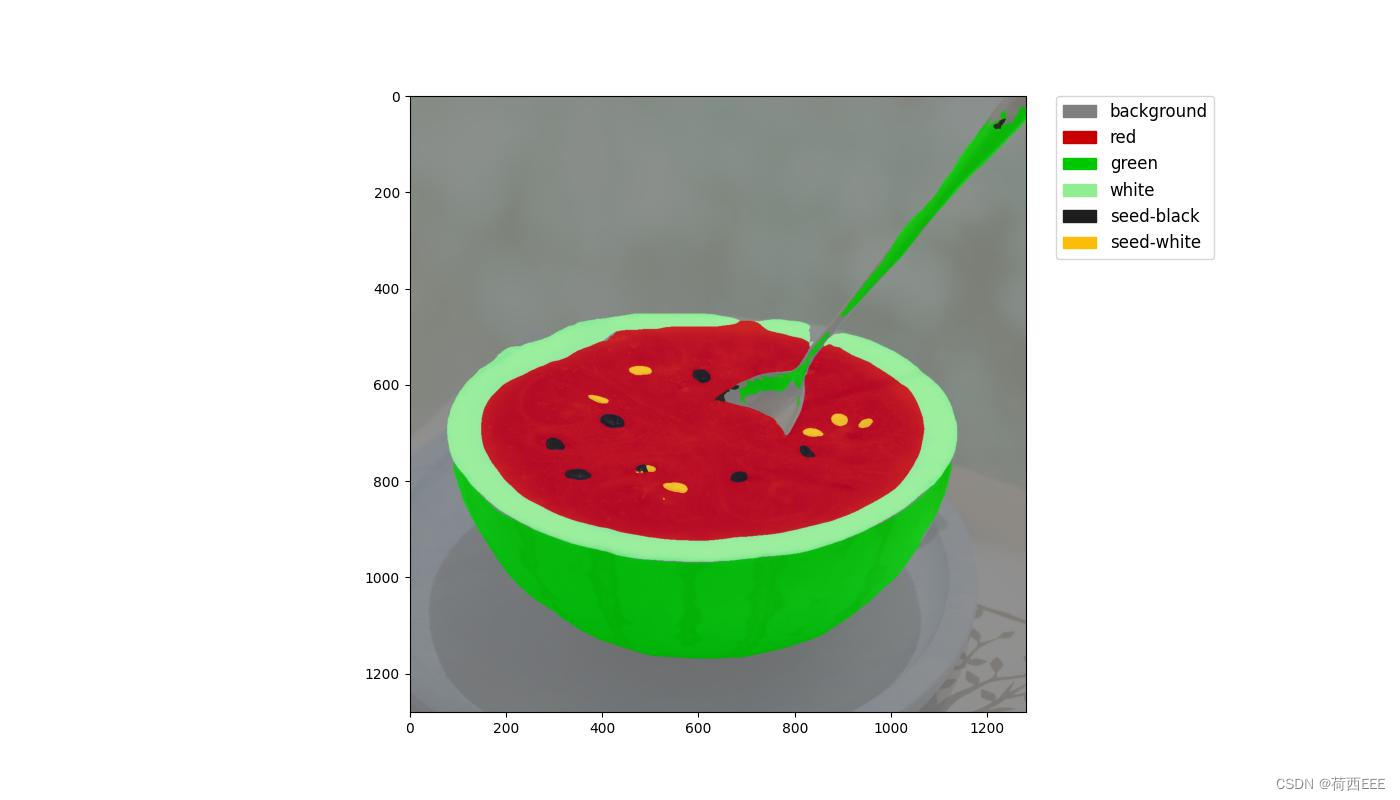

加上图例

from mmseg.datasets import ZihaoDataset
import numpy as np
import mmcv
from PIL import Image

# 获取类别名和调色板
classes = ZihaoDataset.METAINFO['classes']
palette = ZihaoDataset.METAINFO['palette']
opacity = 0.15 # 透明度，越大越接近原图

# 将分割图按调色板染色
# seg_map = result[0].astype('uint8')
seg_map = pred_mask.astype('uint8')
seg_img = Image.fromarray(seg_map).convert('P')
seg_img.putpalette(np.array(palette, dtype=np.uint8))

from matplotlib import pyplot as plt
import matplotlib.patches as mpatches
plt.figure(figsize=(14, 8))
img_plot = ((np.array(seg_img.convert('RGB')))*(1-opacity) + mmcv.imread(img_path)*opacity) / 255
im = plt.imshow(img_plot)

# 为每一种颜色创建一个图例
patches = [mpatches.Patch(color=np.array(palette[i])/255., label=classes[i]) for i in range(len(classes))]
plt.legend(handles=patches, bbox_to_anchor=(1.05, 1), loc=2, borderaxespad=0., fontsize='large')

plt.savefig('../outputs/K1-6.jpg')

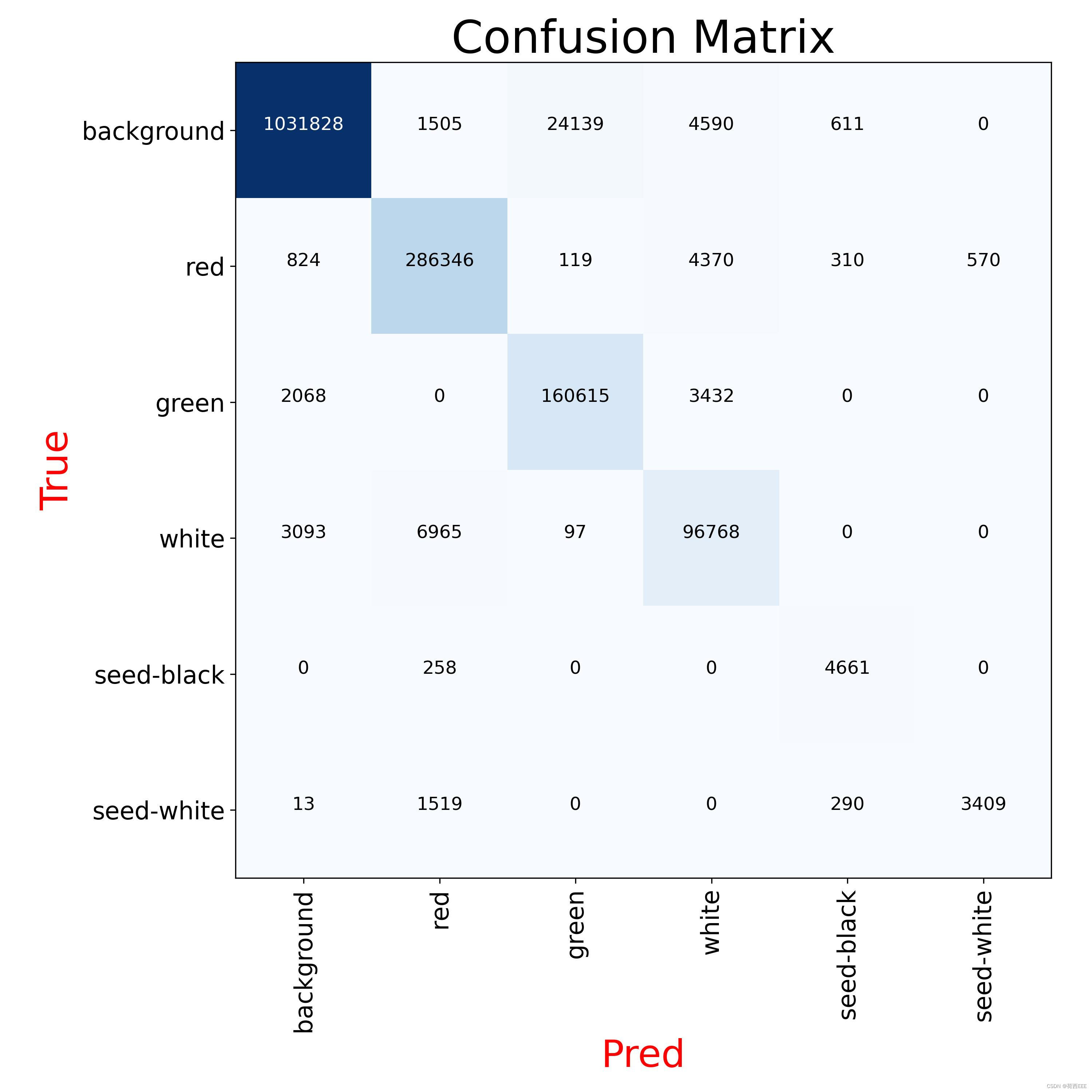

绘制混淆矩阵

label_path = '../Watermelon87_Semantic_Seg_Mask/ann_dir/val/01bd15599c606aa801201794e1fa30.png'

label = cv2.imread(label_path)

label_mask = label[:,:,0]

from sklearn.metrics import confusion_matrix

confusion_matrix_model = confusion_matrix(label_mask.flatten(), pred_mask.flatten())


import itertools
def cnf_matrix_plotter(cm, classes, cmap=plt.cm.Blues):
    """
    传入混淆矩阵和标签名称列表，绘制混淆矩阵
    """
    plt.figure(figsize=(10, 10))

    plt.imshow(cm, interpolation='nearest', cmap=cmap)
    # plt.colorbar() # 色条
    tick_marks = np.arange(len(classes))

    plt.title('Confusion Matrix', fontsize=30)
    plt.xlabel('Pred', fontsize=25, c='r')
    plt.ylabel('True', fontsize=25, c='r')
    plt.tick_params(labelsize=16) # 设置类别文字大小
    plt.xticks(tick_marks, classes, rotation=90) # 横轴文字旋转
    plt.yticks(tick_marks, classes)

    # 写数字
    threshold = cm.max() / 2.
    for i, j in itertools.product(range(cm.shape[0]), range(cm.shape[1])):
        plt.text(j, i, cm[i, j],
                 horizontalalignment="center",
                 color="white" if cm[i, j] > threshold else "black",
                 fontsize=12)

    plt.tight_layout()

    plt.savefig('../outputs/K1-混淆矩阵.jpg', dpi=300) # 保存图像
    plt.show()

cnf_matrix_plotter(confusion_matrix_model, classes, cmap='Blues')

用训练得到的模型预测-视频

import numpy as np
import matplotlib.pyplot as plt
# %matplotlib inline

from mmseg.apis import init_model, inference_model, show_result_pyplot
import mmcv
import cv2
import tqdm
import time
# 载入 config 配置文件
from mmengine import Config
cfg = Config.fromfile('../Zihao-Configs/ZihaoDataset_Segformer_20230712.py')

checkpoint_path = '../work_dirs/ZihaoDataset-Segformer/iter_40000.pth'

model = init_model(cfg, checkpoint_path, 'cuda:0')

palette = [
    ['background', [127,127,127]],
    ['red', [0,0,200]],
    ['green', [0,200,0]],
    ['white', [144,238,144]],
    ['seed-black', [30,30,30]],
    ['seed-white', [8,189,251]]
]

palette_dict = {}
for idx, each in enumerate(palette):
    palette_dict[idx] = each[1]

opacity = 0.3 # 透明度，越大越接近原图

def process_frame(img_bgr):

    # 记录该帧开始处理的时间
    start_time = time.time()

    # 语义分割预测
    result = inference_model(model, img_bgr)
    pred_mask = result.pred_sem_seg.data[0].cpu().numpy()

    # 将预测的整数ID，映射为对应类别的颜色
    pred_mask_bgr = np.zeros((pred_mask.shape[0], pred_mask.shape[1], 3))
    for idx in palette_dict.keys():
        pred_mask_bgr[np.where(pred_mask==idx)] = palette_dict[idx]
    pred_mask_bgr = pred_mask_bgr.astype('uint8')

    # 将语义分割预测图和原图叠加显示
    pred_viz = cv2.addWeighted(img_bgr, opacity, pred_mask_bgr, 1-opacity, 0)

    return pred_viz


# 视频逐帧处理代码模板
# 不需修改任何代码，只需定义process_frame函数即可
# 同济子豪兄 2021-7-10

def generate_video(input_path='videos/robot.mp4'):
    filehead = input_path.split('/')[-1]
    output_path = "out-" + filehead

    print('视频开始处理',input_path)

    # 获取视频总帧数
    cap = cv2.VideoCapture(input_path)
    frame_count = 0
    while(cap.isOpened()):
        success, frame = cap.read()
        frame_count += 1
        if not success:
            break
    cap.release()
    print('视频总帧数为',frame_count)

    # cv2.namedWindow('Crack Detection and Measurement Video Processing')
    cap = cv2.VideoCapture(input_path)
    frame_size = (cap.get(cv2.CAP_PROP_FRAME_WIDTH), cap.get(cv2.CAP_PROP_FRAME_HEIGHT))

    # fourcc = int(cap.get(cv2.CAP_PROP_FOURCC))
    # fourcc = cv2.VideoWriter_fourcc(*'XVID')
    fourcc = cv2.VideoWriter_fourcc(*'mp4v')
    fps = cap.get(cv2.CAP_PROP_FPS)

    out = cv2.VideoWriter(output_path, fourcc, fps, (int(frame_size[0]), int(frame_size[1])))

    # 进度条绑定视频总帧数
    with tqdm(total=frame_count-1) as pbar:
        try:
            while(cap.isOpened()):
                success, frame = cap.read()
                if not success:
                    break

                # 处理帧
                # frame_path = './temp_frame.png'
                # cv2.imwrite(frame_path, frame)
                try:
                    frame = process_frame(frame)
                except:
                    # print('报错！', error)
                    pass

                if success == True:
                    # cv2.imshow('Video Processing', frame)
                    out.write(frame)

                    # 进度条更新一帧
                    pbar.update(1)

                # if cv2.waitKey(1) & 0xFF == ord('q'):
                    # break
        except:
            print('中途中断')
            pass

    cv2.destroyAllWindows()
    out.release()
    cap.release()
    print('视频已保存', output_path)

generate_video(input_path='../data/video_watermelon_3.mov')

本地摄像头实时预测

载入模型并且设置帧处理函数

import numpy as np
import matplotlib.pyplot as plt
# %matplotlib inline

from mmseg.apis import init_model, inference_model, show_result_pyplot
import mmcv
import cv2
import tqdm
import time
# 载入 config 配置文件
from mmengine import Config
cfg = Config.fromfile('../Zihao-Configs/ZihaoDataset_Segformer_20230712.py')

checkpoint_path = '../work_dirs/ZihaoDataset-Segformer/iter_40000.pth'

model = init_model(cfg, checkpoint_path, 'cuda:0')

palette = [
    ['background', [127,127,127]],
    ['red', [0,0,200]],
    ['green', [0,200,0]],
    ['white', [144,238,144]],
    ['seed-black', [30,30,30]],
    ['seed-white', [8,189,251]]
]

palette_dict = {}
for idx, each in enumerate(palette):
    palette_dict[idx] = each[1]

opacity = 0.3 # 透明度，越大越接近原图

def process_frame(img_bgr):

    # 记录该帧开始处理的时间
    start_time = time.time()

    # 语义分割预测
    result = inference_model(model, img_bgr)
    pred_mask = result.pred_sem_seg.data[0].cpu().numpy()

    # 将预测的整数ID，映射为对应类别的颜色
    pred_mask_bgr = np.zeros((pred_mask.shape[0], pred_mask.shape[1], 3))
    for idx in palette_dict.keys():
        pred_mask_bgr[np.where(pred_mask==idx)] = palette_dict[idx]
    pred_mask_bgr = pred_mask_bgr.astype('uint8')

    # 将语义分割预测图和原图叠加显示
    pred_viz = cv2.addWeighted(img_bgr, opacity, pred_mask_bgr, 1-opacity, 0)

单张摄像拍照预测

# 获取摄像头，0为电脑默认摄像头，1为外接摄像头
cap = cv2.VideoCapture(0)

time.sleep(1) # 等一秒，拍照
# 从摄像头捕获一帧画面
success, frame = cap.read()

cap.release() # 关闭摄像头
cv2.destroyAllWindows() # 关闭图像窗口

实时预测

import cv2
import time

# 获取摄像头，传入0表示获取系统默认摄像头
cap = cv2.VideoCapture(1)

# 打开cap
cap.open(0)

# 无限循环，直到break被触发
while cap.isOpened():

    # 获取画面
    success, frame = cap.read()

    if not success: # 如果获取画面不成功，则退出
        print('获取画面不成功，退出')
        break

    ## 逐帧处理
    frame = process_frame(frame)

    # 展示处理后的三通道图像
    cv2.imshow('my_window',frame)

    key_pressed = cv2.waitKey(60) # 每隔多少毫秒毫秒，获取键盘哪个键被按下
    # print('键盘上被按下的键：', key_pressed)

    if key_pressed in [ord('q'),27]: # 按键盘上的q或esc退出（在英文输入法下）
        break

# 关闭摄像头
cap.release()

# 关闭图像窗口
cv2.destroyAllWindows()
