x64--- 驱动实现遍历VAD树
原理
找到程序的Eprocess(0环进程结构体),取vadroot 头节点 eprocess 结构体-- > 0ffset：0x7d8
驱动代码 —0环
#include "ntifs.h"
#include "vadstruct.h"
UCHAR* PsGetProcessImageFileName(PEPROCESS Process);
VOID DriverUnload(PDRIVER_OBJECT pDriver);
VOID EnumVadRootAdress(PMMVAD RootAdress);
PRTL_AVL_TREE VadRootAdress = NULL;
PMMVAD RootHeadNode;
PMMVAD RootHeadLeft;
PMMVAD RootHeadRight;
ULONG LeftHightNode = 2;//代表左往下递增多少个函数
ULONG tmp = 0;//记录返回到第几层函数
ULONG OldHight;//记录第一次返回的层次函数，第二次在返回相同的话则tmp--
// 入口函数
NTSTATUS DriverEntry(PDRIVER_OBJECT pDriver, PUNICODE_STRING RegPath)
{
BOOLEAN bFlag = FALSE;
NTSTATUS ntstatus = 0;
PEPROCESS pEprocess = NULL;
//遍历vadroot 二叉树
//1：找到要遍历驱动的Eprocess --> MyDriver2.sys
for (size_t i = 4; i < 0x100000; i += 4)
{
ntstatus = PsLookupProcessByProcessId((HANDLE)i, &pEprocess);
if (NT_SUCCESS(ntstatus))
{
//释放内核对应引用计次
ObDereferenceObject(pEprocess);
//+0x5a8 ImageFileName : [15] UChar
//获取进程名
PUCHAR szProcessName = PsGetProcessImageFileName(pEprocess);
//
if (strcmp("123.exe", szProcessName) == 0)
{
DbgPrint("%s\n", szProcessName);
bFlag = TRUE;
break;
}
}
}
//2 取vadroot 头节点 eprocess 结构体-- > 0ffset：0x7d8
VadRootAdress = (PRTL_AVL_TREE)((UCHAR*)pEprocess + 0x7d8);//取VadRootAdress地址
if (!MmIsAddressValid(VadRootAdress)) //MmIsAddressValid函数是判断一个地址是否有效
{
return FALSE;
}
RootHeadNode = (PMMVAD)VadRootAdress->Root;//取头节点
//然后循环遍历即可
//根节点开始遍历
RootHeadLeft = (PMMVAD)VadRootAdress->Root->Left;// 左节点
EnumVadRootAdress(RootHeadLeft);
DbgPrint("地址：%p---NOde高度：%d\n", RootHeadNode, LeftHightNode);//输出头指针的地址
LeftHightNode++;
tmp = 0;
OldHight = 0;
RootHeadRight =(PMMVAD)VadRootAdress->Root->Right;//右节点
EnumVadRootAdress(RootHeadRight);
pDriver->DriverUnload = DriverUnload;
return STATUS_SUCCESS;
}
// 卸载驱动
VOID DriverUnload(PDRIVER_OBJECT pDriver)
{
DbgPrint("驱动卸载成功\n");
}
VOID EnumVadRootAdress(PMMVAD RootAdress)
{
//遍历左边的节点
if (MmIsAddressValid(RootAdress->Core.VadNode.Left)) //MmIsAddressValid函数是判断一个地址是否有效
{
LeftHightNode++;
tmp++;
EnumVadRootAdress((PMMVAD)RootAdress->Core.VadNode.Left);
}
DbgPrint("地址：%p ----LeftHightNode:%d\n", RootAdress, LeftHightNode);//输出传进来的指针
//遍历右边的节点
if (MmIsAddressValid(RootAdress->Core.VadNode.Right)) //MmIsAddressValid函数是判断一个地址是否有效
{
LeftHightNode++;
EnumVadRootAdress((PMMVAD)RootAdress->Core.VadNode.Right);
PMMVAD RootAdress2 = (PMMVAD)RootAdress->Core.VadNode.Right;
if (RootAdress2->Core.VadNode.Left == NULL && RootAdress2->Core.VadNode.Right == NULL)
{
if (OldHight != tmp)
{
OldHight = tmp;
LeftHightNode =tmp;
tmp--;
}
else
{
tmp--;
OldHight = tmp;
LeftHightNode = tmp;
tmp--;
}
}
}
else
{
LeftHightNode--;
if (LeftHightNode == tmp)
{
tmp--;
}
}
}
“vadstruct.h”
#pragma once
#include <ntifs.h>
typedef struct _MM_GRAPHICS_VAD_FLAGS // 15 elements, 0x4 bytes (sizeof)
{
/*0x000*/ ULONG32 Lock : 1; // 0 BitPosition
/*0x000*/ ULONG32 LockContended : 1; // 1 BitPosition
/*0x000*/ ULONG32 DeleteInProgress : 1; // 2 BitPosition
/*0x000*/ ULONG32 NoChange : 1; // 3 BitPosition
/*0x000*/ ULONG32 VadType : 3; // 4 BitPosition
/*0x000*/ ULONG32 Protection : 5; // 7 BitPosition
/*0x000*/ ULONG32 PreferredNode : 6; // 12 BitPosition
/*0x000*/ ULONG32 PageSize : 2; // 18 BitPosition
/*0x000*/ ULONG32 PrivateMemoryAlwaysSet : 1; // 20 BitPosition
/*0x000*/ ULONG32 WriteWatch : 1; // 21 BitPosition
/*0x000*/ ULONG32 FixedLargePageSize : 1; // 22 BitPosition
/*0x000*/ ULONG32 ZeroFillPagesOptional : 1; // 23 BitPosition
/*0x000*/ ULONG32 GraphicsAlwaysSet : 1; // 24 BitPosition
/*0x000*/ ULONG32 GraphicsUseCoherentBus : 1; // 25 BitPosition
/*0x000*/ ULONG32 GraphicsPageProtection : 3; // 26 BitPosition
}MM_GRAPHICS_VAD_FLAGS, * PMM_GRAPHICS_VAD_FLAGS;
typedef struct _MM_PRIVATE_VAD_FLAGS // 15 elements, 0x4 bytes (sizeof)
{
/*0x000*/ ULONG32 Lock : 1; // 0 BitPosition
/*0x000*/ ULONG32 LockContended : 1; // 1 BitPosition
/*0x000*/ ULONG32 DeleteInProgress : 1; // 2 BitPosition
/*0x000*/ ULONG32 NoChange : 1; // 3 BitPosition
/*0x000*/ ULONG32 VadType : 3; // 4 BitPosition
/*0x000*/ ULONG32 Protection : 5; // 7 BitPosition
/*0x000*/ ULONG32 PreferredNode : 6; // 12 BitPosition
/*0x000*/ ULONG32 PageSize : 2; // 18 BitPosition
/*0x000*/ ULONG32 PrivateMemoryAlwaysSet : 1; // 20 BitPosition
/*0x000*/ ULONG32 WriteWatch : 1; // 21 BitPosition
/*0x000*/ ULONG32 FixedLargePageSize : 1; // 22 BitPosition
/*0x000*/ ULONG32 ZeroFillPagesOptional : 1; // 23 BitPosition
/*0x000*/ ULONG32 Graphics : 1; // 24 BitPosition
/*0x000*/ ULONG32 Enclave : 1; // 25 BitPosition
/*0x000*/ ULONG32 ShadowStack : 1; // 26 BitPosition
}MM_PRIVATE_VAD_FLAGS, * PMM_PRIVATE_VAD_FLAGS;
typedef struct _MMVAD_FLAGS // 9 elements, 0x4 bytes (sizeof)
{
/*0x000*/ ULONG32 Lock : 1; // 0 BitPosition
/*0x000*/ ULONG32 LockContended : 1; // 1 BitPosition
/*0x000*/ ULONG32 DeleteInProgress : 1; // 2 BitPosition
/*0x000*/ ULONG32 NoChange : 1; // 3 BitPosition
/*0x000*/ ULONG32 VadType : 3; // 4 BitPosition
/*0x000*/ ULONG32 Protection : 5; // 7 BitPosition
/*0x000*/ ULONG32 PreferredNode : 6; // 12 BitPosition
/*0x000*/ ULONG32 PageSize : 2; // 18 BitPosition
/*0x000*/ ULONG32 PrivateMemory : 1; // 20 BitPosition
}MMVAD_FLAGS, * PMMVAD_FLAGS;
typedef struct _MM_SHARED_VAD_FLAGS // 11 elements, 0x4 bytes (sizeof)
{
/*0x000*/ ULONG32 Lock : 1; // 0 BitPosition
/*0x000*/ ULONG32 LockContended : 1; // 1 BitPosition
/*0x000*/ ULONG32 DeleteInProgress : 1; // 2 BitPosition
/*0x000*/ ULONG32 NoChange : 1; // 3 BitPosition
/*0x000*/ ULONG32 VadType : 3; // 4 BitPosition
/*0x000*/ ULONG32 Protection : 5; // 7 BitPosition
/*0x000*/ ULONG32 PreferredNode : 6; // 12 BitPosition
/*0x000*/ ULONG32 PageSize : 2; // 18 BitPosition
/*0x000*/ ULONG32 PrivateMemoryAlwaysClear : 1; // 20 BitPosition
/*0x000*/ ULONG32 PrivateFixup : 1; // 21 BitPosition
/*0x000*/ ULONG32 HotPatchAllowed : 1; // 22 BitPosition
}MM_SHARED_VAD_FLAGS, * PMM_SHARED_VAD_FLAGS;
typedef struct _MMVAD_FLAGS2 // 7 elements, 0x4 bytes (sizeof)
{
/*0x000*/ ULONG32 FileOffset : 24; // 0 BitPosition
/*0x000*/ ULONG32 Large : 1; // 24 BitPosition
/*0x000*/ ULONG32 TrimBehind : 1; // 25 BitPosition
/*0x000*/ ULONG32 Inherit : 1; // 26 BitPosition
/*0x000*/ ULONG32 NoValidationNeeded : 1; // 27 BitPosition
/*0x000*/ ULONG32 PrivateDemandZero : 1; // 28 BitPosition
/*0x000*/ ULONG32 Spare : 3; // 29 BitPosition
}MMVAD_FLAGS2, * PMMVAD_FLAGS2;
typedef struct _MMVAD_SHORT
{
RTL_BALANCED_NODE VadNode;
UINT32 StartingVpn; /*0x18*/
UINT32 EndingVpn; /*0x01C*/
UCHAR StartingVpnHigh;
UCHAR EndingVpnHigh;
UCHAR CommitChargeHigh;
UCHAR SpareNT64VadUChar;
INT32 ReferenceCount;
EX_PUSH_LOCK PushLock; /*0x028*/
struct
{
union
{
ULONG_PTR flag;
MM_PRIVATE_VAD_FLAGS PrivateVadFlags; /*0x030*/
MMVAD_FLAGS VadFlags;
MM_GRAPHICS_VAD_FLAGS GraphicsVadFlags;
MM_SHARED_VAD_FLAGS SharedVadFlags;
}Flags;
}u1;
PVOID EventList; /*0x038*/
}MMVAD_SHORT, * PMMVAD_SHORT;
typedef struct _MMADDRESS_NODE
{
ULONG64 u1;
struct _MMADDRESS_NODE* LeftChild;
struct _MMADDRESS_NODE* RightChild;
ULONG64 StartingVpn;
ULONG64 EndingVpn;
}MMADDRESS_NODE, * PMMADDRESS_NODE;
typedef struct _MMEXTEND_INFO // 2 elements, 0x10 bytes (sizeof)
{
/*0x000*/ UINT64 CommittedSize;
/*0x008*/ ULONG32 ReferenceCount;
/*0x00C*/ UINT8 _PADDING0_[0x4];
}MMEXTEND_INFO, * PMMEXTEND_INFO;
struct _SEGMENT
{
struct _CONTROL_AREA* ControlArea;
ULONG TotalNumberOfPtes;
ULONG SegmentFlags;
ULONG64 NumberOfCommittedPages;
ULONG64 SizeOfSegment;
union
{
struct _MMEXTEND_INFO* ExtendInfo;
void* BasedAddress;
}u;
ULONG64 SegmentLock;
ULONG64 u1;
ULONG64 u2;
PVOID* PrototypePte;
ULONGLONG ThePtes[0x1];
};
typedef struct _EX_FAST_REF
{
union
{
PVOID Object;
ULONG_PTR RefCnt : 3;
ULONG_PTR Value;
};
} EX_FAST_REF, * PEX_FAST_REF;
typedef struct _CONTROL_AREA // 17 elements, 0x80 bytes (sizeof)
{
/*0x000*/ struct _SEGMENT* Segment;
union // 2 elements, 0x10 bytes (sizeof)
{
/*0x008*/ struct _LIST_ENTRY ListHead; // 2 elements, 0x10 bytes (sizeof)
/*0x008*/ VOID* AweContext;
};
/*0x018*/ UINT64 NumberOfSectionReferences;
/*0x020*/ UINT64 NumberOfPfnReferences;
/*0x028*/ UINT64 NumberOfMappedViews;
/*0x030*/ UINT64 NumberOfUserReferences;
/*0x038*/ ULONG32 u; // 2 elements, 0x4 bytes (sizeof)
/*0x03C*/ ULONG32 u1; // 2 elements, 0x4 bytes (sizeof)
/*0x040*/ struct _EX_FAST_REF FilePointer; // 3 elements, 0x8 bytes (sizeof)
// 4 elements, 0x8 bytes (sizeof)
}CONTROL_AREA, * PCONTROL_AREA;
typedef struct _SUBSECTION_
{
struct _CONTROL_AREA* ControlArea;
}SUBSECTION, * PSUBSECTION;
typedef struct _MMVAD
{
MMVAD_SHORT Core;
union /*0x040*/
{
UINT32 LongFlags2;
MMVAD_FLAGS2 VadFlags2;
}u2;
PSUBSECTION Subsection; /*0x048*/
PVOID FirstPrototypePte; /*0x050*/
PVOID LastContiguousPte; /*0x058*/
LIST_ENTRY ViewLinks; /*0x060*/
PEPROCESS VadsProcess; /*0x070*/
PVOID u4; /*0x078*/
PVOID FileObject; /*0x080*/
}MMVAD, * PMMVAD;
typedef struct _RTL_AVL_TREE // 1 elements, 0x8 bytes (sizeof)
{
/*0x000*/ struct _RTL_BALANCED_NODE* Root;
}RTL_AVL_TREE, * PRTL_AVL_TREE;
typedef struct _VAD_INFO_
{
ULONG_PTR pVad;
ULONG_PTR startVpn;
ULONG_PTR endVpn;
ULONG_PTR pFileObject;
ULONG_PTR flags;
}VAD_INFO, * PVAD_INFO;
typedef struct _ALL_VADS_
{
ULONG nCnt;
VAD_INFO VadInfos[1];
}ALL_VADS, * PALL_VADS;
typedef struct _MMSECTION_FLAGS // 27 elements, 0x4 bytes (sizeof)
{
/*0x000*/ UINT32 BeingDeleted : 1; // 0 BitPosition
/*0x000*/ UINT32 BeingCreated : 1; // 1 BitPosition
/*0x000*/ UINT32 BeingPurged : 1; // 2 BitPosition
/*0x000*/ UINT32 NoModifiedWriting : 1; // 3 BitPosition
/*0x000*/ UINT32 FailAllIo : 1; // 4 BitPosition
/*0x000*/ UINT32 Image : 1; // 5 BitPosition
/*0x000*/ UINT32 Based : 1; // 6 BitPosition
/*0x000*/ UINT32 File : 1; // 7 BitPosition
/*0x000*/ UINT32 AttemptingDelete : 1; // 8 BitPosition
/*0x000*/ UINT32 PrefetchCreated : 1; // 9 BitPosition
/*0x000*/ UINT32 PhysicalMemory : 1; // 10 BitPosition
/*0x000*/ UINT32 ImageControlAreaOnRemovableMedia : 1; // 11 BitPosition
/*0x000*/ UINT32 Reserve : 1; // 12 BitPosition
/*0x000*/ UINT32 Commit : 1; // 13 BitPosition
/*0x000*/ UINT32 NoChange : 1; // 14 BitPosition
/*0x000*/ UINT32 WasPurged : 1; // 15 BitPosition
/*0x000*/ UINT32 UserReference : 1; // 16 BitPosition
/*0x000*/ UINT32 GlobalMemory : 1; // 17 BitPosition
/*0x000*/ UINT32 DeleteOnClose : 1; // 18 BitPosition
/*0x000*/ UINT32 FilePointerNull : 1; // 19 BitPosition
/*0x000*/ ULONG32 PreferredNode : 6; // 20 BitPosition
/*0x000*/ UINT32 GlobalOnlyPerSession : 1; // 26 BitPosition
/*0x000*/ UINT32 UserWritable : 1; // 27 BitPosition
/*0x000*/ UINT32 SystemVaAllocated : 1; // 28 BitPosition
/*0x000*/ UINT32 PreferredFsCompressionBoundary : 1; // 29 BitPosition
/*0x000*/ UINT32 UsingFileExtents : 1; // 30 BitPosition
/*0x000*/ UINT32 PageSize64K : 1; // 31 BitPosition
}MMSECTION_FLAGS, * PMMSECTION_FLAGS;
typedef struct _SECTION // 9 elements, 0x40 bytes (sizeof)
{
/*0x000*/ struct _RTL_BALANCED_NODE SectionNode; // 6 elements, 0x18 bytes (sizeof)
/*0x018*/ UINT64 StartingVpn;
/*0x020*/ UINT64 EndingVpn;
/*0x028*/ union {
PCONTROL_AREA ControlArea;
PVOID FileObject;
}u1; // 4 elements, 0x8 bytes (sizeof)
/*0x030*/ UINT64 SizeOfSection;
/*0x038*/ union {
ULONG32 LongFlags;
MMSECTION_FLAGS Flags;
}u; // 2 elements, 0x4 bytes (sizeof)
struct // 3 elements, 0x4 bytes (sizeof)
{
/*0x03C*/ ULONG32 InitialPageProtection : 12; // 0 BitPosition
/*0x03C*/ ULONG32 SessionId : 19; // 12 BitPosition
/*0x03C*/ ULONG32 NoValidationNeeded : 1; // 31 BitPosition
};
}SECTION, * PSECTION;
总结

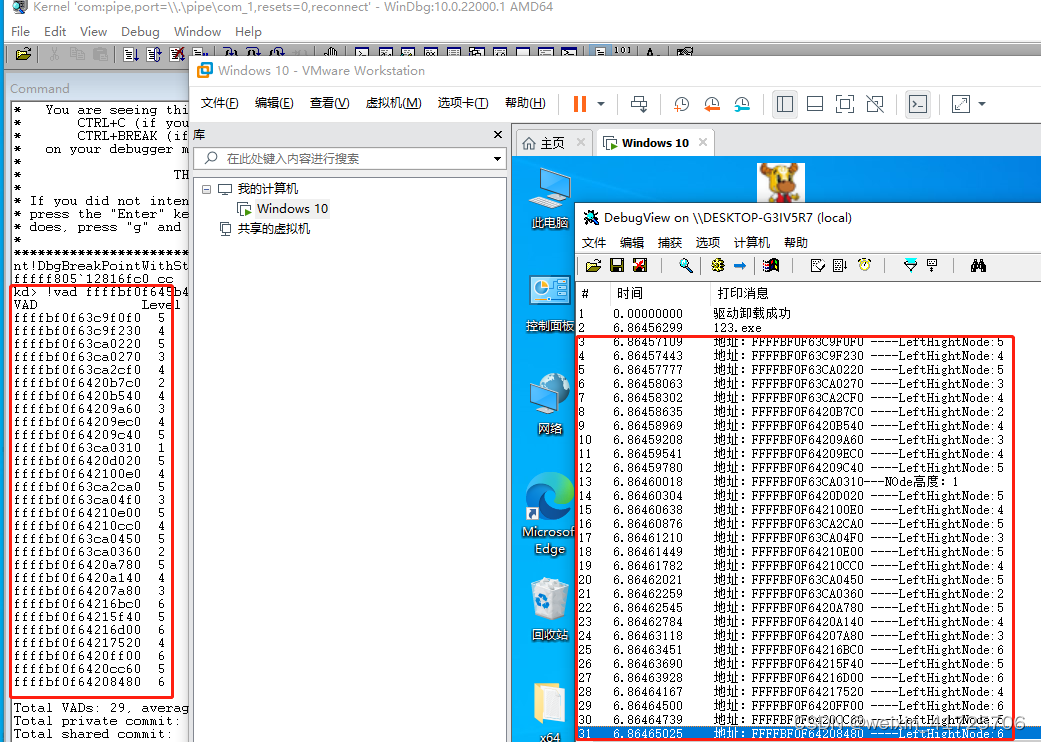

打印的顺序和windbg一致;二叉树遍历(左—中—右).
注:Node节点的高度:可能不会针对每个程序.
扫一扫
1099
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
