本文详细介绍了如何在Kubernetes中部署Ingress资源，包括使用ingress-nginx，部署Tomcat应用及其Service，配置Ingress以发布Service并实现HTTPS认证，以及创建和使用自定义SSL证书。

1、kubernetes ingress资源部署

#此处需要连接到国外资源 gitbub
wget https://raw.githubusercontent.com/kubernetes/ingress-nginx/main/deploy/static/provider/baremetal/deploy.yaml

国内yaml地址：
https://gitee.com/mirrors/ingress-nginx/

#部署安装ingress
kubectl apply -f  deploy.yaml

[root@node1 ingress]# kubectl  get pods -n ingress-nginx
NAME                                        READY   STATUS      RESTARTS       AGE
ingress-nginx-admission-create-hcpbf        0/1     Completed   0              19h
ingress-nginx-admission-patch-4qbhg         0/1     Completed   0              19h
ingress-nginx-controller-79bfb7f657-sw75q   1/1     Running     1 (126m ago)   19h

[root@node1 ingress]# kubectl get svc -n ingress-nginx
NAME                                 TYPE        CLUSTER-IP      EXTERNAL-IP   PORT(S)                      AGE
ingress-nginx                        NodePort    10.110.103.18   <none>        80:30080/TCP,443:30443/TCP   19h
ingress-nginx-controller             NodePort    10.106.94.63    <none>        80:32477/TCP,443:32386/TCP   19h
ingress-nginx-controller-admission   ClusterIP   10.97.5.79      <none>        443/TCP                      19h

2、部署tomcat (pod和service)

[root@node1 ingress]# cat tomcat.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
  creationTimestamp: null
  labels:
    app: tomcat
  name: tomcat
spec:
  replicas: 2
  selector:
    matchLabels:
      app: tomcat
  strategy: {}
  template:
    metadata:
      creationTimestamp: null
      labels:
        app: tomcat
    spec:
      containers:
      - image: tomcat
        name: tomcat
        resources: {}
status: {}

kubectl  apply -f tomcat.yaml

[root@node1 ingress]# cat tomcat-svc.yaml
apiVersion: v1
kind: Service
metadata:
  creationTimestamp: null
  labels:
    app: tomcat
  name: tomcat
spec:
  ports:
  - port: 8080
    protocol: TCP
    targetPort: 8080
  selector:
    app: tomcat
status:
  loadBalancer: {}

kubectl  apply -f tomcat-svc.yaml

[root@node1 ingress]# kubectl  get pods
NAME                     READY   STATUS    RESTARTS       AGE
nginx-b4ccb96c6-qxc52    1/1     Running   1 (140m ago)   21h
nginx-b4ccb96c6-zmrb8    1/1     Running   1 (140m ago)   21h
tomcat-c89f9dd5f-6qlr8   1/1     Running   1 (140m ago)   18h
tomcat-c89f9dd5f-f62zp   1/1     Running   1 (140m ago)   18h

[root@node1 ingress]# kubectl get svc
NAME         TYPE        CLUSTER-IP      EXTERNAL-IP   PORT(S)        AGE
kubernetes   ClusterIP   10.96.0.1       <none>        443/TCP        25h
nginx        NodePort    10.99.101.137   <none>        80:30611/TCP   20h
tomcat       ClusterIP   10.111.99.41    <none>        8080/TCP       18h

3、配置 ingress对外发布Service

[root@node1 ingress]# cat ingress-service-nodeport.yaml
apiVersion: v1
kind: Service
metadata:
  name: ingress-nginx
  namespace: ingress-nginx
  labels:
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/part-of: ingress-nginx
spec:
  type: NodePort
  ports:
    - name: http
      port: 80
      targetPort: 80
      nodePort: 30080
      protocol: TCP
    - name: https
      port: 443
      targetPort: 443
      nodePort: 30443
      protocol: TCP
  externalTrafficPolicy: Cluster
  selector:
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/part-of: ingress-nginx

[root@node1 ingress]# kubectl  apply -f ingress-service-nodeport.yaml

[root@node1 ingress]# kubectl  get svc  -n ingress-nginx
NAME                                 TYPE        CLUSTER-IP      EXTERNAL-IP   PORT(S)                      AGE
ingress-nginx                        NodePort    10.110.103.18   <none>        80:30080/TCP,443:30443/TCP   19h

4、配置tomcat对应 ingress资源

[root@node1 ingress]# cat ingress-tomcat.yaml
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: ingress-tomcat
  namespace: default
  annotations:
    kubernetes.io/ingress.class: "nginx"
spec:
  rules:
  - host: tomcat.cuase.com   #网站的域名
    http:
      paths:
      - path: /
        pathType: Prefix
        backend:
          service:
            name: tomcat  #网站对应的后台serice名字
            port:
              number: 8080   #网站对应的后台serice的端口


[root@node1 ingress]# kubectl  apply  -f ingress-tomcat.yaml
Warning: annotation "kubernetes.io/ingress.class" is deprecated, please use 'spec.ingressClassName' instead
ingress.networking.k8s.io/ingress-tomcat created
[root@node1 ingress]# kubectl get  ingress
NAME                    CLASS    HOSTS              ADDRESS          PORTS   AGE
ingress-nginx-backend   <none>   nginx.cuase.com    192.168.58.131   80      19h
ingress-tomcat          <none>   tomcat.cuase.com                    80      14s

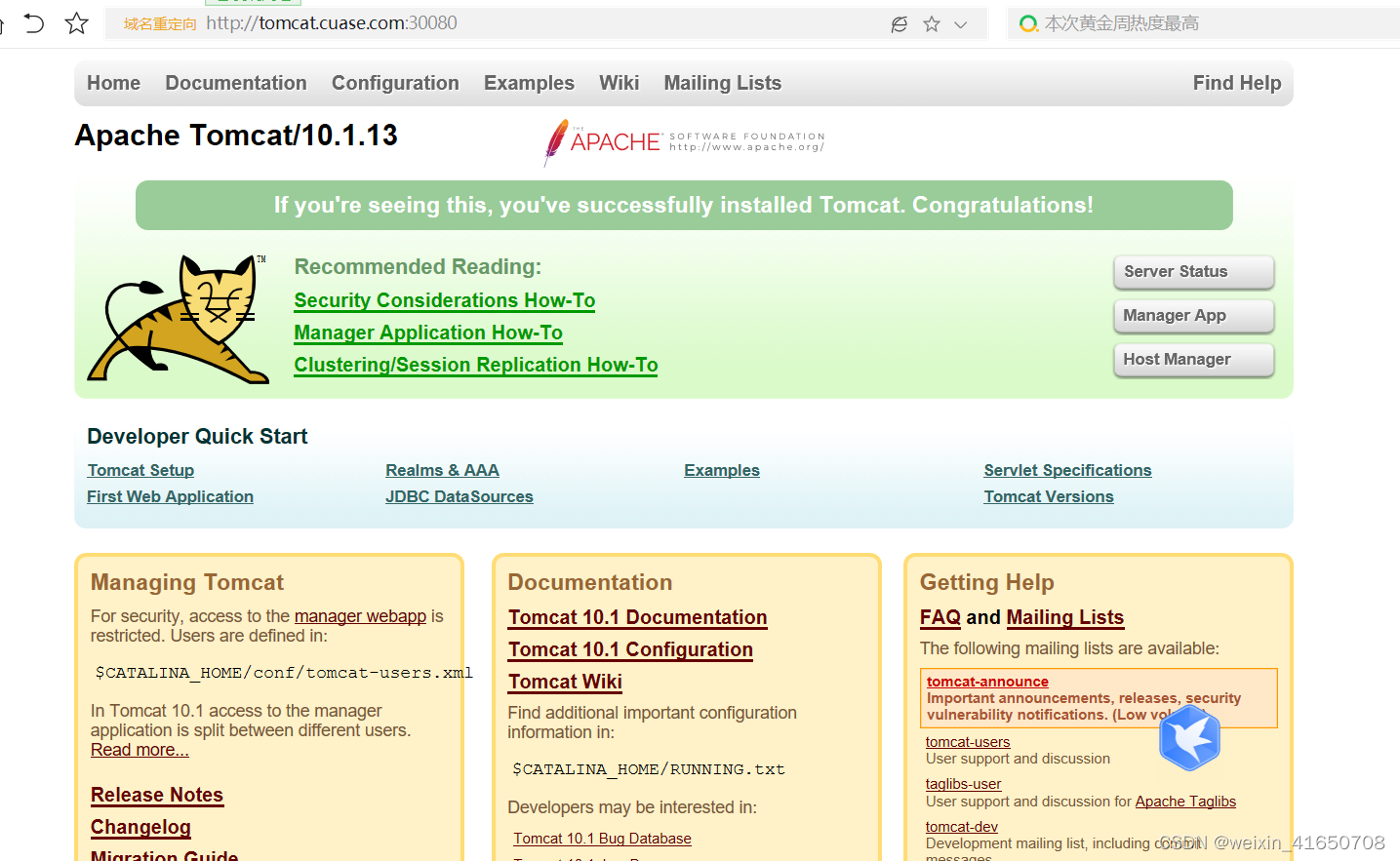

访问：http://tomcat.cuase.com:30080/

5、自定义tls（openssl）证书和部署secret资源

[root@node1 ingress]# openssl genrsa -out tls.key 2048
Generating RSA private key, 2048 bit long modulus
.............+++
................+++
e is 65537 (0x10001)
[root@node1 ingress]# ls
deploy.yaml                    mandatory.yaml      nginx-ingress-backend_nginx.yaml  tomcat-svc.yaml
ingress-service-nodeport.yaml  mandatory.yaml.bak  nginx-tomcat.yaml                 tomcat.yaml
ingress-tomcat.yaml            nginx.conf          tls.key

[root@node1 ingress]# openssl req -new -x509 -key tls.key -out tls.crt -subj /C=CN/ST=sichuan/L=chengdu/O=DevOps/CN=tomcat.cause.com
[root@node1 ingress]# ls
deploy.yaml                    mandatory.yaml      nginx-ingress-backend_nginx.yaml  tls.key
ingress-service-nodeport.yaml  mandatory.yaml.bak  nginx-tomcat.yaml                 tomcat-svc.yaml
ingress-tomcat.yaml            nginx.conf          tls.crt

[root@node1 ingress]# kubectl create secret tls tomcat-ingress-secert --cert=tls.crt --key=tls.key
secret/tomcat-ingress-secert created
[root@node1 ingress]# kubectl get secret
NAME                    TYPE                DATA   AGE
tomcat-ingress-secert   kubernetes.io/tls   2      37s

[root@node1 ingress]# kubectl describe secret tomcat-ingress-secert
Name:         tomcat-ingress-secert
Namespace:    default
Labels:       <none>
Annotations:  <none>

Type:  kubernetes.io/tls

Data
====
tls.crt:  1294 bytes
tls.key:  1675 bytes

6、配置tomcat对应ingress（https认证服务）资源

[root@node1 ingress]#cat ingress-tomcat-tls.yaml

apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
name: ingress-tomcat-tls
namespace: default
annotations:
kubernetes.io/ingress.class: "nginx"
spec:
tls:
- hosts:
- tomcat.cuase.com
secretName: tomcat-ingress-secert
rules:
- host: tomcat.cuase.com #网站的域名
http:
paths:
- path: /
pathType: Prefix
backend:
service:
name: tomcat #网站对应的后台serice名字
port:
number: 8080 #网站对应的后台serice的端口

[root@node1 ingress]# kubectl  apply -f ingress-tomcat-tls.yaml
Warning: annotation "kubernetes.io/ingress.class" is deprecated, please use 'spec.ingressClassName' instead
ingress.networking.k8s.io/ingress-tomcat-tls created
[root@node1 ingress]# kubectl  get ingress
NAME                    CLASS    HOSTS              ADDRESS          PORTS     AGE
ingress-nginx-backend   <none>   nginx.cuase.com    192.168.58.131   80        19h
ingress-tomcat-tls      <none>   tomcat.cuase.com                    80, 443   13s
[root@node1 ingress]# kubectl  describe ingress  ingress-tomcat-tls
Name:             ingress-tomcat-tls
Labels:           <none>
Namespace:        default
Address:          192.168.58.131
Ingress Class:    <none>
Default backend:  <default>
TLS:
  tomcat-ingress-secert terminates tomcat.cuase.com
Rules:
  Host              Path  Backends
  ----              ----  --------
  tomcat.cuase.com
                    /   tomcat:8080 (10.244.1.10:8080,10.244.2.6:8080)
Annotations:        kubernetes.io/ingress.class: nginx
Events:
  Type    Reason  Age                From                      Message
  ----    ------  ----               ----                      -------
  Normal  Sync    25s (x2 over 45s)  nginx-ingress-controller  Scheduled for sync

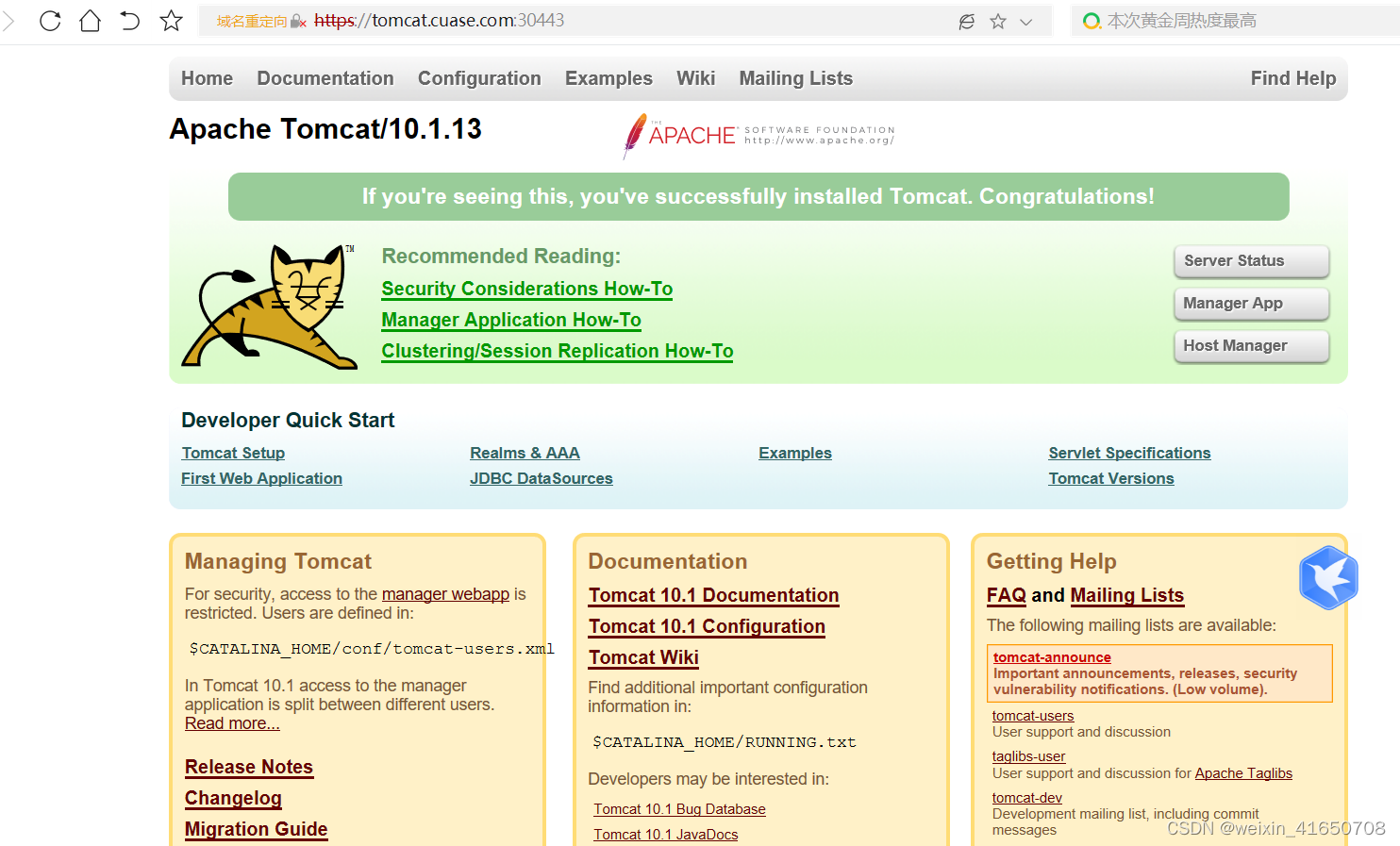

访问: https://tomcat.cuase.com:30443/
