kafka-2.5.1源码阅读之KafkaProducer

KafkaProducer介绍

KafkaProducer是kafka生成者生成数据写入kafka集群，通过实例化对象调取send方法发送数据到对应的Topic中存储。

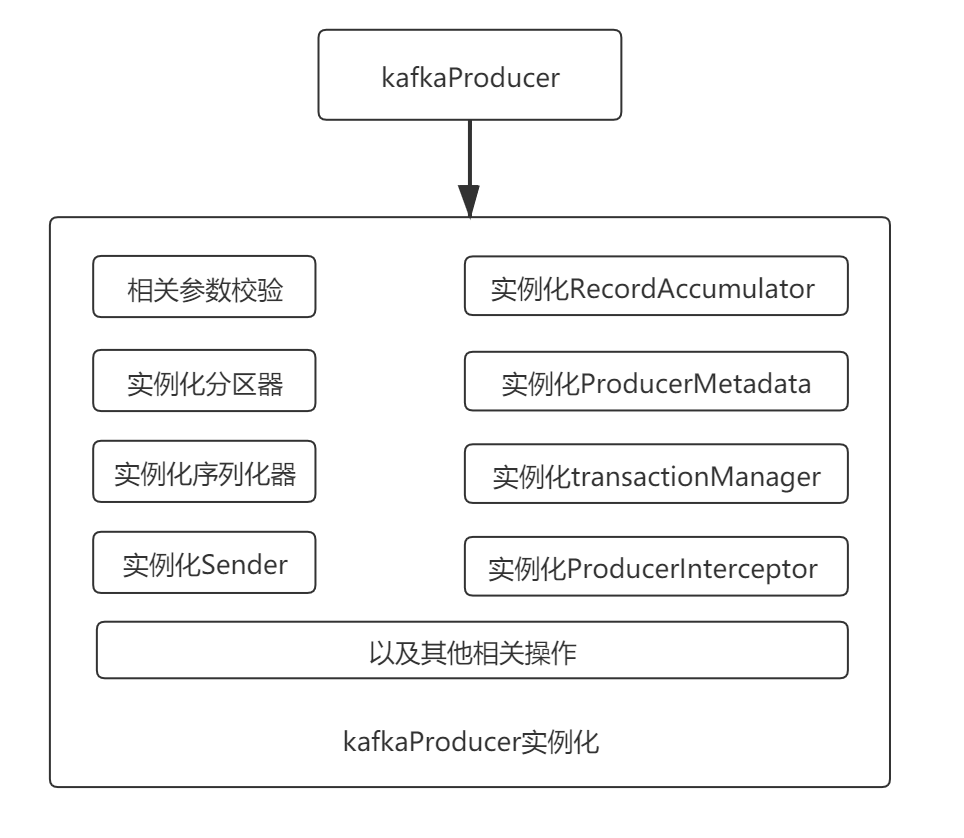

实例化

1. 相关参数的校验
2. 分区器
3. 序列化器
4. 后台发送线程
5. 本地缓存记录集合
6. 生产者元数据信息
7. 事务管理
8. 生产者拦截器
   后边会详细介绍相关核心操作

元数据更新

    /**
     * Wait for cluster metadata including partitions for the given topic to be available.
     *
     * @param topic     The topic we want metadata for
     * @param partition A specific partition expected to exist in metadata, or null if there's no preference
     * @param nowMs     The current time in ms
     * @param maxWaitMs The maximum time in ms for waiting on the metadata
     * @return The cluster containing topic metadata and the amount of time we waited in ms
     * @throws TimeoutException if metadata could not be refreshed within {@code max.block.ms}
     * @throws KafkaException   for all Kafka-related exceptions, including the case where this method is called after producer close
     */
    private ClusterAndWaitTime waitOnMetadata(String topic, Integer partition, long nowMs, long maxWaitMs) throws InterruptedException {
        // add topic to metadata topic list if it is not there already and reset expiry
        Cluster cluster = metadata.fetch();

        if (cluster.invalidTopics().contains(topic))
            throw new InvalidTopicException(topic);

        metadata.add(topic, nowMs);

        Integer partitionsCount = cluster.partitionCountForTopic(topic);
        // Return cached metadata if we have it, and if the record's partition is either undefined
        // or within the known partition range
        if (partitionsCount != null && (partition == null || partition < partitionsCount))
            return new ClusterAndWaitTime(cluster, 0);

        long remainingWaitMs = maxWaitMs;
        long elapsed = 0;
        // Issue metadata requests until we have metadata for the topic and the requested partition,
        // or until maxWaitTimeMs is exceeded. This is necessary in case the metadata
        // is stale and the number of partitions for this topic has increased in the meantime.
        // 轮询更新元数据信息
        do {
            if (partition != null) {
                log.trace("Requesting metadata update for partition {} of topic {}.", partition, topic);
            } else {
                log.trace("Requesting metadata update for topic {}.", topic);
            }
            metadata.add(topic, nowMs + elapsed);
            int version = metadata.requestUpdateForTopic(topic);
            sender.wakeup();
            try {
                metadata.awaitUpdate(version, remainingWaitMs);
            } catch (TimeoutException ex) {
                // Rethrow with original maxWaitMs to prevent logging exception with remainingWaitMs
                throw new TimeoutException(
                        String.format("Topic %s not present in metadata after %d ms.",
                                topic, maxWaitMs));
            }
            cluster = metadata.fetch();
            elapsed = time.milliseconds() - nowMs;
            if (elapsed >= maxWaitMs) {
                throw new TimeoutException(partitionsCount == null ?
                        String.format("Topic %s not present in metadata after %d ms.",
                                topic, maxWaitMs) :
                        String.format("Partition %d of topic %s with partition count %d is not present in metadata after %d ms.",
                                partition, topic, partitionsCount, maxWaitMs));
            }
            metadata.maybeThrowExceptionForTopic(topic);
            remainingWaitMs = maxWaitMs - elapsed;
            partitionsCount = cluster.partitionCountForTopic(topic);
        } while (partitionsCount == null || (partition != null && partition >= partitionsCount));

        return new ClusterAndWaitTime(cluster, elapsed);
    }

kafka发送数据到本地缓存

    /**
     * Implementation of asynchronously send a record to a topic.
     */
    private Future<RecordMetadata> doSend(ProducerRecord<K, V> record, Callback callback) {
        TopicPartition tp = null;
        try {
            // 判断sender线程是否在运行
            throwIfProducerClosed();
            // first make sure the metadata for the topic is available
            long nowMs = time.milliseconds();
            ClusterAndWaitTime clusterAndWaitTime;
            try {
                // 更新元数据信息
                clusterAndWaitTime = waitOnMetadata(record.topic(), record.partition(), nowMs, maxBlockTimeMs);
            } catch (KafkaException e) {
                if (metadata.isClosed())
                    throw new KafkaException("Producer closed while send in progress", e);
                throw e;
            }
            nowMs += clusterAndWaitTime.waitedOnMetadataMs;
            long remainingWaitMs = Math.max(0, maxBlockTimeMs - clusterAndWaitTime.waitedOnMetadataMs);
            Cluster cluster = clusterAndWaitTime.cluster;
            byte[] serializedKey;
            try {
                serializedKey = keySerializer.serialize(record.topic(), record.headers(), record.key());
            } catch (ClassCastException cce) {
                throw new SerializationException("Can't convert key of class " + record.key().getClass().getName() +
                        " to class " + producerConfig.getClass(ProducerConfig.KEY_SERIALIZER_CLASS_CONFIG).getName() +
                        " specified in key.serializer", cce);
            }
            byte[] serializedValue;
            try {
                serializedValue = valueSerializer.serialize(record.topic(), record.headers(), record.value());
            } catch (ClassCastException cce) {
                throw new SerializationException("Can't convert value of class " + record.value().getClass().getName() +
                        " to class " + producerConfig.getClass(ProducerConfig.VALUE_SERIALIZER_CLASS_CONFIG).getName() +
                        " specified in value.serializer", cce);
            }
            int partition = partition(record, serializedKey, serializedValue, cluster);
            tp = new TopicPartition(record.topic(), partition);

            setReadOnly(record.headers());
            Header[] headers = record.headers().toArray();

            int serializedSize = AbstractRecords.estimateSizeInBytesUpperBound(apiVersions.maxUsableProduceMagic(),
                    compressionType, serializedKey, serializedValue, headers);
            ensureValidRecordSize(serializedSize);
            long timestamp = record.timestamp() == null ? nowMs : record.timestamp();
            if (log.isTraceEnabled()) {
                log.trace("Attempting to append record {} with callback {} to topic {} partition {}", record, callback, record.topic(), partition);
            }
            // producer callback will make sure to call both 'callback' and interceptor callback
            Callback interceptCallback = new InterceptorCallback<>(callback, this.interceptors, tp);

            if (transactionManager != null && transactionManager.isTransactional()) {
                transactionManager.failIfNotReadyForSend();
            }
            RecordAccumulator.RecordAppendResult result = accumulator.append(tp, timestamp, serializedKey,
                    serializedValue, headers, interceptCallback, remainingWaitMs, true, nowMs);

            if (result.abortForNewBatch) {
                int prevPartition = partition;
                partitioner.onNewBatch(record.topic(), cluster, prevPartition);
                partition = partition(record, serializedKey, serializedValue, cluster);
                tp = new TopicPartition(record.topic(), partition);
                if (log.isTraceEnabled()) {
                    log.trace("Retrying append due to new batch creation for topic {} partition {}. The old partition was {}", record.topic(), partition, prevPartition);
                }
                // producer callback will make sure to call both 'callback' and interceptor callback
                interceptCallback = new InterceptorCallback<>(callback, this.interceptors, tp);

                result = accumulator.append(tp, timestamp, serializedKey,
                        serializedValue, headers, interceptCallback, remainingWaitMs, false, nowMs);
            }

            if (transactionManager != null && transactionManager.isTransactional())
                transactionManager.maybeAddPartitionToTransaction(tp);

            if (result.batchIsFull || result.newBatchCreated) {
                log.trace("Waking up the sender since topic {} partition {} is either full or getting a new batch", record.topic(), partition);
                this.sender.wakeup();
            }
            return result.future;
            // handling exceptions and record the errors;
            // for API exceptions return them in the future,
            // for other exceptions throw directly
        } catch (ApiException e) {
            log.debug("Exception occurred during message send:", e);
            if (callback != null)
                callback.onCompletion(null, e);
            this.errors.record();
            this.interceptors.onSendError(record, tp, e);
            return new FutureFailure(e);
        } catch (InterruptedException e) {
            this.errors.record();
            this.interceptors.onSendError(record, tp, e);
            throw new InterruptException(e);
        } catch (BufferExhaustedException e) {
            this.errors.record();
            this.metrics.sensor("buffer-exhausted-records").record();
            this.interceptors.onSendError(record, tp, e);
            throw e;
        } catch (KafkaException e) {
            this.errors.record();
            this.interceptors.onSendError(record, tp, e);
            throw e;
        } catch (Exception e) {
            // we notify interceptor about all exceptions, since onSend is called before anything else in this method
            this.interceptors.onSendError(record, tp, e);
            throw e;
        }
    }
