[013]操作系统原理系列 | prometheus监控docker&linux等状态

备注：

此Blog仅仅为了个人记录命令而建！！！

一、监控系统Prometheus

prometheus.yml:

global:
  # How frequently to scrape targets by default.
  scrape_interval: 15s

  # How frequently to evaluate rules.
  evaluation_interval: 15s

# Rule files specifies a list of globs. Rules and alerts are read from
# all matching files.
rule_files:
  # - "first_rules.yml"
  # - "second_rules.yml"

# A list of scrape configurations.
scrape_configs:
  - job_name: 'prometheus'
  static_configs:
  - targets:['localhost:9090']

# Alerting specifies settings related to the Alertmanager.
alerting:
  alertmanagers:
    - targets:
  # - alertmanager:9093

docker run -d --name=pro -p 9090:9090 -v /data/prometheus.yml:/etc/prometheus/prometheus.yml prom/prometheus

二、cAdvisor

cAdvisor（Container Advisor）是Google开源，用于收集一台机器上所有运行的容器信息（cAdvisor只进行查看，并不做数据的保存，所以需要将cAdvisor的数据加载到Prometheus中）

docker run -d \
--volume=/:/rootfs:ro \
--volume=/var/run:/var/run:ro \
--volume=/sys:/sys:ro \
--volume=/var/lib/docker/:/var/lib/docker:ro \
--volume=/dev/disk/:/dev/disk:ro \
--publish=8080:8080 \
--detach=true \
--name=cadvisor \
--restart=always \
google/cadvisor:latest

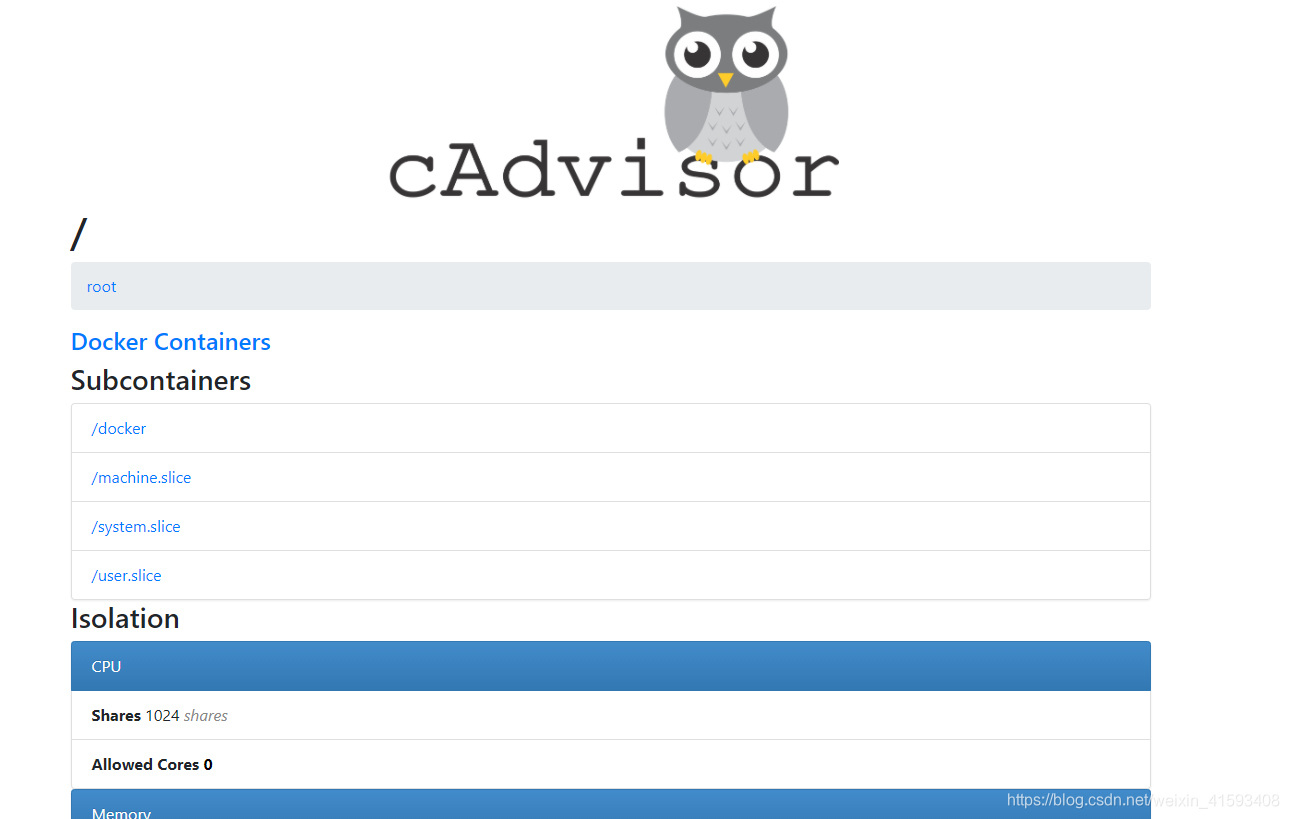

查看服务器的8080端口：

 三、node-exporter

node-expoter是prometheus开源的，能够提取到机器的信息

docker run -d -p 9100:9100 \
  -v "/proc:/host/proc:ro" \
  -v "/sys:/host/sys:ro" \
  -v "/:/rootfs:ro" \
  --net="host" \
  prom/node-exporter

修改配置文件prometheus.yml，增加了cAdvisor和node-expoter配置，修改如下（删除了部分注释），然后重启prometheus容器！！！

global:
  scrape_interval:     15s
  evaluation_interval: 15s

scrape_configs:
  - job_name: prometheus
    static_configs:
      - targets: ['192.168.172.128:9090']
        labels:
          instance: prometheus

  - job_name: docker
    static_configs:
      - targets: ['192.168.172.128:8080']
        labels:
          instance: localhost

  - job_name: linux
    static_configs:
      - targets: ['192.168.172.128:9100']
        labels:
          instance: localhost

 四、Grafana

grafana是跨平台的开源试题分析和可视化工具，可以通过将采集的数据查询然后做可视化的展示。
启动Grafana容器

docker run -d --name=grafana --restart=always -p 3001:3000 grafana/grafana

备注：

进入到服务器的3001端口（原本是3000端口，因为服务器在占用3000端口，所以修改成3001）
默认的用户名与密码都是admin，首次进入需要修改密码

备注：

Docker主机监控模板：193
Linux主机监控模板：9276 8919 12227



五、Mongo

docker run -d --name mongo -p 27017:27017 -v $PWD/db:/data/db mongo

docker exec -it mongo mongo admin

创建用户：

$ docker exec -it mongo mongo admin
# 创建一个名为 admin，密码为 123456 的用户。
>  db.createUser({ user:'admin',pwd:'123456',roles:[ { role:'userAdminAnyDatabase', db: 'admin'},"readWriteAnyDatabase"]});
# 尝试使用上面创建的用户信息进行连接。
> db.auth('admin', '123456')

docker run -d --name mongodb_exporter -p 9104:9104 eses/mongodb_exporter --mongodb.uri mongodb://admin:123456@192.168.172.128:27017

查看一下：

[root@tw data]# docker logs f39a67d62b32
### Warning: the exporter is in beta/experimental state and field names are very
### likely to change in the future and features may change or get removed!
### See: https://github.com/percona/mongodb_exporter for updates
mongodb_exporter version: unknown, git commit hash: unknown
Listening on :9104

Prometheus.yml添加下面:

- job_name: mongodb
    static_configs:
      - targets: ['192.168.172.128:9104']
        labels:
            instance: mongodb

参考课程来源：https://www.bilibili.com/video/BV1T54y1Q7VY
