Shiro之学习笔记（五）

Shiro整合Spring并搭建环境（入门）

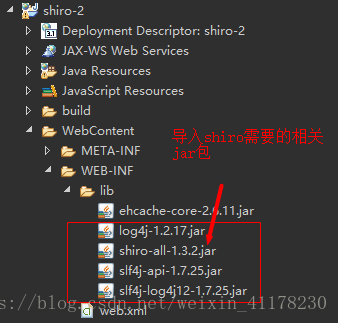

1、在eclipse开发环境中，点击file新建一个Dynamic web project，并导入相关jar包：



2、在src目录下创建applicationContext-shiro.xml并配置（也可以在下载到的shiro示例代码中的shiro-root-1.3.2\samples\spring\src\main\webapp\WEB-INF目录下去拷贝applicationContext.xml）：

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xsi:schemaLocation="
       http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-3.0.xsd">

    <!-- =========================================================
         Shiro Core Components - Not Spring Specific
         ========================================================= -->
    <!-- Shiro's main business-tier object for web-enabled applications
         (use DefaultSecurityManager instead when there is no web environment)-->
    <!-- 安全管理器
    	1、缓存技术:缓存管理
    	2、realm:获取并处理数据
    -->
    <bean id="securityManager" class="org.apache.shiro.web.mgt.DefaultWebSecurityManager">
        <property name="cacheManager" ref="cacheManager"/>
        <!-- Single realm app.  If you have multiple realms, use the 'realms' property instead. -->
        <!-- 自定义realm -->
        <property name="realm" ref="jdbcRealm"/>
    </bean>

    <bean id="jdbcRealm" class="com.shiro.exercies.ShiroRealm" />
    <!-- Let's use some enterprise caching support for better performance.  You can replace this with any enterprise
         caching framework implementation that you like (Terracotta+Ehcache, Coherence, GigaSpaces, etc -->
    <!-- 缓存管理器
                     目前我们使用的缓存技术是EhCache缓存框架
    -->
    <bean id="cacheManager" class="org.apache.shiro.cache.ehcache.EhCacheManager">
        <!-- Set a net.sf.ehcache.CacheManager instance here if you already have one.  If not, a new one
             will be creaed with a default config:
             <property name="cacheManager" ref="ehCacheManager"/> -->
        <!-- If you don't have a pre-built net.sf.ehcache.CacheManager instance to inject, but you want
             a specific Ehcache configuration to be used, specify that here.  If you don't, a default
             will be used.:-->
        <property name="cacheManagerConfigFile" value="classpath:ehcache.xml"/>
    </bean>

    <!-- Used by the SecurityManager to access security data (users, roles, etc).
         Many other realm implementations can be used too (PropertiesRealm,
         LdapRealm, etc. -->

    <!-- =========================================================
         Shiro Spring-specific integration
         ========================================================= -->
    <!-- Post processor that automatically invokes init() and destroy() methods
         for Spring-configured Shiro objects so you don't have to
         1) specify an init-method and destroy-method attributes for every bean
            definition and
         2) even know which Shiro objects require these methods to be
            called. -->
    <!-- 必须要有这样的一个bean，用来管理shiro的生命周期 -->
    <bean id="lifecycleBeanPostProcessor" class="org.apache.shiro.spring.LifecycleBeanPostProcessor"/>

    <!-- Enable Shiro Annotations for Spring-configured beans.  Only run after
         the lifecycleBeanProcessor has run: -->
    <!-- 启动Shiro注解 -->
    <bean class="org.springframework.aop.framework.autoproxy.DefaultAdvisorAutoProxyCreator"
          depends-on="lifecycleBeanPostProcessor"/>
    <bean class="org.apache.shiro.spring.security.interceptor.AuthorizationAttributeSourceAdvisor">
        <property name="securityManager" ref="securityManager"/>
    </bean>

    <!-- Secure Spring remoting:  Ensure any Spring Remoting method invocations can be associated
         with a Subject for security checks. -->
    <!-- 网络方面 -->
    <bean id="secureRemoteInvocationExecutor" class="org.apache.shiro.spring.remoting.SecureRemoteInvocationExecutor">
        <property name="securityManager" ref="securityManager"/>
    </bean>

    <!-- Define the Shiro Filter here (as a FactoryBean) instead of directly in web.xml -
         web.xml uses the DelegatingFilterProxy to access this bean.  This allows us
         to wire things with more control as well utilize nice Spring things such as
         PropertiesPlaceholderConfigurer and abstract beans or anything else we might need: -->
    <!--
    	Shiro过滤器
    	1、shiroFilter这个bean的id必须要和web.xml中的filter-name同名
     -->
    <bean id="shiroFilter" class="org.apache.shiro.spring.web.ShiroFilterFactoryBean">
        <property name="securityManager" ref="securityManager"/>
        <property name="loginUrl" value="/login.jsp"/>
        <property name="successUrl" value="/index.jsp"/>
        <property name="unauthorizedUrl" value="/unauthorized.jsp"/>
        <!-- The 'filters' property is not necessary since any declared javax.servlet.Filter bean
             defined will be automatically acquired and available via its beanName in chain
             definitions, but you can perform overrides or parent/child consolidated configuration
             here if you like: -->
        <!-- <property name="filters">
            <util:map>
                <entry key="aName" value-ref="someFilterPojo"/>
            </util:map>
        </property> -->
        <!-- Shiro filter的具体配置 -->
        <property name="filterChainDefinitions">
            <value>
                <!-- anon代表未经认证就可以访问的Web资源 -->
                /s/login = anon
                <!-- authc必须经过认证才可以访问的Web资源 -->
                /** = authc
            </value>
        </property>
    </bean>

</beans>

3、配置web.xml：

<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
     xmlns="http://xmlns.jcp.org/xml/ns/javaee"
     xsi:schemaLocation="http://xmlns.jcp.org/xml/ns/javaee
     http://xmlns.jcp.org/xml/ns/javaee/web-app_3_1.xsd"
     id="WebApp_ID" version="3.1">
     <!-- 配置加载Spring文件的监听器 -->
     <context-param>
         <param-name>contextConfigLocation</param-name>
         <param-value>classpath*:applicationContext*.xml</param-value>
     </context-param>
    <listener>
        <listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
    </listener>
    <!-- 编码过滤器  -->
    <filter>
        <filter-name>encoding</filter-name>
        <filter-class>org.springframework.web.filter.CharacterEncodingFilter</filter-class>
        <init-param>
            <param-name>encoding</param-name>
            <param-value>UTF-8</param-value>
        </init-param>
    </filter>
    <!-- shiro过滤器，DelegatingFilterProxy通过代理模式将spring容器中的bean和filter关联起来 -->
    <filter>
	    <filter-name>shiroFilter</filter-name>
	    <filter-class>org.springframework.web.filter.DelegatingFilterProxy</filter-class>
	    <!-- 设置true由servlet容器控制filter的生命周期 -->
	    <init-param>
	        <param-name>targetFilterLifecycle</param-name>
	        <param-value>true</param-value>
	    </init-param>
	    <!-- 设置spring容器filter的bean id,如果不设置则找与filter-name一致的bean -->
	    <init-param>
	        <param-name>targetBeanName</param-name>
	        <param-value>shiroFilter</param-value>
	    </init-param>
	</filter>
    <!-- 编码过滤器mapping -->
    <filter-mapping>
        <filter-name>encoding</filter-name>
        <url-pattern>/*</url-pattern>
    </filter-mapping>
    <!-- shiro的filter-mapping -->
    <filter-mapping>
	    <filter-name>shiroFilter</filter-name>
	    <url-pattern>/*</url-pattern>
	</filter-mapping>
    <!-- 配置Spring MVC前端核心控制器  -->
    <servlet>
        <servlet-name>springmvc</servlet-name>
        <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
        <init-param>
            <param-name>contextConfigLocation</param-name>
            <param-value>classpath:springmvc-config.xml</param-value>
        </init-param>
        <!-- 配置服务器启动后立即加载Spring MVC配置文件 -->
        <load-on-startup>1</load-on-startup>
    </servlet>
    <servlet-mapping>
        <servlet-name>springmvc</servlet-name>
        <url-pattern>/</url-pattern>
    </servlet-mapping>

    <!-- 欢迎页面 -->
    <welcome-file-list>
        <welcome-file>/login.jsp</welcome-file>
    </welcome-file-list>
</web-app>

4、在lib目录下导入ehcache的核心jar包（下载地址：http://mvnrepository.com/artifact/net.sf.ehcache/ehcache-core/2.6.11）：

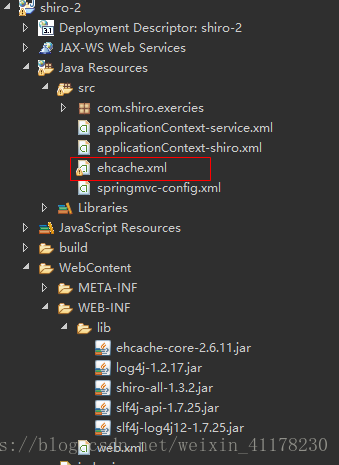

5、配置ehcache.xml（直接在shiro示例源码中去拷贝），这里就不详细说了：

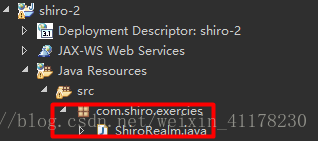

6、创建ShiroRealm类并实现Reaml接口：



     ShiroRealm类（这里只是简单实现并不编写详细的代码）：

package com.shiro.exercies;

import org.apache.shiro.authc.AuthenticationException;
import org.apache.shiro.authc.AuthenticationInfo;
import org.apache.shiro.authc.AuthenticationToken;
import org.apache.shiro.realm.Realm;

public class ShiroRealm implements Realm {

	public AuthenticationInfo getAuthenticationInfo(AuthenticationToken arg0) throws AuthenticationException {
		// TODO Auto-generated method stub
		return null;
	}

	public String getName() {
		// TODO Auto-generated method stub
		return null;
	}

	public boolean supports(AuthenticationToken arg0) {
		// TODO Auto-generated method stub
		return false;
	}

}

7、在WebContent下分别创建login.jsp、index.jsp和unauthorized.jsp：

      login.jsp：

<%@ page language="java" contentType="text/html; charset=UTF-8"
    pageEncoding="UTF-8"%>
<!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN" "http://www.w3.org/TR/html4/loose.dtd">
<html>
<head>
<meta http-equiv="Content-Type" content="text/html; charset=UTF-8">
<title>Insert title here</title>
</head>
<body>
	<p>Login Page.</p>
</body>
</html>

     index.jsp：

<%@ page language="java" contentType="text/html; charset=UTF-8"
    pageEncoding="UTF-8"%>
<!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN" "http://www.w3.org/TR/html4/loose.dtd">
<html>
<head>
<meta http-equiv="Content-Type" content="text/html; charset=UTF-8">
<title>Insert title here</title>
</head>
<body>
	<p>Index Page.</p>
</body>
</html>

     unauthorized.jsp：

<%@ page language="java" contentType="text/html; charset=UTF-8"
    pageEncoding="UTF-8"%>
<!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN" "http://www.w3.org/TR/html4/loose.dtd">
<html>
<head>
<meta http-equiv="Content-Type" content="text/html; charset=UTF-8">
<title>Insert title here</title>
</head>
<body>
	<p>Unauthorized Page.</p>
</body>
</html>

  9、右键项目点击Run As->Run Server：

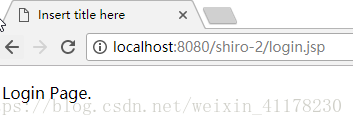

 10、如果把路径改为http://localhost:8080/shiro-2/index.jsp还是跳转到登录界面。
