本文的demo中列举了

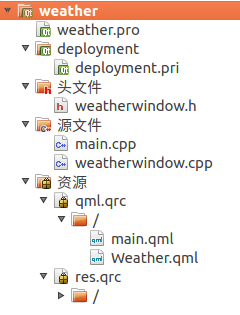

在这里插入图片描述
1、如何将c++对象导入qml从而解决qml调用c++接口传递数据即qml==>>c++的问题；
2、通过建立信号槽的方式解决c++通知qml层并调用qml函数及往qml传递数据即 c++==>qml的问题.
主要功能：
天气插件，实现显示及更新气象的功能。

:~/weather$ tree
.
├── deployment.pri
├── main.cpp
├── main.qml
├── qml.qrc
├── Res
│   ├── 0.png
│   ├── 1.png
│   ├── 2.png
│   ├── 3ddemo.png
│   ├── 3.png
│   ├── 3rdparty2.png
│   ├── 4.png
│   ├── 5.png
│   ├── 6.png
│   ├── 7.png
│   ├── 8.png
│   ├── 9.png
├── res.qrc
├── weather.pro
├── weather.pro.user
├── Weather.qml
├── weatherwindow.cpp
└── weatherwindow.h

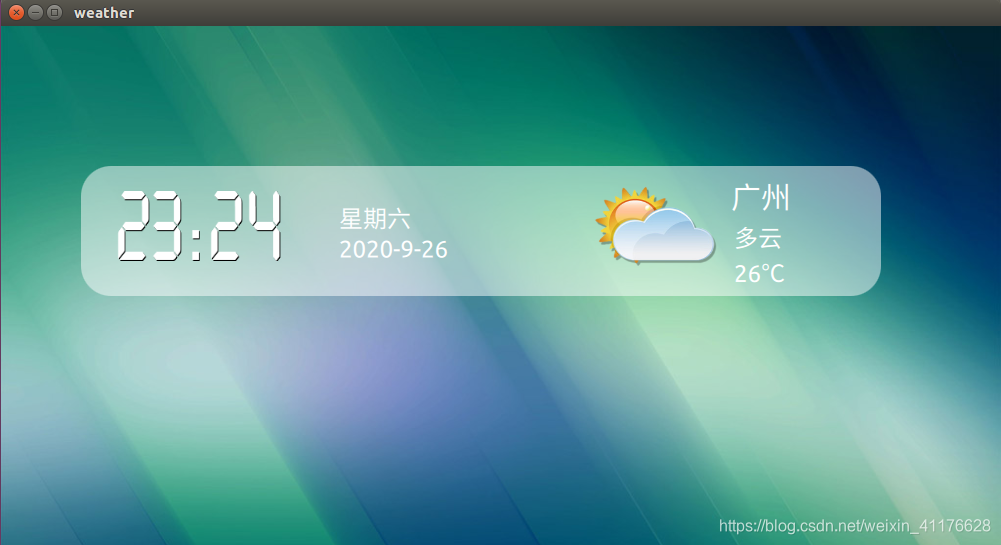

在这里插入图片描述
效果：

1、将c++对象导入qml
setContextProperty(STRING_WND, weatherWdn);
对象使用字符串STRING_WND="weatherwindow"作为代理成为qml的一个节点。id为该字符串weatherwindow

    weatherWindow *weatherWdn = new weatherWindow;
    QQmlApplicationEngine engine;
    //拿到根节点
    QQmlContext *context = engine.rootContext();
    if (context == NULL) {
        qDebug( "QQmlContext is NULL \r\n");
        return false;
    }
    //将对象名导入qml上下文
    context->setContextProperty(STRING_WND, weatherWdn);
    //setContextProperty需要在engine.load qml前面才能导入成功
    engine.load(QUrl(QStringLiteral("qrc:/main.qml")));

2、qml通过对象访问c++
（1）成员变量需要用

Q_PROPERTY(int xpos READ xpos WRITE setXpos)

生命实现READ和WRITE方法（可在c++中调用这些方法也可在qml中调用），还有其他属性自行百度。
（2）类方法要用

Q_INVOKABLE void setXpos(const int xpos);

Q_INVOKABLE 修饰。
以上要满足继承public QObject并且声明Q_OBJECT宏
如下：

        MouseArea{
            anchors.fill: parent
            onClicked: {
            	//直接调用成员变量获取他们的值
                console.log("weatherwindow x :"+weatherwindow.xpos)
                console.log("weatherwindow y :"+weatherwindow.ypos)
                console.log("weatherwindow w :"+weatherwindow.width)
                console.log("weatherwindow h :"+weatherwindow.height)
                console.log("weatherwindow textEn :"+weatherwindow.textEn)
                //调用对象的函数获取值
                console.log("weatherwindow getTextEn() :"+weatherwindow.getTextEn())
            }
        }

3、c++快速访问qml
（1）在类中声明signal

signals:
    void appItemClicked(int);
    void sendMsgToQml(QVariant msg, QVariant wParam, QVariant lParam);
    void sendLoaderEvent();

（2）qml中声明onSendMsgToQml槽并用Connections绑定信号槽target是导入的对象字符串字段"weatherwindow" 他是对象节点的代理id。
这样c++中emit sendMsgToQml 就可以向qml中传递数据和调用qml的函数了。

 Connections {
        target: weatherwindow
        onSendMsgToQml: {
            switch (msg) {
                case first_page_language:
                    first_page_language_id=wParam;
                    console.log("update language:"+wParam);
                    break;
                case first_page_timeformat:
                    console.log("update timeformat:"+wParam);
                    switch(wParam)
                    {
                    case time_format_12H:
                        cur_time_format = time_format_12H;
                        break;
                    case time_format_24H:
                        cur_time_format = time_format_24H;
                        break;
                    default:
                        break;
                    }
                    updatelocaltime();
                    break;
                case first_page_weather:
                    console.log("update weather:"+wParam);
                    switch(wParam)
                    {
                    case weather_city:
                        console.log("update weather:city"+lParam);
                        textCity.text = lParam;
                        break;
                    case weather_weather:
                        console.log("update weather:weather"+lParam);
                        textWeather.text = lParam;
                        break;
                    case weather_temp:
                        console.log("update weather:temp"+lParam);
                        textTemp.text = lParam;
                        break;
                    }
                    break;
                default:
                    break;
            }
        }
    }

4、c++直接访问qml函数
cpp

    QObject* root = engine.rootObjects().first();
    QObject* pctrlobj = root->findChild<QObject*>("pageProgress");
    if(pctrlobj)
    {
        qDebug("home ui get  pctrlobj!!!");
        QVariant msg="home ui get  pctrlobj";
		//调用qml中的hideRear函数，并传参
        QMetaObject::invokeMethod(pctrlobj,"hideRear",Q_ARG(QVariant,msg));
    }

qml

    Item {
       id: test
       objectName: "pageProgress"
       function hideRear(msg)
       {
           console.log("hideRear $$$$$$$$$$$$$$ "+msg)
           return "some return"
       }
    }

5、qml中将c++函数封装成qml function导出到base qml 方便其他

    function timezoneClicked()
    {
        weatherwindow.timezoneClicked();
    }

    function weatherzoneClicked()
    {
        weatherwindow.weatherzoneClicked(2);
    }

6、qml发送信号到c++槽
为了比较高效的调用c++函数，可以在c++类接口中加入信号，并通过Q_INVOKABLE类方法emit该信号。从而达到qml发送信号到c++槽的作用。

7、log打印

qml: update weather:0
qml: update weather:city广州
weatherWindow::emit sendMsgToQml(ID_WEATHER, WEATHER_CITY

qml: update weather:1
qml: update weather:weather多云
weatherWindow::emit sendMsgToQml(ID_WEATHER, WEATHER_WEATHER

qml: update weather:2
qml: update weather:temp26℃
weatherWindow::emit sendMsgToQml(ID_WEATHER, WEATHER_TEMP)

home ui get  pctrlobj!!!
qml: hideRear $$$$$$$$$$$$$$ home ui get  pctrlobj

qml: weatherwindow x :200
qml: weatherwindow y :300
qml: weatherwindow w :360
qml: weatherwindow h :500
qml: weatherwindow textEn :weatherWindow
qml: weatherwindow getTextEn() :weatherWindow

贴出核心demo：
weatherwindow.h

#ifndef WEATHERWINDOW_H
#define WEATHERWINDOW_H

#include <QObject>
#include <QTime>
#include <QDate>
#include <QQmlContext>

#include <unistd.h>
#include <sys/types.h>
#include <stdlib.h>
#include <QQmlApplicationEngine>
#include <QQuickWindow>
#include <QWindow>

enum {
    WEATHER_CITY,
    WEATHER_WEATHER,
    WEATHER_TEMP,
};

class weatherWindow : public QObject
{
    Q_OBJECT
    Q_PROPERTY(int xpos READ xpos WRITE setXpos)
    Q_PROPERTY(int ypos READ ypos WRITE setYpos)
    Q_PROPERTY(int width READ width WRITE setWidth)
    Q_PROPERTY(int height READ height WRITE setHeight)
    Q_PROPERTY(QString textEn READ getTextEn WRITE setTextEn)
    Q_PROPERTY(QString textZh READ getTextZh WRITE setTextZh)
    Q_PROPERTY(QString normalPicpath READ getNormalPicPath WRITE setNormalPicPath)
    Q_PROPERTY(QString text READ getText WRITE setText)
    Q_PROPERTY(bool visible READ isVisible WRITE setVisible)

public:

    Q_INVOKABLE void setXpos(const int xpos);
    Q_INVOKABLE void setYpos(const int ypos);
    Q_INVOKABLE void setWidth(const int width);
    Q_INVOKABLE void setHeight(const int height);
    Q_INVOKABLE void setTextEn(const QString textEn);
    Q_INVOKABLE void setTextZh(const QString textZh);
    Q_INVOKABLE void setNormalPicPath(const QString normalPicpath);
    Q_INVOKABLE void setText(const QString text);
    Q_INVOKABLE void setVisible(bool visible);


    Q_INVOKABLE int xpos(void) const;
    Q_INVOKABLE int ypos(void) const;
    Q_INVOKABLE int width(void) const;
    Q_INVOKABLE int height(void) const;
    Q_INVOKABLE QString getTextEn(void) const;
    Q_INVOKABLE QString getTextZh(void) const;
    Q_INVOKABLE QString getNormalPicPath(void) const;
    Q_INVOKABLE QString getText(void) const;
    Q_INVOKABLE bool isVisible(void) const;

public:
    explicit weatherWindow(QObject *parent = 0);
    bool updateWeather();
signals:
    void appItemClicked(int);
    void sendMsgToQml(QVariant msg, QVariant wParam, QVariant lParam);
    void sendLoaderEvent();
public slots:
    Q_INVOKABLE void timezoneClicked();
    Q_INVOKABLE void weatherzoneClicked(int);


private:
    int m_xpos;
    int m_ypos;
    int m_width;
    int m_height;
    QString m_textEn;
    QString m_textZh;
    QString m_textTw;
    QString m_normalPicPath;
    QString m_text;
    QObject *m_rootObject;
    bool m_visible;
};

#endif // WEATHERWINDOW_H

weatherwindow.cpp

#include "weatherwindow.h"
#include <QDir>
#include <QChar>
#include <QQmlProperty>
#include <QQmlComponent>
#include <QQmlEngine>
#include <sstream>
#include <QTime>



#define DECIMAL_CODE                 10
#define NOON_TIME_BASE               12
#define MAX_WEEK_DAYS                7
#define STRING_TEMP_LOW_TEMPERATURE  17
#define STRING_TEMP_HIGH_TEMPERATURE 25

#define STRING_CITY_NAME_EN     "guangzhou"
#define STRING_CITY_NAME_CHN    "广州"
#define STRING_WEATHER_EN       "Cloudy"
#define STRING_WEATHER_CHN      "多云"
#define STRING_TEMPERATURE_EN   "Temp"
#define STRING_TEMPERATURE_CHN  "温度"
#define STRING_RANGE_TO         "~"
#define STRING_COLON_EN         ":"
#define STRING_COLON_CHN        "："
#define STRING_CELSIUS          "26℃"

#define STRING_AM               "AM"
#define STRING_PM               "PM"
#define STRING_NULL             ""

#define STRING_ROOT             "/"

#define ID_LANGUAGE             11
#define ID_TIMEFORMAT           12
#define ID_WEATHER              13

weatherWindow::weatherWindow(QObject *parent) : QObject(parent)
{
    setXpos(200);
    setYpos(300);
    setWidth(360);
    setHeight(500);
    setTextEn("weatherWindow");
}

bool weatherWindow::updateWeather()
{
    emit sendMsgToQml(ID_WEATHER, WEATHER_CITY, STRING_CITY_NAME_CHN);
    qDebug("weatherWindow::emit sendMsgToQml(ID_WEATHER, WEATHER_CITY\r\n");

    emit sendMsgToQml(ID_WEATHER, WEATHER_WEATHER,STRING_WEATHER_CHN);
    qDebug("weatherWindow::emit sendMsgToQml(ID_WEATHER, WEATHER_WEATHER\r\n");

    emit sendMsgToQml(ID_WEATHER, WEATHER_TEMP, STRING_CELSIUS);
    qDebug( "weatherWindow::emit sendMsgToQml(ID_WEATHER, WEATHER_TEMP)\r\n");

    return true;
}

void weatherWindow::setXpos(const int xpos)
{
    m_xpos = xpos;
}


void weatherWindow::setYpos(const int ypos)
{
    m_ypos = ypos;
}

void weatherWindow::setWidth(const int width)
{
    m_width = width;
}


void weatherWindow::setHeight(const int height)
{
    m_height = height;
}


void weatherWindow::setTextEn(const QString text)
{
    m_textEn = text;
}


void weatherWindow::setTextZh(const QString text)
{
    m_textZh = text;
}


void weatherWindow::setNormalPicPath(const QString path)
{
    m_normalPicPath = path;
}

void weatherWindow::setText(const QString text)
{
    m_text = text;
}


void weatherWindow::setVisible(bool visible)
{
    m_visible = visible;
}

//-----------------------------------READ---------------------------------------------
int weatherWindow::xpos(void)const
{
    return m_xpos;
}

int weatherWindow::ypos(void)const
{
    return m_ypos;
}


int weatherWindow::width(void)const
{
    return m_width;
}


int weatherWindow::height(void)const
{
    return m_height;
}


QString weatherWindow:: getTextEn(void)const
{
    return m_textEn;
}


QString weatherWindow:: getTextZh(void)const
{
    return m_textZh;
}


QString weatherWindow:: getNormalPicPath(void)const
{
    return m_normalPicPath;
}


QString weatherWindow:: getText(void)const
{
    return m_text;
}


bool weatherWindow:: isVisible(void) const
{
    return m_visible;
}

void weatherWindow::timezoneClicked()
{
    qDebug( "timezoneClicked !\n");

}
void weatherWindow::weatherzoneClicked(int Index)
{
    qDebug( "this func is for test only, Index = %d", Index);
}

main.cpp

#include <QGuiApplication>
#include <QQmlApplicationEngine>
#include "weatherwindow.h"


#define STRING_WND       "weatherwindow"

int main(int argc, char *argv[])
{
    QGuiApplication app(argc, argv);
    weatherWindow *weatherWdn = new weatherWindow;
    QQmlApplicationEngine engine;


    QQmlContext *context = engine.rootContext();
    if (context == NULL) {
        qDebug( "QQmlContext is NULL \r\n");
        return false;
    }
    context->setContextProperty(STRING_WND, weatherWdn);

    engine.load(QUrl(QStringLiteral("qrc:/main.qml")));
    weatherWdn->updateWeather();

    QObject* root = engine.rootObjects().first();
    QObject* pctrlobj = root->findChild<QObject*>("pageProgress");
    if(pctrlobj)
    {
        qDebug("home ui get  pctrlobj!!!");
        QVariant msg="home ui get  pctrlobj";

        QMetaObject::invokeMethod(pctrlobj,"hideRear",Q_ARG(QVariant,msg));
    }

    return app.exec();
}

Weather.qml

import QtQuick 2.0

Item {
    id:weatherPage
    objectName: "firstPageName"
    width: 1024
    height: 360
    property bool dotshow: true
    property int first_page_language:   11
    property int first_page_timeformat: 12
    property int first_page_weather:    13

    property int first_page_language_id: 1

    property int time_format_12H:                   0
    property int time_format_24H:                   1
    property int cur_time_format:                   time_format_24H

    property int weather_city:                      0
    property int weather_weather:                   1
    property int weather_temp:                      2
/*    function mytestFirstPage()  base qml can call child func
    {
        console.log("++++++++++++++++++++++++cks++++++++++++++++just for test ");
    }*/

    //export this two function to the other qml
    function timezoneClicked()
    {
        weatherwindow.timezoneClicked();
    }

    function weatherzoneClicked()
    {
        weatherwindow.weatherzoneClicked(2);
    }

    Connections {
        target: weatherwindow
        onSendMsgToQml: {
            switch (msg) {
                case first_page_language:
                    first_page_language_id=wParam;
                    console.log("update language:"+wParam);
                    break;
                case first_page_timeformat:
                    console.log("update timeformat:"+wParam);
                    switch(wParam)
                    {
                    case time_format_12H:
                        cur_time_format = time_format_12H;
                        break;
                    case time_format_24H:
                        cur_time_format = time_format_24H;
                        break;
                    default:
                        break;
                    }
                    updatelocaltime();
                    break;
                case first_page_weather:
                    console.log("update weather:"+wParam);
                    switch(wParam)
                    {
                    case weather_city:
                        console.log("update weather:city"+lParam);
                        textCity.text = lParam;
                        break;
                    case weather_weather:
                        console.log("update weather:weather"+lParam);
                        textWeather.text = lParam;
                        break;
                    case weather_temp:
                        console.log("update weather:temp"+lParam);
                        textTemp.text = lParam;
                        break;
                    }
                    break;
                default:
                    break;
            }
        }
    }

    function getWeekDay(curWeekDay)
    {
        var strCurWeekDay;
        if(first_page_language_id == 0)
        {
                if (curWeekDay == 1) {
                    strCurWeekDay =  "MON";
                }
                else if (curWeekDay == 2) {
                    strCurWeekDay = "TUE";
                }
                else if (curWeekDay == 3) {
                    strCurWeekDay =  "WED";
                }
                else if (curWeekDay == 4) {
                    strCurWeekDay =  "THU";
                }
                else if (curWeekDay == 5) {
                    strCurWeekDay =  "FRI";
                }
                else if (curWeekDay == 6) {
                    strCurWeekDay =  "SAT";
                }
                else if (curWeekDay == 7) {
                    strCurWeekDay =  "SUN";
                }
        }
        else if(first_page_language_id == 1)
        {
                if (curWeekDay == 1) {
                    strCurWeekDay =  "\u661f\u671f\u4e00";
                }
                else if (curWeekDay == 2) {
                    strCurWeekDay =  "\u661f\u671f\u4e8c";
                }
                else if (curWeekDay == 3) {
                    strCurWeekDay =  "\u661f\u671f\u4e09";
                }
                else if (curWeekDay == 4) {
                    strCurWeekDay =  "\u661f\u671f\u56db";
                }
                else if (curWeekDay == 5) {
                    strCurWeekDay =  "\u661f\u671f\u4e94";
                }
                else if (curWeekDay == 6) {
                    strCurWeekDay =  "\u661f\u671f\u516d";
                }
                else if (curWeekDay == 7) {
                    strCurWeekDay =  "\u661f\u671f\u65e5";
                }
        }
        else if(first_page_language_id == 2)
        {
                if (curWeekDay == 1) {
                    strCurWeekDay =  "\u661f\u671f\u4e00";
                }
                else if (curWeekDay == 2) {
                    strCurWeekDay =  "\u661f\u671f\u4e8c";
                }
                else if (curWeekDay == 3) {
                    strCurWeekDay =  "\u661f\u671f\u4e09";
                }
                else if (curWeekDay == 4) {
                    strCurWeekDay =  "\u661f\u671f\u56db";
                }
                else if (curWeekDay == 5) {
                    strCurWeekDay =  "\u661f\u671f\u4e94";
                }
                else if (curWeekDay == 6) {
                    strCurWeekDay =  "\u661f\u671f\u516d";
                }
                else if (curWeekDay == 7) {
                    strCurWeekDay =  "\u661f\u671f\u65e5";
                }
        }
        return strCurWeekDay;
    }


        function updatelocaltime()
    {
        var d = new Date();
        var tempHour = d.getHours();
        var tempMin = d.getMinutes();
        var curWeekDay = d.getDay();
        var curYears = d.getFullYear();
        var curMonths = d.getMonth()+1;
        var curDay = d.getDate();

        var hour1=0;
        var hour2=0;
        var min1=0;
        var min2=0;
        var curTime;
        var textDay = "";

        if (cur_time_format == time_format_12H) {
            if(tempHour > 12)
            {
                tempHour -= 12;
                textAMPM.text = "PM";
                if(first_page_language_id == 1 || first_page_language_id == 2)
                {
                    textAMPM.text = "\u4e0b\u5348";
                }
            } else {
                textAMPM.text = "AM";
                if(first_page_language_id == 1 || first_page_language_id == 2)
                {
                    textAMPM.text = "\u4e0a\u5348";
                }
            }
        } else {
            textAMPM.text = "";
        }
        hour1 = parseInt(tempHour / 10);
        hour2 = tempHour % 10;
        min1 = parseInt(tempMin / 10);
        min2 = tempMin % 10;
        hourH.source = getPngName(hour1);
            hourL.source = getPngName(hour2);
          dotdot.source="Res/clockSlider.png"
            minH.source = getPngName(min1);
            minL.source = getPngName(min2);
    if(dotshow)
    {
        dotshow = false;
        dotdot.visible = false;
    }
    else
    {
        dotshow = true;
        dotdot.visible = true;
    }
    if(curWeekDay > 0 && curWeekDay <= 7) {
                textDay = getWeekDay(curWeekDay) +"\n" + curYears + "-" + curMonths + "-" +curDay;
                textCurDay.text = textDay;
            }
    }

    Timer{
        interval: 1000;
        repeat: true
        running: true;
        triggeredOnStart: true
        onTriggered: {
            updatelocaltime();
        }
    }

    function getPngName(x)
    {
        return ("Res/"+x+".png");
    }
    Rectangle{
        color: "white"
        x: 80
        y: 40
        width: 800
        height: 130
        opacity: 0.5
        radius: 30
        MouseArea{
            anchors.fill: parent
            onClicked: {
                console.log("weatherwindow x :"+weatherwindow.xpos)
                console.log("weatherwindow y :"+weatherwindow.ypos)
                console.log("weatherwindow w :"+weatherwindow.width)
                console.log("weatherwindow h :"+weatherwindow.height)
                console.log("weatherwindow textEn :"+weatherwindow.textEn)
                console.log("weatherwindow getTextEn() :"+weatherwindow.getTextEn())
            }
        }
    }
    Rectangle {
        id: rectangleTimeWeather
        color: "#00ffffff"

        Image {
            id: hourH
            x: 115
            y: 65
            width: 35
            height: 70
        }
        Image {
            id: hourL
            x: 151
            y: 65
            width: 35
            height: 70
        }
        Image {
            id: dotdot
            x: 187
            y: 65
            width: 35
            height: 70
        }
        Image {
            id: minH
            x: 208
            y: 65
            width: 35
            height: 70
            verticalAlignment: Text.AlignVCenter
            horizontalAlignment: Text.AlignHCenter
        }
        Image {
            id: minL
            x: 247
            y: 65
            width: 35
            height: 70
            verticalAlignment: Text.AlignVCenter
            horizontalAlignment: Text.AlignHCenter
        }

        Text {
            id: textAMPM
            x: 293
            y: 65
            width: 50
            height: 30
            color: "white"
            horizontalAlignment: Text.AlignLeft
            verticalAlignment: Text.AlignVCenter
            font.pixelSize: 20
        }

        Text {
            id: textCurDay
            x: 338
            y: 55
            width: 154
            height: 100
            color: "white"
            horizontalAlignment: Text.AlignLeft
            verticalAlignment: Text.AlignVCenter
            font.pixelSize: 24
        }
        Image {
            id: borderImage1
            x: 588
            y: 40
            width: 135
            height: 130
            source: "Res/weather_cloudy.png"
        }

        Text {
            id: textCity
            x: 730
            y: 50
            width: 184
            height: 40
            color: "#ffffff"
            horizontalAlignment: Text.AlignLeft
            verticalAlignment: Text.AlignVCenter
            font.pixelSize: 30
        }

        Text {
            id: textWeather
            x: 733
            y: 93
            width: 180
            height: 35
            color: "#ffffff"
            horizontalAlignment: Text.AlignLeft
            font.pixelSize: 24
        }
        Text {
            id: textTemp
            x: 733
            y: 128
            width: 180
            height: 35
            color: "#ffffff"
            horizontalAlignment: Text.AlignLeft
            font.pixelSize: 24
        }
    }
}

main.qml

import QtQuick 2.0
import QtQuick.Window 2.2

Window {
    visible: true
    width:1000
    height:520
    Image {
        id: background
        anchors.fill: parent
        source: "Res/background.png"
    }
    Weather{
        x: 0
        y: 100
        //visible: view.currentIndex == 1 ? false:true
        opacity: 1
    }
    Item {
       id: test
       objectName: "pageProgress"
       function hideRear(msg)
       {
           console.log("hideRear $$$$$$$$$$$$$$ "+msg)
           return "some return"
       }
    }
}
////M////
关注
C++和QML混合编程-QML界面访问C++类型
yang1fei2的博客
05-08 4881
在QML工程中，一般QML界面只负责前端交互，而真正的业务逻辑都是C++模块实现的。为了实现前端和后端的顺利衔接，我们需要做好QML界面与C++的交互。这里就介绍一下如何在QML中调用对应的C++模块。在QML中调用C++模块的方法主要有三种，分别是: 1.设置上下文属性(setContextProperty()) 2.在QML引擎里面注册新类型(qmlRegisterType) 3.导出对应的QML扩展插件。 下面介绍一下三个方法的优缺点: 对于小型应用来说，方法一设置上下文属性是最简单实用的方
C++&QML混合编程官方案例（一）
MixType的博客
01-22 369
C++&QML混合编程官方案例（一） 该系列文章为QT自带案例Writing QML Extensions with C++ 的中文翻译。下面为正文 Chapter 1: Creating a New Type (章节一：创建一个新的类型) extending-qml/chapter1-basics 扩展QML时的一个常见任务是提供一个新的QML类型，该类型支持内置Qt Quick Type 所提供的功能之外的一些自定义功能。例如，可以这样做来实现特定的数据模型，或者提供具有自定义绘制和绘制功能
QML与C++混合编程使用
热门推荐
01-27 1万+
C++与QML的交互是通过暴露C++对象给QML环境得以实现的： 在C++实现中，非可视化的型别均为QObject的子类，可视化的类型均为QDeclarativeItem的子类。注意：QDeclarativeItem等同于QML的Item类。 如果用户想要定义自己的型别，做法如下： 在C++中，实现派生于QObject或QDeclarativeItem的子类，它是新定义item的实体对象； 在C++中，将1中实现的新item类型注册给QML； 在QML中，导入含有1中定义的新item的模块； 在
qt qml ajax 获取 json 天气数据示例
weixin_33725515的博客
12-17 176
依赖ajax.js类库，以下代码很简单的实现了获取天气json数据并展示的任务   【TestAjax.qml】 1 import QtQuick 2.0 2 import "ajax.js" as Ajax 3 4 5 /** 6 测试用ajax 获取 json 数据 7 更复杂的ajax调用请查看 qml/network/ 相关示例 8 */ 9...
天气预报（QML用qmlviewer.exe可运行）
04-09
用Qt quick中QML写的一个天气预报，用的接口是google的天气预报免费API接口，能定时更新（我设的一小时更新一次），也可以手动按更新按钮更新，也可以手动切换城市，为了简单起见，我只添加了几个城市，希望对你有所帮助和借鉴作用～
QML实现的天气预报
09-10
一个用于天气预报的软件 使用百度天气api获取数据 可以查看未来三天的天气，以及温度趋势图 已经适配android平台，获取位置信息需打开定位服务
QML实现的天气预报，包含很多东西
梦起丶的博客
09-10 1630
【正文开始】 还是老样子，先上效果图，我用的手机，电脑上效果基本一致： 关于qt c++部分，比较有用的有： 1、QGeoPositionInfoSource的使用(位置信息，可以当做是gps) 关于qml部分，比较有用的有： 1、ChartView的使用(基本就是QChartView的qml实现，但有一些地方要注意) 2、提供下拉刷新的实现方法 其他部分就比较的简单，可...
qml与c++混合编程例子
04-30
**QML与C++混合编程详解** ...这个例子可以帮助初学者理解QML与C++混合编程的基本概念和实践。通过这种方式，开发者可以利用QML的声明式语法设计界面，同时利用C++的强大功能处理复杂逻辑，实现高效且灵活的软件开发。
C++与QML混合编程实战：四个实用例子解析
本知识点将深入解析标题“qml_And_Cplusplus.zip”所涉及的几个小例子，来详细介绍C++与QML混合编程的方法与技巧。 首先，来看一下标题中的“context”例子。这个例子展示了如何在C++中创建对象，并将它们设置为QML...
QML-C++例子
12-17
QML（Qt Meta Language...在QT5.4版本中，QML与C++的结合更加成熟，提供了丰富的API和工具来简化混合编程。通过学习和理解这两个示例，开发者可以掌握如何在实际项目中高效地结合QML和C++，提升应用的性能和用户体验。
QML和C++混合编程
思我所
04-20 282
QML applications often need to handle more advanced and performance-intensive tasks in C++. The most common and quickest way to do this is to expose the C++ class to the QML runtime, provided the C++ ...
Qml和C++混合编程
qq_33373173的博客
12-07 387
通过qml高效便捷的构建UI界面，使用C ++来实现业务逻辑和复杂算法 Qt中提供了两种在 QML 环境中使用C ++对象的方式 第一种：在C ++中实现一个类，注册到qml环境中，qml环境中使用该类型创建对象 第二种：在C ++中构造一个对象，将这个对象设置为qml的上下文属性，在qml环境中直接使用该属性 第一种 实现可以被QML访问的 C++ 类 必须满足两个条件：一是派生自QObject类或QObject类的子类，二是使用Q_OBJECT宏 新建C++ Class mixing.h .
QML-C++混合编程
flyaway403796的博客
07-05 160
QML-C++混合编程qml c++ 混合编程编写c++ class注册class使用demo qml c++ 混合编程 简单的开始例子 编写c++ class // backend.h #ifndef BACKEND_H #define BACKEND_H #include <QObject> class BackEnd : public QObject { Q_OBJ...
QML与C++混合编程
大千世界
09-18 330
QML与C++混合编程 一、QML访问c++ 两种访问方法： 1、在Qt元对象系统中注册C++类，在QML中实例化、访问； 2、在C++中实例化并设置为QML上下文属性，在QML中直接使用。 对比：与后者相比，前者可以使C++类在QML中作为一个数据类型，例如函数参数类型或属性类型，也可以使用其枚举类型、单例等，功能更强大。 1、信号和槽 2、枚举类型 3、Q_INVOKABLE 4、Q_PROP...
评论
添加红包

请填写红包祝福语或标题

个

红包个数最小为10个

元

红包金额最低5元

当前余额3.43元 前往充值 >
需支付：10.00元
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付元
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明：

1.余额是钱包充值的虚拟货币，按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载，可以购买VIP、付费专栏及课程。

余额充值
