基于8266与 Android 通过 Socket 的简单互传

参考链接：

https://blog.youkuaiyun.com/a1533588867/article/details/52460636

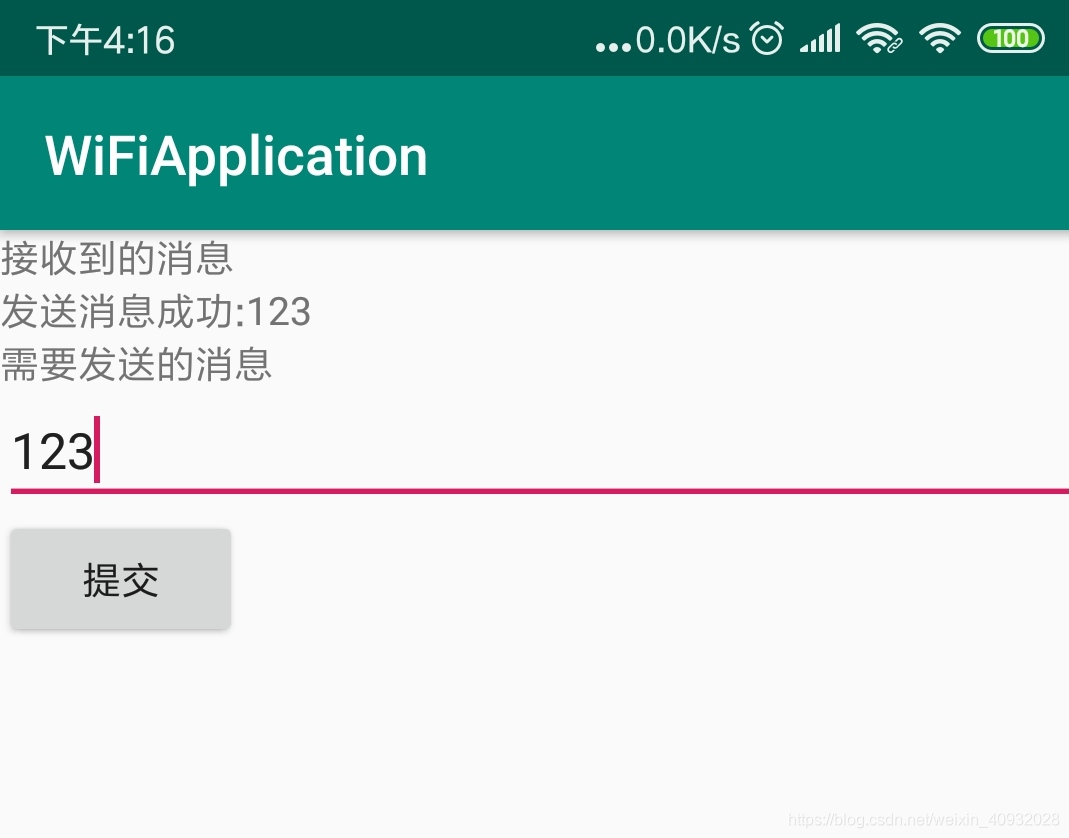

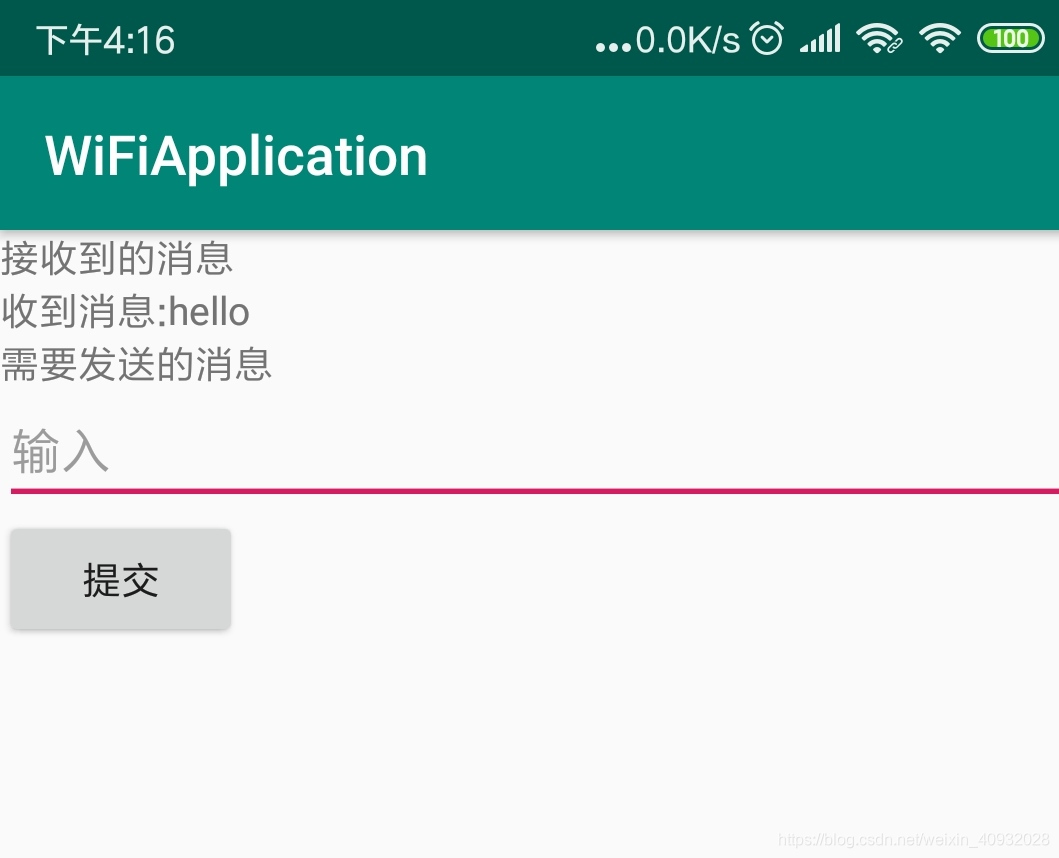

效果图

在这里插入图片描述
activity_main.xml

<LinearLayout
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:orientation="vertical">

    <TextView
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:text="接收到的消息"/>
    <TextView
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:id="@+id/text1"
        android:hint="receive news..."/>
    <TextView
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:text="需要发送的消息"/>

    <EditText
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:id="@+id/edit_1"
        android:hint="输入"/>
    <Button
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:text="提交"
        android:id="@+id/bt_1"/>

实现功能

1.接收单片机上传数据；
2.发送数据给单片机；

实现过程

单片机客户端

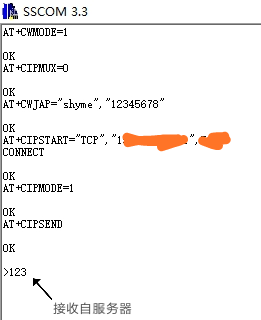

通过串口调试助手发送AT指令，具体含义参考网络上的资料。
在这里插入图片描述

Android端程序

MainActivity.java


import androidx.appcompat.app.AppCompatActivity;
import android.os.Bundle;
import android.os.Handler;
import android.os.Message;
import android.util.Log;
import android.view.View;
import android.widget.Button;
import android.widget.EditText;
import android.widget.TextView;

public class MainActivity extends AppCompatActivity {

    TextView textview;

    private Button button;

    public EditText editText;


    /**
     * 端口号
     */
    private static final int PORT = 5666;

    public static final int DEVICE_CONNECTING = 1;//有设备正在连接热点
    public static final int DEVICE_CONNECTED = 2;//有设备连上热点
    public static final int SEND_MSG_SUCCSEE = 3;//发送消息成功
    public static final int SEND_MSG_ERROR = 4;//发送消息失败
    public static final int GET_MSG = 6;//获取新消息

    private ConnectThread connectThread;
    private ListenerThread listenerThread;

    //  private ConnectThread connectThread;
    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);

        textview = (TextView) findViewById(R.id.text1);

        button = (Button) findViewById(R.id.bt_1);

        editText = (EditText)findViewById(R.id.edit_1);

        listenerThread = new ListenerThread(PORT,handler);

        listenerThread.start();


        button.setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View view) {
                if (connectThread != null) {
                    connectThread.sendData(editText.getText().toString());
                }else{
                    Log.w("AAA","connectThread == null");
                }
            }
        });

    }


    private Handler handler = new Handler() {


        @Override
        public void handleMessage(Message msg) {
            switch (msg.what) {
                case DEVICE_CONNECTING:
                    connectThread = new ConnectThread(listenerThread.getSocket(),handler);
                    connectThread.start();
                    textview.setText("连接线程启动");
                    break;
                case DEVICE_CONNECTED:
                   // textview.setText("设备连接成功");
                    break;
                case SEND_MSG_SUCCSEE:
                    textview.setText("发送消息成功:" + msg.getData().getString("MSG"));
                    break;
                case SEND_MSG_ERROR:
                    textview.setText("发送消息失败:" + msg.getData().getString("MSG"));
                    break;
                case GET_MSG:
                    textview.setText("收到消息:" + msg.getData().getString("MSG"));
                    break;
            }
        }
    };
}

ListenerThread.java

import android.os.Message;
import android.util.Log;

import java.io.IOException;
import java.net.ServerSocket;
import java.net.Socket;
import android.os.Handler;

public class ListenerThread extends Thread {

    private ServerSocket serverSocket = null;
    private Handler handler;
    private int port;
    private Socket socket;

    public ListenerThread(int port, Handler handler) {
        setName("ListenerThread");
        this.port = port;
        this.handler = handler;
        try {
            serverSocket = new ServerSocket(port);//监听本机的端口
        } catch (IOException e) {
            e.printStackTrace();
        }
    }
    @Override
    public void run() {
        while (true){
            try {
                Log.w("AAA","阻塞");
                //阻塞，等待设备连接
                socket = serverSocket.accept();
                Message message = Message.obtain();
                message.what = MainActivity.DEVICE_CONNECTING;
                //handler.handleMessage(message);
                handler.sendMessage(message);

            } catch (IOException e) {
                Log.w("AAA","error:"+e.getMessage());
                e.printStackTrace();
            }
        }
    }

    public Socket getSocket() {
        return socket;
    }
}

ConnectThread.java

import android.os.Bundle;
import android.os.Handler;
import android.os.Message;
import android.util.Log;

import java.io.IOException;
import java.io.InputStream;
import java.io.OutputStream;
import java.net.Socket;

public class ConnectThread extends Thread {
    private final Socket socket;
    private Handler handler;
    private InputStream inputStream;
    private OutputStream outputStream;

    public ConnectThread(Socket socket, Handler handler){
        setName("ConnectThread");
        Log.w("AAA","ConnectThread");
        this.socket = socket;
        this.handler = handler;
    }

    @Override
    public void run() {
/*        if(activeConnect){
//            socket.c
        }*/
        if(socket==null){
            return;
        }
        handler.sendEmptyMessage(MainActivity.DEVICE_CONNECTED);
        try {
            //获取数据流
            inputStream = socket.getInputStream();
            outputStream = socket.getOutputStream();

            byte[] buffer = new byte[1024];
            int bytes;
            while (true){
                //读取数据
                bytes = inputStream.read(buffer);
                if (bytes > 0) {
                    final byte[] data = new byte[bytes];
                    System.arraycopy(buffer, 0, data, 0, bytes);

                    Message message = Message.obtain();
                    message.what = MainActivity.GET_MSG;
                    Bundle bundle = new Bundle();
                    bundle.putString("MSG",new String(data));
                    message.setData(bundle);
                    handler.sendMessage(message);

                    Log.w("AAA","读取到数据:"+new String(data));
                }
            }
        } catch (IOException e) {
            e.printStackTrace();
        }
    }
    public void sendData(final String msg){
        Log.w("AAA","发送数据:"+(outputStream==null));
        if(outputStream!=null){
            new Thread(){
                @Override
                public void run(){
                    try {
                outputStream.write(msg.getBytes());
                Log.w("AAA","发送消息："+msg);
                Message message = Message.obtain();
                message.what = MainActivity.SEND_MSG_SUCCSEE;
                Bundle bundle = new Bundle();
                bundle.putString("MSG",new String(msg));
                message.setData(bundle);
                handler.sendMessage(message);
            } catch (IOException e) {
                e.printStackTrace();
                Message message = Message.obtain();
                message.what = MainActivity.SEND_MSG_ERROR;
                Bundle bundle = new Bundle();
                bundle.putString("MSG",new String(msg));
                message.setData(bundle);
                handler.sendMessage(message);
            }
                };
            }.start();
        }
    }
}
