canal

1 安装配置

1.1 下载

https://github.com/alibaba/canal/releases/download/canal-1.1.6/canal.deployer-1.1.6.tar.gz

1.2 mysql配置binlog

# on 时，代表着开启
show VARIABLES like 'log_bin';

1.3 创建MySQL canal用户

# 创建用户
create user 'canal'@'%' identified by '123';
# 授权
grant show view,select,replication slave, replication client on *.* to 'canal'@'%';
# 刷新权限
flush privileges;

1.4 canal的核心配置文件

conf/example/instance.properties

# 配置 slaveId 自定义,不等于 mysql 的 server Id 即可
canal.instance.mysql.slaveId=10

# 数据库地址
canal.instance.master.address=127.0.0.1:3306
# binlog日志名称
canal.instance.master.journal.name=mysql-bin.000001
# binlog偏移量
canal.instance.master.position=913

# 数据库账号密码
canal.instance.dbUsername=canal
canal.instance.dbPassword=123

# table regex
canal.instance.filter.regex=test_xxx\\.user

mysql日志查询知识补充

# 查看最新一个binlog日志文件名称和Position
show master status

conf/canal.properties

canal.admin.port = 11110
canal.port = 11111                # client 连接的端口
canal.metrics.pull.port = 11112

# 指定实例,多个实例使用逗号分隔: canal.destinations = example1,example2
canal.destinations = example

1.5 启动canal

  双击 bin/startup.bat

cd bin
./startup.bat

2 安装配置

2.1 php案列

composer require xingwenge/canal_php

<?php

use xingwenge\canal_php\CanalClient;
use xingwenge\canal_php\CanalConnectorFactory;
use xingwenge\canal_php\Fmt;

include __DIR__ . '/../../../vendor/autoload.php';
$client = CanalConnectorFactory::createClient(CanalClient::TYPE_SOCKET_CLUE);

echo "建立连接" . PHP_EOL;
$client->connect("127.0.0.1", 11111);

echo "检查" . PHP_EOL;
$client->checkValid();

echo "开始订阅" . PHP_EOL;

$client->subscribe(1001, "example", "test_xshalong\.zeai_tg_user_update_info");
while (true) {
    $message = $client->get(100);

    if ($entries = $message->getEntries()) {
        foreach ($entries as $entry) {
            Fmt::println($entry);
        }
    }
    sleep(1);
}

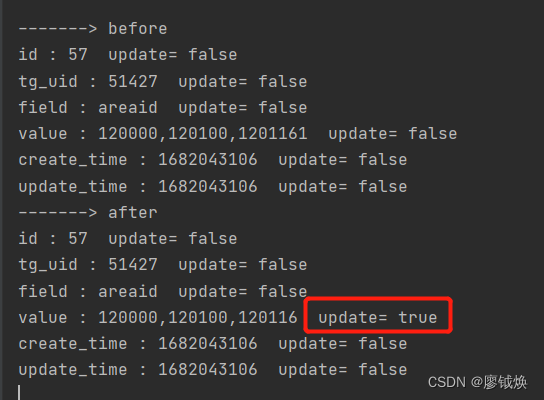

输出结果

# 常见问题

1、 Could not find first log file name in binary log index file

删除 conf/example/meta.dat的文件，重启canal即可
