04： Docker概述 、部署 、镜像 、基本命令

案例1：安装Docker
案例2：镜像基本操作
案例3：镜像与容器常用指令

1 案例1：安装Docker

1.1 问题

本案例要求配置yum源并安装Docker：
准备两台虚拟机，IP为192.168.1.31和192.168.1.32
安装docker
关闭防火墙

1.2 步骤

实现此案例需要按照如下步骤进行。

步骤一：配置yum源

1）配置IP（虚拟机配置静态ip）docker1和docker2主机同样操作

[root@localhost ~]# echo docker1 > /etc/hostname
[root@localhost ~]# hostname docker1
[root@localhost ~]# echo docker2 > /etc/hostname
[root@localhost ~]# hostname docker2
[root@docker1 ~]# vim /etc/sysconfig/network-scripts/ifcfg-eth0
#Generated by dracut initrd
DEVICE=“eth0”
ONBOOT=“yes”
IPV6INIT=“no”
IPV4_FAILURE_FATAL=“no”
NM_CONTROLLED=“no”
TYPE=“Ethernet”
BOOTPROTO=“static”
IPADDR=“192.168.1.31”
PREFIX=24
GATEWAY=192.168.1.254
[root@docker1 ~]# systemctl restart network
[root@docker2 ~]# vim /etc/sysconfig/network-scripts/ifcfg-eth0
#Generated by dracut initrd
DEVICE=“eth0”
ONBOOT=“yes”
IPV6INIT=“no”
IPV4_FAILURE_FATAL=“no”
NM_CONTROLLED=“no”
TYPE=“Ethernet”
BOOTPROTO=“static”
IPADDR=“192.168.1.32”
PREFIX=24
GATEWAY=192.168.1.254
[root@docker1 ~]# systemctl restart network

2）配置yum客户端，配置之前openstack的扩展源(RHEL7-extras.iso)即可（docker1和docker2主机同样操作）

[root@docker1 ]# vim /etc/yum.repos.d/rhel.repo
…
[local_extras]
name=CentOS-KaTeX parse error: Expected 'EOF', got '#' at position 94: …[root@docker2 ]#̲ vim /etc/yum.r…releasever - Extras
baseurl=“ftp://192.168.1.254/extras”
enabled=1
gpgcheck=0

3）安装docker（docker1和docker2主机同样操作）

[root@docker1 ~]# yum -y install docker
[root@docker1 ~]# systemctl restart docker
[root@docker1 ~]# systemctl enable docker
[root@docker1 ~]# ifconfig //有docker0说明环境部署完成
docker0: flags=4099<UP,BROADCAST,MULTICAST> mtu 1500
inet 172.17.0.1 netmask 255.255.0.0 broadcast 0.0.0.0
ether 02:42:3e:e7:3f:6e txqueuelen 0 (Ethernet)
RX packets 0 bytes 0 (0.0 B)
RX errors 0 dropped 0 overruns 0 frame 0
TX packets 0 bytes 0 (0.0 B)
TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0
[root@docker1 ~]# docker version //查看版本
[root@docker2 ~]# yum -y install docker
[root@docker2 ~]# systemctl restart docker
[root@docker2 ~]# systemctl enable docker
[root@docker2 ~]# ifconfig //有docker0说明环境部署完成
docker0: flags=4099<UP,BROADCAST,MULTICAST> mtu 1500
inet 172.17.0.1 netmask 255.255.0.0 broadcast 0.0.0.0
ether 02:42:53:82:b9:d4 txqueuelen 0 (Ethernet)
RX packets 0 bytes 0 (0.0 B)
RX errors 0 dropped 0 overruns 0 frame 0
TX packets 0 bytes 0 (0.0 B)
TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0
[root@docker2 ~]# docker version //查看版本

2 案例2：镜像基本操作

2.1 问题

本案例要求熟悉镜像的基本操作：
导入镜像
导出镜像
启动镜像

2.2 步骤

实现此案例需要按照如下步骤进行。

步骤一：docker镜像

1）下载镜像

[root@docker1 ~]# docker pull docker.io/busybox
[root@docker1 bulid]# docker pull docker.io/busybox
Using default tag: latest
Trying to pull repository docker.io/library/busybox …
latest: Pulling from docker.io/library/busybox
Digest: sha256:061ca9704a714ee3e8b80523ec720c64f6209ad3f97c0ff7cb9ec7d19f15149f

2）上传镜像

[root@docker1 ~]# docker push docker.io/busybox

3）查看镜像

[root@docker1 ~]# docker images
REPOSITORY TAG IMAGE ID CREATED SIZE
docker.io/busybox latest d8233ab899d4 10 days ago 1.199 MB

4）查找busybox镜像

[root@docker1 ~]# docker search docker.io/busybox

5）导出busybox镜像为busybox.tar

[root@docker1 ~]# docker save docker.io/busybox:latest -o busybox.tar
[root@docker1 ~]# ls
busybox.tar

6）导入镜像

[root@docker1 ~]# scp nginx.tar root@192.168.1.32:/root
[root@docker2 ~]# ls
nginx.tar
[root@docker2 ~]# docker load -i nginx.tar
3c816b4ead84: Loading layer 58.47 MB/58.47 MB
787822cf1b17: Loading layer 54.44 MB/54.44 MB
89decbdf7fb7: Loading layer 3.584 kB/3.584 kB
Loaded image: docker.io/nginx:latest/3.584 kB
[root@docker2 ~]# docker images
REPOSITORY TAG IMAGE ID CREATED SIZE
docker.io/nginx latest 42b4762643dc 4 weeks ago 109.2 M e1ddd7948a1c 4 weeks ago 1.163 MB

7）删除镜像

[root@docker1 docker]# docker rmi docker.io/nginx
Untagged: docker.io/nginx:latest
Deleted: sha256:42b4762643dcc9bf492b08064b55fef64942f055f0da91289a8abf93c6d6b43c
Deleted: sha256:e0e55dd2303b3e3ec852acae267d1f8a3eea27a22c64a5829304ecee4d3f559c
Deleted: sha256:4062cf272cdd99e83b1c21f712e5e1359c91ecf92925e56c62133c3324b84e45
Deleted: sha256:3c816b4ead84066ec2cadec2b943993aaacc3fe35fcd77ada3d09dc4f3937313

步骤二：一次性导入多个镜像

[student@room9pc01 04]$ cd /linux-soft/04/
[student@room9pc01 04]$ scp -r docker/ root@192.168.1.31:/root/
[root@docker1 ~]# cd docker
[root@docker1 docker]# ls
centos.tar nginx.tar redis.tar registry.tar ubuntu.tar
[root@docker1 docker]# docker images
REPOSITORY TAG IMAGE ID CREATED SIZE
[root@docker1 docker]# for i in * ; do docker load -i $i; done
bcc97fbfc9e1: Loading layer 208.2 MB/208.2 MB
Loaded image: docker.io/centos:latest208.2 MB
Loaded image: docker.io/nginx:latest
a098f8909d23: Loading layer 338.4 kB/338.4 kB
c3bc3362d4ff: Loading layer 3.034 MB/3.034 MB
bf10d8534af6: Loading layer 36.4 MB/36.4 MB
0949ce28adcc: Loading layer 1.536 kB/1.536 kB
b1f287cac208: Loading layer 3.584 kB/3.584 kB
Loaded image: docker.io/redis:latest/3.584 kB
7bff100f35cb: Loading layer 4.672 MB/4.672 MB
6b6e0aba7201: Loading layer 1.587 MB/1.587 MB
18429e86e6ad: Loading layer 20.08 MB/20.08 MB
7b33b7de3d52: Loading layer 3.584 kB/3.584 kB
726e86b708de: Loading layer 2.048 kB/2.048 kB
Loaded image: docker.io/registry:latest048 kB
adcb570ae9ac: Loading layer 89.95 MB/89.95 MB
7604c8714555: Loading layer 15.87 kB/15.87 kB
9e9d3c3a7458: Loading layer 11.26 kB/11.26 kB
27a216ffe825: Loading layer 3.072 kB/3.072 kB
Loaded image: docker.io/ubuntu:latest3.072 kB
[root@docker1 docker]# docker images

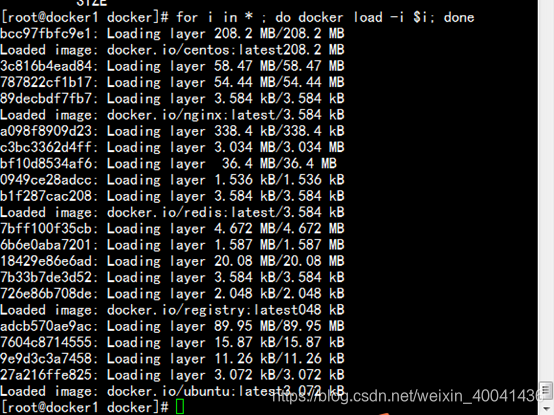

导入多个镜像如图-1所示：

图-1

步骤三：启动镜像

1）启动centos镜像生成一个容器

启动镜像时若不知道后面的命令加什么:
1、可以猜（如：/bin/bash、/bin/sh）
2、可以不加后面的命令，默认启动
[root@docker1 docker_images]# docker run -it docker.io/centos /bin/bash
[root@7a652fc72a9f /]# ls /
anaconda-post.log bin dev etc home lib lib64 media mnt opt proc root run sbin srv sys tmp usr var
[root@7a652fc72a9f /]# cd /etc/yum.repos.d/
[root@7a652fc72a9f yum.repos.d]# ls
CentOS-Base.repo CentOS-Debuginfo.repo CentOS-Sources.repo CentOS-fasttrack.repo
CentOS-CR.repo CentOS-Media.repo CentOS-Vault.repo
[root@7a652fc72a9f yum.repos.d]# rm -rf C*
[root@7a652fc72a9f yum.repos.d]# ls
[root@7a652fc72a9f yum.repos.d]#vi dvd.repo //在容器里面配置一个yum源
[local]
name=local
baseurl=ftp://192.168.1.254/system
enable=1
gpgcheck=0
[root@7a652fc72a9f yum.repos.d]# yum -y install net-tools //安装软件
[root@7a652fc72a9f yum.repos.d]# exit
exit

3 案例3：镜像与容器常用指令

3.1 问题

本案例要求掌握镜像与容器的常用命令：
镜像常用指令练习
容器常用指令练习

3.2 步骤

实现此案例需要按照如下步骤进行。

步骤一：镜像常用命令

1）查看后台运行的容器

[root@docker1 docker]# docker run -d docker.io/nginx //启动nginx的镜像
[root@docker1 docker]# docker ps //查看后台运行的容器
CONTAINER ID IMAGE COMMAND CREATED STATUS PORTS NAMES
81458156f6e8 docker.io/nginx “nginx -g 'daemon off” 9 seconds ago Up 8 seconds 80/tcp pedantic_goldberg

2）只显示容器ID

[root@docker1 docker]# docker ps -q
81458156f6e8

3）显示所有的容器,包括没有启动的

[root@docker1 docker]# docker ps -a

4）显示所有的容器ID

[root@docker1 docker]# docker ps -qa
81458156f6e8
3656f1978967

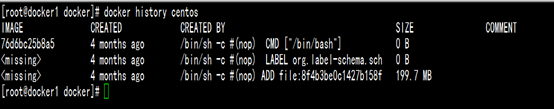

5）查看centos镜像历史（制作过程），如图-2所示：

** [root@docker1 docker_images]# docker history docker.io/centos**

图-2

6）删除镜像，启动容器时删除镜像会失败，先删除容器,再删除镜像

格式：docker rmi 镜像名
[root@docker1 docker]# docker rmi nginx //nginx为镜像名
Error response from daemon: conflict: unable to remove repository reference “nginx” (must force) - container 81458156f6e8 is using its referenced image 42b4762643dc
//删除时报错
[root@docker1 docker]# docker stop 81
81
[root@docker1 docker]# docker rm 81
81
[root@docker2 ~]# docker rmi docker.io/nginx //删除nginx镜像
Untagged: docker.io/nginx:latest
Deleted: sha256:42b4762643dcc9bf492b08064b55fef64942f055f0da91289a8abf93c6d6b43c
Deleted: sha256:e0e55dd2303b3e3ec852acae267d1f8a3eea27a22c64a5829304ecee4d3f559c
Deleted: sha256:4062cf272cdd99e83b1c21f712e5e1359c91ecf92925e56c62133c3324b84e45
Deleted: sha256:3c816b4ead84066ec2cadec2b943993aaacc3fe35fcd77ada3d09dc4f3937313

7）修改镜像的名称和标签,默认标签为latest

[root@docker1 docker_images]# docker tag docker.io/centos:latest docker.io/cen:v1
[root@docker2 ~]# docker images
REPOSITORY TAG IMAGE ID CREATED SIZE
docker.io/centos latest 42b4762643dc 4 weeks ago 109.2 MB
docker.io/cen v1 42b4762643dc 4 weeks ago 109.2 MB

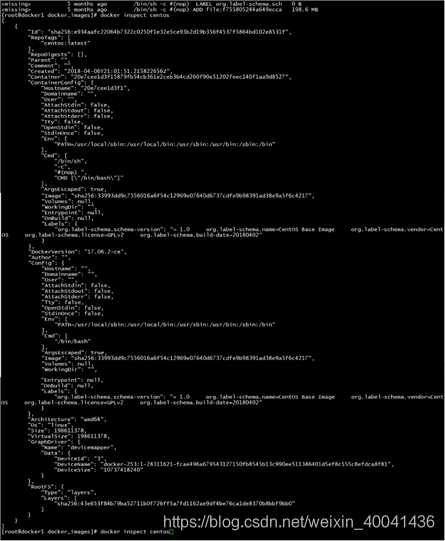

8）查看镜像的底层信息，如图-3所示：

[root@docker1 docker_images]# docker inspect docker.io/centos

图-3

9）修改镜像的标签

[root@docker1 docker_images]# docker tag docker.io/centos:latest docker.io/cen:v1
[root@docker1 docker_images]# docker images
REPOSITORY TAG IMAGE ID CREATED SIZE
docker.io/cen v1 e934aafc2206 5 months ago 198.6 MB
[root@docker1 docker_images]# docker rmi docker.io/centos //删除centos
[root@localhost ~]# docker run -it centos
//启动的时候，因为是用标签标签启动的，所以会重新通过ID下载
[root@docker1 docker]# docker run -it docker.io/centos
Unable to find image ‘centos:latest’ locally
Trying to pull repository registry.access.redhat.com/centos …
Trying to pull repository docker.io/library/centos …
latest: Pulling from docker.io/library/centos
a02a4930cb5d: Pull complete
Digest: sha256:184e5f35598e333bfa7de10d8fb1cebb5ee4df5bc0f970bf2b1e7c7345136426
[root@b6c5f16461f5 /]#
[root@localhost ~]# docker run -it docker.io/cen:v1
//通过新建的标签启动docker.io/cen:v1

步骤二：容器命令

1）关闭容器

命令：docker stop 容器ID
[root@docker1 docker]# docker stop 0f //0f为容器ID
0f

2）启动容器

[root@docker1 docker]# docker start 0f
0f

3）重启容器

[root@docker1 docker]# docker restart 0f
0f

4）删除容器

运行中删除不掉，先关闭容器
[root@docker1 docker]# docker rm 0f //删除失败
Error response from daemon: You cannot remove a running container 0f63706692e15134a8f07655a992771b312b8eb01554fc37e1a39b03b28dd05c. Stop the container before attempting removal or use -f
[root@docker1 docker]# docker stop 0f //关闭容器
0f
**[root@docker1 docker]# docker rm 0f ** //删除成功
0f
[root@docker1 docker]#

5）连接容器attach|exec

[root@docker1 docker]# docker attach 0f
[root@docker1 docker]# docker ps //容器关闭
CONTAINER ID IMAGE COMMAND CREATED STATUS PORTS NAMES
[root@docker1 docker]# docker exec -it 0f /bin/bash
[root@docker1 docker]# docker ps //容器不会关闭
CONTAINER ID IMAGE COMMAND CREATED STATUS PORTS NAMES
0b3c50284a1c docker.io/centos “/bin/bash” 15 minutes ago Up 15 minutes tiny_lamarr
[root@docker1 docker]# docker top f7 //查看容器进程列表
[root@docker1 docker]# docker run -itd docker.io/centos:latest
76e7577cff5d8a3ec877d3ea564fed2fb502bd4a0447705bec269a646d414d07
[root@docker1 docker]# ps
PID TTY TIME CMD
5552 pts/0 00:00:00 bash
6739 pts/0 00:00:00 ps
[root@docker1 docker]# docker exec -it 76 /bin/bash
[root@76e7577cff5d /]# sleep 50 &
[1] 30
[root@76e7577cff5d /]# exit
exit
[root@docker1 docker]# docker top 76
UID PID PPID C STIME TTY TIME CMD
root 6708 6691 0 17:00 pts/1 00:00:00 /bin/bash
UID PID PPID C STIME TTY TIME CMD
root 2744 2729 0 18:01 pts/4 00:00:00 /bin/bash

6）过滤查看mac和ip地址

[root@docker1 docker]# docker inspect -f ‘{{.NetworkSettings.MacAddress}}’ 76
02:42:ac:11:00:04
[root@docker1 docker]# docker inspect -f ‘{{.NetworkSettings.IPAddress}}’ 76
172.17.0.4

7）修改nginx的显示内容

[root@docker1 docker_images]# docker run -it docker.io/nginx:latest

[root@docker1 docker_images]# docker exec -it 56 /bin/bash
root@56ec8154f8e0:/# nginx -T /usr/share/nginx/html/
nginx: invalid option: “/usr/share/nginx/html/” //查找并显示结果
root@56ec8154f8e0:/# echo aaa > /usr/share/nginx/html/index.html
//修改主页显示的内容
root@56ec8154f8e0:/# nginx -T //也可以查看网页配置文件内容
root@56ec8154f8e0:/# cat /usr/share/nginx/html/index.html
aaa

8）过滤查看nginx的ip地址

[root@docker1 docker]# docker inspect -f ‘{{.NetworkSettings.IPAddress}}’ a6
172.17.0.3
[root@docker1 docker]# curl 172.17.0.3
aaa
