saltstack 部署mysql_07 saltstack生产实例-mysql主从

1、服务部署

2.服务部署

抽象：功能模块

redis 安装、配置、启动

mysql 安装、配置(my.cnf可以统一 目录默认配置可以统一)

master: server_id1111slave: server_id2222

1.redis 主从 (已经实现)2.mysql 主从2.1 mysql-install.sls 安装 配置 初始化2.2 my.cnf配置不同-server id2.3创建主从同步用户2.4master上获取binlog 和 pos值2.5 slave上，change master &&start slave2.6检查主从状态

GRANT replication slave on3.apache+php4.haproxy+keepalived

2、redis(已经完成)

3、mysql安装，配置

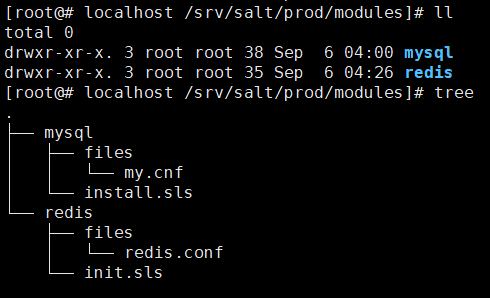

1、目录结构

module模块

按类型分：

按业务分

Module 模块里面有mysql  redis等

统一的的全部放在这里，比如安装，配置

redis 安装配置.sls

[root@# localhost /srv/salt/prod/modules]# cat redis/init.sls

redis-install:

pkg.installed:-name: redis

redis-config:

file.managed:- name: /etc/redis.conf- source: salt://redis/files/redis.conf

-user: root-group: root- mode: 644

-template: jinja-defaults:

PORT:6379IPADDR: {{ grains['fqdn_ip4'][0] }}

redis-service:

service.running:-name: redis-enable: True-reload: True-watch:- file: redis-config

View Code

2、mysql 安装，配置.sls

[root@# localhost /srv/salt/prod/modules/mysql]# cat install.sls

mysql-install:

pkg.installed:-pkgs:-mariadb- mariadb-server

mysql-config:

file.managed:- name: /etc/my.cnf- source: salt://modules/mysql/files/my.cnf

-user: root-group: root- mode: 644

[root@linux-node1 /srv/salt/prod/modules/mysql]# salt 'linux-node1*' state.sls modules.mysql.install saltenv=prod

4、主从配置

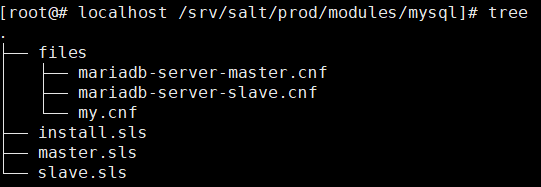

1、目录结构

2、主从配置.sls

[root@# localhost /srv/salt/prod/modules/mysql]# cat master.sls

include:-modules.mysql.install

master-config:

file.managed:- name: /etc/my.cnf.d/mariadb-server.cnf- source: salt://modules/mysql/files/mariadb-server-master.cnf

-user: root-group: root- mode: 644master-service:

service.running:-name: mariadb- enable: True

[root@# localhost /srv/salt/prod/modules/mysql]# cat slave.sls

include:-modules.mysql.install

slave-config:

file.managed:- name: /etc/my.cnf.d/mariadb-slave.cnf- source: salt://modules/mysql/files/mariadb-server-slave.cnf

-user: root-group: root- mode: 644slave-service:

service.running:-name: mariadb- enable: True

3、file配置文件

[root@# localhost /srv/salt/prod/modules/mysql]# cp /etc/my.cnf.d/server.cnf files/mariadb-server-master.cnf

[root@# localhost/srv/salt/prod/modules/mysql]# cp /etc/my.cnf.d/server.cnf files/mariadb-server-slave.cnf

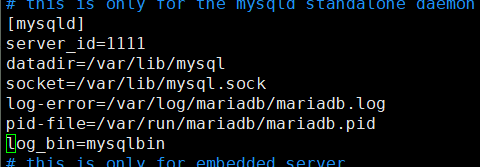

[root@# localhost /srv/salt/prod/modules/mysql/files]# vim mariadb-server-master.cnf

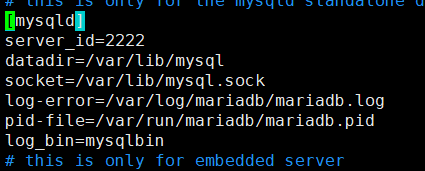

[root@# localhost/srv/salt/prod/modules/mysql/files]# vim mariadb-server-slave.cn

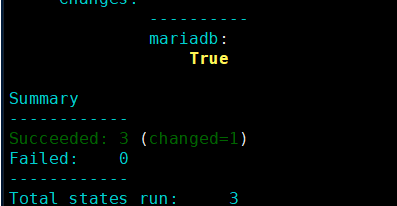

[root@# localhost ~]# salt 'linux-node1*' state.sls modules.mysql.master saltenv=prod

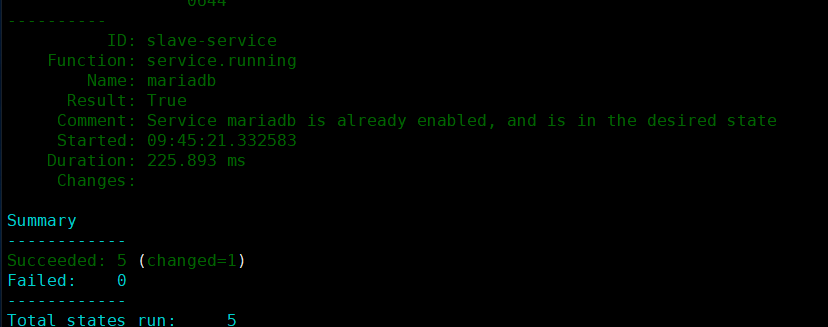

[root@# localhost~]# salt 'linux-node2*' state.sls modules.mysql.slave saltenv=prod

5、主从同步用户，授权

完成这个命令： grant replication slave on *.* to 'xxx'@'xxxxx.%' identified by 'xxxxx';

必须启动mysql， 从0构建mysql

1、方式1：mysql授权

master.sls

[root@# localhost /srv/salt/prod/modules/mysql]# cat master.sls

include:-modules.mysql.install

master-config:

file.managed:- name: /etc/my.cnf.d/mariadb-server.cnf- source: salt://modules/mysql/files/mariadb-server-master.cnf

-user: root-group: root- mode: 644master-service:

service.running:-name: mariadb-enable: True

repl-user: ## 创建用户

mysql_user.present:-name: repl_user- host: 192.168.194.0/255.255.255.0

-password: repl_user

grant-user: ##授权

mysql_grants.present:-grant: replication slave- database: '*.*'

-user: repl_user- host: 192.168.194.0/255.255.255.0

slave.sls  不变

[root@# localhost /srv/salt/prod/modules/mysql]# cat slave.sls

include:-modules.mysql.install

slave-config:

file.managed:- name: /etc/my.cnf.d/mariadb-slave.cnf- source: salt://modules/mysql/files/mariadb-server-slave.cnf

-user: root-group: root- mode: 644slave-service:

service.running:-name: mariadb-enable: True

[root@# localhost/srv/salt/prod/modules/mysql]#

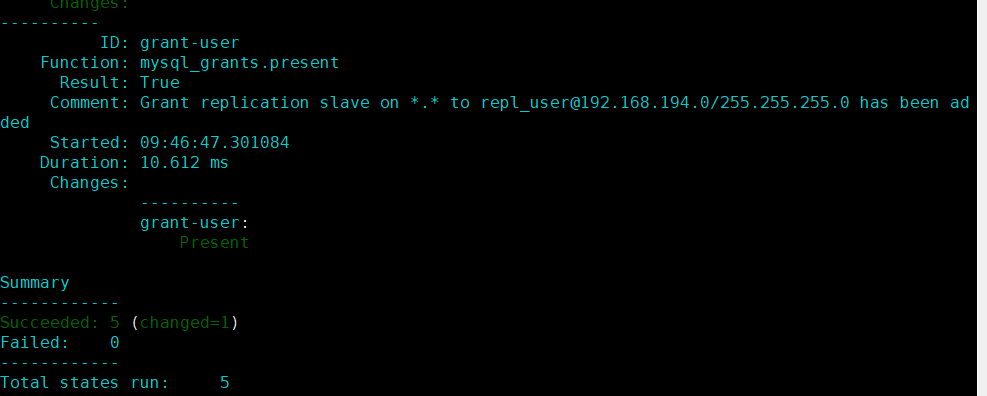

测试下

[root@# localhost ~]# salt '*' state.sls modules.mysql.master saltenv=prod

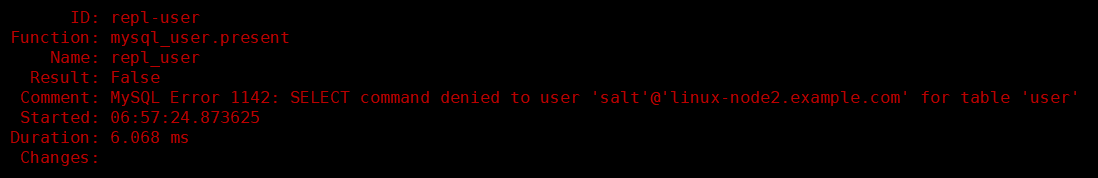

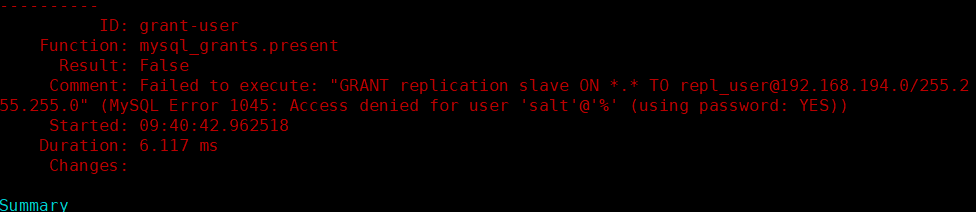

Question：执行时出错

Comment: MySQL Error 1142: SELECT command denied to user 'salt'@'linux-node1' for table 'user'

###解决办法：断开minion连接MySQL

[root@# localhost ~]# systemctl restart salt-minion

2、方式2：cmd方式授权

[root@# localhost /srv/salt/prod/modules/mysql]# cat master.sls

include:-modules.mysql.install

master-config:

file.managed:- name: /etc/my.cnf.d/mariadb-server.cnf- source: salt://modules/mysql/files/mariadb-server-master.cnf

-user: root-group: root- mode: 644master-service:

service.running:-name: mariadb-enable: True

master-grant:

cmd.run:- name: mysql -e "GRANT replication slave,super on *.* to 'repl_user'@'192.168.194.0/255.255.255.0' identified by 'repl_user@pass'"

- unless: mysql -h 192.168.194.131 -u repl_user -prepl_user@pass -e "exit"

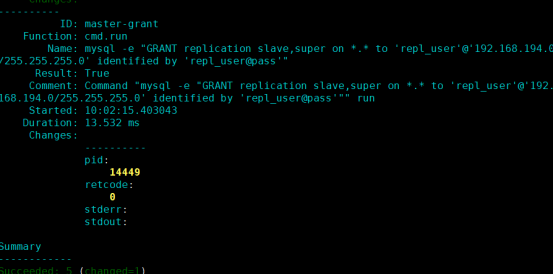

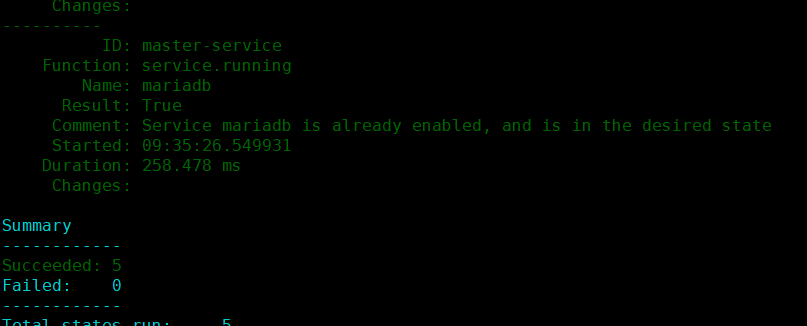

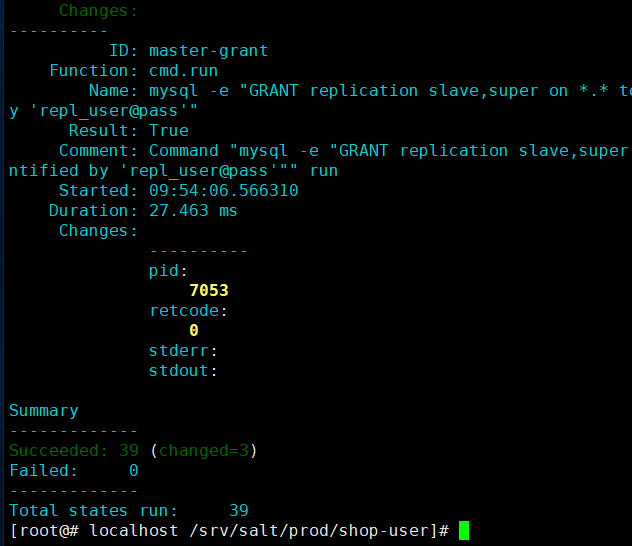

[root@# localhost ~]# salt '*' state.sls modules.mysql.master saltenv=prod

3、方式3：脚本  ---按业务来分  (有时候错误，用前两方式)

基础和业务分开

资源

业务：业务使用了资源

手动执行，安装mysql

[root@# localhost ~]# salt '*' state.sls modules.mysql.master saltenv=prod

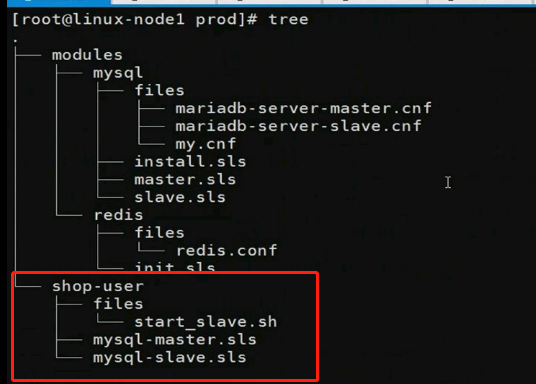

(1)目录结构

(2)master，slave.sls还原

[root@# localhost /srv/salt/prod/modules/mysql]# cat master.sls

include:-modules.mysql.install

master-config:

file.managed:- name: /etc/my.cnf.d/mariadb-server.cnf- source: salt://modules/mysql/files/mariadb-server-master.cnf

-user: root-group: root- mode: 644master-service:

service.running:-name: mariadb-enable: True

[root@# localhost/srv/salt/prod/modules/mysql]# cat slave.sls

include:-modules.mysql.install

slave-config:

file.managed:- name: /etc/my.cnf.d/mariadb-slave.cnf- source: salt://modules/mysql/files/mariadb-server-slave.cnf

-user: root-group: root- mode: 644slave-service:

service.running:-name: mariadb- enable: True

(3)脚本文件

[root@# localhost /srv/salt/prod/shop-user/files]# cat start_slave.sh

#!/bin/bashfor i in `seq 1 10`;domysql-h 192.168.194.131 -u repl_user -prepl_user@pass -e "exit"

if [ $? -eq 0];then

POS=$(mysql -h 192.168.194.131 -u repl_user -prepl_user@pass -e "show master status" | awk -F '|' 'NR==2 {print $1}' | awk '{print $2}')

mysql-e "change master to master_host='192.168.194.131', master_user='repl_user', master_password='repl_user@pass', master_log_file='mysqlbin.000001'

, master_log_pos=$POS; start slave;" touch /etc/my.cnf.d/slave.lockexit;elsesleep60;

fi

done

测试脚本

(4)业务与资源分开，配置文件

[root@# localhost /srv/salt/prod/shop-user]# cat mysql-master.sls

include:-modules.mysql.master

master-grant:

cmd.run:- name: mysql -e "GRANT replication slave,super on *.* to 'repl_user'@'118.190.201.0/255.255.255.0' identified by 'repl_user@pass'"

- unless: mysql -h 192.168.194.131 -ur repl_user -prepl_user@pass -e "exit"

[root@# localhost /srv/salt/prod/shop-user]# cat mysql-slave.sls

include:-modules.mysql.slave

slave-grant:

file.managed:- name: /tmp/start_slave.sh- source: salt://shop-user/files/start_slave.sh

-user: root-group: root- mode: 755cmd.run:- name: /bin/bash /tmp/start_slave.sh- unless: test -f /etc/my.cnf.d/slave.lock

(5) top.sls

[root@# localhost /srv/salt/base]#

[root@# localhost/srv/salt/base]# cat top.slsbase:'*':- init.init-all

prod:'linux-node1.example.com':- shop-user.mysql-master'linux-node2.example.com':- shop-user.mysql-slave

(6)清空数据库

[root@# localhost ~]# cd /var/lib/mysql/[root@# localhost/var/lib/mysql]# rm -rf *[root@# localhost/var/lib/mysql]# yum remove mariadb-server

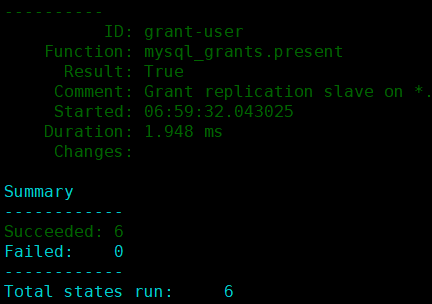

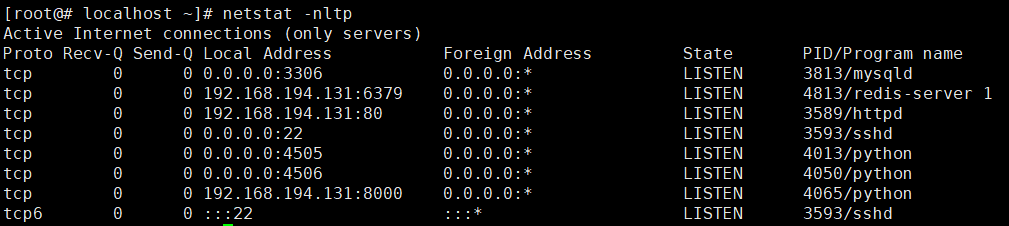

(7)执行测试

个人建议：

Mysql 不放在 topfile

每次手动执行

[root@# localhost ~]# salt '*' state.sls modules.mysql.master saltenv=prod

Salt管理： 自动化安装，自动化配置

Prod整个目录  mysql  redis

执行top.file

[root@# localhost ~]# salt '*'state.highstate

linux-node2.example.com:----------.......省略部分.......

Summary------------Succeeded:6 (changed=1)

Failed:0

------------Total states run:6linux-node1.example.com:----------.......省略部分.......

Summary------------Succeeded:6 (changed=1)

Failed:0

------------Total states run:6

6、总结与问题

1、问题

Question1

linux下yum安装时出现Loaded plugins: fastestmirror解决办法

网络问题，dhcp

Question2

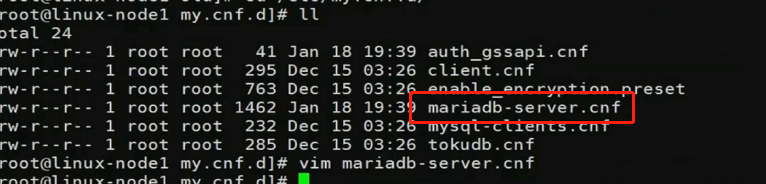

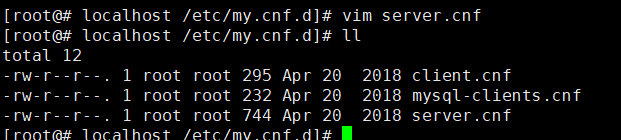

Centos 7

vi /etc/my.cnf.d/server.cnf

Question3

授权失败

Salt用户没有权限

MariaDB [(none)]> GRANT ALL PRIVILEGES ON *.* TO 'salt'@'%' IDENTIFIED BY PASSWORD '*36F75ABC6D500DFA6E905046FD8BE5E115812DD0' WITH GRANT OPTION;

Query OK, 0 rows affected (0.04 sec)

MariaDB [(none)]> show grants for salt@'%'\G;

###执行时出错

Comment: MySQL Error 1142: SELECT command denied to user 'salt'@'linux-node1' for table 'user'###解决办法：断开minion连接MySQL

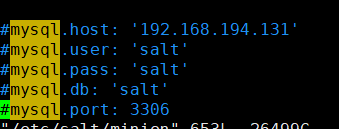

[root@linux-node1 ~]# vim /etc/salt/minion

#mysql.host: '118.190.201.11'

#mysql.user: 'salt'

#mysql.pass: 'salt'

#mysql.db: 'salt'

2、心得

架构师：道法术

思路达到了运维架构的标准上
