java ocsp校验_Nginx使用OCSP验证客户端证书

此前，Nginx只支持OSCP验证服务器证书。

目前，Nginx 1.19.0+已经支持使用OSCP验证客户端证书：https://trac.nginx.org/nginx/ticket/1534

有关Nginx双向证书验证的详细配置可以参考笔者的《Nginx双向证书校验(服务器验证客户端证书)》一文。

如下配置：

server {

listen 50443;

ssl on;

server_name example.com;

ssl_certificate D:\\nginx-1.19.1\\ssl_cert\\example-all.crt;

ssl_certificate_key D:\\nginx-1.19.1\\ssl_cert\\example-key.txt;

ssl_session_cache shared:SSL:1m;

ssl_session_timeout 5m;

ssl_verify_client on;

ssl_ocsp on;

resolver 172.16.1.251;

ssl_client_certificate D:\\nginx-1.19.1\\ssl_cert\\example-ca.crt;

#charset koi8-r;

#access_log logs/host.access.log main;

location / {

root html;

index index.html index.htm;

}

}

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

server{

listen50443;

sslon;

server_nameexample.com;

ssl_certificateD:\\nginx-1.19.1\\ssl_cert\\example-all.crt;

ssl_certificate_keyD:\\nginx-1.19.1\\ssl_cert\\example-key.txt;

ssl_session_cacheshared:SSL:1m;

ssl_session_timeout5m;

ssl_verify_clienton;

ssl_ocspon;

resolver172.16.1.251;

ssl_client_certificateD:\\nginx-1.19.1\\ssl_cert\\example-ca.crt;

#charset koi8-r;

#access_log  logs/host.access.log  main;

location/{

roothtml;

indexindex.htmlindex.htm;

}

}

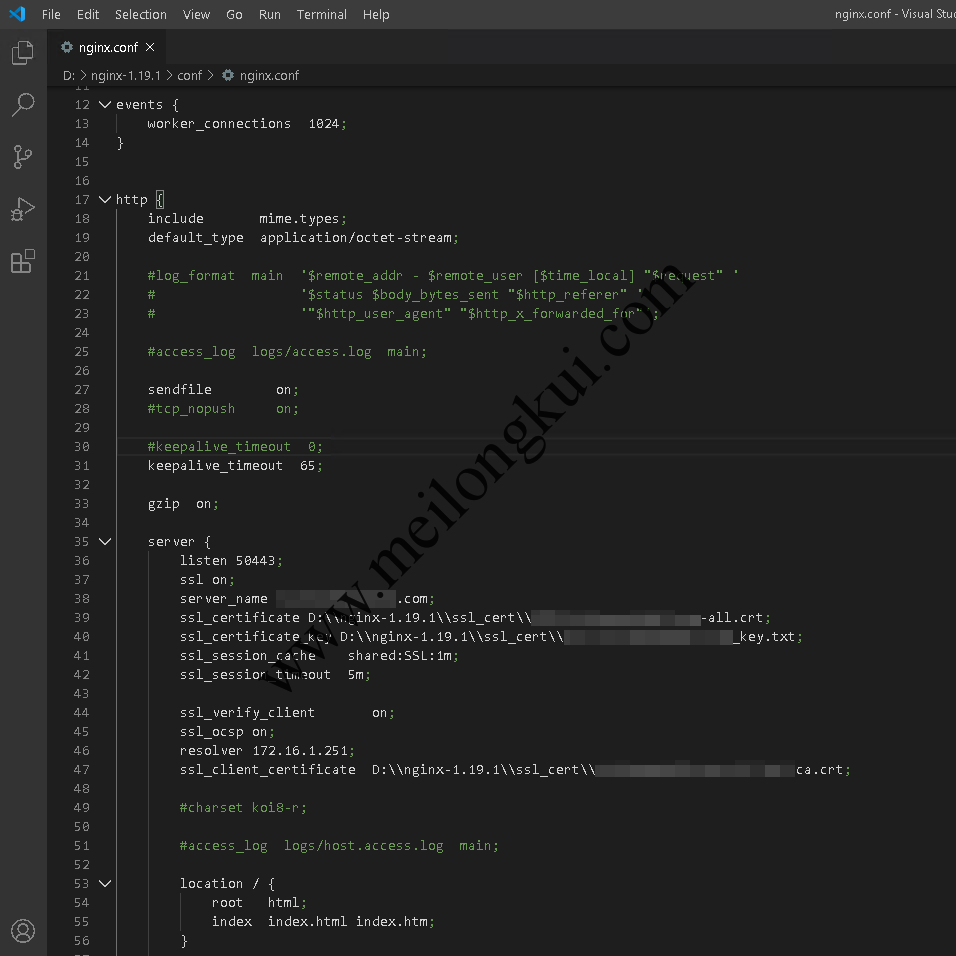

Nginx校验客户端证书配置(使用OCSP)

需要注意，其中的resolver用于：

Configures name servers used to resolve names of upstream servers into addresses

必须设置resolver，否则会报错，在error.log中可以看到，形如：

no resolver defined to resolve pki.example.com while requesting certificate status, responder: pki.example.com

1

noresolverdefinedtoresolvepki.example.comwhilerequestingcertificatestatus,responder:pki.example.com

另外，即便是启用了ssl_ocsp on，也必须通过ssl_client_certificate指定根证书，否则会报错：

no ssl_client_certificate for ssl_verify_client

1

nossl_client_certificateforssl_verify_client

这样，我们就可以观察到Nginx请求OCSP地址了(下面是OCSP地址请求失败时的报错)：

WSASend() failed (10057: A request to send or receive data was disallowed because the socket is not connected and (when sending on a datagram socket using a sendto call) no address was supplied) while requesting certificate status, responder: pki.example.com, peer: 1**.***.***.***:80

1

WSASend()failed(10057:Arequesttosendorreceivedatawasdisallowedbecausethesocketisnotconnectedand(whensendingonadatagramsocketusingasendtocall)noaddresswassupplied)whilerequestingcertificatestatus,responder:pki.example.com,peer:1**.***.***.***:80

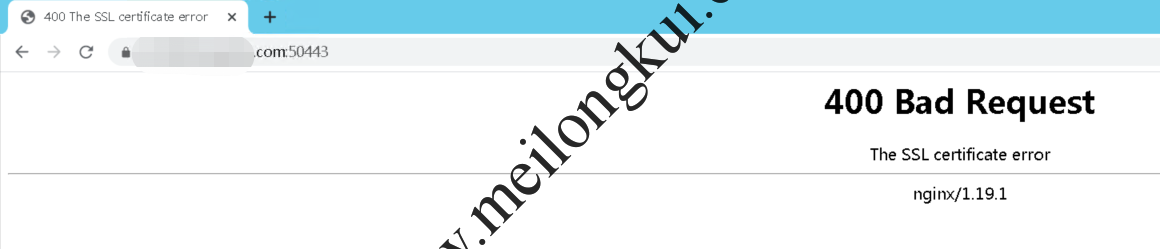

当对应的客户端证书被Revoke或OCSP访问失败时，会报错：

Nginx客户端证书校验失败

参考资料：

1、https://stackoverflow.com/questions/34102812/nginx-how-to-use-ocsp-to-verify-the-ssl-client-certificate

2、http://nginx.org/en/docs/http/ngx_http_ssl_module.html#ssl_ocs=-
