使用 SUM 工具修改超微 BIOS 配置

2019-05-08 分类：System 标签：Bios

WHY

厂里有一批 过保 的 Supermicro 3U8 机器 CPU 没有启用 超线程

虽然超微 3U8 机型 X9SRD-F 主板使用的也是 AMI BIOSBIOS Type: 32Mb SPI Flash EEPROM with AMI BIOS

但之前针对 H3C 机型修改 BIOS 的 SCELNX 工具不能用：

# SCELNX_64 /o /lang /s BIOS-with-map-string.cfg /hb

Platform identification failed.

AMI 官网也没找到适配该主板的工具下载，只得用超微自己的 SUM 工具来修改

WHATBIOS ManagementUpdate BIOS Firmware

BIOS Information

Get Current/Default BIOS Settings

Change BIOS settings

Get/Change/Edit DMI Information

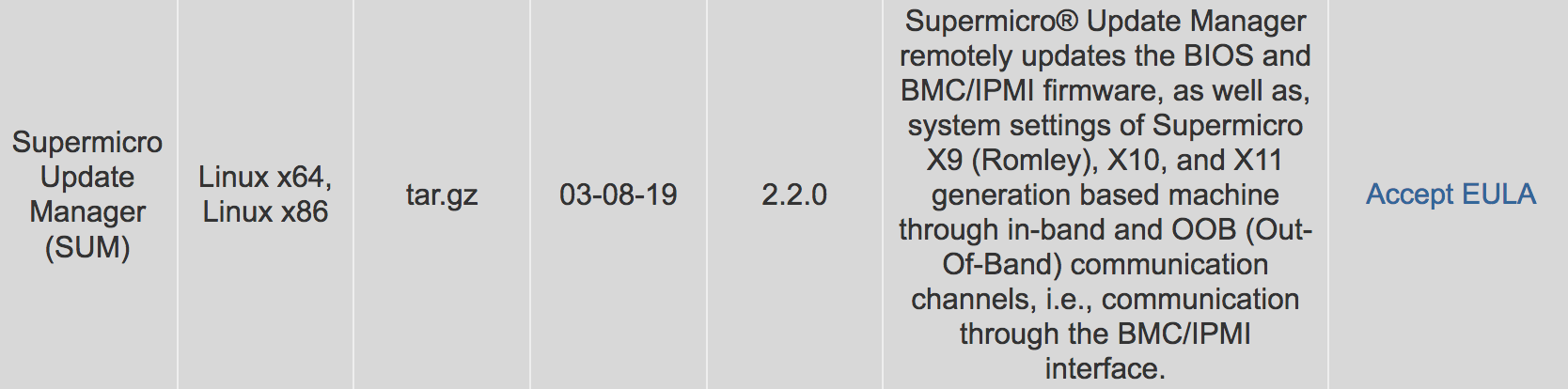

下载页面随便填一下用户和邮箱，即可跳转至真正的下载页面：

下载文件里面有 sum 命令的详细说明文档：SUM_UserGuide.pdf

# tar tf sum_2.2.0_Linux_x86_64_20190220.tar.gz

sum_2.2.0_Linux_x86_64/

sum_2.2.0_Linux_x86_64/ExternalData/

sum_2.2.0_Linux_x86_64/ExternalData/SMCIPID.txt

sum_2.2.0_Linux_x86_64/ExternalData/VENID.txt

sum_2.2.0_Linux_x86_64/ExternalData/tui.fnt

sum_2.2.0_Linux_x86_64/sumrc.sample

sum_2.2.0_Linux_x86_64/SUM_UserGuide.pdf

sum_2.2.0_Linux_x86_64/driver/

sum_2.2.0_Linux_x86_64/driver/RHL7_x86_64/

sum_2.2.0_Linux_x86_64/driver/RHL7_x86_64/sum_bios.ko

sum_2.2.0_Linux_x86_64/driver/RHL6_x86_64/

sum_2.2.0_Linux_x86_64/driver/RHL6_x86_64/sum_bios.ko

sum_2.2.0_Linux_x86_64/driver/RHL4_x86_64/

sum_2.2.0_Linux_x86_64/driver/RHL4_x86_64/sum_bios.ko

sum_2.2.0_Linux_x86_64/driver/RHL5_x86_64/

sum_2.2.0_Linux_x86_64/driver/RHL5_x86_64/sum_bios.ko

sum_2.2.0_Linux_x86_64/sum

sum_2.2.0_Linux_x86_64/ReleaseNote.txt

HOW

当前 CPU 没启用超线程，只有 4 个核：

# dmidecode -t processor | grep -E '(Core Count|Thread Count)'

Core Count: 4

Thread Count: 8

# lscpu

Architecture: x86_64

CPU op-mode(s): 32-bit, 64-bit

Byte Order: Little Endian

CPU(s): 4

On-line CPU(s) list: 0-3

Thread(s) per core: 1

Core(s) per socket: 4

Socket(s): 1

NUMA node(s): 1

Vendor ID: GenuineIntel

CPU family: 6

Model: 62

Model name: Intel(R) Xeon(R) CPU E5-1620 v2 @ 3.70GHz

Stepping: 4

CPU MHz: 3701.000

BogoMIPS: 7400.40

Virtualization: VT-x

L1d cache: 32K

L1i cache: 32K

L2 cache: 256K

L3 cache: 10240K

NUMA node0 CPU(s): 0-3

License Key

使用 sum 工具修改 BIOS 需要 License Key 厂里的机器也都没有 –.

好在超微 旧机型 (2012-2018) 的 License 算法已经被 逆向 出来了：

根据 OOB Mac 地址计算 License Key ：

oob_mac_str=$(ipmitool lan print|awk '/^MAC Add/{print $4}')

oob_hex_key=8544E3B47ECA58F9583043F8

echo "$oob_mac_str"|xxd -r -p|openssl dgst -sha1 -mac HMAC -macopt "hexkey:${oob_hex_key}"|awk '{print $2}'|awk -v FIELDWIDTHS='4 4 4 4 4 4' -v OFS='-' '{$1=$1;print }'

a2a5-e0de-ebbe-0862-53e2-5e16

导入 License Key ：

# ./sum -c ActivateProductKey --key a2a5-e0de-ebbe-0862-53e2-5e16

Supermicro Update Manager (for UEFI BIOS) 2.2.0 (2019/02/20) (x86_64)

Copyright(C)2019 Super Micro Computer, Inc. All rights reserved.

Node product key (OOB) is activated for localhost.

# ./sum -c QueryProductKey

Supermicro Update Manager (for UEFI BIOS) 2.2.0 (2019/02/20) (x86_64)

Copyright(C)2019 Super Micro Computer, Inc. All rights reserved.

[0] OOB

Number of product keys: 1

然后就可以使用 sum 工具配置 BIOS 了，先查看当前 BIOS 里的 超线程 HT 配置项：

# ./sum -c GetCurrentBiosCfg |grep -C3 -i thread

[Advanced|CPU Configuration]

Clock Spread Spectrum=00 // *00 (Disabled), 01 (Enabled)

RTID=00 // *00 (Optimal), 01 (Alternate)

Hyper-threading=00 // 00 (Disabled), *01 (Enabled)

Limit CPUID Maximum=00 // *00 (Disabled), 01 (Enabled)

Execute Disable Bit=01 // 00 (Disabled), *01 (Enabled)

Intel(R) AES-NI=01 // 00 (Disabled), *01 (Enabled)

当前没有启用，生成启用 HT 的 BIOS 配置文件：

# echo '[Advanced|CPU Configuration]

Hyper-threading=01 // 00 (Disabled), *01 (Enabled)' > ht.cfg

# cat ht.cfg

[Advanced|CPU Configuration]

Hyper-threading=01 // 00 (Disabled), *01 (Enabled)

最后 sum 通过生成的 启用 HT 配置文件 修改 BIOS ：

# ./sum -c ChangeBiosCfg --file ht.cfg

Supermicro Update Manager (for UEFI BIOS) 2.2.0 (2019/02/20) (x86_64)

Copyright(C)2019 Super Micro Computer, Inc. All rights reserved.

Status: Start updating the BIOS configuration for the managed system

************************************WARNING*************************************

Do not remove AC power from the server.

********************************************************************************

Status: The BIOS configuration is updated for the managed system

Note: You have to reboot or power up the system for the changes to take effect

修改成功后，还需 重启 服务器才能生效。重启之后，确认 HT 是否生效：

# lscpu

Architecture: x86_64

CPU op-mode(s): 32-bit, 64-bit

Byte Order: Little Endian

CPU(s): 8

On-line CPU(s) list: 0-7

Thread(s) per core: 2

Core(s) per socket: 4

Socket(s): 1

NUMA node(s): 1

Vendor ID: GenuineIntel

CPU family: 6

Model: 62

Model name: Intel(R) Xeon(R) CPU E5-1620 v2 @ 3.70GHz

Stepping: 4

CPU MHz: 3701.000

BogoMIPS: 7400.00

Virtualization: VT-x

L1d cache: 32K

L1i cache: 32K

L2 cache: 256K

L3 cache: 10240K

NUMA node0 CPU(s): 0-7

# ./sum -c GetCurrentBiosCfg |grep -C3 -i thread

[Advanced|CPU Configuration]

Clock Spread Spectrum=00 // *00 (Disabled), 01 (Enabled)

RTID=00 // *00 (Optimal), 01 (Alternate)

Hyper-threading=01 // 00 (Disabled), *01 (Enabled)

Limit CPUID Maximum=00 // *00 (Disabled), 01 (Enabled)

Execute Disable Bit=01 // 00 (Disabled), *01 (Enabled)

Intel(R) AES-NI=01 // 00 (Disabled), *01 (Enabled)
