请参考：“Android preview YUV转换 RenderScript 优化”
https://blog.youkuaiyun.com/zhjali123/article/details/80086987
计算：RenderScript Runtime API参考：简介
https://blog.youkuaiyun.com/Explorer_day/article/details/71641333
基于以上文章，进行实际操作。
1. 创建了一个 5.0.1的 Android项目“hellorenderscript”

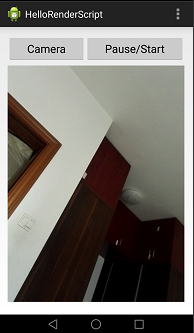

2. 创建界面
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:tools="http://schemas.android.com/tools"
android:id="@+id/LinearLayout1"
android:layout_width="match_parent"
android:layout_height="match_parent"
android:orientation="vertical"
android:paddingBottom="@dimen/activity_vertical_margin"
android:paddingLeft="@dimen/activity_horizontal_margin"
android:paddingRight="@dimen/activity_horizontal_margin"
android:paddingTop="@dimen/activity_vertical_margin"
tools:context="com.example.hellorenderscript.MainActivity" >
<LinearLayout
android:layout_width="match_parent"
android:layout_height="wrap_content" >
<Button
android:id="@+id/Camera1"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:layout_weight="1"
android:text="Camera" />
<Button
android:id="@+id/PauseButton"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:layout_weight="1"
android:text="Pause/Start" />
</LinearLayout>
<LinearLayout
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:layout_weight="1"
android:orientation="vertical" >
<ImageView
android:id="@+id/imageView1"
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:layout_weight="6.82"
android:src="@drawable/ic_launcher" />
</LinearLayout>
</LinearLayout>3. 在project.properties 文件中加入：renderscript.target=18
4. 创建“hello.rs”
内容如下，如果eclipse报红色警告，并修改代码后，记得clean一下（eclipse菜单 Project ==> Clean）。
#pragma version(1)
#pragma rs java_package_name(com.hc.renderscript)
rs_allocation inputAllocation;
uchar4 out;
int wIn, hIn;
int numTotalPixels;
static float scaleInv;
static int inputWidth, inputHeight, outputWidth, outputHeight;
uchar4 __attribute__((kernel)) invert(uchar4 in)
{
uchar4 out = in;
out.r =255- in.r;
out.g = 255-in.g;
out.b = 255-in.b;
return out;
}
const static float3 gMonoMult1 = {0.299f, 0.587f, 0.114f};
void RGBA2Gray(const uchar4 *v_in, uchar4 *v_out) {
float4 f4 = rsUnpackColor8888(*v_in);//将输入的颜色值转化为r g b a
float3 mono = dot(f4.rgb, gMonoMult1);//计算向量的点积
*v_out = rsPackColorTo8888(mono);
//return 20; 根据返回值(ms)作刷新。相当于每20毫秒刷新一次。
}
// Function to invoke before applying conversion
void setInputImageSize(int _w, int _h)
{
wIn = _w;
hIn = _h;
numTotalPixels = wIn * hIn;
}
void setInformation(int _inputWidth, int _inputHeight,
int _outputWidth, int _outputHeight){
inputWidth = _inputWidth;
inputHeight = _inputHeight;
outputWidth = _outputWidth;
outputHeight = _outputHeight;
// Calculates inverse scale factor, by which
// to round coordinates.
//
// Ex:
// Input size is 100
// Output desired size is 25
//
// Scale factor is 25 / 100 = 0.25
// Inverse scale factor is 1 / 0.25 = 4
//
// When iterating directly on the output
// allocation, to get input element it is needed
// to use the inverse scale factor.
//
// Current output element index is 20
// Respective input element index is 20 * 4 = 80
//
scaleInv = (float)inputWidth/(float)outputWidth;
}
const static uchar Myclamp(short x, uchar Mymin, uchar Mymax){
if (x > Mymax)
return Mymax;
if (x < Mymin)
return Mymin;
return (uchar)x;
}
// Kernel that converts a YUV element to a RGBA one
uchar4 __attribute__((kernel)) convert(uint32_t x, uint32_t y)
{
// YUV 4:2:0 planar image, with 8 bit Y samples, followed by
// interleaved V/U plane with 8bit 2x2 subsampled chroma samples
//两行Y,两列X共用一对V&U.
int baseIdx = x + y * wIn;
int baseVYIndex = numTotalPixels + (y>>1) * wIn + (x & 0xfffffe);
int baseUYIndex=baseVYIndex+1;
uchar _y = rsGetElementAt_uchar(inputAllocation, baseIdx);
uchar _u = rsGetElementAt_uchar(inputAllocation, baseUYIndex);
uchar _v = rsGetElementAt_uchar(inputAllocation, baseVYIndex);
_y = _y < 16 ? 16 : _y;
short Y = ((short)_y) - 16;
short U = ((short)_u) - 128;
short V = ((short)_v) - 128;
uchar4 out;
out.r = (uchar)Myclamp(((Y * 298 + V * 408 + 128) >> 8), 0, 255);
out.g = (uchar)Myclamp(((Y * 298 - U * 100 - V * 208 + 128) >> 8), 0, 255);
out.b = (uchar)Myclamp(((Y * 298 + U * 516 + 128) >> 8), 0, 255);
out.a = 255;
//以下为黑白图像
// out.r =Y;
// out.g=Y;
// out.b =Y;
return out;
}
uchar4 __attribute__ ((kernel)) rotate_90_clockwise ( uint32_t x, uint32_t y) {
uint32_t inX = wIn - 1 - y;
uint32_t inY = x;
uchar4 out;
out = rsGetElementAt_uchar4(inputAllocation,inX, inY);
return out;
}
uchar4 __attribute__ ((kernel)) rotate_270_clockwise (uint32_t x, uint32_t y) {
uint32_t inX = y;
uint32_t inY = hIn - 1 - x;
uchar4 out;
out = rsGetElementAt_uchar4(inputAllocation,inX, inY);
return out;
}
const static float Limit(float x, float Mymin, float Mymax){
if (x > Mymax)
return Mymax;
if (x < Mymin)
return Mymin;
return x;
}
uchar4 __attribute__((kernel)) resizeNearest(uint32_t x, uint32_t y) {
float fX = clamp(x*scaleInv, 0.0f, (float)inputWidth);
float fY = clamp(y*scaleInv, 0.0f, (float)inputHeight);
return rsGetElementAt_uchar4(inputAllocation, fX, fY);
}
5. 保存hello.rs，若报错的情况下，eclipse会自动生成一个带“Script_”的类“Script_hello”。
6. 创建一个类“RSImgProcess”
package com.example.hellorenderscript;
import java.util.concurrent.ArrayBlockingQueue;
import java.util.concurrent.ThreadPoolExecutor;
import java.util.concurrent.TimeUnit;
import android.content.Context;
import android.graphics.Bitmap;
import android.graphics.ImageFormat;
import android.renderscript.Allocation;
import android.renderscript.Element;
import android.renderscript.RenderScript;
import android.renderscript.ScriptIntrinsicBlur;
import android.renderscript.ScriptIntrinsicYuvToRGB;
import android.renderscript.Type;
import android.util.Log;
import com.hc.renderscript.ScriptC_hello;
public class RSImgProcess {
private static RenderScript mRS;
final float per = 1.0f;
private int outwidth, outheight;
private static ScriptIntrinsicYuvToRGB yuvToRgbIntrinsic;
private static Type.Builder yuvType;
private static Type.Builder rgbaType;
private static Allocation in;
private static Allocation out;
private ScriptC_hello customYUVToRGBAScript;
private ScriptC_hello resizeScript;
private ScriptIntrinsicBlur blurScript;
private boolean isInit = false;
ThreadPoolExecutor GlobalThreadPool;
public RSImgProcess(final Context context) {
GlobalThreadPool = new ThreadPoolExecutor(4, 4, 2, TimeUnit.MILLISECONDS,
new ArrayBlockingQueue<Runnable>(200));
GlobalThreadPool.execute(new Runnable() {
@Override
public void run() {
init(context);
isInit = true;
Log.i("RSImgProcess","Init");
}
});
}
private void init(Context context) {
// Creates a RS context.
mRS = RenderScript.create(context);
customYUVToRGBAScript = new ScriptC_hello(mRS);
// Instantiates the blur script
resizeScript = new ScriptC_hello(mRS);
}
private Allocation resize(Allocation inputAllocation, int width, int height) {
// Creates an output Allocation where to store the blur result
Type.Builder tbOutput = new Type.Builder(mRS, Element.RGBA_8888(mRS));
tbOutput.setX(outwidth);
tbOutput.setY(outheight);
Allocation outputAllocation = Allocation.createTyped(mRS, tbOutput.create());
resizeScript.set_inputAllocation(inputAllocation);
resizeScript.invoke_setInformation(width, height, outwidth, outheight);
resizeScript.forEach_resizeNearest(outputAllocation);
return outputAllocation;
}
private Allocation Rotate90(Allocation inputAllocation, int width, int height) {
// Creates an output Allocation where to store the blur result
Type.Builder tbOutput = new Type.Builder(mRS, Element.RGBA_8888(mRS));
tbOutput.setX(height);
tbOutput.setY(width);
Allocation outputAllocation = Allocation.createTyped(mRS, tbOutput.create());
resizeScript.set_inputAllocation(inputAllocation);
resizeScript.invoke_setInputImageSize(width, height);
resizeScript.forEach_rotate_90_clockwise(outputAllocation);
return outputAllocation;
}
private Allocation Rotate270(Allocation inputAllocation, int width, int height) {
// Creates an output Allocation where to store the blur result
Type.Builder tbOutput = new Type.Builder(mRS, Element.RGBA_8888(mRS));
tbOutput.setX(height);
tbOutput.setY(width);
Allocation outputAllocation = Allocation.createTyped(mRS, tbOutput.create());
resizeScript.set_inputAllocation(inputAllocation);
resizeScript.invoke_setInputImageSize(width, height);
resizeScript.forEach_rotate_270_clockwise(outputAllocation);
return outputAllocation;
}
private Allocation YUVToRGBA(byte[] dataIn, int width, int height) {
// Calculates expected YUV bytes count as YUV is not a human friendly way of storing data:
// https://en.wikipedia.org/wiki/YUV#Y.27UV420p_.28and_Y.27V12_or_YV12.29_to_RGB888_conversion
int expectedBytes = (int) (width * height * ImageFormat.getBitsPerPixel(ImageFormat.NV21) / 8f);
Type.Builder yuvTypeBuilder = new Type.Builder(mRS, Element.U8(mRS)).setX(expectedBytes);
Type yuvType = yuvTypeBuilder.create();
Allocation inputAllocation = Allocation.createTyped(mRS, yuvType, Allocation.USAGE_SCRIPT);
inputAllocation.copyFrom(dataIn);
customYUVToRGBAScript.invoke_setInputImageSize(width, height);
customYUVToRGBAScript.set_inputAllocation(inputAllocation);
// Creates temporary allocation that will match camera preview size
Type.Builder rgbaType = new Type.Builder(mRS, Element.RGBA_8888(mRS)).setX(width).setY(height);
Allocation midAllocation = Allocation.createTyped(mRS, rgbaType.create(), Allocation.USAGE_SCRIPT);
customYUVToRGBAScript.forEach_convert(midAllocation);
return midAllocation;
}
private static Allocation YUVToBMPByRS(byte[] YUVData,int OriginWidth,int OriginHeight){
Bitmap BMPOut;
Log.i("YUVToBMPByRS","RenderScript create again");
yuvToRgbIntrinsic = ScriptIntrinsicYuvToRGB.create(mRS, Element.RGBA_8888(mRS));
rgbaType = new Type.Builder(mRS, Element.RGBA_8888(mRS)).setX(OriginWidth).setY(OriginHeight);
out = Allocation.createTyped(mRS, rgbaType.create(), Allocation.USAGE_SCRIPT);
yuvType = new Type.Builder(mRS, Element.U8(mRS)).setX(YUVData.length);
in = Allocation.createTyped(mRS, yuvType.create(), Allocation.USAGE_SCRIPT);
in.copyFrom(YUVData);
yuvToRgbIntrinsic.setInput(in);
yuvToRgbIntrinsic.forEach(out);
// BMPOut = Bitmap.createBitmap(OriginWidth, OriginHeight, Bitmap.Config.ARGB_8888);
// out.copyTo(BMPOut);
// return BMPOut;
return out;
}
public Bitmap processImg(byte[] dataIn, int width, int height,int outWidth,int outHeight,int screen_orientation) {
Allocation outputallocation;
long startTime = System.currentTimeMillis();
//Allocation allocation = YUVToBMPByRS(dataIn, width, height);
Allocation allocation = YUVToRGBA(dataIn, width, height);
// Allocation resizeAllocation = resize(allocation, width, height);
if(screen_orientation==1 || screen_orientation==3){
// Log.i("processImg","screen_orientation"+screen_orientation);
outputallocation=Rotate270(allocation, width, height);
outwidth=height;
outheight=width;
}else{
outwidth=width;
outheight=height;
outputallocation=allocation;
}
Bitmap outBitmap;
// Creates output Bitmap, matching input one size.
// Bitmap outBitmap = Bitmap.createBitmap(outWidth, outHeight, Bitmap.Config.ARGB_8888);
// Copy calculation result to the output Bitmap.
// resizeAllocation.copyTo(outBitmap);
// Log.i("processImg","outwidth"+outwidth);
outBitmap = Bitmap.createBitmap(outwidth, outheight, Bitmap.Config.ARGB_8888);
outputallocation.copyTo(outBitmap);
return outBitmap;
}
}7. Java 调用 这些类。
7.1 MainActivity中的变量
Allocation aIn;
Allocation aOut;
static Bitmap mOutBitmap,bitmap;
boolean isScreenShot=false,isPreview=false;
static boolean oldPreviewStatus=false;
Camera mCameraDevice=null;
Camera.Parameters mParameters;
ImageView iv_capture_view;
Handler mHandler=new Handler();
RSImgProcess imgProcess;
ThreadPoolExecutor GlobalThreadPool;
OnClickListener CameraClickListener=null;
Button CameraButton,PauseButton;
ImageView mSrcImageView,mDstImageView;
int Camera_w,Camera_h;
byte [] PreviewBuff=null;
byte [] OneFrameBuff=null;
int FrameCount=0;
long Time1,Time2;
int screen_orientation;
MainActivity mMainActivity;
7.2 MainActivity中的函数 prepareCamera
private void prepareCamera() {
mCameraDevice=Camera.open();
mParameters=mCameraDevice.getParameters();
Camera_w=640;Camera_h=480;
mParameters.setPreviewSize(Camera_w,Camera_h);//w,h
Camera_w=mParameters.getPreviewSize().width ;
Camera_h=mParameters.getPreviewSize().height;
mParameters.setPictureSize(Camera_w,Camera_h);
float perPixel = ImageFormat.getBitsPerPixel(mParameters.getPreviewFormat()) / 8f;
final int OneFrameSize=(int)(Camera_w*Camera_h* perPixel);
final int previewBufferSize = (int) (Camera_w * Camera_h *2* perPixel);
Log.i("prepareCamera","w*h:"+Camera_w+"*"+Camera_h);
Log.i("prepareCamera","perPixel:"+perPixel);
Log.i("prepareCamera","previewBufferSize:"+previewBufferSize);
OneFrameBuff=new byte[(int)(Camera_w*Camera_h* perPixel)];
PreviewBuff=new byte[previewBufferSize];
mCameraDevice.addCallbackBuffer(PreviewBuff);
mParameters.setPictureFormat(ImageFormat.YV12);
mCameraDevice.setParameters(mParameters);
isScreenShot=true;
isPreview=true;
mCameraDevice.setPreviewCallbackWithBuffer(new Camera.PreviewCallback() {
@Override
public void onPreviewFrame(byte[] data, Camera camera) {
if (isScreenShot && isPreview) {
isScreenShot = false;
// System.arraycopy(data,0,OneFrameBuff,0,OneFrameSize);
// Log.i("onPreviewFrame","data.length"+data.length);
// Log.i("onPreviewFrame","screen_orientation"+screen_orientation);
screen_orientation = iv_capture_view.getResources().getConfiguration().orientation;
// Log.i("onPreviewFrame","screen_orientation"+screen_orientation);
screenShot(data,screen_orientation);
// screenShot(OneFrameBuff,screen_orientation);
}
// camera.addCallbackBuffer(data);
// Log.i("onPreviewFrame","FrameCount"+FrameCount+isScreenShot+isPreview);
camera.addCallbackBuffer(PreviewBuff);
}
});
mCameraDevice.startPreview();
mCameraDevice.autoFocus(null);
Time1= System.currentTimeMillis();
FrameCount=0;
Log.i("prepareCamera","mCameraDevice"+mCameraDevice);
}
7.3 MainActivity中的函数 onresume/onPause
protected void onResume() {
// TODO Auto-generated method stub
super.onResume();
screen_orientation = iv_capture_view.getResources().getConfiguration().orientation;
iv_capture_view.setImageBitmap(mOutBitmap);
isScreenShot=true;
isPreview=oldPreviewStatus;
Log.i("onResume","screen_orientation"+screen_orientation+" "+isScreenShot+isPreview);
imgProcess=new RSImgProcess(mMainActivity);
GlobalThreadPool = new ThreadPoolExecutor(8, 8, 80, TimeUnit.MILLISECONDS,
new ArrayBlockingQueue<Runnable>(200));
if(isPreview && mCameraDevice==null){ //暂停后，Camera被注销为空了。
prepareCamera();
Log.i("onResume","Resume Camera");
}
}
@Override
protected void onPause() {
// TODO Auto-generated method stub
oldPreviewStatus=isPreview;
mOutBitmap=bitmap;
isPreview=false;
if(mCameraDevice!=null){
mCameraDevice.stopPreview();
mCameraDevice.release();
mCameraDevice=null;
}
GlobalThreadPool.shutdown();
try {
Thread.sleep(30);
} catch (InterruptedException e) {
// TODO Auto-generated catch block
e.printStackTrace();
}
// GlobalThreadPool.shutdownNow();
super.onPause();
Log.i("onPause","mCameraDevice"+mCameraDevice);
}
7.4 MainActivity中的函数: 图像处理
private void screenShot(final byte[] pixel,final int screenorientation) {
GlobalThreadPool.execute(new Runnable() {
@Override
public void run() {
bitmap = imgProcess.processImg(pixel, Camera_w, Camera_h,iv_capture_view.getWidth(),iv_capture_view.getHeight(),screenorientation);
mHandler.post(new Runnable() {
@Override
public void run() {
iv_capture_view.setImageBitmap(bitmap);
// Log.i("post","setImageBitmap width"+bitmap.getWidth());
// Log.i("post","setImageBitmap");
// iv_capture_view.setVisibility(View.VISIBLE);
// AlphaAnimation inAnimation = new AlphaAnimation(0f, 1.0f);
// inAnimation.setDuration(250);
// iv_capture_view.startAnimation(inAnimation);
FrameCount++;
if(FrameCount>=100){
Time2= System.currentTimeMillis();
Log.i("screenShot","Time:"+(Time2-Time1));
FrameCount=0;
}
if(FrameCount==0){
Time1= System.currentTimeMillis();
}
}
});
mHandler.postDelayed(new Runnable() {
@Override
public void run() {
// iv_capture_view.setVisibility(View.INVISIBLE);
isScreenShot=true;
}
}, 20);
}
});
}
8. 效果图：
9. 可以自己修改代码，变成黑白图。
扫一扫
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
