Spring Security授权过程

前言

---

本文是接上一章Spring Security源码分析一：Spring Security认证过程进一步分析Spring Security用户名密码登录授权是如何实现得；

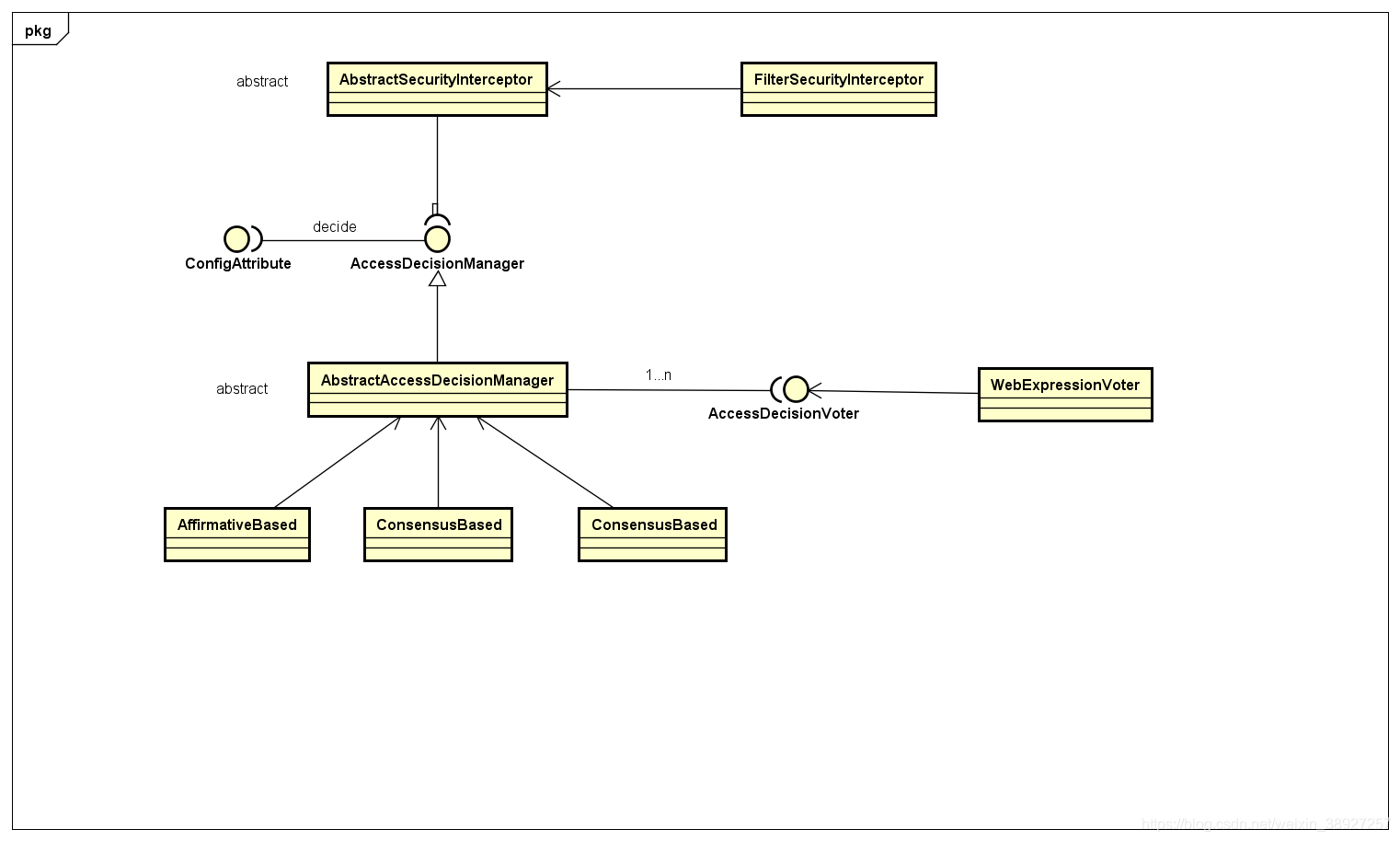

类图

源码分析

---

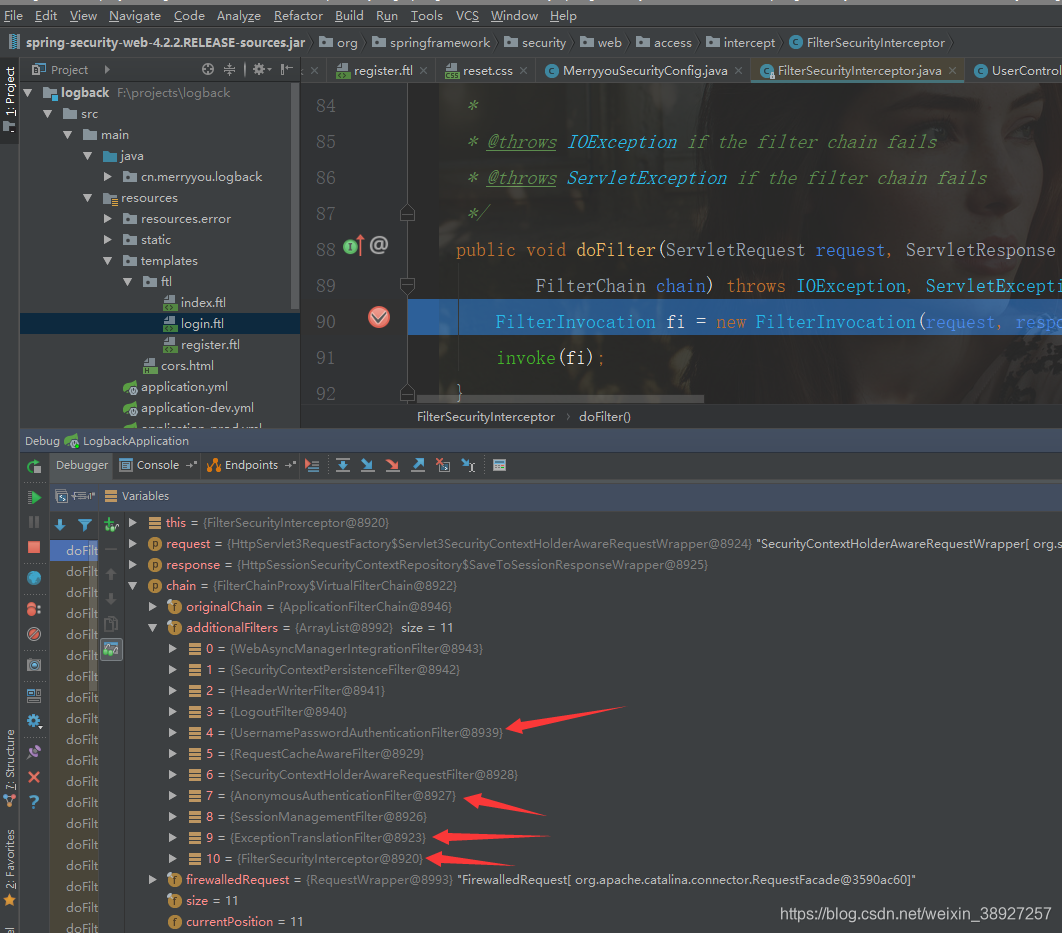

如图所示，显示了登录认证过程中的 filters相关的调用流程，作者将几个自认为重要的 filters 标注了出来

从图中可以看出执行的顺序。来看看几个作者认为比较重要的Filter 的处理逻辑，UsernamePasswordAuthenticationFilter，AnonymousAuthenticationFilter，ExceptionTranslationFilter，FilterSecurityInterceptor以及相关的处理流程如下所述；

UsernamePasswordAuthenticationFilter

---

整个调用流程是，先调用其父类 AbstractAuthenticationProcessingFilter.doFilter() 方法，然后再执行 UsernamePasswordAuthenticationFilter.attemptAuthentication() 方法进行验证；

AbstractAuthenticationProcessingFilter

public void doFilter(ServletRequest req, ServletResponse res, FilterChain chain)
			throws IOException, ServletException {


		HttpServletRequest request = (HttpServletRequest) req;
		HttpServletResponse response = (HttpServletResponse) res;
		#1.判断当前的filter是否可以处理当前请求，不可以的话则交给下一个filter处理
		if (!requiresAuthentication(request, response)) {

			chain.doFilter(request, response);

			return;
		}

		if (logger.isDebugEnabled()) {

			logger.debug("Request is to process authentication");
		}

		Authentication authResult;

		try {

			#2.抽象方法由子类UsernamePasswordAuthenticationFilter实现
			authResult = attemptAuthentication(request, response);
			if (authResult == null) {

				// return immediately as subclass has indicated that it hasn't completed
				// authentication
				return;
			}
			#2.认证成功后，处理一些与session相关的方法
			sessionStrategy.onAuthentication(authResult, request, response);
		}
		catch (InternalAuthenticationServiceException failed) {

			logger.error(
					"An internal error occurred while trying to authenticate the user.",
					failed);
			#3.认证失败后的的一些操作
			unsuccessfulAuthentication(request, response, failed);

			return;
		}
		catch (AuthenticationException failed) {

			// Authentication failed
			unsuccessfulAuthentication(request, response, failed);

			return;
		}

		// Authentication success
		if (continueChainBeforeSuccessfulAuthentication) {

			chain.doFilter(request, response);
		}
		#3. 认证成功后的相关回调方法 主要将当前的认证放到SecurityContextHolder中
		successfulAuthentication(request, response, chain, authResult);
	}

整个程序的执行流程如下:

1. 判断filter是否可以处理当前的请求，如果不可以则放行交给下一个filter
2. 调用抽象方法attemptAuthentication进行验证，该方法由子类UsernamePasswordAuthenticationFilter实现
3. 认证成功以后，回调一些与 session相关的方法；
4. 认证成功以后，认证成功后的相关回调方法；认证成功以后，认证成功后的相关回调方法；

protected void successfulAuthentication(HttpServletRequest request,
         HttpServletResponse response, FilterChain chain, Authentication authResult)
         throws IOException, ServletException {


     if (logger.isDebugEnabled()) {

         logger.debug("Authentication success. Updating SecurityContextHolder to contain: "
                 + authResult);
     }

     SecurityContextHolder.getContext().setAuthentication(authResult);

     rememberMeServices.loginSuccess(request, response, authResult);

     // Fire event
     if (this.eventPublisher != null) {

         eventPublisher.publishEvent(new InteractiveAuthenticationSuccessEvent(
                 authResult, this.getClass()));
     }

     successHandler.onAuthenticationSuccess
