1.安装docker
2.安装docker-compose
3. 安装Harbor
一、新装centos7.6操作系统
操作日志
[root@localhost ~]# uname -a
Linux localhost.localdomain 3.10.0-957.el7.x86_64 #1 SMP Thu Nov 8 23:39:32 UTC 2018 x86_64 x86_64 x86_64 GNU/Linux
[root@localhost ~]# systemctl stop firewalld
[root@localhost ~]# systemctl disable firewalld
[root@localhost ~]# sed -i 's/^SELINUX=enforcing/SELINUX=disabled/g' /etc/selinux/
二、使用yum安装docker-ce
操作日志
[root@localhost ~]# sudo yum install -y yum-utils
[root@localhost ~]# sudo yum-config-manager --add-repo https://download.docker.com/linux/centos/docker-ce.repo
[root@localhost ~]# sudo yum install -y docker-ce
启动docker
[root@localhost ~]# sudo systemctl start docker
[root@localhost ~]# sudo systemctl status docker
三、安装 Docker-Compose
- 使用pip安装 Docker-Compose
yum install epel-release wget -y
pip install --upgrade pip
sudo yum install -y python-pip
pip install docker-compose
- 使用二进制包安装Docker-Compose
sudo curl -L "https://github.com/docker/compose/releases/download/1.26.1/docker-compose-$(uname -s)-$(uname -m)" -o /usr/local/bin/docker-compose## Giving permissions
sudo chmod +x /usr/local/bin/docker-compose## Test installation
docker-compose --version
四、安装harbor
离线安装
#下载harbor在线安装包
wget https://github.com/goharbor/harbor/releases/download/v2.1.1/harbor-offline-installer-v2.1.1.tgz
tar xvf harbor-online-installer-v2.1.1.tgz -C /opt
创建加密文件
mkdir cert && cd cert
openssl req -sha256 -x509 -days 365 -nodes -newkey rsa:4096 -keyout harbor.example.com.key -out harbor.example.com.crt
编辑配置harbor
vim harbor.yml
Change hostname to your host's FQDN and enable https.
hostname = harbor.example.com
https:
# https port for harbor, default is 443
port: 443
# The path of cert and key files for nginx
certificate: /root/cert/harbor.example.com.crt
private_key: /root/cert/harbor.example.com.key
运行 install.sh 完成安装
./install.sh

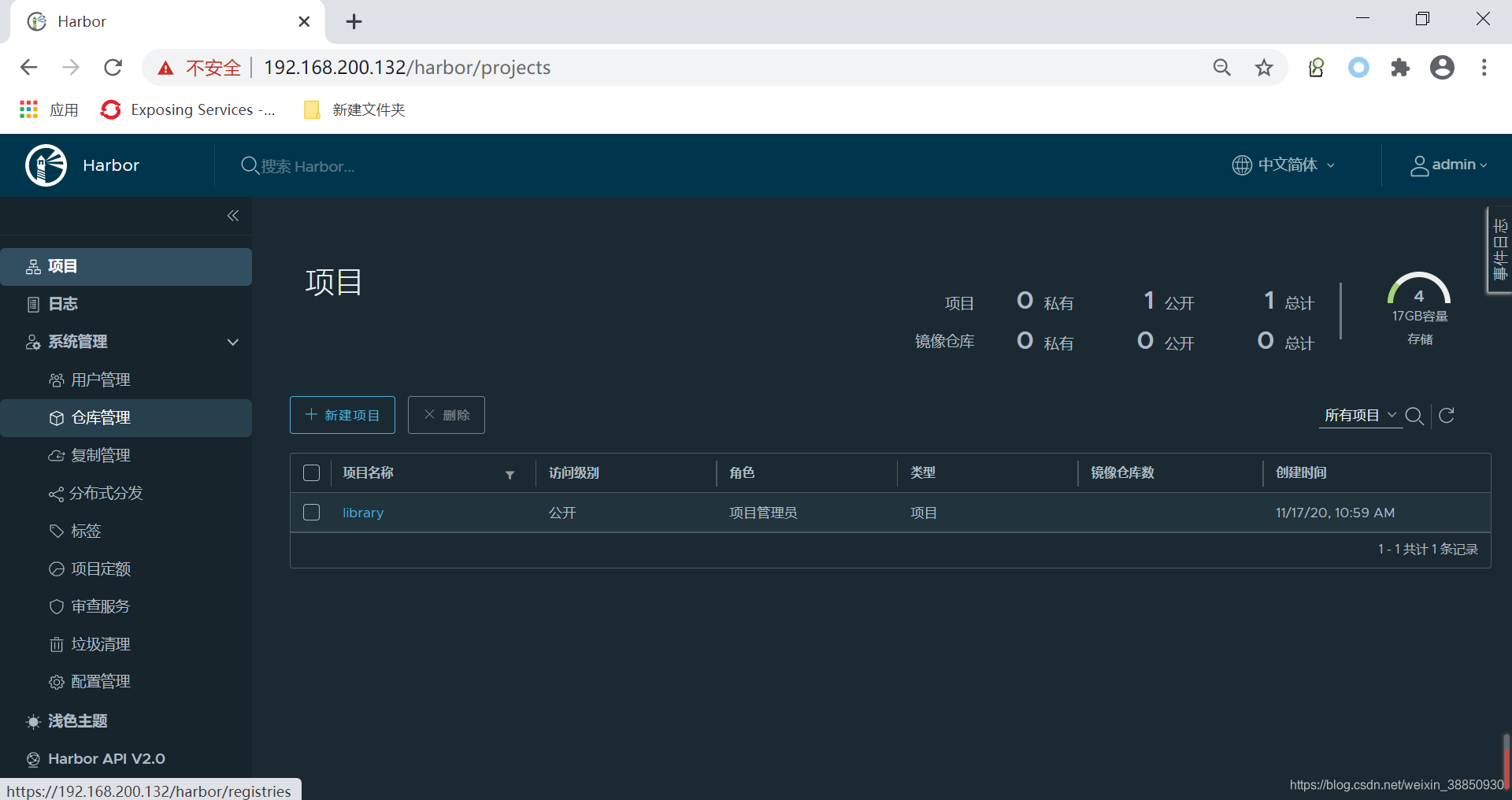

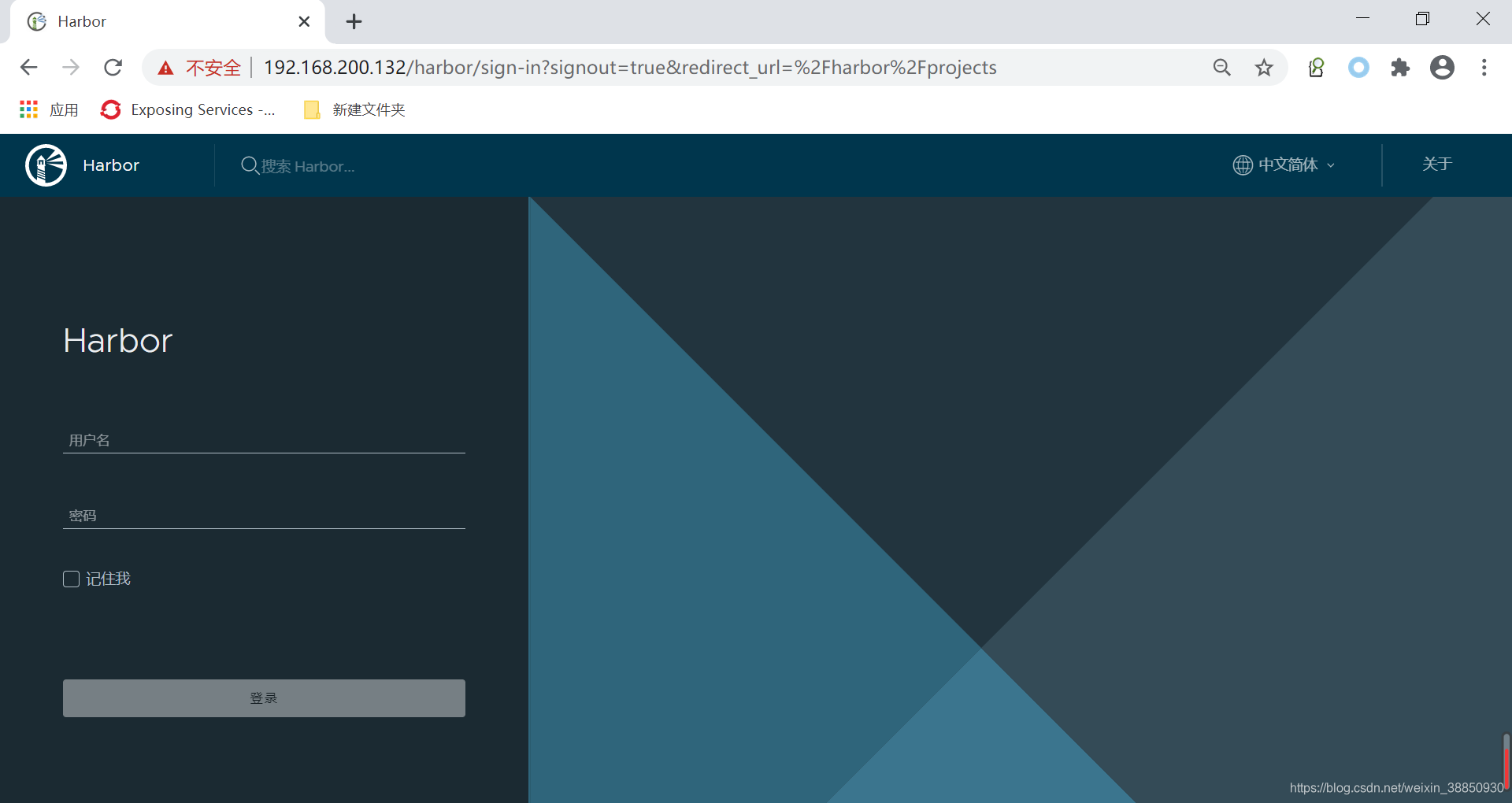

浏览器访问
http://harobr.example.com
admin
Harbor12345
操作日志
#linux下生成https的crt和key证书
[root@localhost ~]# mkdir cert && cd cert
[root@localhost cert]# ll
total 0
[root@localhost cert]# openssl req -sha256 -x509 -days 365 -nodes -newkey rsa:4096 -keyout 192.168.200.132.key -out 192.168.200.132.crt
Generating a 4096 bit RSA private key
...................................................................................................................++
.....................................................................................................................................................++
writing new private key to '192.168.200.132.key'
-----
You are about to be asked to enter information that will be incorporated
into your certificate request.
What you are about to enter is what is called a Distinguished Name or a DN.
There are quite a few fields but you can leave some blank
For some fields there will be a default value,
If you enter '.', the field will be left blank.
-----
Country Name (2 letter code) [XX]:CN
State or Province Name (full name) []:BJ
Locality Name (eg, city) [Default City]:BJ
Organization Name (eg, company) [Default Company Ltd]:test
Organizational Unit Name (eg, section) []:Ops
Common Name (eg, your name or your server's hostname) []:gongshuaili
Email Address []:13526464656@163.com
#生成的证书
[root@localhost cert]# ll
total 8
-rw-r--r-- 1 root root 2057 Nov 17 10:39 192.168.200.132.crt
-rw-r--r-- 1 root root 3272 Nov 17 10:39 192.168.200.132.key
[root@localhost cert]#
#配置harbor仓库的配置文件
[root@localhost ~]# cd /opt/harbor/
[root@localhost harbor]# mv harbor.yml.tmpl harbor.yml
[root@localhost harbor]# cat harbor.yml
# Configuration file of Harbor
# The IP address or hostname to access admin UI and registry service.
# DO NOT use localhost or 127.0.0.1, because Harbor needs to be accessed by external clients.
hostname: 192.168.200.132
# http related config
http:
# port for http, default is 80. If https enabled, this port will redirect to https port
port: 80
# https related config
https:
# https port for harbor, default is 443
port: 443
# The path of cert and key files for nginx
certificate: /root/cert/192.168.200.132.crt
private_key: /root/cert/192.168.200.132.key
# # Uncomment following will enable tls communication between all harbor components
# internal_tls:
# # set enabled to true means internal tls is enabled
# enabled: true
# # put your cert and key files on dir
# dir: /etc/harbor/tls/internal
# Uncomment external_url if you want to enable external proxy
# And when it enabled the hostname will no longer used
# external_url: https://reg.mydomain.com:8433
# The initial password of Harbor admin
# It only works in first time to install harbor
# Remember Change the admin password from UI after launching Harbor.
harbor_admin_password: Harbor12345
# Harbor DB configuration
database:
# The password for the root user of Harbor DB. Change this before any production use
password: root123
# The maximum number of connections in the idle connection pool. If it <=0, no idle
max_idle_conns: 50
# The maximum number of open connections to the database. If it <= 0, then there is
# Note: the default number of connections is 1024 for postgres of harbor.
max_open_conns: 1000
# The default data volume
data_volume: /data
# Harbor Storage settings by default is using /data dir on local filesystem
# Uncomment storage_service setting If you want to using external storage
# storage_service:
# # ca_bundle is the path to the custom root ca certificate, which will be injected
# # of registry's and chart repository's containers. This is usually needed when th
# ca_bundle:
# # storage backend, default is filesystem, options include filesystem, azure, gcs,
# # for more info about this configuration please refer https://docs.docker.com/regi
# filesystem:
# maxthreads: 100
# # set disable to true when you want to disable registry redirect
# redirect:
# disabled: false
# Clair configuration
clair:
# The interval of clair updaters, the unit is hour, set to 0 to disable the updaters
updaters_interval: 12
# Trivy configuration
#
# Trivy DB contains vulnerability information from NVD, Red Hat, and many other upstre
# It is downloaded by Trivy from the GitHub release page https://github.com/aquasecuri
# in the local file system. In addition, the database contains the update timestamp so
# should download a newer version from the Internet or use the cached one. Currently,
# 12 hours and published as a new release to GitHub.
trivy:
# ignoreUnfixed The flag to display only fixed vulnerabilities
ignore_unfixed: false
# skipUpdate The flag to enable or disable Trivy DB downloads from GitHub
#
# You might want to enable this flag in test or CI/CD environments to avoid GitHub r
# If the flag is enabled you have to download the `trivy-offline.tar.gz` archive man
# `metadata.json` files and mount them in the `/home/scanner/.cache/trivy/db` path.
skip_update: false
#
# insecure The flag to skip verifying registry certificate
insecure: false
# github_token The GitHub access token to download Trivy DB
#
# Anonymous downloads from GitHub are subject to the limit of 60 requests per hour.
# for production operations. If, for any reason, it's not enough, you could increase
# requests per hour by specifying the GitHub access token. For more details on GitHu
# https://developer.github.com/v3/#rate-limiting
#
# You can create a GitHub token by following the instructions in
# https://help.github.com/en/github/authenticating-to-github/creating-a-personal-acc
#
# github_token: xxx
jobservice:
# Maximum number of job workers in job service
max_job_workers: 10
notification:
# Maximum retry count for webhook job
webhook_job_max_retry: 10
chart:
# Change the value of absolute_url to enabled can enable absolute url in chart
absolute_url: disabled
# Log configurations
log:
# options are debug, info, warning, error, fatal
level: info
# configs for logs in local storage
local:
# Log files are rotated log_rotate_count times before being removed. If count is 0
rotate_count: 50
# Log files are rotated only if they grow bigger than log_rotate_size bytes. If si
# If the M is used, the size is in megabytes, and if G is used, the size is in gig
# are all valid.
rotate_size: 200M
# The directory on your host that store log
location: /var/log/harbor
# Uncomment following lines to enable external syslog endpoint.
# external_endpoint:
# # protocol used to transmit log to external endpoint, options is tcp or udp
# protocol: tcp
# # The host of external endpoint
# host: localhost
# # Port of external endpoint
# port: 5140
#This attribute is for migrator to detect the version of the .cfg file, DO NOT MODIFY!
_version: 2.0.0
# Uncomment external_database if using external database.
# external_database:
# harbor:
# host: harbor_db_host
# port: harbor_db_port
# db_name: harbor_db_name
# username: harbor_db_username
# password: harbor_db_password
# ssl_mode: disable
# max_idle_conns: 2
# max_open_conns: 0
# clair:
# host: clair_db_host
# port: clair_db_port
# db_name: clair_db_name
# username: clair_db_username
# password: clair_db_password
# ssl_mode: disable
# notary_signer:
# host: notary_signer_db_host
# port: notary_signer_db_port
# db_name: notary_signer_db_name
# username: notary_signer_db_username
# password: notary_signer_db_password
# ssl_mode: disable
# notary_server:
# host: notary_server_db_host
# port: notary_server_db_port
# db_name: notary_server_db_name
# username: notary_server_db_username
# password: notary_server_db_password
# ssl_mode: disable
# Uncomment external_redis if using external Redis server
# external_redis:
# # support redis, redis+sentinel
# # host for redis: <host_redis>:<port_redis>
# # host for redis+sentinel:
# # <host_sentinel1>:<port_sentinel1>,<host_sentinel2>:<port_sentinel2>,<host_senti
# host: redis:6379
# password:
# # sentinel_master_set must be set to support redis+sentinel
# #sentinel_master_set:
# # db_index 0 is for core, it's unchangeable
# registry_db_index: 1
# jobservice_db_index: 2
# chartmuseum_db_index: 3
# clair_db_index: 4
# trivy_db_index: 5
# idle_timeout_seconds: 30
# Uncomment uaa for trusting the certificate of uaa instance that is hosted via self-s
# uaa:
# ca_file: /path/to/ca
# Global proxy
# Config http proxy for components, e.g. http://my.proxy.com:3128
# Components doesn't need to connect to each others via http proxy.
# Remove component from `components` array if want disable proxy
# for it. If you want use proxy for replication, MUST enable proxy
# for core and jobservice, and set `http_proxy` and `https_proxy`.
# Add domain to the `no_proxy` field, when you want disable proxy
# for some special registry.
proxy:
http_proxy:
https_proxy:
no_proxy:
components:
- core
- jobservice
- clair
- trivy
#修改完配置文件，进程安装操作
[root@localhost harbor]# ./install.sh
[Step 0]: checking if docker is installed ...
Note: docker version: 19.03.13
[Step 1]: checking docker-compose is installed ...
/usr/lib/python2.7/site-packages/paramiko/transport.py:33: CryptographyDeprecationWarning: Python 2 is no longer supported by the Python core team. Support for it is now deprecated in cryptography, and will be removed in a future release.
from cryptography.hazmat.backends import default_backend
Note: docker-compose version: 1.26.2
[Step 2]: loading Harbor images ...
81af4c478a3f: Loading layer [==================================================>] 34.5MB/34.5MB
4fa475ef4cbd: Loading layer [==================================================>] 63.62MB/63.62MB
5eff830f23a7: Loading layer [==================================================>] 73.67MB/73.67MB
bff112a0a7df: Loading layer [==================================================>] 6.144kB/6.144kB
92d0354f8258: Loading layer [==================================================>] 2.56kB/2.56kB
5b672e0d5a7c: Loading layer [==================================================>] 2.56kB/2.56kB
0012b787c903: Loading layer [==================================================>] 2.56kB/2.56kB
c1d893c2c205: Loading layer [==================================================>] 2.56kB/2.56kB
63018bb28a47: Loading layer [==================================================>] 11.26kB/11.26kB
Loaded image: goharbor/harbor-db:v2.1.1
117a4b9c585f: Loading layer [==================================================>] 39.48MB/39.48MB
0b4acae09a15: Loading layer [==================================================>] 3.072kB/3.072kB
846d3bae53bd: Loading layer [==================================================>] 59.9kB/59.9kB
2c0ec6969a29: Loading layer [==================================================>] 61.95kB/61.95kB
Loaded image: goharbor/redis-photon:v2.1.1
7800c77b21f0: Loading layer [==================================================>] 8.46MB/8.46MB
ed90abbc3df2: Loading layer [==================================================>] 6.343MB/6.343MB
14d785d5e998: Loading layer [==================================================>] 14.43MB/14.43MB
1a60f4ccd1a7: Loading layer [==================================================>] 27.97MB/27.97MB
b198161fb35d: Loading layer [==================================================>] 22.02kB/22.02kB
7e4ed0ddff6a: Loading layer [==================================================>] 14.43MB/14.43MB
Loaded image: goharbor/notary-signer-photon:v2.1.1
48234182d466: Loading layer [==================================================>] 115.3MB/115.3MB
1a825d191bba: Loading layer [==================================================>] 12.59MB/12.59MB
582bbbec2032: Loading layer [==================================================>] 3.072kB/3.072kB
45afe505e59a: Loading layer [==================================================>] 49.15kB/49.15kB
f54e5a3cce60: Loading layer [==================================================>] 4.096kB/4.096kB
906e1b7ebbf0: Loading layer [==================================================>] 13.46MB/13.46MB
Loaded image: goharbor/clair-photon:v2.1.1
7c78c5b4e41d: Loading layer [==================================================>] 8.466MB/8.466MB
9706fb42af39: Loading layer [==================================================>] 4.096kB/4.096kB
412158a07706: Loading layer [==================================================>] 3.072kB/3.072kB
5a4149254af8: Loading layer [==================================================>] 9.427MB/9.427MB
ac618bd3efa5: Loading layer [==================================================>] 10.25MB/10.25MB
Loaded image: goharbor/clair-adapter-photon:v2.1.1
7621e4411b71: Loading layer [==================================================>] 12.24MB/12.24MB
88ebbde19b9a: Loading layer [==================================================>] 3.584kB/3.584kB
dd7f5fa0c20b: Loading layer [==================================================>] 2.56kB/2.56kB
61de20d88ce0: Loading layer [==================================================>] 53.05MB/53.05MB
7d03bb69f5c1: Loading layer [==================================================>] 5.632kB/5.632kB
99b674e86288: Loading layer [==================================================>] 60.42kB/60.42kB
421951bf6edd: Loading layer [==================================================>] 11.78kB/11.78kB
f0ce9f0cf59d: Loading layer [==================================================>] 53.87MB/53.87MB
adb52dc1f963: Loading layer [==================================================>] 2.56kB/2.56kB
Loaded image: goharbor/harbor-core:v2.1.1
9b74f5ada1af: Loading layer [==================================================>] 10.31MB/10.31MB
e48bb7f757c7: Loading layer [==================================================>] 8.986MB/8.986MB
9b9758ae081f: Loading layer [==================================================>] 173.6kB/173.6kB
072402c85f81: Loading layer [==================================================>] 152.6kB/152.6kB
6900a5d9558b: Loading layer [==================================================>] 67.07kB/67.07kB
4a5c5d9b23fc: Loading layer [==================================================>] 17.41kB/17.41kB
08c7bfa040bb: Loading layer [==================================================>] 15.36kB/15.36kB
Loaded image: goharbor/harbor-portal:v2.1.1
3f036012790d: Loading layer [==================================================>] 74.74MB/74.74MB
6486b9b0bea4: Loading layer [==================================================>] 3.584kB/3.584kB
fcb4207cbe8b: Loading layer [==================================================>] 3.072kB/3.072kB
f80a573a5b31: Loading layer [==================================================>] 2.56kB/2.56kB
7297e3f9a0b8: Loading layer [==================================================>] 3.072kB/3.072kB
ec743a12422d: Loading layer [==================================================>] 3.584kB/3.584kB
06af0f6c6c0a: Loading layer [==================================================>] 12.29kB/12.29kB
3a03e3162ccb: Loading layer [==================================================>] 3.584kB/3.584kB
Loaded image: goharbor/harbor-log:v2.1.1
9b886c2b88ee: Loading layer [==================================================>] 10.31MB/10.31MB
Loaded image: goharbor/nginx-photon:v2.1.1
9557ca1fbfe7: Loading layer [==================================================>] 77.33MB/77.33MB
6fd533f8ba56: Loading layer [==================================================>] 49.89MB/49.89MB
2eb9181e5c98: Loading layer [==================================================>] 2.56kB/2.56kB
516fbf6480ef: Loading layer [==================================================>] 1.536kB/1.536kB
67687e526277: Loading layer [==================================================>] 18.43kB/18.43kB
cf31cddf7676: Loading layer [==================================================>] 4.043MB/4.043MB
4630eb98dd7a: Loading layer [==================================================>] 266.2kB/266.2kB
Loaded image: goharbor/prepare:v2.1.1
a319c7fa9a57: Loading layer [==================================================>] 8.466MB/8.466MB
866240ea7853: Loading layer [==================================================>] 4.096kB/4.096kB
0e57611ac97f: Loading layer [==================================================>] 20.51MB/20.51MB
64b6488d8b42: Loading layer [==================================================>] 3.072kB/3.072kB
e3aa629f0e54: Loading layer [==================================================>] 25.91MB/25.91MB
e1a654cccad5: Loading layer [==================================================>] 47.24MB/47.24MB
Loaded image: goharbor/harbor-registryctl:v2.1.1
aeb529371336: Loading layer [==================================================>] 15.84MB/15.84MB
3825bcdb8937: Loading layer [==================================================>] 27.97MB/27.97MB
d35ad2e83013: Loading layer [==================================================>] 22.02kB/22.02kB
4cae6ab55745: Loading layer [==================================================>] 15.84MB/15.84MB
Loaded image: goharbor/notary-server-photon:v2.1.1
03c1cfd538b9: Loading layer [==================================================>] 9.762MB/9.762MB
bb229ed4a902: Loading layer [==================================================>] 4.096kB/4.096kB
53080b277f56: Loading layer [==================================================>] 3.072kB/3.072kB
8d0c44eee93d: Loading layer [==================================================>] 23.51MB/23.51MB
6a867e399ba9: Loading layer [==================================================>] 9.432MB/9.432MB
885cf5f9a697: Loading layer [==================================================>] 33.76MB/33.76MB
Loaded image: goharbor/trivy-adapter-photon:v2.1.1
ab97c837dabc: Loading layer [==================================================>] 12.24MB/12.24MB
2b9ed339f3e9: Loading layer [==================================================>] 3.584kB/3.584kB
136a56bdcff8: Loading layer [==================================================>] 2.56kB/2.56kB
9b73d85a3395: Loading layer [==================================================>] 62.26MB/62.26MB
97eeb1c8ba34: Loading layer [==================================================>] 63.09MB/63.09MB
Loaded image: goharbor/harbor-jobservice:v2.1.1
5ad257a201da: Loading layer [==================================================>] 8.465MB/8.465MB
8d38823b6ed8: Loading layer [==================================================>] 66.44MB/66.44MB
e177bb58e2da: Loading layer [==================================================>] 3.072kB/3.072kB
0f55ea3be23d: Loading layer [==================================================>] 4.096kB/4.096kB
2c47702c1637: Loading layer [==================================================>] 67.27MB/67.27MB
Loaded image: goharbor/chartmuseum-photon:v2.1.1
ee934b038aca: Loading layer [==================================================>] 8.466MB/8.466MB
21b5c3fb5cc2: Loading layer [==================================================>] 4.096kB/4.096kB
fb579280336a: Loading layer [==================================================>] 3.072kB/3.072kB
e5a1aa8a3f60: Loading layer [==================================================>] 20.51MB/20.51MB
37db791e93fd: Loading layer [==================================================>] 21.33MB/21.33MB
Loaded image: goharbor/registry-photon:v2.1.1
[Step 3]: preparing environment ...
[Step 4]: preparing harbor configs ...
prepare base dir is set to /opt/harbor
Generated configuration file: /config/portal/nginx.conf
Generated configuration file: /config/log/logrotate.conf
Generated configuration file: /config/log/rsyslog_docker.conf
Generated configuration file: /config/nginx/nginx.conf
Generated configuration file: /config/core/env
Generated configuration file: /config/core/app.conf
Generated configuration file: /config/registry/config.yml
Generated configuration file: /config/registryctl/env
Generated configuration file: /config/registryctl/config.yml
Generated configuration file: /config/db/env
Generated configuration file: /config/jobservice/env
Generated configuration file: /config/jobservice/config.yml
Generated and saved secret to file: /data/secret/keys/secretkey
Successfully called func: create_root_cert
Generated configuration file: /compose_location/docker-compose.yml
Clean up the input dir
/usr/lib/python2.7/site-packages/paramiko/transport.py:33: CryptographyDeprecationWarning: Python 2 is no longer supported by the Python core team. Support for it is now deprecated in cryptography, and will be removed in a future release.
from cryptography.hazmat.backends import default_backend
[Step 5]: starting Harbor ...
/usr/lib/python2.7/site-packages/paramiko/transport.py:33: CryptographyDeprecationWarning: Python 2 is no longer supported by the Python core team. Support for it is now deprecated in cryptography, and will be removed in a future release.
from cryptography.hazmat.backends import default_backend
Creating network "harbor_harbor" with the default driver
Creating harbor-log ... done
Creating registry ... done
Creating registryctl ... done
Creating harbor-db ... done
Creating redis ... done
Creating harbor-portal ... done
Creating harbor-core ... done
Creating nginx ... done
Creating harbor-jobservice ... done
✔ ----Harbor has been installed and started successfully.----
[root@localhost harbor]#
#启动停止
[root@localhost harbor]# cd /opt/harbor
[root@localhost harbor]# docker-compose down
/usr/lib/python2.7/site-packages/paramiko/transport.py:33: CryptographyDeprecationWarning: Python 2 is no longer supported by the Python core team. Support for it is now deprecated in cryptography, and will be removed in a future release.
from cryptography.hazmat.backends import default_backend
Stopping nginx ... done
Stopping harbor-jobservice ... done
Stopping harbor-core ... done
Stopping redis ... done
Stopping harbor-portal ... done
Stopping registryctl ... done
Stopping harbor-db ... done
Stopping registry ... done
Stopping harbor-log ... done
Removing nginx ... done
Removing harbor-jobservice ... done
Removing harbor-core ... done
Removing redis ... done
Removing harbor-portal ... done
Removing registryctl ... done
Removing harbor-db ... done
Removing registry ... done
Removing harbor-log ... done
Removing network harbor_harbor
[root@localhost harbor]# docker-compose up -d
浏览器访问
修改docker配置文件
vim /etc/docker/daemon.json
{
"registry-mirrors": ["https://registry.docker-cn.com","http://hub-mirror.c.163.com"],
"insecure-registries": ["harbor.example.com"]
}
推送镜像
docker harbor.example.com
docker tag busybox:latest harbor.example.com/test/busybox:latest
docker push harbor.example.com/test/busybox:latest
扫一扫
1298
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
