话不多说先来效果
效果展示

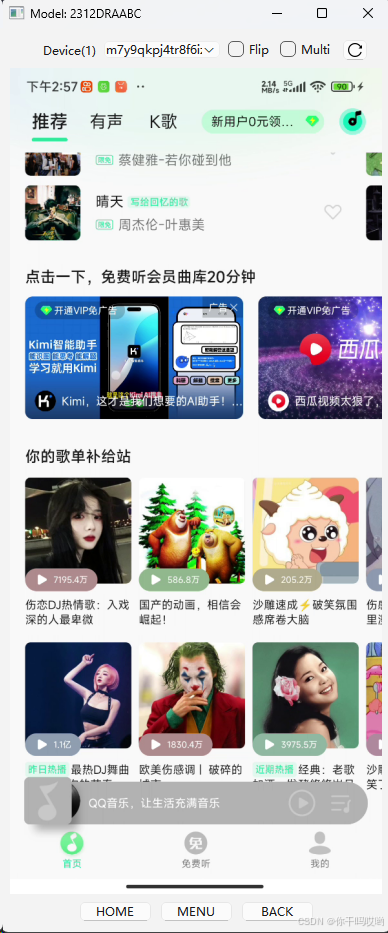

1、Pyside6 展示QT端视频流

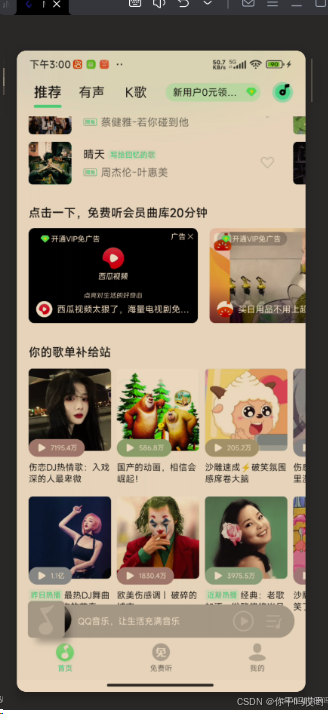

2、Android 木木模拟器 拉流端展示（将裸流封装到rtmp包体、推流到OSSRS 服务器，Android webrtc 拉流展示）
注意：网页端拉流对tms 没严格要求，移动端拉流对tms有严格要求，不然视频流会变成幻灯片
具体实现
以Scrcpy 2.4 版本为例

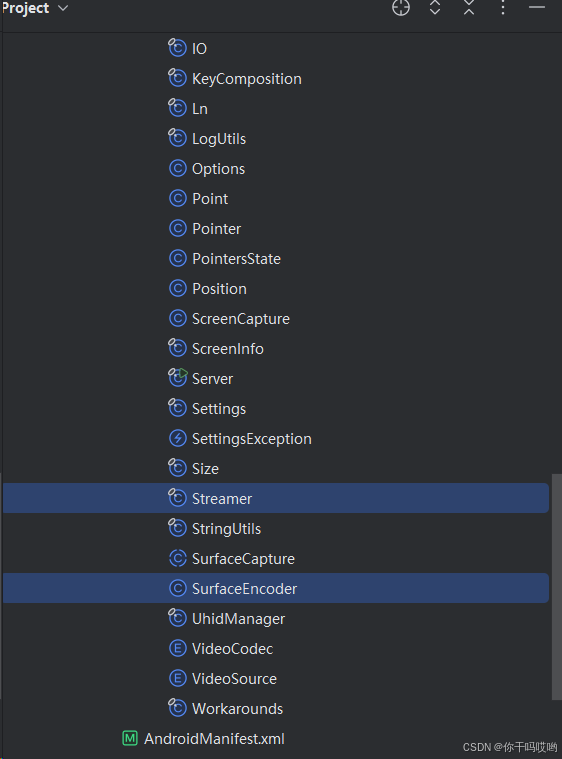

主要修改这两个文件
首先我们修改Streamer.java 文件里边的socket 传输实现
public final class Streamer {
private static final long PACKET_FLAG_CONFIG = 1L << 63;
private static final long PACKET_FLAG_KEY_FRAME = 1L << 62;
private final FileDescriptor fd;
private final Codec codec;
private final boolean sendCodecMeta;
private final boolean sendFrameMeta;
private final ByteBuffer headerBuffer = ByteBuffer.allocate(16);
public Streamer(FileDescriptor fd, Codec codec, boolean sendCodecMeta, boolean sendFrameMeta) {
this.fd = fd;
this.codec = codec;
this.sendCodecMeta = sendCodecMeta;
this.sendFrameMeta = sendFrameMeta;
}
public Codec getCodec() {
return codec;
}
public void writeAudioHeader() throws IOException {
if (sendCodecMeta) {
ByteBuffer buffer = ByteBuffer.allocate(4);
buffer.putInt(codec.getId());
buffer.flip();
IO.writeFully(fd, buffer);
}
}
public void writeVideoHeader(Size videoSize) throws IOException {
if (sendCodecMeta) {
ByteBuffer buffer = ByteBuffer.allocate(12);
buffer.putInt(codec.getId());
buffer.putInt(videoSize.getWidth());
buffer.putInt(videoSize.getHeight());
buffer.flip();
IO.writeFully(fd, buffer);
}
}
public void writeDisableStream(boolean error) throws IOException {
// Writing a specific code as codec-id means that the device disables the stream
// code 0: it explicitly disables the stream (because it could not capture audio), scrcpy should continue mirroring video only
// code 1: a configuration error occurred, scrcpy must be stopped
byte[] code = new byte[4];
if (error) {
code[3] = 1;
}
IO.writeFully(fd, code, 0, code.length);
}
public void writePacket(ByteBuffer buffer, long pts, boolean config, boolean keyFrame) throws IOException {
if (config) {
if (codec == AudioCodec.OPUS) {
fixOpusConfigPacket(buffer);
}
else if (codec == AudioCodec.FLAC) {
fixFlacConfigPacket(buffer);
}
}
if (sendFrameMeta) {
writeFrameMeta(fd, buffer.remaining(), pts, config, keyFrame);
}
IO.writeFully(fd, buffer);
}
//==================================================================custom started =================================================
//custom added
public void writePacket(ByteBuffer buffer,long tms) throws IOException {
if (sendFrameMeta) {
writeFrameMeta(fd, buffer.remaining(), tms);
}
IO.writeFully(fd, buffer);
}
//custom added
private void writeFrameMeta(FileDescriptor fd, int packetSize,long tms) throws IOException {
headerBuffer.clear();
headerBuffer.putLong(tms);
//custom added started,for remarking the screen rotation
int rotation = ServiceManager.getWindowManager().getRotation();
headerBuffer.putInt(rotation);
//custom added ended
headerBuffer.putInt(packetSize);
headerBuffer.flip();
IO.writeFully(fd, headerBuffer);
}
//==================================================================custom ended =================================================
public void writePacket(ByteBuffer codecBuffer, MediaCodec.BufferInfo bufferInfo) throws IOException {
long pts = bufferInfo.presentationTimeUs;
boolean config = (bufferInfo.flags & MediaCodec.BUFFER_FLAG_CODEC_CONFIG) != 0;
boolean keyFrame = (bufferInfo.flags & MediaCodec.BUFFER_FLAG_KEY_FRAME) != 0;
writePacket(codecBuffer, pts, config, keyFrame);
}
private void writeFrameMeta(FileDescriptor fd, int packetSize, long pts, boolean config, boolean keyFrame) throws IOException {
headerBuffer.clear();
long ptsAndFlags;
if (config) {
ptsAndFlags = PACKET_FLAG_CONFIG; // non-media data packet
} else {
ptsAndFlags = pts;
if (keyFrame) {
ptsAndFlags |= PACKET_FLAG_KEY_FRAME;
}
}
headerBuffer.putLong(ptsAndFlags);
//custom added started,for remarking the screen rotation
int rotation = ServiceManager.getWindowManager().getRotation();
headerBuffer.putInt(rotation);
//custom added ended
headerBuffer.putInt(packetSize);
headerBuffer.flip();
IO.writeFully(fd, headerBuffer);
}
private static void fixOpusConfigPacket(ByteBuffer buffer) throws IOException {
// Here is an example of the config packet received for an OPUS stream:
//
// 00000000 41 4f 50 55 53 48 44 52 13 00 00 00 00 00 00 00 |AOPUSHDR........|
// -------------- BELOW IS THE PART WE MUST PUT AS EXTRADATA -------------------
// 00000010 4f 70 75 73 48 65 61 64 01 01 38 01 80 bb 00 00 |OpusHead..8.....|
// 00000020 00 00 00 |... |
// ------------------------------------------------------------------------------
// 00000020 41 4f 50 55 53 44 4c 59 08 00 00 00 00 | AOPUSDLY.....|
// 00000030 00 00 00 a0 2e 63 00 00 00 00 00 41 4f 50 55 53 |.....c.....AOPUS|
// 00000040 50 52 4c 08 00 00 00 00 00 00 00 00 b4 c4 04 00 |PRL.............|
// 00000050 00 00 00 |...|
//
// Each "section" is prefixed by a 64-bit ID and a 64-bit length.
//
// <https://developer.android.com/reference/android/media/MediaCodec#CSD>
if (buffer.remaining() < 16) {
throw new IOException("Not enough data in OPUS config packet");
}
final byte[] opusHeaderId = {'A', 'O', 'P', 'U', 'S', 'H', 'D', 'R'};
byte[] idBuffer = new byte[8];
buffer.get(idBuffer);
if (!Arrays.equals(idBuffer, opusHeaderId)) {
throw new IOException("OPUS header not found");
}
// The size is in native byte-order
long sizeLong = buffer.getLong();
if (sizeLong < 0 || sizeLong >= 0x7FFFFFFF) {
throw new IOException("Invalid block size in OPUS header: " + sizeLong);
}
int size = (int) sizeLong;
if (buffer.remaining() < size) {
throw new IOException("Not enough data in OPUS header (invalid size: " + size + ")");
}
// Set the buffer to point to the OPUS header slice
buffer.limit(buffer.position() + size);
}
private static void fixFlacConfigPacket(ByteBuffer buffer) throws IOException {
// 00000000 66 4c 61 43 00 00 00 22 |fLaC..." |
// -------------- BELOW IS THE PART WE MUST PUT AS EXTRADATA -------------------
// 00000000 10 00 10 00 00 00 00 00 | ........|
// 00000010 00 00 0b b8 02 f0 00 00 00 00 00 00 00 00 00 00 |................|
// 00000020 00 00 00 00 00 00 00 00 00 00 |.......... |
// ------------------------------------------------------------------------------
// 00000020 84 00 00 28 20 00 | ...( .|
// 00000030 00 00 72 65 66 65 72 65 6e 63 65 20 6c 69 62 46 |..reference libF|
// 00000040 4c 41 43 20 31 2e 33 2e 32 20 32 30 32 32 31 30 |LAC 1.3.2 202210|
// 00000050 32 32 00 00 00 00 |22....|
//
// <https://developer.android.com/reference/android/media/MediaCodec#CSD>
if (buffer.remaining() < 8) {
throw new IOException("Not enough data in FLAC config packet");
}
final byte[] flacHeaderId = {'f', 'L', 'a', 'C'};
byte[] idBuffer = new byte[4];
buffer.get(idBuffer);
if (!Arrays.equals(idBuffer, flacHeaderId)) {
throw new IOException("FLAC header not found");
}
// The size is in big-endian
buffer.order(ByteOrder.BIG_ENDIAN);
int size = buffer.getInt();
if (buffer.remaining() < size) {
throw new IOException("Not enough data in FLAC header (invalid size: " + size + ")");
}
// Set the buffer to point to the FLAC header slice
buffer.limit(buffer.position() + size);
}
}private final ByteBuffer headerBuffer = ByteBuffer.allocate(16); 是消息头，放置socket 传输拆包和粘包
然后SurfaceEncoder.java 文件修改 encode 方法如下，streamer.writePacket(codecBuffer, bufferInfo) 修改成我们在 Streamer.java 里边新增的
streamer.writePacket(codecBuffer, tms) 方法
private boolean encode(MediaCodec codec, Streamer streamer) throws IOException {
boolean eof = false;
boolean alive = true;
MediaCodec.BufferInfo bufferInfo = new MediaCodec.BufferInfo();
long ptsOrigin = 0;
long lastKeyFrameMs = System.currentTimeMillis();
long keyFrameIntervalMs = DEFAULT_I_FRAME_INTERVAL * 1000L;
while (!capture.consumeReset() && !eof) {
if (stopped.get()) {
alive = false;
break;
}
int outputBufferId = codec.dequeueOutputBuffer(bufferInfo, 2000_000);
try {
if (capture.consumeReset()) {
// must restart encoding with new size
break;
}
eof = (bufferInfo.flags & MediaCodec.BUFFER_FLAG_END_OF_STREAM) != 0;
if (outputBufferId >= 0) {
ByteBuffer codecBuffer = codec.getOutputBuffer(outputBufferId);
if(ptsOrigin == 0){
//设置下一帧为关键帧
setKeyFrame(codec,"first_frame");
ptsOrigin = bufferInfo.presentationTimeUs;
}
boolean isConfig = (bufferInfo.flags & MediaCodec.BUFFER_FLAG_CODEC_CONFIG) != 0;
if (!isConfig) {
// If this is not a config packet, then it contains a frame
firstFrameSent = true;
consecutiveErrors = 0;
}
long ctMs = System.currentTimeMillis();
boolean isKeyFrame = (bufferInfo.flags & MediaCodec.BUFFER_FLAG_KEY_FRAME) != 0;
if(isKeyFrame){
lastKeyFrameMs = ctMs;
}
long tms = (bufferInfo.presentationTimeUs / 1000) - ptsOrigin/1000;
// streamer.writePacket(codecBuffer, bufferInfo);
streamer.writePacket(codecBuffer, tms); //将tms 传递到agent
if((ctMs - lastKeyFrameMs) > keyFrameIntervalMs){
setKeyFrame(codec,"exceed max key frame interval:" + keyFrameIntervalMs);
}
}else{
setKeyFrame(codec,"outputBufferId < 0");
}
} finally {
if (outputBufferId >= 0) {
codec.releaseOutputBuffer(outputBufferId, false);
}
}
}
if (capture.isClosed()) {
// The capture might have been closed internally (for example if the camera is disconnected)
alive = false;
}
return !eof && alive;
}python 接收端实现如下：
def __stream_receive_loop(self) -> None:
"""
Core loop for video parsing
Surface.ROTATION_0：== 0 屏幕没有旋转，即屏幕的自然方向，通常是手机的默认方向。
Surface.ROTATION_90：== 1屏幕顺时针旋转90度，适用于横向模式。
Surface.ROTATION_180：== 2屏幕旋转180度，即上下颠倒。
Surface.ROTATION_270：== 3 屏幕顺时针旋转270度，即从90度旋转的基础上再旋转180度。
"""
logger.info(f'client {self.device.serial} start to receive video stream ...')
codec = CodecContext.create("h264", "r")
while self.alive:
try:
# send_frame_meta = true 详见 scrcpy 中 Streamer.writeFrameMeta
pts_and_flags_bytes = self._recv_fully(8, 8)
pts_and_flags = struct.unpack('>q', pts_and_flags_bytes)[0]
rotation_bytes = self._recv_fully(4, 4)
rotation = struct.unpack('>i', rotation_bytes)[0]
pkg_size_bytes = self._recv_fully(4, 4)
pkg_size = struct.unpack('>i', pkg_size_bytes)[0]
raw_h264 = self._recv_fully(pkg_size)
if raw_h264 == b'':
raise ConnectionError("raw_h264 is empty considered as video stream is disconnected")
if self.stream_mode != 'local':
self.h264_pkt_queue.put({
'pts': pts_and_flags,
'raw_h264': raw_h264,
'rotation': rotation
})
packets = codec.parse(raw_h264)
for packet in packets:
frames = codec.decode(packet)
for frame in frames:
frame = frame.to_ndarray(format="bgr24")
if self.flip:
frame = cv2.flip(frame, 1)
self.resolution = (frame.shape[1], frame.shape[0])
self.last_frame = frame
if self.stream_mode != 'remote':
self.__send_to_listeners(EVENT_FRAME, frame)
except (BlockingIOError, InvalidDataError):
logger.error(f" BlockingIOError client = {self.device.serial}")
time.sleep(0.01)
if not self.block_frame:
self.__send_to_listeners(EVENT_FRAME, None)
except (ConnectionError, OSError, socket.timeout, struct.error) as e: # Socket Closed
logger.error(f" ConnectionError client = {self.device.serial} cause {e}")
if self.alive:
self.__send_to_listeners(EVENT_DISCONNECT)
self.restart()
def _recv_fully(self, total_bytes, buffer_size=1024):
data = b''
while len(data) < total_bytes:
chunk = self.__video_socket.recv(min(buffer_size, total_bytes - len(data)))
if not chunk:
raise ConnectionError("Socket connection broken.")
data += chunk
return data
我这边是用PySide6 展示的画面，当然您也可以用rtmpdump 编译成dll 将 h264包体传输到推拉流服务器，这里推荐OSSRS
QT裸流转图片实现：
# 线程安全的队列
image_frame_queue = queue.Queue()
last_frame = None
# 消费者线程，从队列中读取数据
def start_receiving_h264_frame(self):
while self.alive:
data = None
try:
data = self.image_frame_queue.get(timeout=0.01) # 尝试从队列中取出数据
except _queue.Empty:
pass
if data is None and self.last_frame is not None:
data = self.last_frame
if data is not None:
self.show_image(data)
def show_image(self, frame):
app.processEvents()
if frame is not None and frame.size > 0 and self.main_control.resolution:
self.last_frame = frame
max_size = max(self.main_control.resolution)
if max_size > 0:
ratio = self.qt_window_size / max_size
image = QImage(
self.last_frame,
self.last_frame.shape[1],
self.last_frame.shape[0],
self.last_frame.shape[1] * 3,
QImage.Format_BGR888,
)
pix = QPixmap(image)
pix.setDevicePixelRatio(1 / ratio)
self.ui.label.setPixmap(pix)
self.resize(1, 1)rtmpdump rtmp 推流实现
def __stream_push_loop(self) -> None:
"""
Core loop for video push
"""
try:
self.__start_stream()
while self.alive:
# 5s 不给srs 发数据srs 和 client 会断连
if self.h264_pkt_queue and self.rtmp_client and self.rtmp_client.is_connected:
pkt = None
try:
pkt = self.h264_pkt_queue.get(timeout=4)
except _queue.Empty:
pass
if pkt is None and self.last_h264_pkt is not None:
pkt = self.last_h264_pkt
if pkt is not None:
self.last_h264_pkt = pkt
raw_h264 = pkt['raw_h264']
pts_and_flags = pkt['pts']
rotation = pkt['rotation']
if self.last_rotation is not None and self.last_rotation != rotation:
logger.info("last_rotation ==%d new rotation == %d" % (self.last_rotation, rotation))
logger.info("device rotation changed restart rtmp stream ...")
self.h264_pkt_queue.put(pkt)
self.last_rotation = rotation
self.restart_stream()
continue
self.last_rotation = rotation
send_ok = self.rtmp_client.send_h264_frame(raw_h264, pts_and_flags)
if not send_ok:
self.h264_pkt_queue.put(pkt)
if self.h264_pkt_queue.qsize() > 5:
self.restart()
except Exception:
logger.error(f"rtmp push error = {traceback.print_exc()}")
self.restart()
远程流媒体拉流方式建议
Android ：
google-webrtc = { module = "org.webrtc:google-webrtc", version.ref = "googleWebrtc" }
gradle 依赖即可
iOS:
https://github.com/shogo4405/HaishinKit.swift
cocoapods 依赖即可
Android （Kotlin 版本）和 iOS (Swift 版本) 后续有空给大家讲解下具体实现
扫一扫
1万+
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
