otter数据同步入门教程

otter是基于数据库增量日志解析，准实时同步到本机房或异地机房的mysql/oracle数据库. 一个分布式数据库同步系统。

搭建otter请先搭建zookeeper、mysql(开启binlog)

Otter Manager

安装

管理后台需要一些基础数据表，需要先创建一个库，sql位置：

https://github.com/alibaba/otter/tree/master/manager/deployer/src/main/resources/sql

安装包地址： https://github.com/alibaba/otter/releases

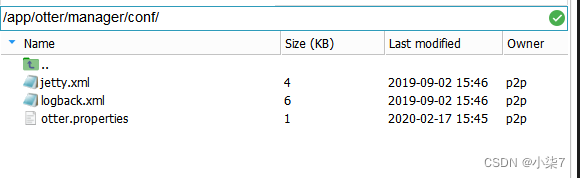

解压可见conf文件夹下otter.properties文件，修改以下配置

## otter manager domain name
otter.domainName = 172.30.60.129
## manager服务端口
otter.port = 8181
## jetty web config xml
otter.jetty = jetty.xml

## outer需要数据库配置，管理后台
otter.database.driver.class.name = com.mysql.jdbc.Driver
otter.database.driver.url = jdbc:mysql://172.30.1.74:3306/otter
otter.database.driver.username = root
otter.database.driver.password = root

## 和node节点之间的通信节点
otter.communication.manager.port = 1099

## otter communication payload size (default = 8388608)
otter.communication.payload = 8388608

## otter communication pool size
otter.communication.pool.size = 10

## default zookeeper address
otter.zookeeper.cluster.default = 172.30.60.129:2181
## default zookeeper sesstion timeout = 60s
otter.zookeeper.sessionTimeout = 60000

## otter arbitrate connect manager config
otter.manager.address = ${otter.domainName}:${otter.communication.manager.port}

## should run in product mode , true/false
otter.manager.productionMode = true

## self-monitor enable or disable
otter.manager.monitor.self.enable = true
## self-montir interval , default 120s
otter.manager.monitor.self.interval = 120
## auto-recovery paused enable or disable
otter.manager.monitor.recovery.paused = true
# manager email user config
otter.manager.monitor.email.host = smtp.gmail.com
otter.manager.monitor.email.username =
otter.manager.monitor.email.password =
otter.manager.monitor.email.stmp.port = 465

启动，配置node

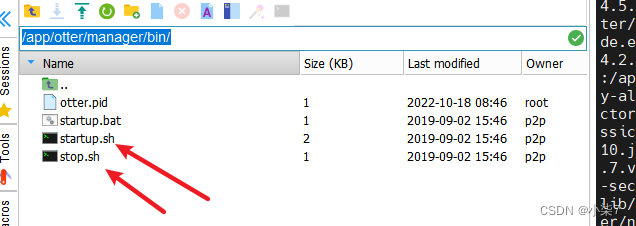

进入Otter Manager 下的bin目录执行startup.sh就可以了

然后访问http://172.30.60.129:8181/ ，ip和端口都是上面配置的。

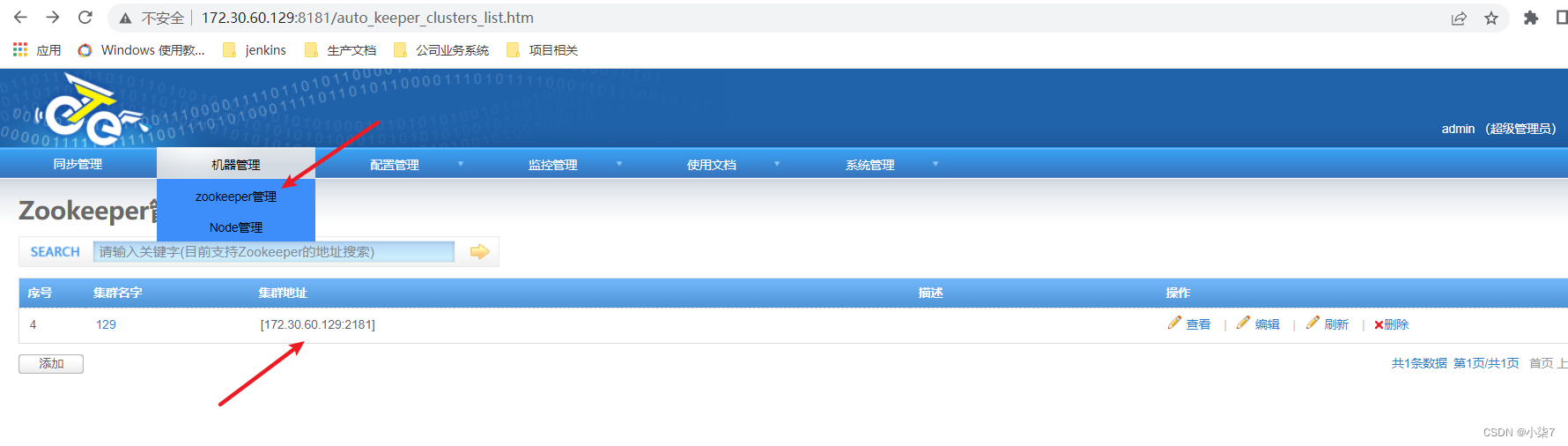

然后添加zookeeper的配置

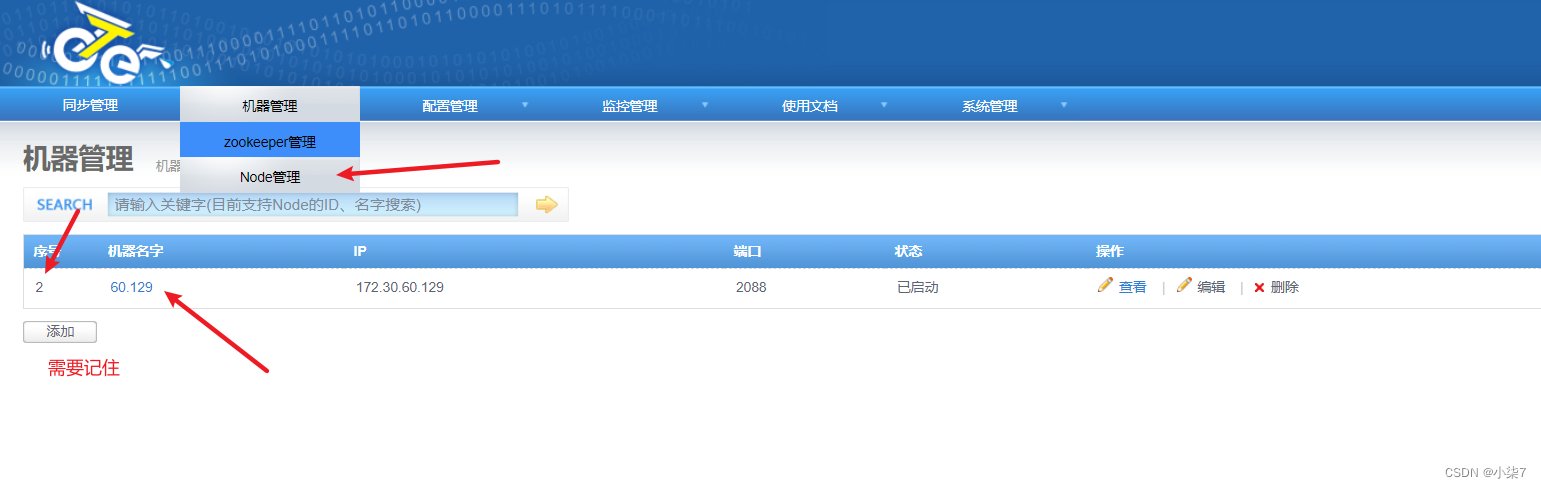

然后配置node节点的信息，端口可以自己配置，但是序号是自动生成的，需要保证唯一性，启动node的时候需要配置

node 安装启动

安装包地址 https://github.com/alibaba/otter/releases

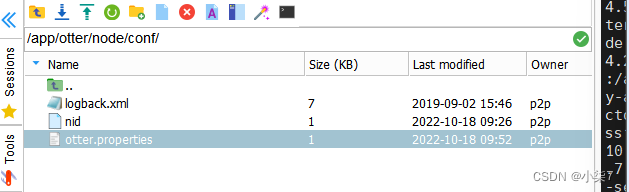

解压可见conf文件夹下otter.properties文件，修改以下配置

# otter node root dir
otter.nodeHome = ${user.dir}/../

## otter node dir
otter.htdocs.dir = ${otter.nodeHome}/htdocs
otter.download.dir = ${otter.nodeHome}/download
otter.extend.dir= ${otter.nodeHome}/extend

## default zookeeper sesstion timeout = 60s
otter.zookeeper.sessionTimeout = 60000

## otter communication payload size (default = 8388608)
otter.communication.payload = 8388608

## otter communication pool size
otter.communication.pool.size = 10

## otter arbitrate & node connect manager config  端口是outter manager配置的通讯端口
otter.manager.address = 172.30.60.129:1099

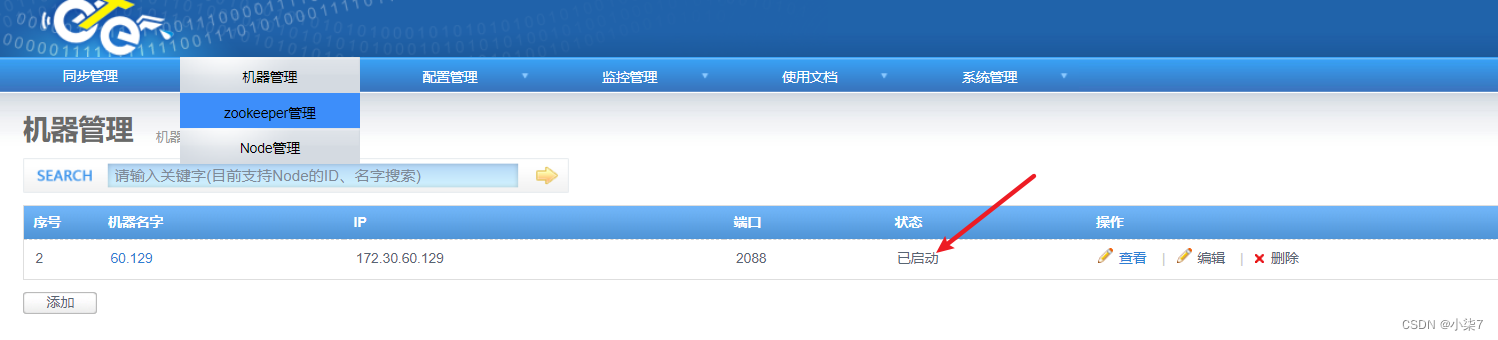

然后进入bin目录下直接启动，启动成功后，查看manager可以看到启动状态

配置数据同步

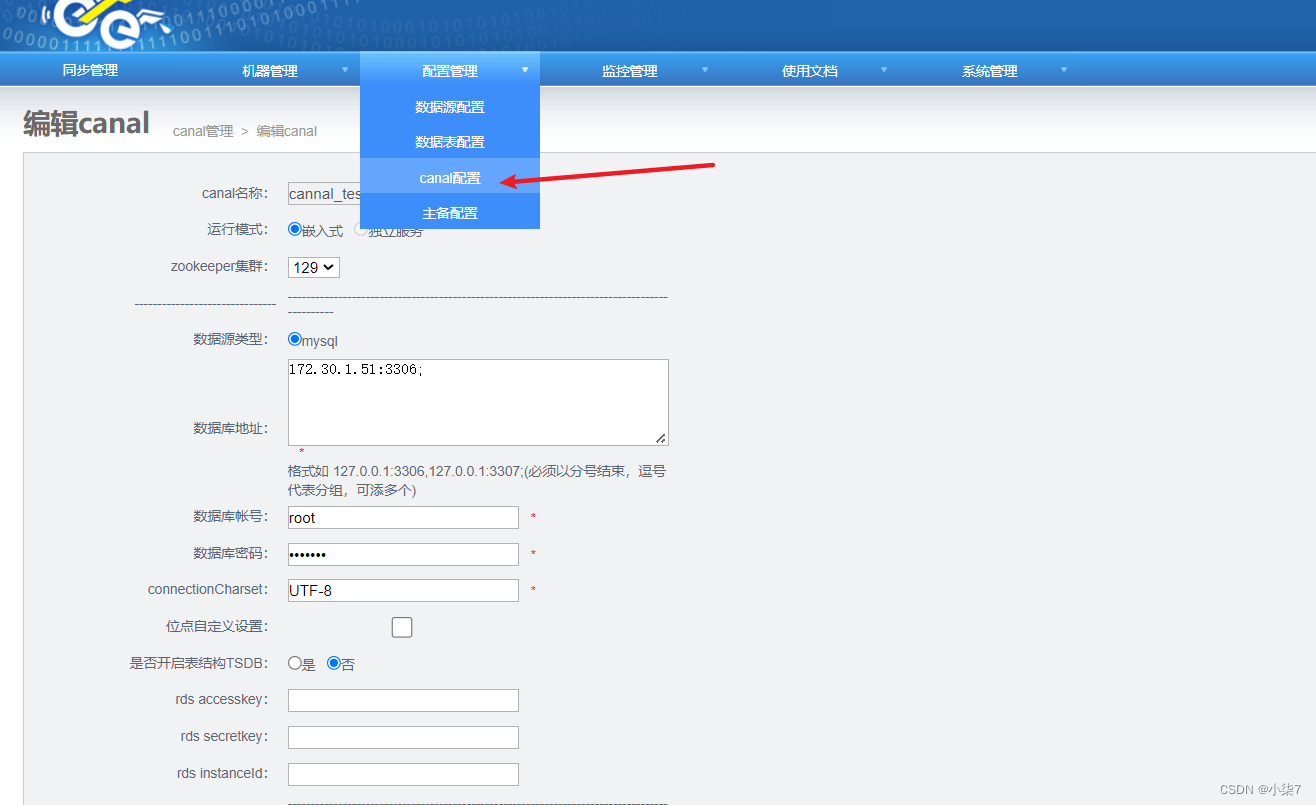

1. 配置需要同步的cancal配置

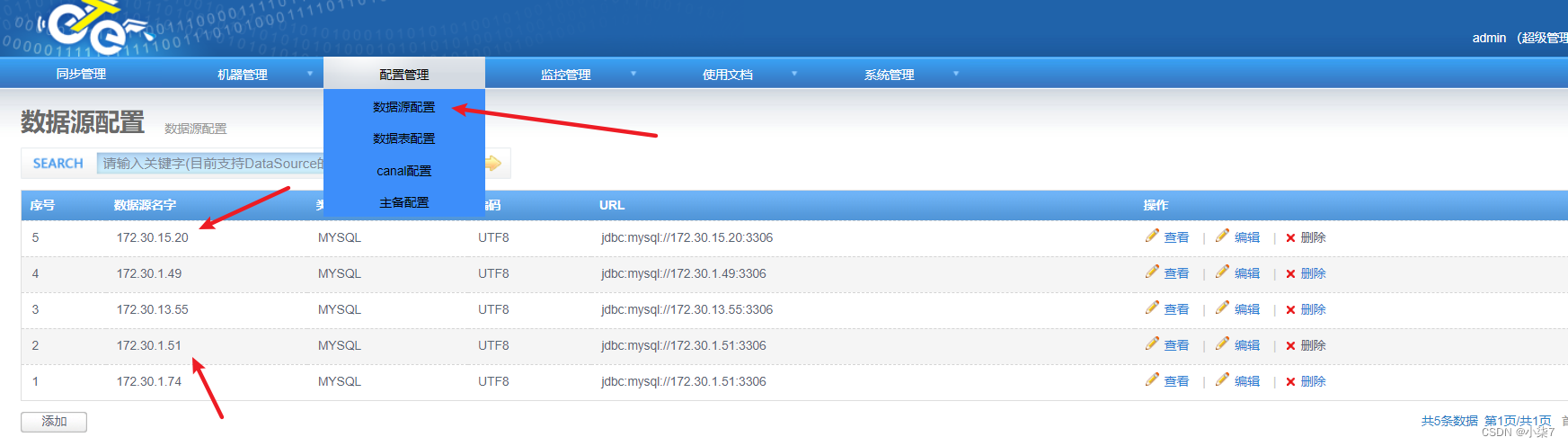

2. 配置需要的数据源

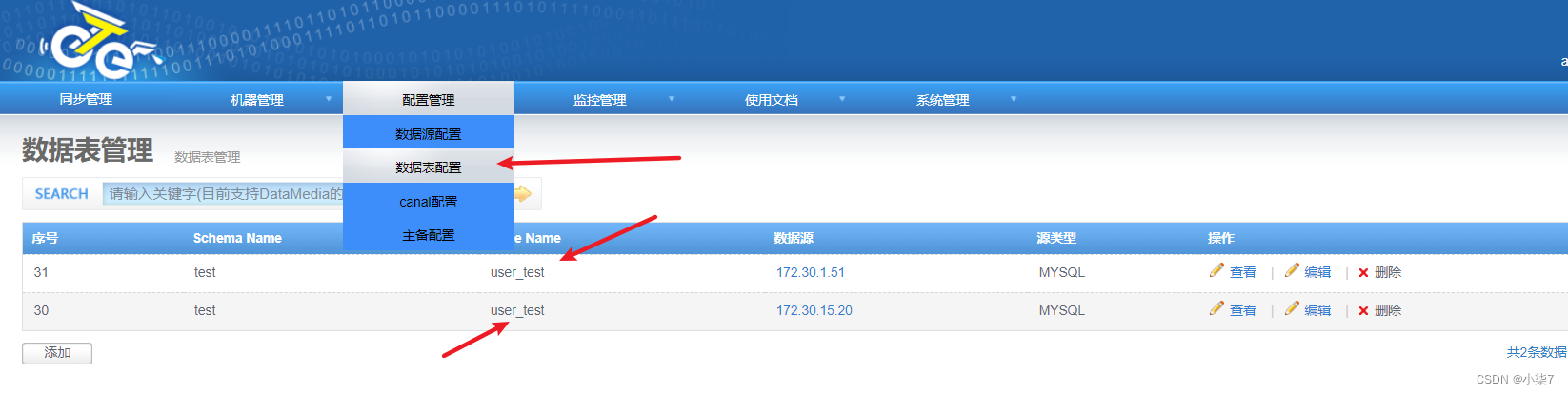

3. 配置数据表，配置的时候，最好验证一下库和数据表有没有访问权限

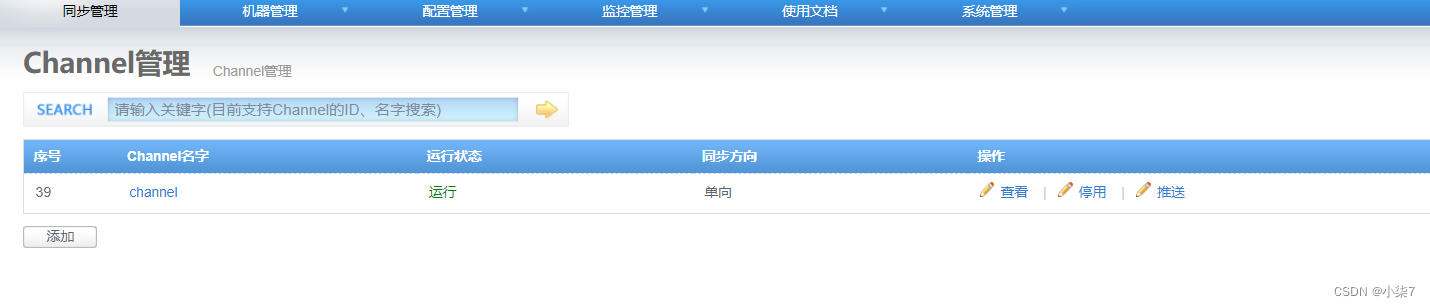

4. 添加一个channel

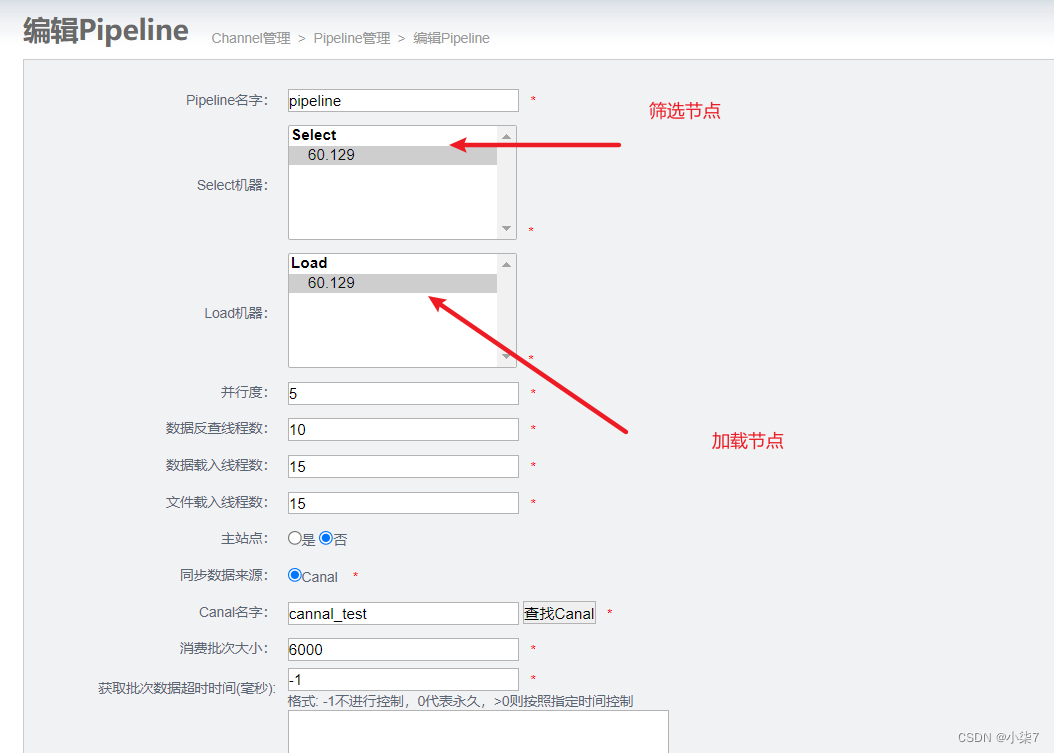

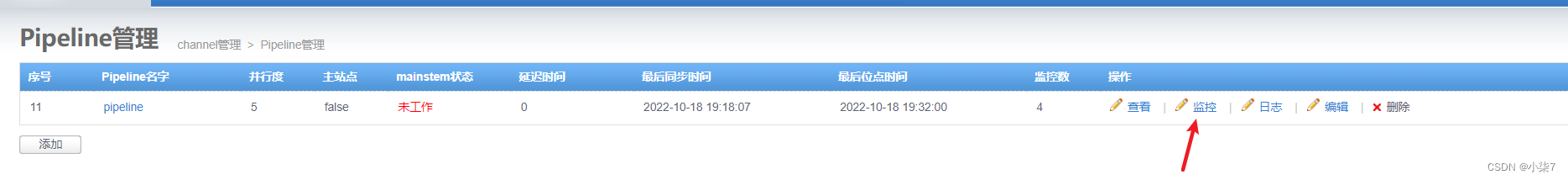

5. 点击channel配置具体的管道

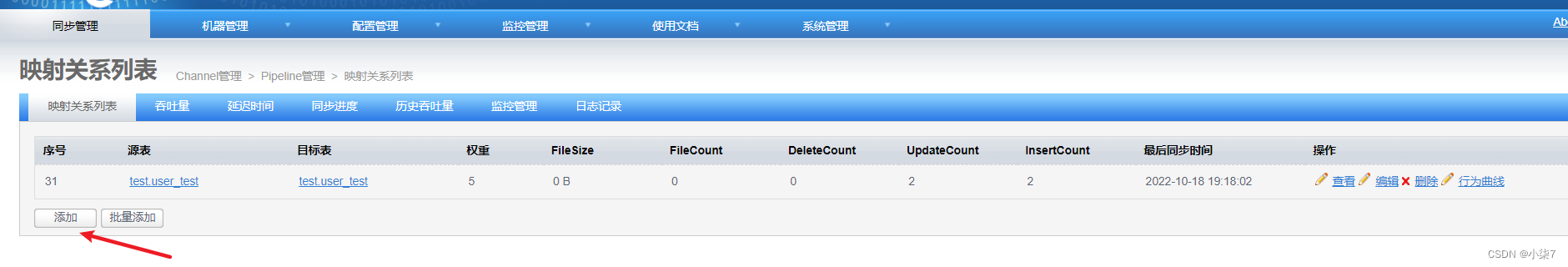

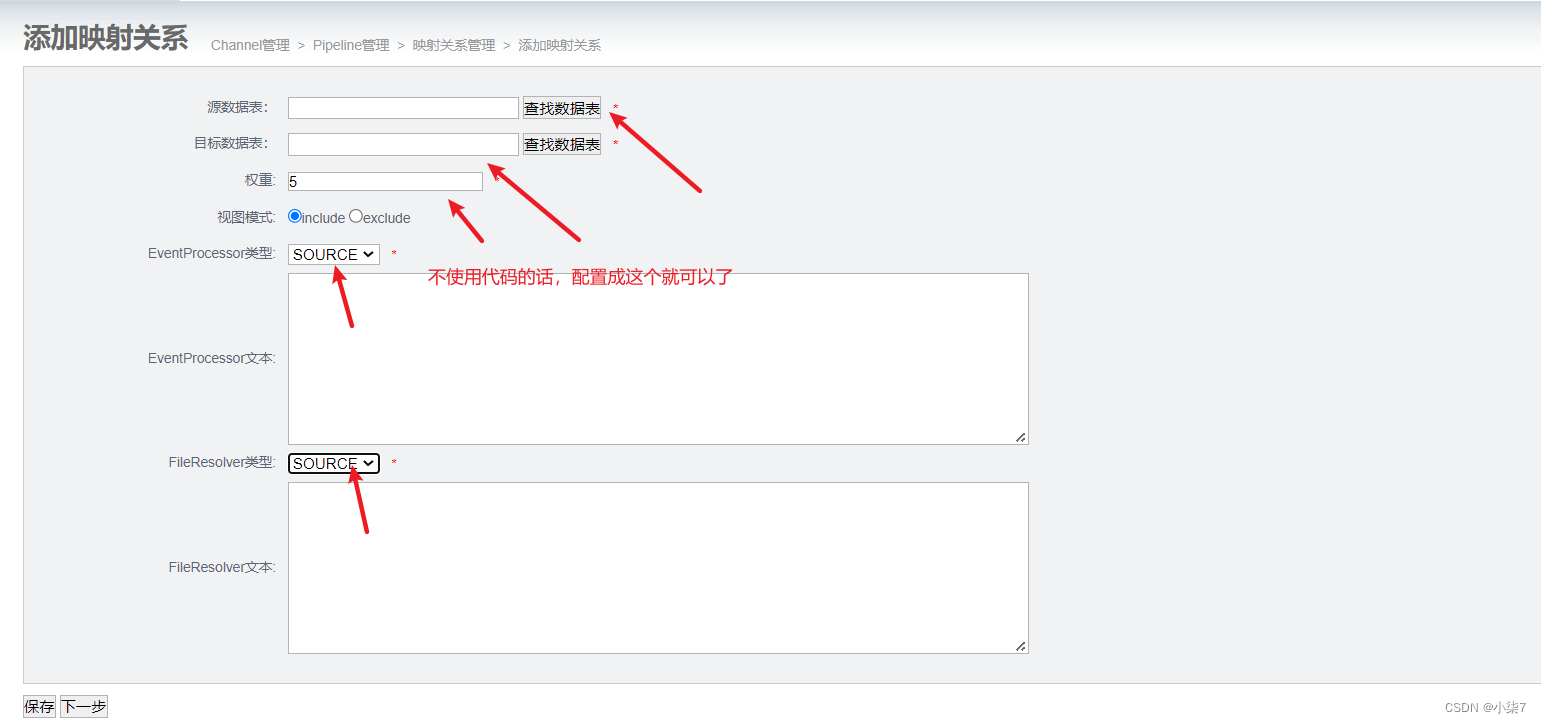

6. 管道建立好后进入管道，配置数据迁移的表映射关系


配置完后，启动channel，测试数据就可以了
